Pasion 6

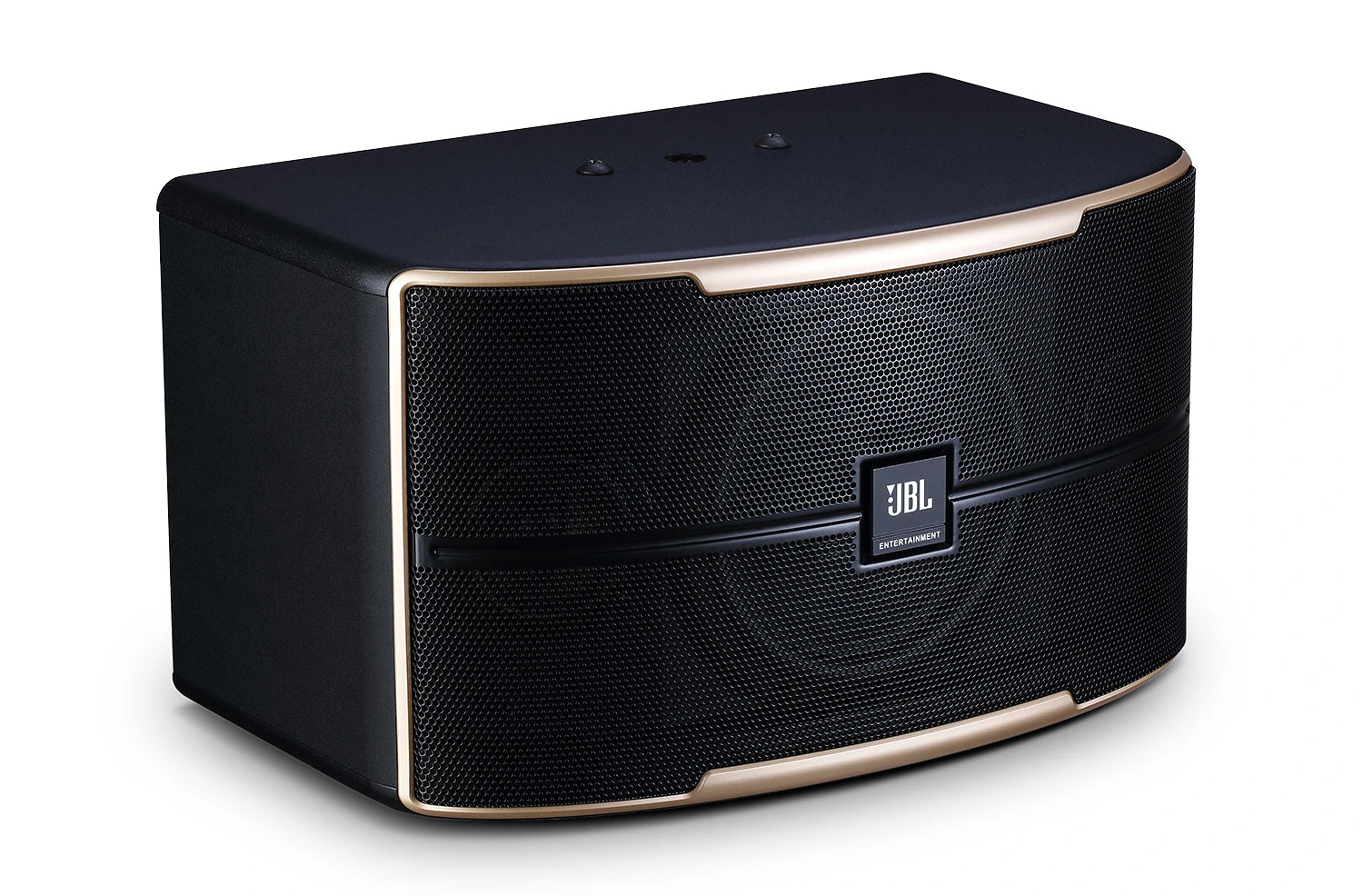

Passive 6.5” Full-Range Karaoke Loudspeaker

Pasion 6
较大的图像

Passive 6.5” Full-Range Karaoke Loudspeaker

The Pasión Series marks JBL’s next generation of karaoke speakers. Delivering JBL’s legendary performance, the Pasión 6 is a passive 6.5” full-range karaoke loudspeaker that is designed for sound reinforcement for commercial karaoke applications. As a premium KTV speaker, the Pasión 6 continues JBL’s pedigree as a leading karaoke-speaker brand.

With exceptional sonic clarity, the Pasión 6 is perfect for a wide array of karaoke venues and applications. The Pasión 6 features JBL’s signature karaoke tuning that offers outstanding vocal and bass performance for KTV environments. Plus, the speaker features two 3” high-efficiency tweeters and a specially-designed 6.5” woofer that provide excellent high-frequency response and high-power handling, low distortion and minimum power compression, respectively.

In addition to unmatched audio performance, the Pasión 6 features a premium, sleek design. Adding to the stylish look and feel, the 6 features an illuminated and rotatable JBL Entertainment logo, which allows venue owners to showcase the JBL brand and system quality. Altogether, with excellent audio performance and striking aesthetics, the JBL Pasión 6 enhances KTV venues and provides karaoke-goers a memorable karaoke experience.

特点

  • Passive 2-way, bass-reflex full-range karaoke loudspeaker
  • 6.5” low-frequency woofer and dual 3” high-frequency tweeters
  • Specially designed low-frequency woofer fitted with demodulating aluminum ring for high-power handling, low distortion and minimum power compression
  • Rated power of 100W and sensitivity of 87db offer unmatched output and sound quality
  • JBL signature karaoke tuning provides excellent vocal and bass performance
  • Sleek, stylish and modern design that is well-suited for a wide array of interior room designs
  • PSL (Passive Sound Lighting) Technology illuminates the rotatable JBL Entertainment logo

下载

  Version Language Size Uploaded
Specifications
file type icon Pasión 6 Spec Sheet
en updated: 12月 2020
  en  439.9 KB 12月 2020
file type icon Pasión 6 Spec Sheet CN
zh updated: 12月 2020
  zh  361.2 KB 12月 2020
Compliances
file type icon JBL Pasion Series EU Declaration fo Conformity
updated: 10月 2019
    314.2 KB 10月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统类型 2-way, Bass-Reflex
LF (1) x 6.5″ Woofer
HF (2) x 3″ Cone Tweeter
频率范围 (-10dB) 55 Hz - 17 kHz

频率响应

60Hz – 18kHz
阻抗 8 Ohms
Rated Power 100 W

灵敏度

87 dB
Maximum SPL (1m) 107 dB
Acoustic Port Rear Facing
Logo Rotatable, Illuminated
输入通道 Binding Post
ENCLOSURE CONSTRUCTION Vinyl Laminated MDF
