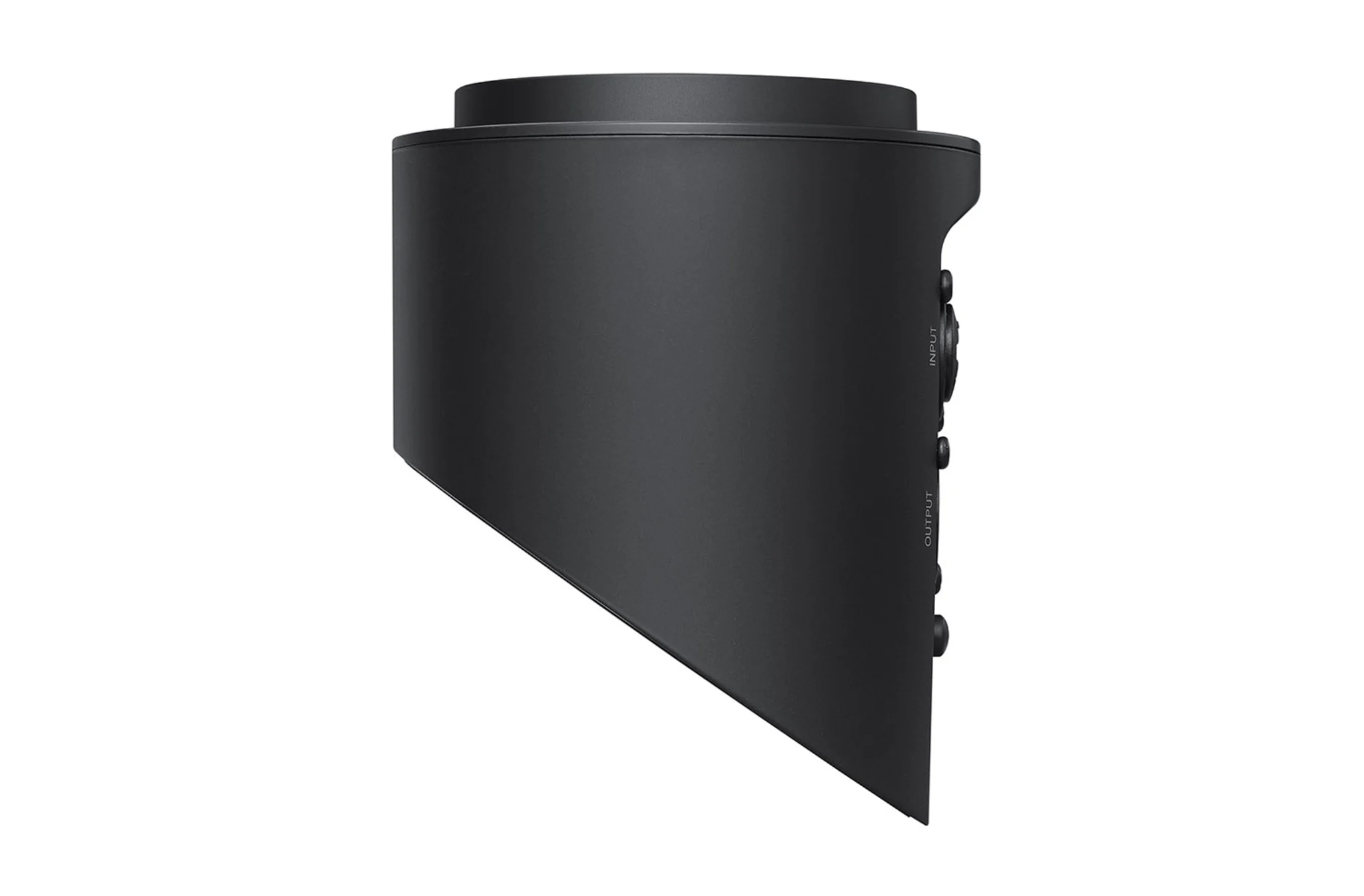

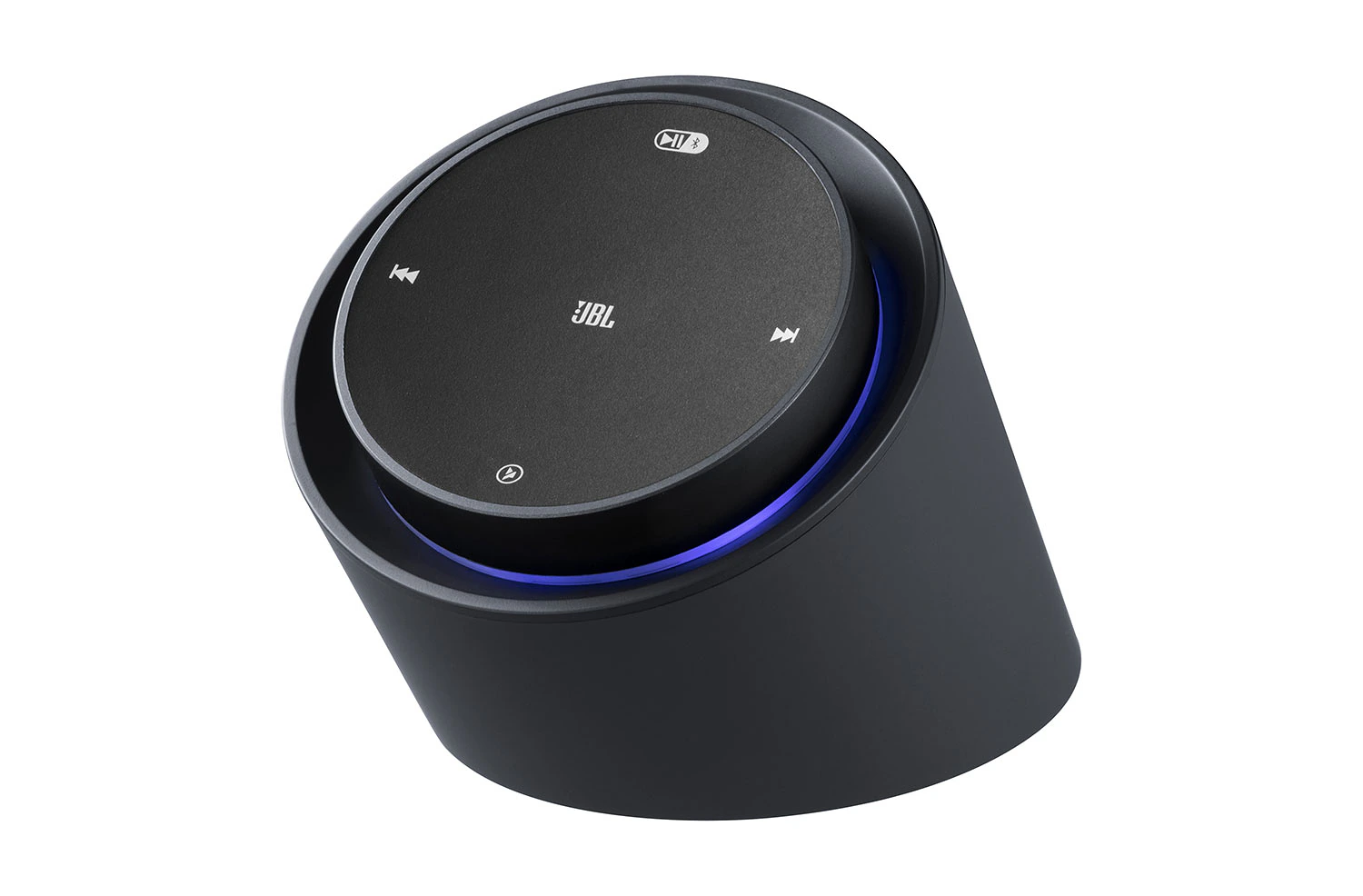

Nano KX (Available in China, APAC and India Only)

Bluetooth volume controller

Nano KX (Available in China, APAC and India Only)

Bluetooth volume controller that integrates Bluetooth streaming into non-Bluetooth systems

The JBL Nano KX Bluetooth-enabled volume controller is perfect for content creators, home-recording enthusiasts as well as mobile DJs and performers who want to integrate Bluetooth into their project studio or non-Bluetooth, portable PA system. With professional analog I/O and easy pairing of Bluetooth-enabled devices such as mobile phones and tablets, the Nano KX seamlessly integrates into your production space to provide non-Bluetooth speakers with wireless playback capabilities. Plus, the easy-to-use knob allows you to control volume levels of your signal, as well as advance tracks, pause and mute devices connected via Bluetooth.


  • Adds Bluetooth 3.0 wireless audio streaming to non-Bluetooth-capable production environments
  • Easy-to-use: one volume knob and practical design provide simple control
  • Illuminated level control ring for easy operation in low-light situations
  • Compact footprint and stylish design keeps your workspace uncluttered
  • Balanced XLR/TRS combo inputs and XLR outputs offer professional-grade connections and seamless compatibility with studio or PA equipment
  • 3.5mm auxiliary input and output for more connection flexibility
  • Powered via Mini-USB


  Version Language Size Uploaded
Data Sheets
file type icon Nano KX - Spec Sheet
updated: 10月 2019
    241.3 KB 10月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


输入端口 2x balanced/unbalanced XLR/TRS combo jacks
辅助输入 1x 3.5mm mini jack connector
最大输入电平 +10 dB


XLR/TRS combo >10K ohms 3.5mm mini jack >5K ohms
输出端口 2x XLR male balanced connectors
输出 - 辅助输出 1x 3.5mm mini jack connector
最大输出电平 > +10dB
阻抗 0-5K ohm
频率范围 20Hz – 20kHz (+1dB / -1dB)
针对噪音的信号 Better than -120dB
Channel Crosstalk > -95dB
失真 <0.01%
Dimensions W x D x H 116.5mm x 95mm x 95mm
New Weight / Gross Weight 0.42 kg / 0.55 kg
