12-Inch Two-Way Line Array Loudspeaker System

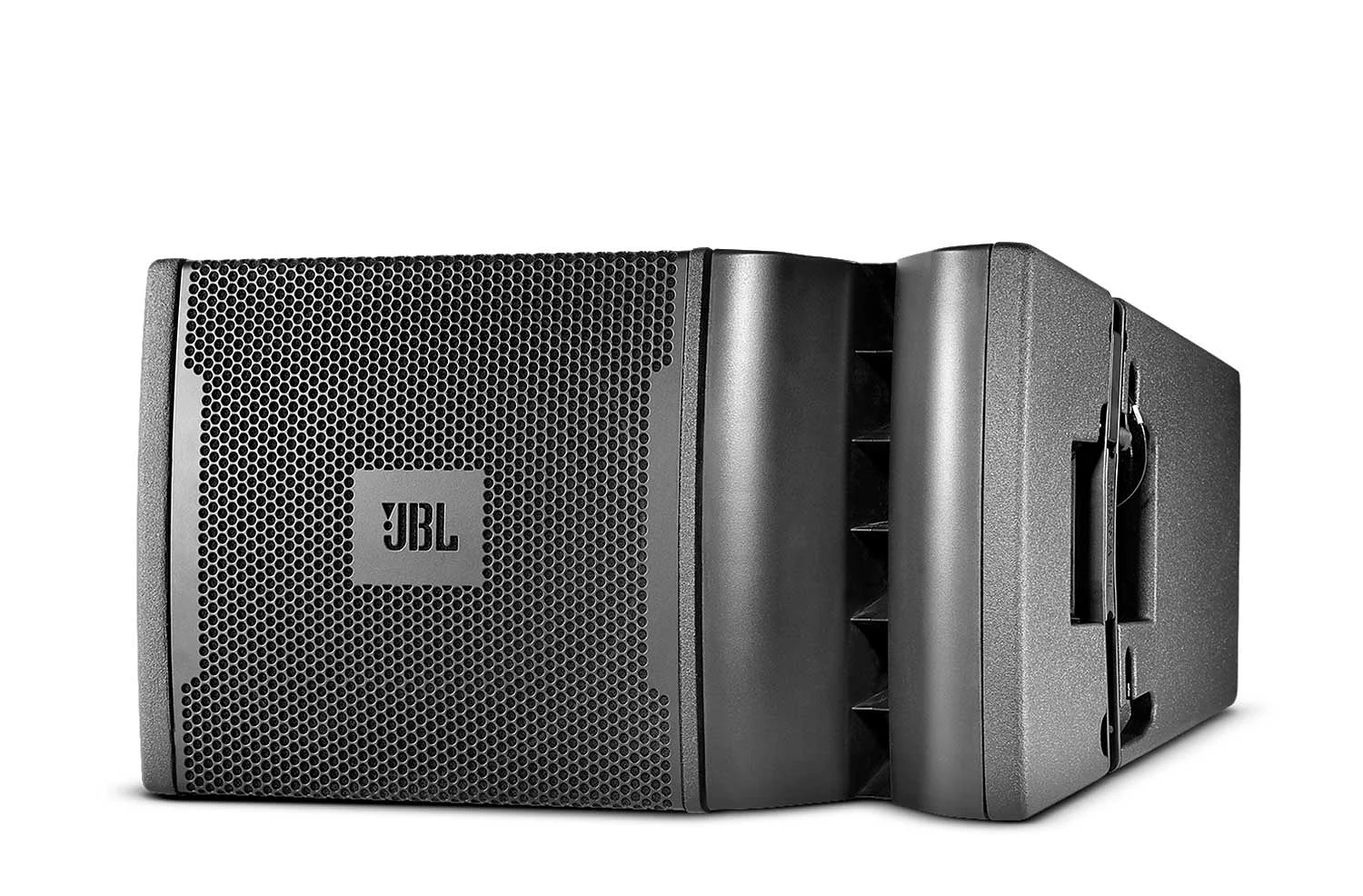

The MG1932 is a lightweight compact 12" two-way line array speaker system designed for use in arrays of up to six units.


  • Constant Curvature Array for unprecedented array coherence
  • Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array
  • Differential Drive® Woofer realizes optimal acoustic performance and lightweight of the entire unit
  • Integral suspension and rigging hardware for simple installation
  • Dual Angle Pole Socket - JBL's dual angle pole sockets allow great flexibility in aiming the enclosure


  Version Language Size Uploaded
file type icon MG Series Leaflet CN
updated: 12月 2019
    1.4 MB 12月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


系统类型 12-inch, 2-Way
Coverage 100° × 15°(H×V)
频率范围 (-10dB) 57 Hz - 20 kHz
分频点 1.2 kHz
标称阻抗 Passive: 8 Ω Bi-amp LF: 8 Ω Bi-amp HF: 8 Ω
Power Rating *1(Continuous / Program / Peak) Passive: 800W/1600W/3200W Bi-amp LF: 800W/1600W/3200W Bi-amp HF: 75W/150W/300W
Maximum SPL *2 Passive: 130 dB Bi-amp LF: 130 dB Bi-amp HF: 139 dB


349 mm × 597 mm × 376 mm
重量 21 kg
