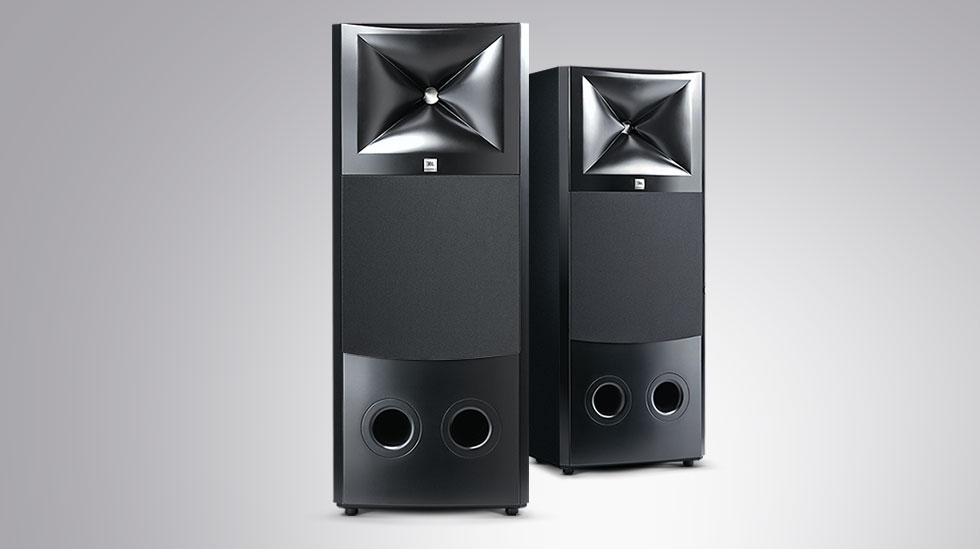

M2 Master Reference Monitor

Addressing the growing need for high dynamic range and reference-monitor accuracy in a broad range of studios, JBL has developed the M2 Master Reference Monitor: A Free-Standing, 2-Way System that can be placed in any environment to provide an exceptionally accurate monitoring experience. Leveraging a new generation of JBL high-output, ultra-low distortion transducers, the M2 provides in-room frequency response of 20 Hz to 40 kHz, and an extraordinary 123 dB maximum SPL to meet the demanding music, cinema and broadcast production requirements for impactful dynamic range.



特点

  • The Ultimate High Frequency Driver for Critical Reference Monitoring Extended HF Reproduction Smooth Response High Power Handling Measurably Lower Distortion Reduced Power Compression Increased
    Dynamic Headroom
  • Exceptional Low Frequency Extension, High Output, Very Low Power Compression, Very Low Distortion
  • Impressive Imaging and Sound Stage, Exceptional High Frequency Detail, Uniform Directivity for Smooth In-Room Response, Patent Pending Design
  • LSR Linear Spatial Reference Design
  • Small Footprint, Extended Bass Performance, Patented Low Frequency Port Design


更多详情

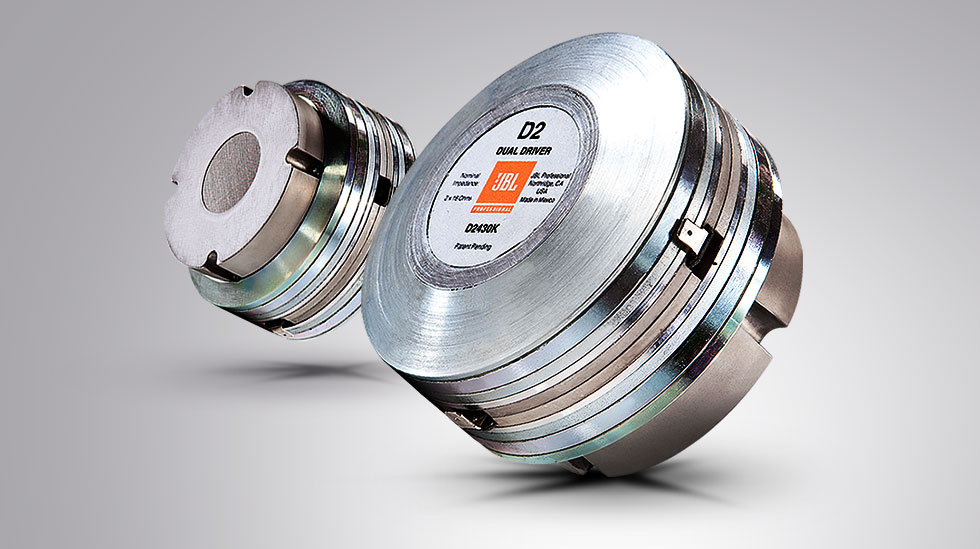

D2 DUAL DIAPHRAGM DUAL VOICE COIL COMPRESSION DRIVER

The Ultimate High Frequency Driver for Critical Reference Monitoring, Extended HF Reproduction, Smooth Response, High Power Handling Measurably Lower Distortion, Reduced Power Compression, Increased Dynamic Headroom

LEARN MORE

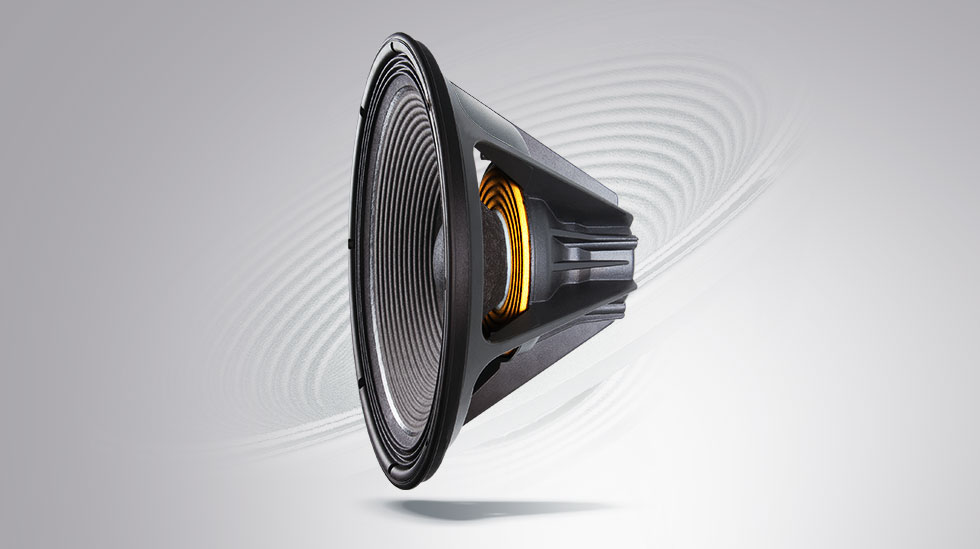

DIFFERENTIAL DRIVE® TECHNNOLOGY
Enhanced Performance and Exceptional Low Frequency Extension, High Output, Very Low Power Compression, Very Low Distortion

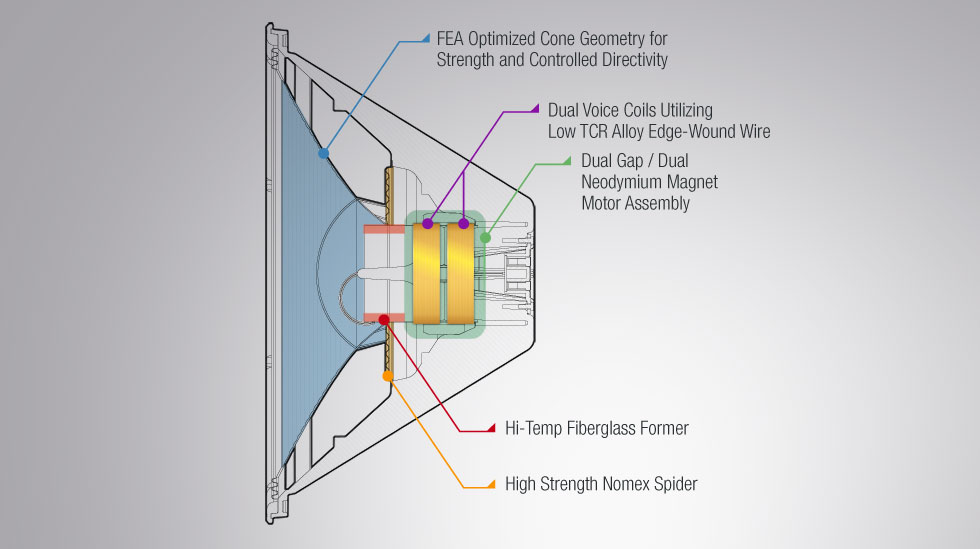

Achieving extended, rich low frequency performance within the M2 system design parameters required additional JBL engineering innovations, and the 2216Nd in the M2 is no “off-the-shelf” woofer. It employs no less than five patented technologies to allow bass extension to the limits of the audible range, and high output, free of power compression that is detrimental to a system’s low frequency performance. Echoing the “dual driver” design of the D2, the 2216Nd utilizes dual neodymium magnets and two voice coils. To ensure the ultimate performance, even the use of special wire in the 2216 voice coils is a JBL patented application.

LEARN MORE

IMAGE CONTROL WAVEGUIDE
Impressive Imaging and Sound Stage, Exceptional High Frequency Detail, Uniform Directivity for Smooth In-Room Response

To support an imperceptible transition between the two drivers, and deliver exceptional imaging, JBL engineers pioneered a new patent-pending waveguide design that enables neutral frequency response, not just on-axis, but off-axis in the vertical and horizontal planes, all the way down to the M2’s 800 Hz crossover point.

LEARN MORE

LSR LINEAR SPATIAL REFERENCE DESIGN

We all know that many loudspeakers have similar measurements but sound different. By going beyond simple on-axis frequency response measurements, JBL defines the ultimate performance specification for new systems – what it will sound like in your room. At the mix position, you hear a combination of direct sound and sound reflected from the rooms surfaces. For sound arriving at the mix position to be smooth and neutral, it is not enough for a speaker to measure “flat” on-axis; it is essential the speaker have excellent off-axis performance.

LEARN MORE

M2 ENCLOSURE
Small Footprint, Extended Bass Performance, Patented Low Frequency Port Design

Extended low frequency performance and high SPL can be the formula for unwanted resonance. The M2 enclosure is constructed of rigid 1" MDF and with the aid of JBL’s interferometer, extensively braced for rock-solid stability at the system’s full rated power. The enclosure incorporates a JBL patented Slipstream port design with internal flares that ensure low frequency efficiency while eliminating noise caused by port turbulence. Architecturally elegant, the M2 enclosure occupies a relatively small footprint, and can be transported to various working environments.

System Integration

System Integration

While offering exceptional accuracy “out of the box,” the power of the M2 is fully realized with its intelligent in-room tuning and integration capabilities, ensuring optimum performance in your listening environment.

评论

下载

  Version Language Size Uploaded
Manuals
file type icon M2 Set Up Instructions
updated: 10月31日
    969.3 KB 10月31日
Brochures
file type icon M2 Brochure
updated: 10月23日
    6.5 MB 10月23日
Compliances
file type icon LSR Series M2 Declaration of Conformity
updated: 10月18日
    119.0 KB 10月18日
Software
platform icon HiQnet Audio Architect
updated: 11月10日
    11月10日
Speaker Tunings
file type icon 7 Series and M2 Crown DCi Tuning
updated: 2月24日
    175.7 KB 2月24日
file type icon M2 Crown iTech5000HD Tuning Files
updated: 2月24日
    21.2 KB 2月24日
file type icon M2 System File BSS Soundweb London BLU800 Tunings
updated: 2月24日
    389.5 KB 2月24日
file type icon M2 Base V2 Config iTech 4X3500HD Device File
updated: 10月22日
    31.7 KB 10月22日
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月15日
    21.0 MB 3月15日
Owner's Manuals
file type icon M2 Owner's Manual
version A, updated: 1月15日
  1.6 MB 1月15日
Images
file type icon Port Detail
updated: 1月15日
    42.7 KB 1月15日
file type icon D2 Compression Driver
updated: 1月15日
    100.3 KB 1月15日
file type icon M2 pair
updated: 1月15日
    37.2 KB 1月15日
file type icon Differential Drive Callouts
updated: 1月15日
    56.5 KB 1月15日
file type icon Differential Drive Woofer
updated: 1月15日
    51.3 KB 1月15日
file type icon Image Control Waveguide
updated: 1月15日
    44.6 KB 1月15日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

System Format 2-Way Floor Standing or Soffit Mountable
HF 驱动程序 D2430K Dual Diaphragm Dual Voice Coil Compression Driver
低频驱动单元 2216Nd 15 in (381 mm) Differential Drive® Woofer
分频点 800 Hz
Frequency Response (±3 dB) 20 Hz - 40 kHz
覆盖角度 120° H x 100° V

灵敏度

92 dB
Continuous/Peak SPL@ 1m 117 dB /123 dB; 108 dB Peak SPL @ 8m
The System Requires One Crown® iTech 5000HD power amp for each speaker, or One Crown® iTech 3x3500HD power amp for two (2) speakers.
Amplifier Power Rating 1,200 Watts into 8 ohms
输入接口 Spring Terminals
Enclosure 25 mm (1 in) MDF
外观颜色 Satin Black Lacquer
Included Removable ABS Grille with Black UL Compliant Fabric
尺寸(W × H × D) 508mm x 1256mm x 355.6mm (20in x 49.5in x 14in)
Net Weight (each) 58.5 kg (129 lb)
最大SPL峰值 123 dB
Maximum Continuous SPL 117 dB
