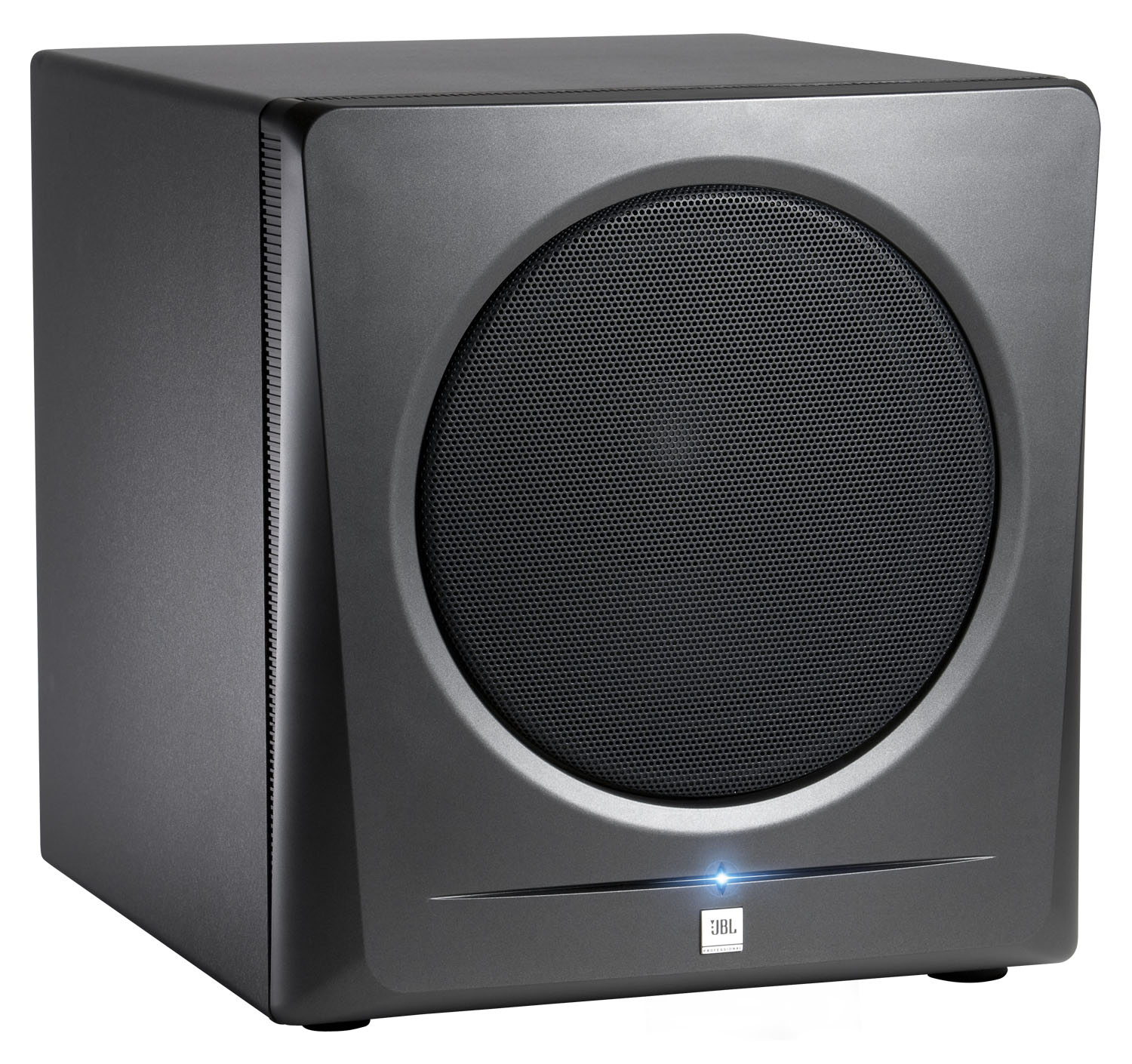

LSR2310SP (停产)

10" Powered Studio Subwoofer

较大的图像

10" Powered Studio Subwoofer

The LSR2310SP Powered Studio Subwoofer is based on a 10" long excursion woofer and a 180 watt power amplifier. Added to a stereo system, it extends the low frequency response of the system below 30Hz. In a surround sound system the sub provides stunning reproduction of the LFE (low frequency effects) channel. The LSR2310SP is packed with professional features including two sets of balanced XLR, 1/4" and unbalanced RCA input connectors, selectable crossover settings and two sets of balanced outputs to allow connection of Left and Right main speakers. A detented level control allows independent adjustment of the subwoofer output to balance the subwoofer in the system.

特点

  • Two sets of balanced XLR, 1/4" and unbalanced RCA input connectors
  • Magnetic Shielding
  • Level Control

下载

  Version Language Size Uploaded
Manuals
LSR2300 User's Guide French
fr updated: 10月23日
  fr  5.9 MB 10月23日
LSR2300 User's Guide German
de updated: 10月23日
  de  5.8 MB 10月23日
LSR2300 User's Guide Spanish
es updated: 10月23日
  es  5.9 MB 10月23日
Brochures
LSR2300 Brochure
updated: 7月16日
    1.4 MB 7月16日
Compliances
LSR2300 Series Declaration of Conformity
updated: 10月18日
    127.5 KB 10月18日
Images
LSR2310SP High Res Photo
updated: 7月16日
    364.6 KB 7月16日
Install Guides
R&B Mounting Brackets
updated: 10月02日
    26.2 KB 10月02日
User Guides
LSR2300 Users Guide
updated: 7月16日
    5.9 MB 7月16日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率范围 28 Hz - 2kHz
Max SPL Continous > 104 dB
Max SPKL Peak > 113 dB
Drivers (LF) 10" (254 mm) 230H
输入连接器 L&R: Balanced XLR, 1/4" TRS, RCA
输出连接器 L&R: Balanced XLR, 1/4" TRS
Selectable Crossover 80 Hz / 120 Hz / External
Amplifier Power Rating LF:180 W
输入的灵敏度 92 dB SPL / 1m@ -10dBV Balanced Input(80 Hz Crossover)
Enclosure 18 mm (3/4 in) MDF
外观颜色 Metallic Anthracite Pain / Dark Matte Black PVC
尺寸(高 x 宽 x 厚) 415 mm x 381 mm x 438 mm (16.12 in x 15 in x 17.25 in)
净重量 20.7 kg (45.5 lb)
