LSR2310SP
បានបញ្ឈប់

10" Powered Studio Subwoofer

រូបភាពធំជាង

10" Powered Studio Subwoofer

The LSR2310SP Powered Studio Subwoofer is based on a 10" long excursion woofer and a 180 watt power amplifier. Added to a stereo system, it extends the low frequency response of the system below 30Hz. In a surround sound system the sub provides stunning reproduction of the LFE (low frequency effects) channel. The LSR2310SP is packed with professional features including two sets of balanced XLR, 1/4" and unbalanced RCA input connectors, selectable crossover settings and two sets of balanced outputs to allow connection of Left and Right main speakers. A detented level control allows independent adjustment of the subwoofer output to balance the subwoofer in the system.

លក្ខណៈពិសេស

  • Two sets of balanced XLR, 1/4" and unbalanced RCA input connectors
  • Magnetic Shielding
  • Level Control

ការទាញយក

Manuals
  ភាសា ទំហំ បានផ្ទុកឡើង
file type icon LSR2300 User's Guide French
fr បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019
fr  5.92 MB តុលា 2019
file type icon LSR2300 User's Guide German
de បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019
de  5.82 MB តុលា 2019
file type icon LSR2300 User's Guide Spanish
es បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019
es  5.92 MB តុលា 2019
Brochures
  ទំហំ បានផ្ទុកឡើង
file type icon LSR2300 Brochure
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
1.37 MB តុលា 2020
Compliances
  ទំហំ បានផ្ទុកឡើង
file type icon LSR2300 Series Declaration of Conformity
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019
127 KB តុលា 2019
Images
  ទំហំ បានផ្ទុកឡើង

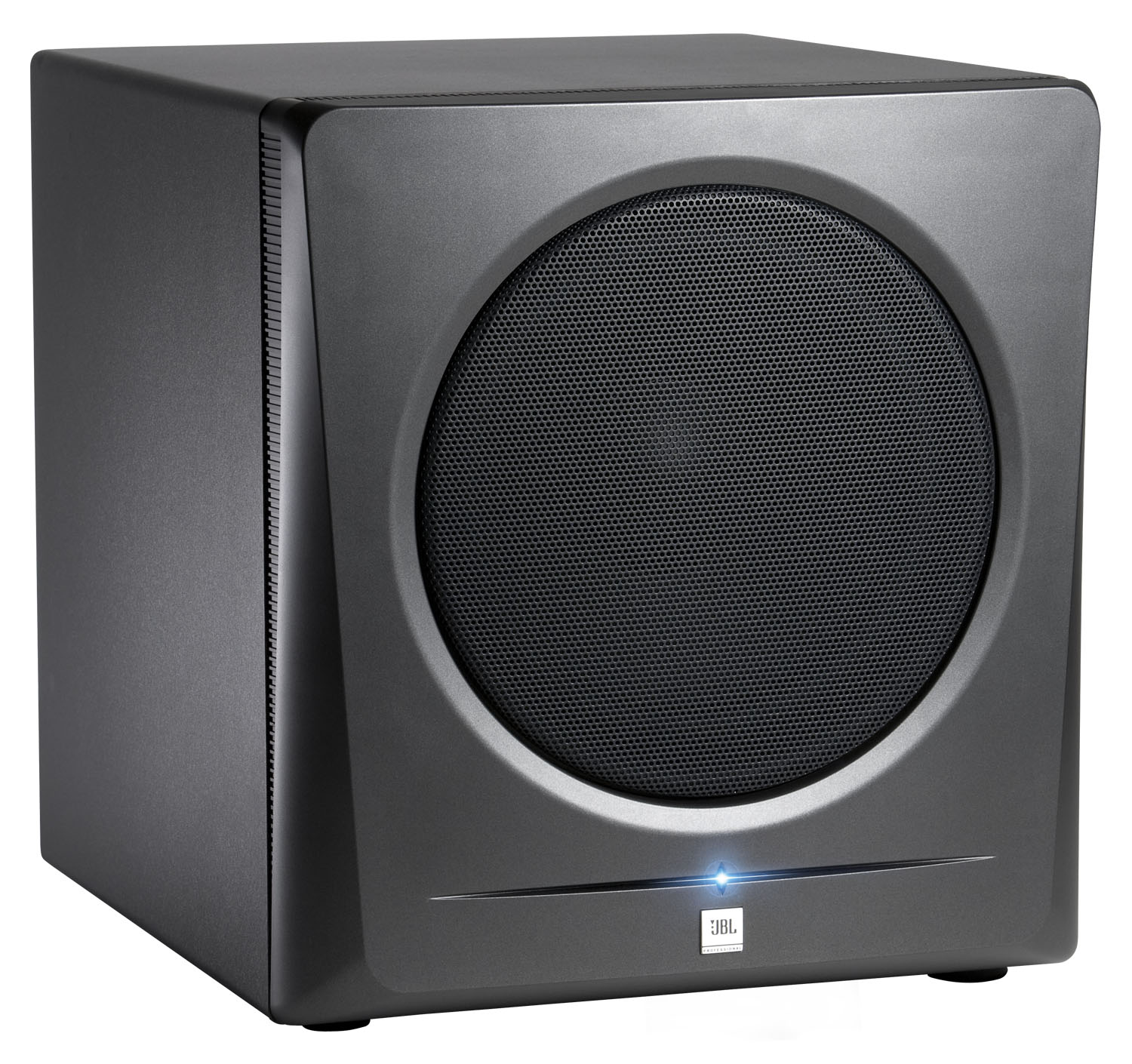

file type icon LSR2310SP High Res Photo
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
365 KB តុលា 2020
Install Guides
  ទំហំ បានផ្ទុកឡើង
file type icon R&B Mounting Brackets
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
26.2 KB តុលា 2020
User Guides
  ទំហំ បានផ្ទុកឡើង
file type icon LSR2300 Users Guide
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
5.91 MB តុលា 2020

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Frequency Range 28 Hz - 2kHz
Max SPL Continous > 104 dB
Max SPKL Peak > 113 dB
Drivers (LF) 10" (254 mm) 230H
Input Connectors L&R: Balanced XLR, 1/4" TRS, RCA
Output Connectors L&R: Balanced XLR, 1/4" TRS
Selectable Crossover 80 Hz / 120 Hz / External
Amplifier Power Rating LF:180 W
Input Sensitivity 92 dB SPL / 1m@ -10dBV Balanced Input(80 Hz Crossover)
Enclosure 18 mm (3/4 in) MDF
Finish Metallic Anthracite Pain / Dark Matte Black PVC
Dimensions (H x W x D) 415 mm x 381 mm x 438 mm (16.12 in x 15 in x 17.25 in)
Net Weight 20.7 kg (45.5 lb)
