KPS1

10” Two-Way Full Range Speaker System

较大的图像

10” Two-Way Full Range Speaker System

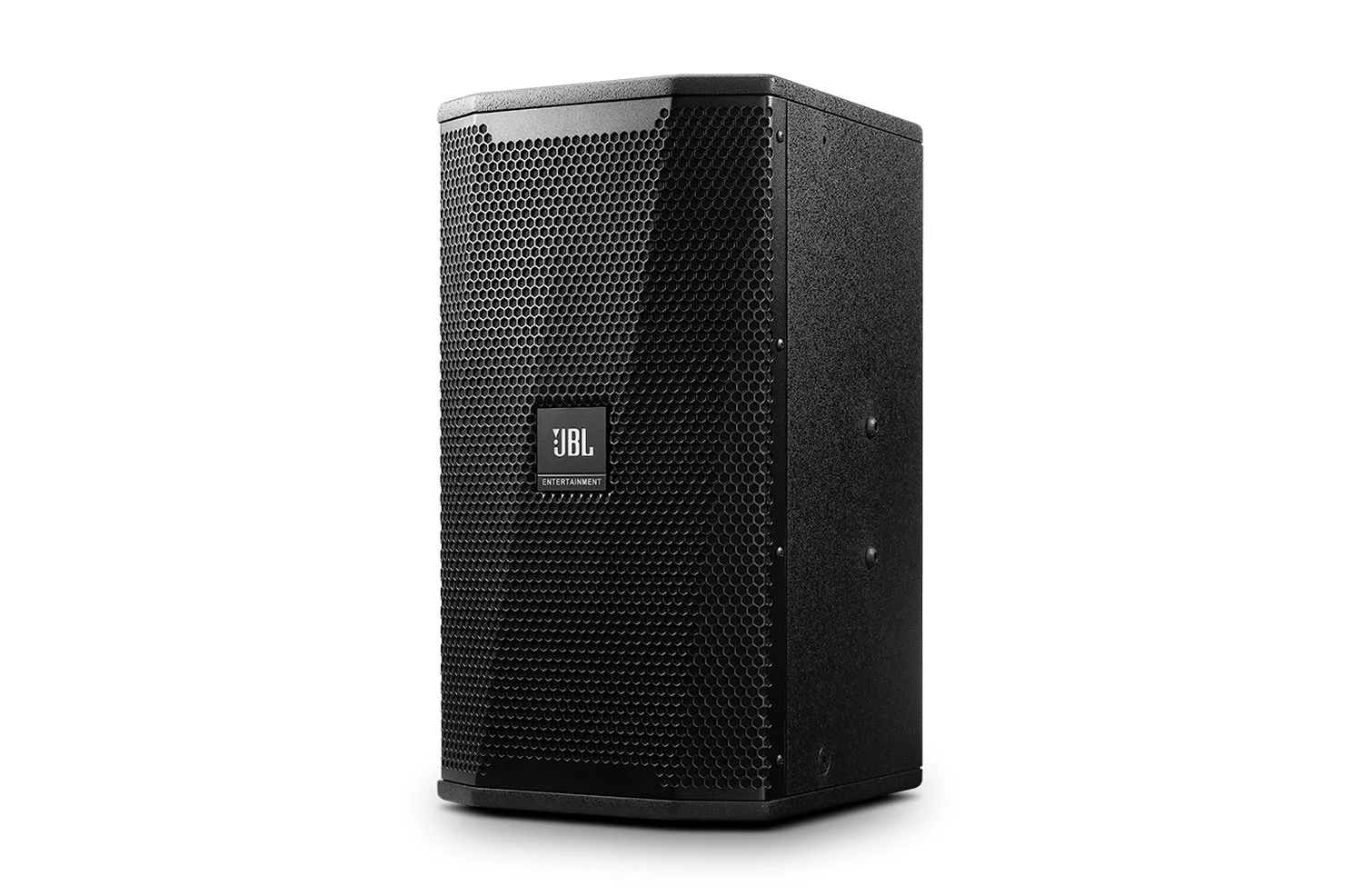

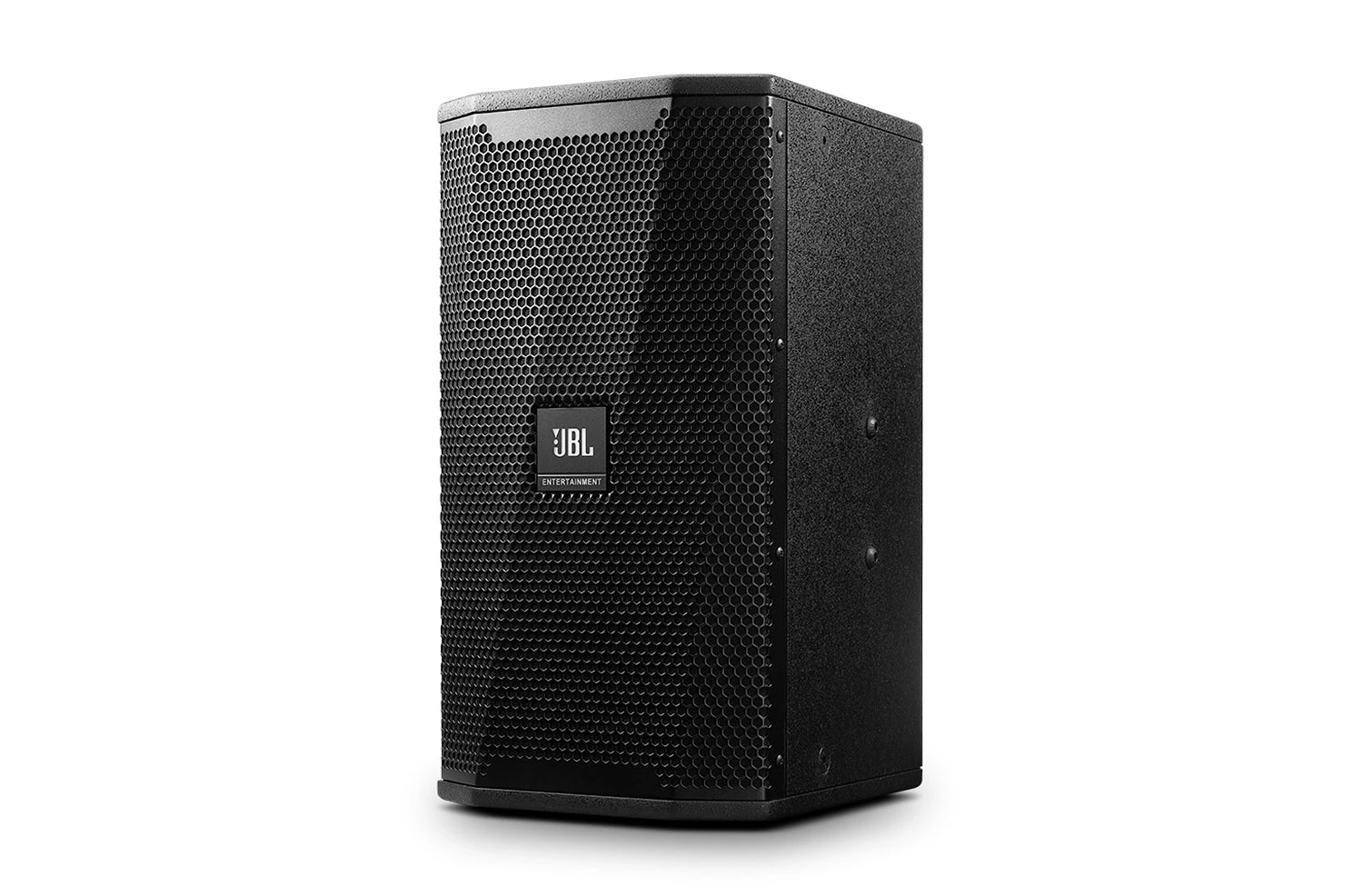

KPS1 is a 10” two-way full range speaker system designed for sound reinforcement at karaoke lounges and nightclubs.

The two-way system uses a 10” (254 mm) woofer equipped with an optimum demodulating/cooling ring, and a 1” (25.4 mm) 2414H NdFeB magnet high frequency compression driver, therefore, is capable of reproducing powerful music and pristine vocal in high fidelity and volume. A high-order passive network eliminates band overlap and brings subtle vocal details into full play. Whenever the speaker is positioned in landscape or portrait mode, the 70° × 100° (H × V) horn ensures smooth and even coverage across the entire space.

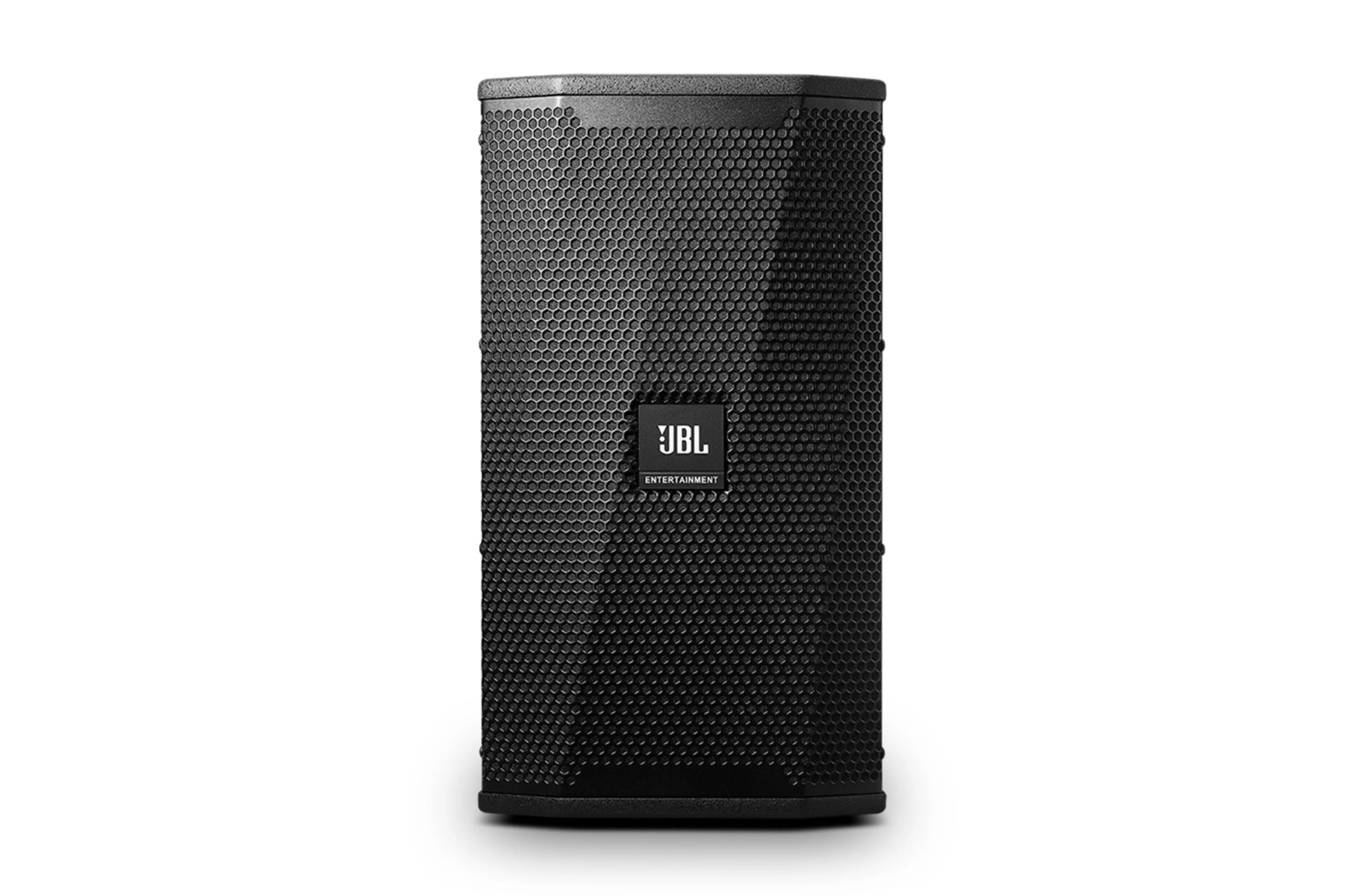

KPS1 constructs its trapezoid enclosure from 15 mm premium quality board and improves its internal structure and transducer layout after rounds of simulations and tests. Multiple high-strength suspension points and an OmniMount socket are available for either flying installation or pole mounting of the system. To protect the system from human damage and drink splash, dent-free steel backed with acoustically transparent cloth is used for the grille. Convex edges slant through the front grille, enhancing aesthetic appeal of the piece and making it easier to blend with any room décors. A new identification of JBL speakers, the luminous JBL logo by PSL (Passive Sound Lighting) technology  will be constantly on when audio signal is present, and is adjustable to fit different installation orientations.

特点

  • Specially designed 10” woofer with demodulating aluminum ring for high power handling, low distortion and minimum power compression
  • JBL 2414H NdFeB magnet HF compression driver for clear and accurate midrange vocal rendering
  • 70° × 100° (H × V) coverage pattern for even and smooth response on and off axis
  • Stylish front grille design for neutral blend with different room décors
  • Rotatable JBL lighting logo to fit different installation orientations
  • Multiple suspension points for flying installation
  • OmniMount socket for pole mounting
  • Sound reinforcement for karaoke lounges and nightclubs
  • High-performance satellite speaker for use with subwoofers

下载

  Version Language Size Uploaded
Brochures
Karaoke Catalogue Brochure
updated: 10月22日
    4.1 MB 10月22日
Spec Sheets (Pdf)s
KPS1 Spec Sheet - EN
updated: 12月02日
    425.0 KB 12月02日
KPS1 Spec Sheet - CN
updated: 12月02日
    644.9 KB 12月02日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Frequency Response (-10dB) 50 Hz - 20 kHz
Frequency Response (±3 dB) 85 Hz - 19 kHz
覆盖范围 70° × 100° (H × V)
系统额定功率 300 W / 600 W / 1200 W (continuous / program / peak)
Maximum SPL (1m) 120 dB continuous average (128 dB peak)
System Sensitivity 95 dB
标称阻抗 8 Ohms
低频驱动单元 1 × 10″ (254 mm) wooferr
HF 驱动程序 1 × 2414H (1″ or 25.4 mm) Dome Polymer Diaphragm NdFeB magnet Compression Driver
Enclosure Trapezoidal, 15 mm board
Suspension Attachment 13 points, M10 threaded hardware; 35mm OmniMount pole mount socket
外观颜色 Textured paint, black
网罩 Powder coated, 1.2 mm perforated steel, with acoustically transparent black cloth backing
Input Connector 1 × NL4 Neutrik Speakon®
尺寸(高 x 宽 x 厚) 537 × 300 × 340 mm
净重量 15.6 kg
