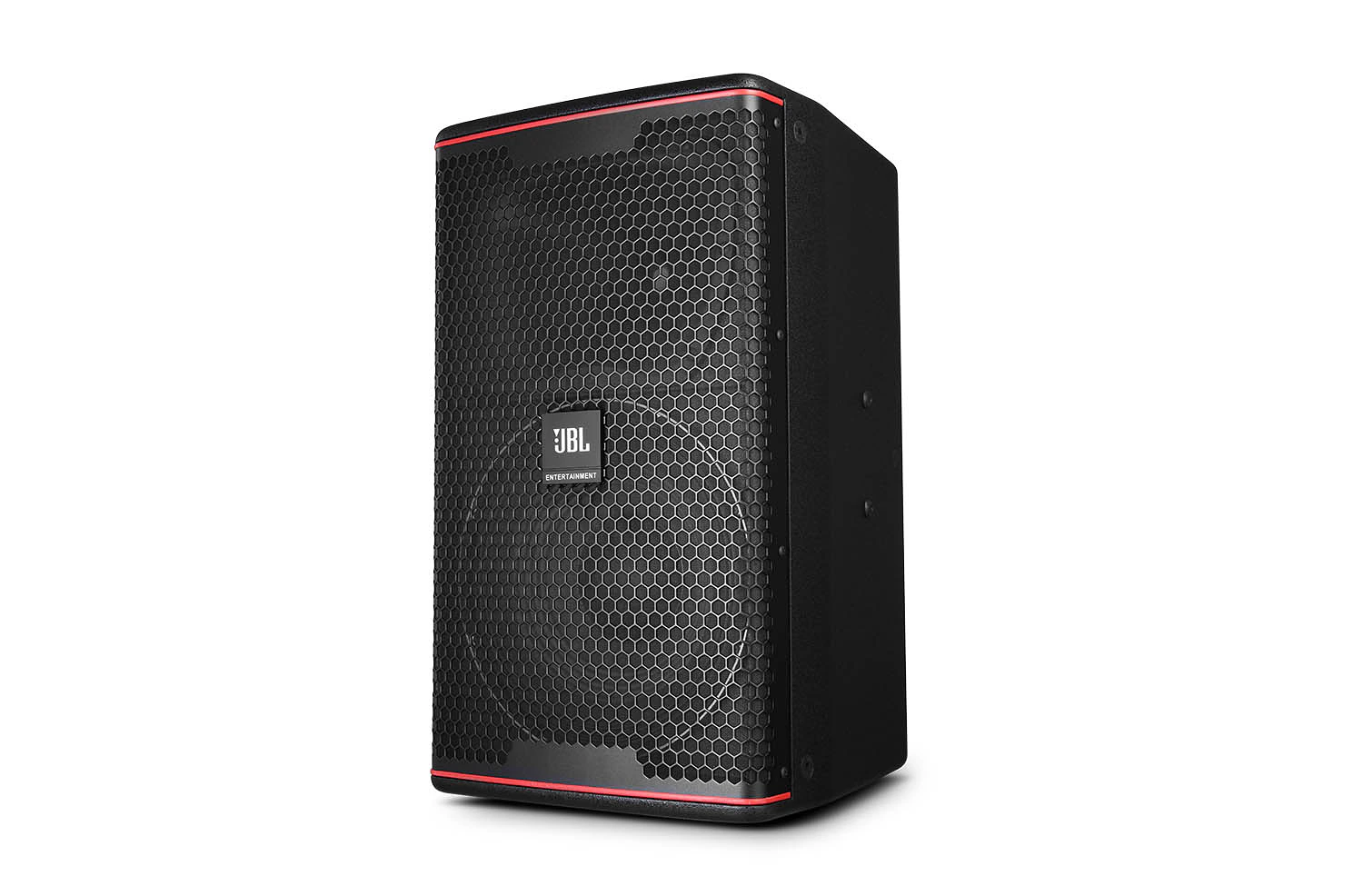

Passive 12” 2-Way, Full-Range Karaoke Loudspeaker


Passive 12” 2-Way, Full-Range Karaoke Loudspeaker

Continuing JBL Entertainment’s iconic heritage in karaoke speakers and audio performance, the JBL KP8052 is a premium 12” passive, high-output, full-range loudspeaker for KTV applications and installations. The speaker follows in the footsteps of its predecessor—the KP6052—as it features excellent vocal and bass performance and JBL’s standard of reliability in a reimagined, modern, sleek design.

Featuring JBL’s signature KTV tuning, the KP8052 delivers the legendary sound that karaoke-goers and venue owners know and love. In addition to outstanding audio quality, the KP8052 features a fresh, striking form factor that matches the rest of the KP G2 Series. With this uniform look, you can mix and match models from across the portfolio to create a premium KTV system. Plus, the KP8052 includes a rotatable, illuminated JBL Entertainment logo, which allows you to showcase the presence of the renowned JBL brand in your venue. Altogether, with pristine audio and striking aesthetics, the KP8052 enhances KTV venues and provides a memorable karaoke experience.



  • Passive 2-way, bass-reflex full-range karaoke loudspeaker
  • 12” Differential Drive® woofer with high-power handling and lightweight design
  • 1.5” annular polymer diaphragm compression driver
  • SonicGuard™ protects high-frequency driver from excess power without sacrificing audio quality
  • JBL signature karaoke tuning provides excellent vocal and bass performance
  • Precision-engineered crossover delivers enhanced vocal clarity
  • Sleek, modern design that is well-suited for a wide range of KTV applications and installations
  • PSL (Passive Sound Lighting) Technology illuminates rotatable JBL Entertainment logo
  • Single-position pole socket for applications that require pole mounting


  Version Language Size Uploaded
Spec Sheets
file type icon KP8052 Spec Sheet
updated: 12月 2019
    578.5 KB 12月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


系统类型 12”, 2-way, Bass-Reflex
频率范围 (-10dB) 55 Hz – 20 kHz
Frequency Response (±3 dB) 80 Hz – 20 kHz


96 dB
标称阻抗 8 Ohms
Maximum SPL (1m) 125 dB (131 dB peak)
额定功率 Continuous: 500W Program: 1000W Peak: 2000W
覆盖范围 70° x 60° (H x V)
尺寸(高 x 宽 x 厚) 604 mm x 350 mm x 397 mm (23.8 in x 13.8 in x 15.6 in)
净重量 17.7 Kg (39.0 lbs.)
低频驱动单元 1 x 12” JBL 2262H
HF 驱动程序 1 x 1.5” JBL2408H-1
输入接口 2 x Neutrik® Speakon® NL4MP
ENCLOSURE CONSTRUCTION Trapezoid, 15 mm, plywood
