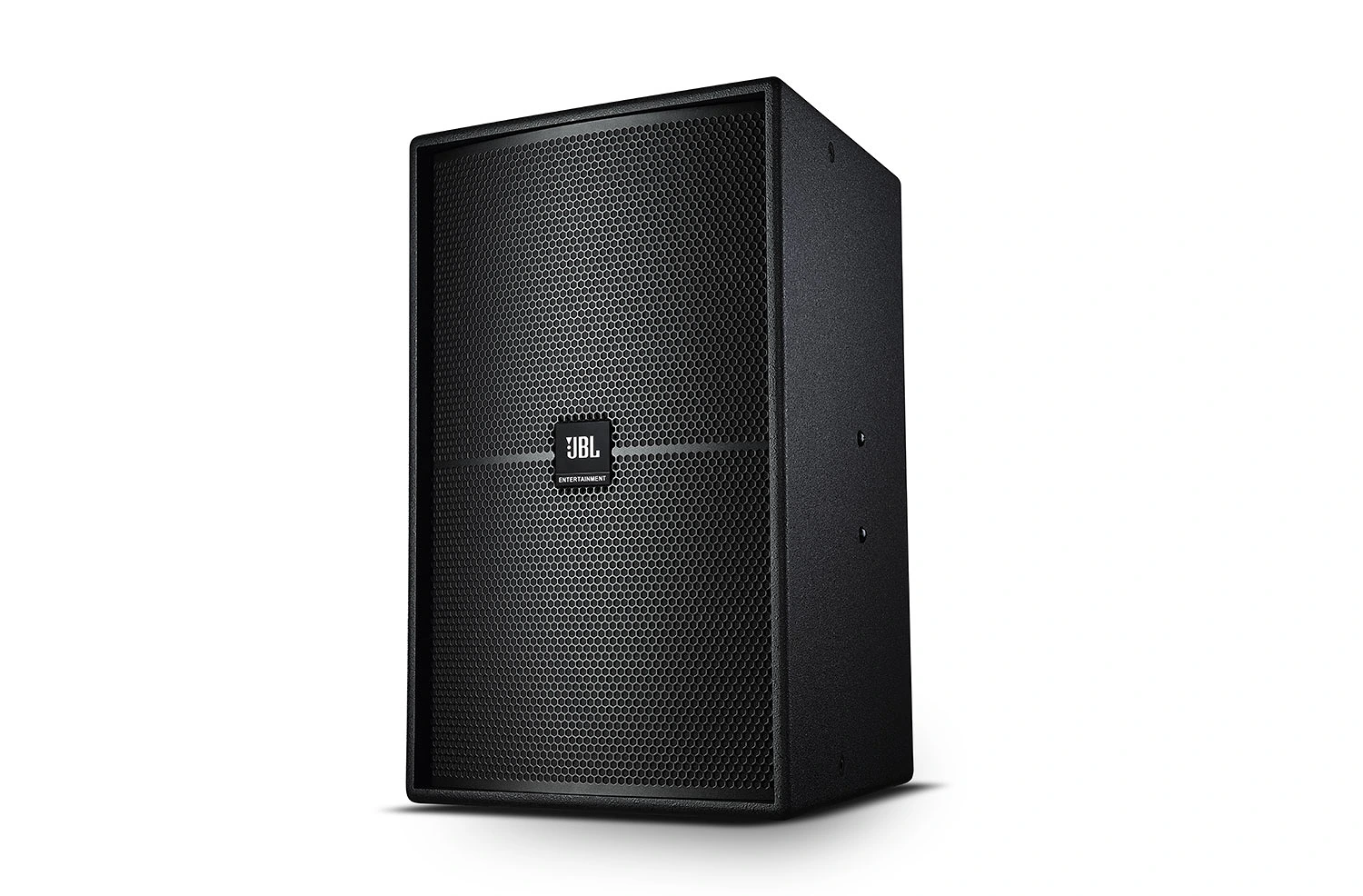

KP2015G2

Passive 15” 2-Way, Full-Range Karaoke Loudspeaker

KP2015G2
较大的图像
family

Passive 15” 2-Way, Full-Range Karaoke Loudspeaker

Continuing JBL Entertainment’s iconic heritage in karaoke speakers and audio performance, the JBL KP2015G2 is a premium 15” passive, high-output, full-range loudspeaker for KTV applications and installations. The speaker follows in the footsteps of its predecessor—the KP2015—as it features excellent vocal and bass performance and JBL’s standard of reliability in a reimagined, modern, sleek design.

Featuring JBL’s signature KTV tuning, the KP2015G2 delivers the legendary sound that karaoke-goers and venue owners know and love. In addition to outstanding audio quality, the KP2015G2 features a fresh, striking form factor that matches the rest of the KP G2 Series. With this uniform look, you can mix and match models from across the portfolio to create a premium KTV system. Plus, the KP2015G2 includes a rotatable, illuminated JBL Entertainment logo, which allows you to showcase the presence of the renowned JBL brand in your venue. Altogether, with pristine audio and striking aesthetics, the KP2015G2 enhances KTV venues and provides a memorable karaoke experience.



特点

  • Passive 2-way, bass-reflex full-range karaoke loudspeaker
  • 15” high-efficiency woofer for high-power handling, low distortion and low power compression
  • 1” annular polymer diaphragm compression driver
  • JBL signature karaoke tuning provides excellent vocal and bass performance
  • Precision-engineered crossover delivers enhanced vocal clarity
  • Sleek, modern design that is well-suited for a wide range of KTV applications and installations
  • PSL (Passive Sound Lighting) Technology illuminates rotatable JBL Entertainment logo
  • Multiple M10 suspension points for a variety of applications


下载

  Version Language Size Uploaded
Spec Sheets
file type icon KP2015G2 Spec Sheet
en updated: 10月 2020
  en  522.7 KB 10月 2020
file type icon KP2015G2 Spec Sheet
zh updated: 10月 2020
  zh  747.8 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统类型 15”, 2-way, Bass-Reflex
频率范围 (-10dB) 45 Hz – 20 kHz
Frequency Response (±3 dB) 75 Hz – 17 kHz

灵敏度

98 dB
标称阻抗 8 Ohms
Maximum SPL (1m) 123 dB (129 dB peak)
额定功率 Continuous: 350W Program: 700W Peak: 1400W
覆盖范围 70° x 100° (H x V)
尺寸(高 x 宽 x 厚) 688 mm x 430 mm x 450 mm (27.1 in x 16.9 in x 17.7 in)
净重量 24.0 Kg (52.9 lbs.)
低频驱动单元 1 x 15” woofer
HF 驱动程序 1 x JBL 2414H-C
输入接口 1 x Neutrik® Speakon® NL4MP
ENCLOSURE CONSTRUCTION Trapezoid, 15 mm, MDF
