Passive 12” 2-Way, Full-Range Karaoke Loudspeaker


Passive 12” 2-Way, Full-Range Karaoke Loudspeaker

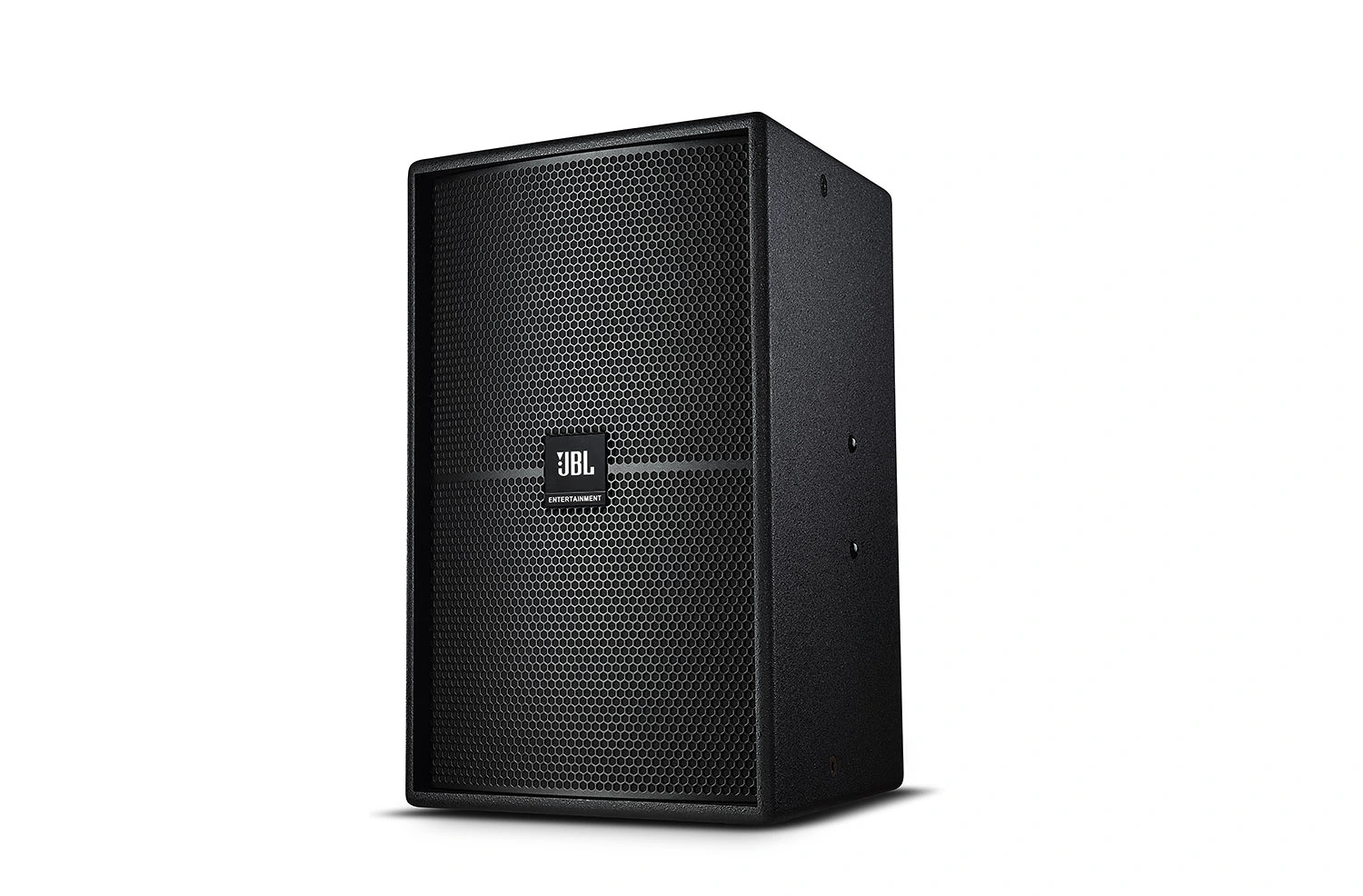

Continuing JBL Entertainment’s iconic heritage in karaoke speakers and audio performance, the JBL KP2012G2 is a premium 12” passive, high-output, full-range loudspeaker for KTV applications and installations. The speaker follows in the footsteps of its predecessor—the KP2012—as it features excellent vocal and bass performance and JBL’s standard of reliability in a reimagined, modern, sleek design.

Featuring JBL’s signature KTV tuning, the KP2012G2 delivers the legendary sound that karaoke-goers and venue owners know and love. In addition to outstanding audio quality, the KP2012G2 features a fresh, striking form factor that matches the rest of the KP G2 Series. With this uniform look, you can mix and match models from across the portfolio to create a premium KTV system. Plus, the KP2012G2 includes a rotatable, illuminated JBL Entertainment logo, which allows you to showcase the presence of the renowned JBL brand in your venue. Altogether, with pristine audio and striking aesthetics, the KP2012G2 enhances KTV venues and provides a memorable karaoke experience.



  • Passive 2-way, bass-reflex full-range karaoke loudspeaker
  • 12” high-efficiency woofer for high-power handling, low distortion and low power compression
  • 1” annular polymer diaphragm compression driver
  • JBL signature karaoke tuning provides excellent vocal and bass performance
  • Precision-engineered crossover delivers enhanced vocal clarity
  • Sleek, modern design that is well-suited for a wide range of KTV applications and installations
  • PSL (Passive Sound Lighting) Technology illuminates rotatable JBL Entertainment logo
  • Multiple M10 suspension points for a variety of applications


  Version Language Size Uploaded
Spec Sheets
file type icon KP2012G2 Spec Sheet
en updated: 10月 2020
  en  523.5 KB 10月 2020
file type icon KP2012G2 Spec Sheet
zh updated: 10月 2020
  zh  754.1 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


系统类型 12”, 2-way, Bass-Reflex
频率范围 (-10dB) 48 Hz – 20 kHz
Frequency Response (±3 dB) 80 Hz – 17 kHz


96 dB
标称阻抗 8 Ohms
Maximum SPL (1m) 122 dB (128 dB peak)
额定功率 Continuous: 350W Program: 700WPeak: 1400W
覆盖范围 70° x 100° (H x V)
尺寸(高 x 宽 x 厚) 605 mm x 382 mm x 390 mm (23.8 in x 15.0 in x 15.4 in)
净重量 21.2 Kg (46.7 lbs.)
低频驱动单元 1 x 12” woofer
HF 驱动程序 1 x JBL 2414H-C
输入接口 1 x Neutrik® Speakon® NL4MP
