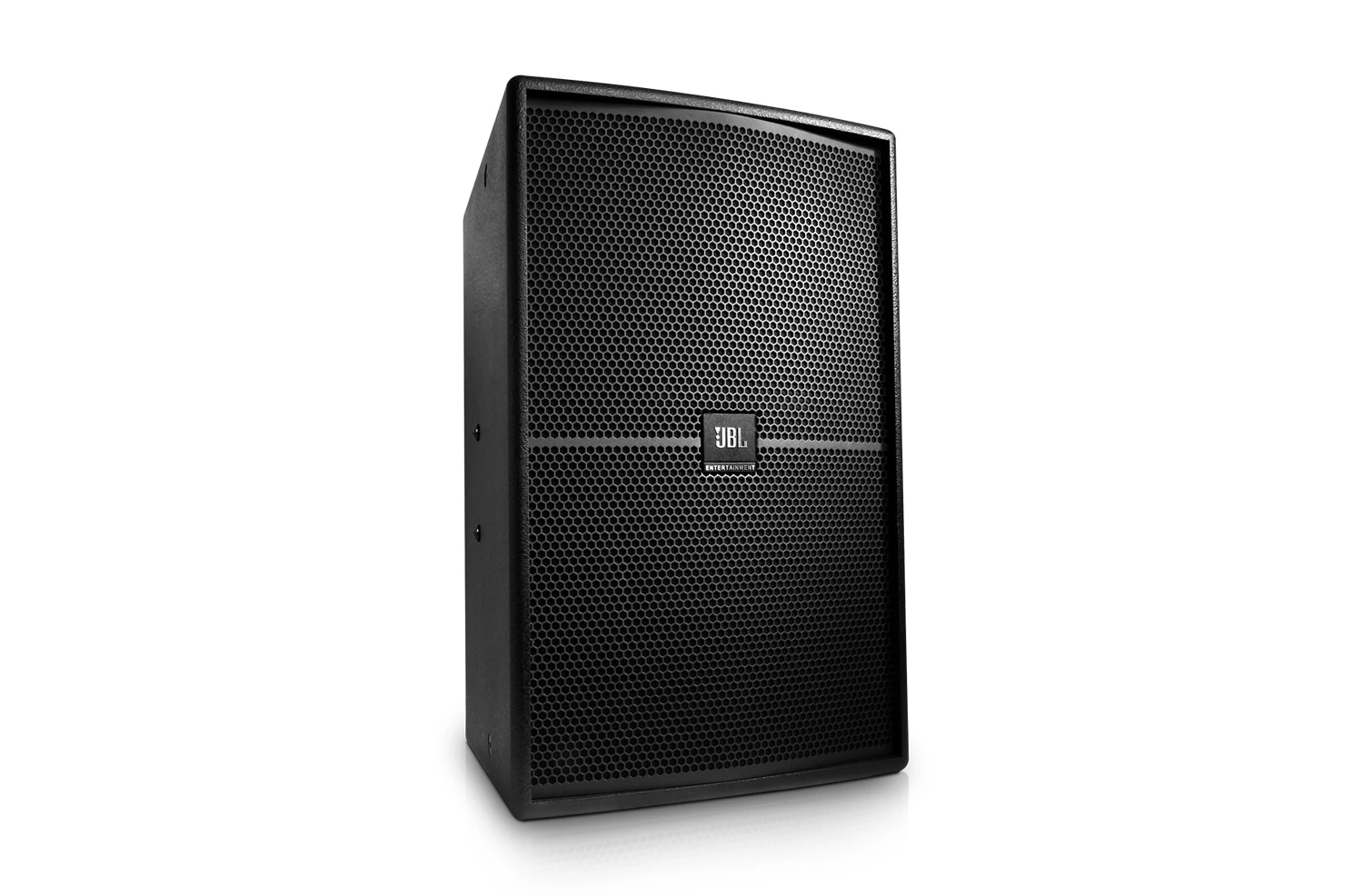

JBL Professional KP2012

较大的图像

12 Inch 2-Way Full Range Loudspeaker System

The KP2012 is a compact and premium high-output full-range loudspeaker.

The KP2012 uses a 305 mm (12 in) humidity protection woofer with optimal demodulating/ cooling aluminium ring inside, which is high power, low distortion and low power compression, and a 2414H-C 25 mm (1 in) annular polymer diaphragm compression driver for 350 watts power capacity. 70° x 100° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The high-order passive network minimizes band overlap.

特点

12″ high efficiency woofer design
1″ annular polymer diaphragm compression driver
Enclosure constructed of 15 mm medium density fiberboard with rugged durable finish
70° x 100° coverage pattern for even and smooth response on and off axis
Attractive cloth backed robust steel grille design
Precision engineered crossover for optimal driver integration
Rotatable JBL ENTERTAINMENT logo for both horizontal and vertical applications
Two colors for multiple applications: Black and JBL ENTERTAINMENT 10th anniversary exclusive edition

Karaoke sound reinforcement
Club live sound reinforcement
High-performance satellite speaker for use with subwoofers

下载

	Version	Language	Size	Uploaded
Brochures
Karaoke Catalogue Brochure updated: 10月 2020			4.1 MB	10月 2020
Spec Sheets
KP2012 Spec Sheet - English updated: 1月 2023			635.9 KB	1月 2023
KP2012 Spec Sheet - Chinese updated: 1月 2023			778.4 KB	1月 2023
HI-RES IMAGEs

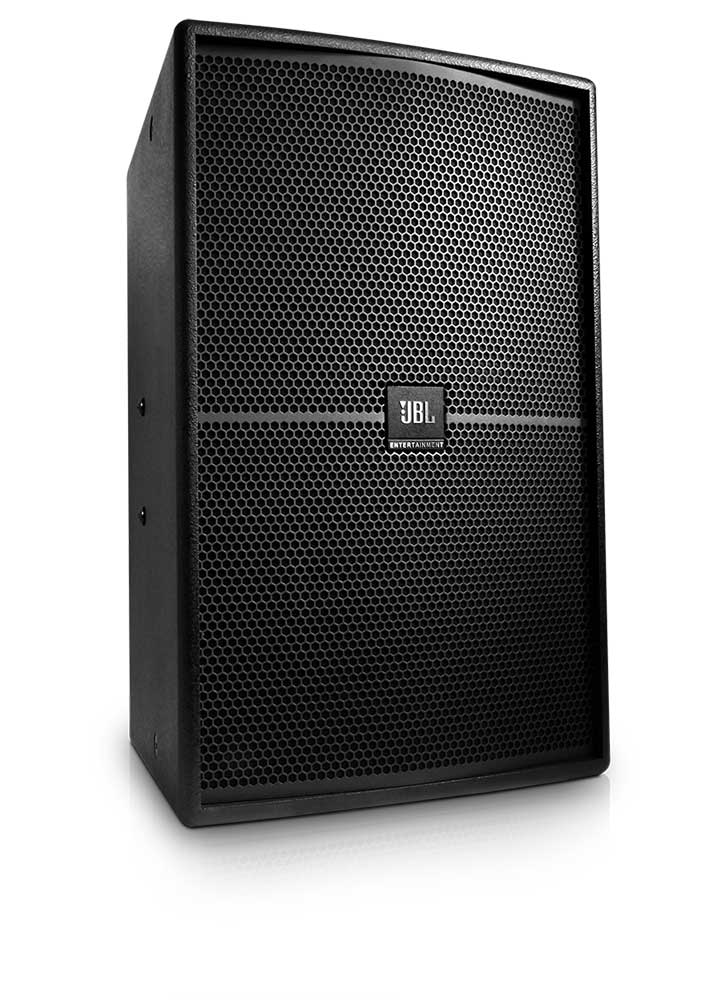

KP2012 Hi Res Images updated: 10月 2020			99.8 KB	10月 2020

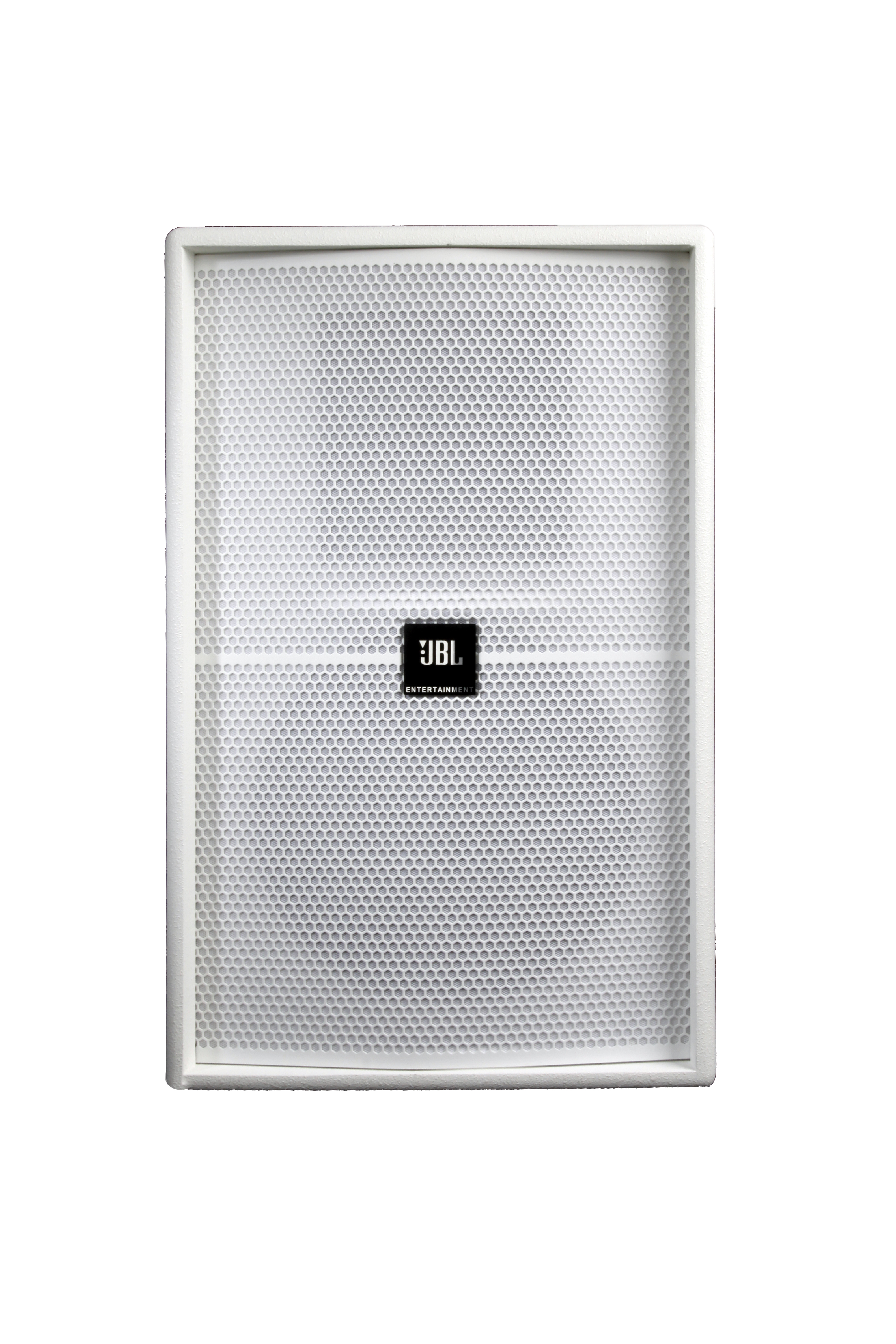

KP2012-WH Front updated: 10月 2020			4.2 MB	10月 2020

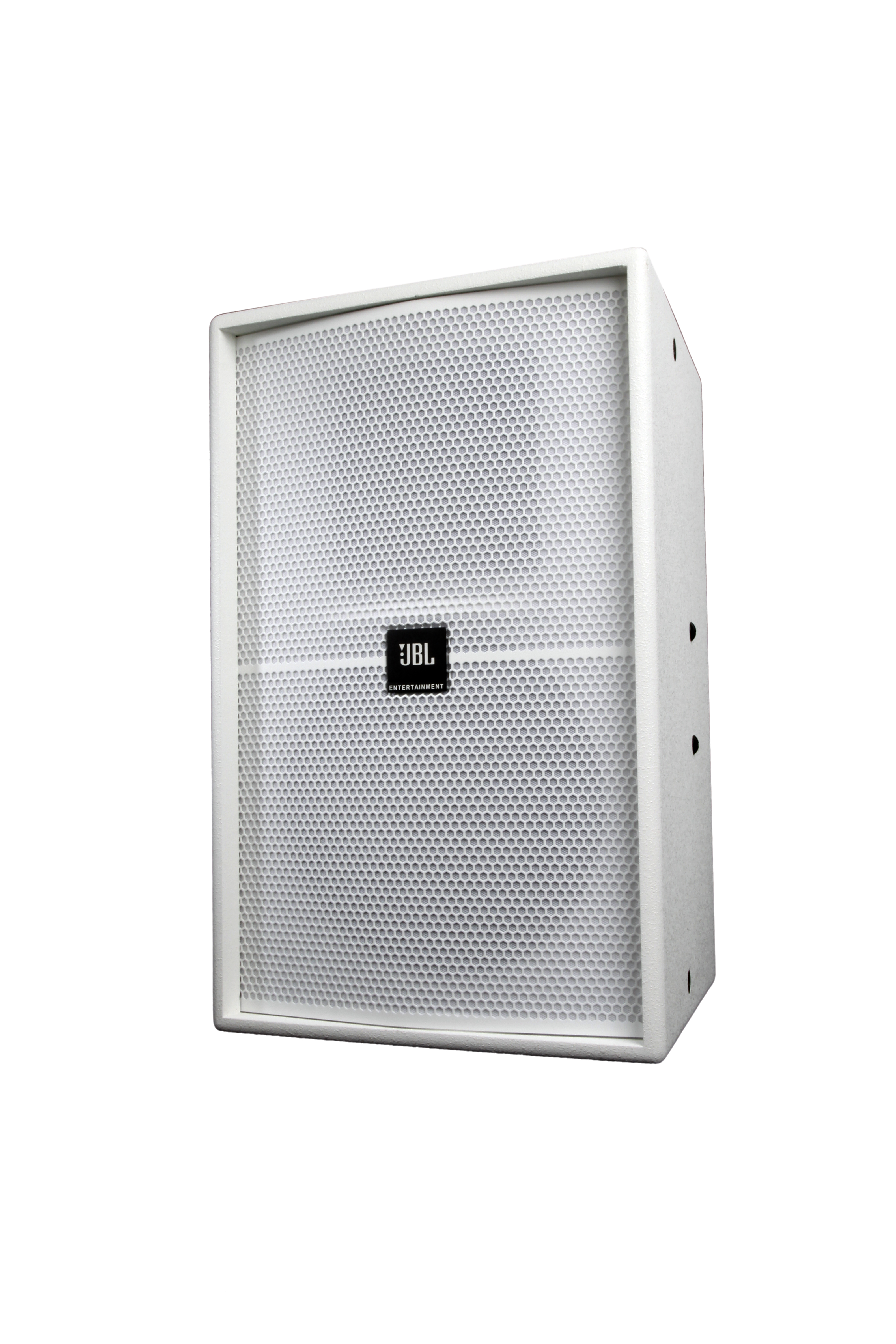

KP2012-WH Angle updated: 10月 2020			3.5 MB	10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统类型	12″, 2-way, bass-reflex
频率范围 (-10dB)	48 Hz - 20 KHz
Frequency Response (±3 dB)	80 Hz - 17 KHz
System Sensitivity (1w @ 1m)	96 dB
标称阻抗	8 ohms
Maximum SPL (1m)	122 dB (128 dB peak)
Power Rating (Continuous/Program/Peak)	350 W / 700 W / 1400 W
覆盖范围	70° x 100° (H x V)
尺寸（高 x 宽 x 厚）	605 mm x 382 mm x 390 mm (23.8 in x 15.0 in x 15.4 in)
净重量	21.2 Kg (46.7 lbs)
低频驱动单元	1 x 12″ woofer
HF 驱动程序	1 x 2414H-C
输入接口	1 x Neutrik® Speakon® NL4MP
ENCLOSURE CONSTRUCTION	Trapezoid, 15 mm, MDF
Enclosure Color	Black(KP2012)/White(KP2012-WH)
