KP2010G2

无源10英寸2路全频卡拉OK扬声器

较大的图像

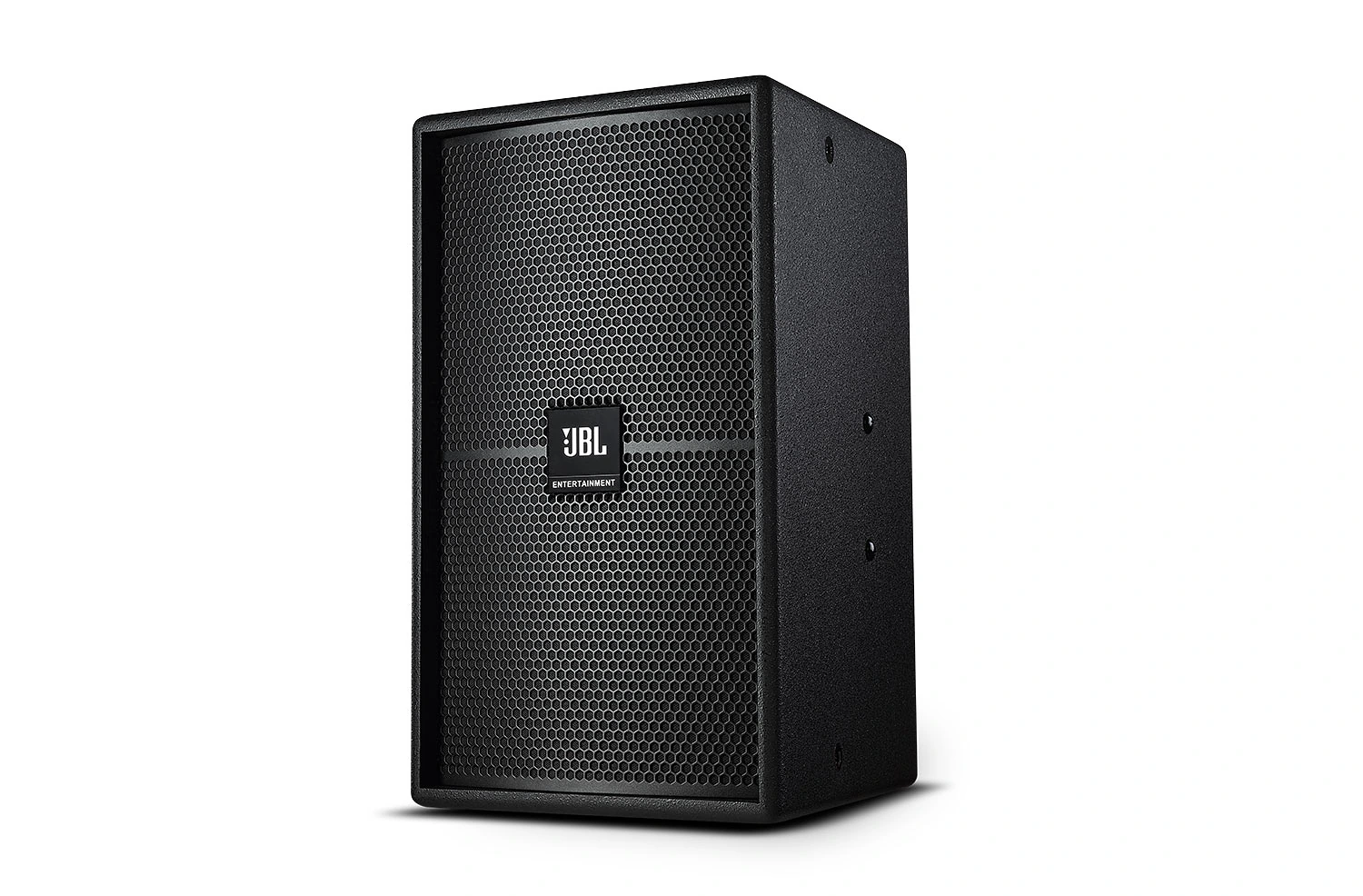

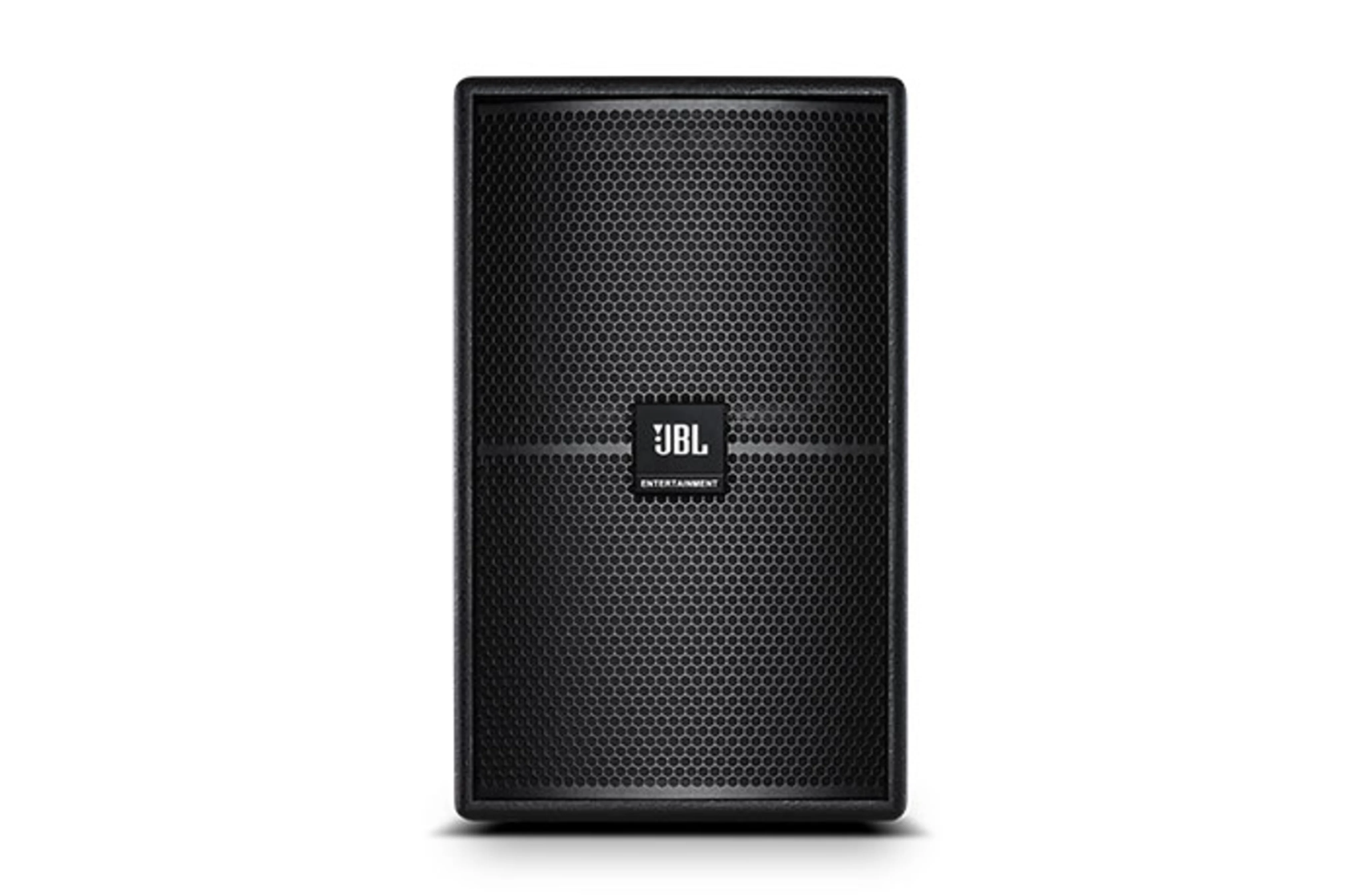

Passive 10” 2-Way, Full-Range Karaoke Loudspeaker

Continuing JBL Entertainment’s iconic heritage in karaoke speakers and audio performance, the JBL KP2010G2 is a premium 10” passive high-output, full-range loudspeaker for KTV applications and installations. The speaker follows in the footsteps of its predecessor—the KP2010—as it features excellent vocal and bass performance and JBL’s standard of reliability in a reimaged, modern, sleek design.

Featuring JBL’s signature KTV tuning, the KP2010G2 delivers the legendary sound that karaoke-goers and venue owners know and love. In addition to outstanding audio quality, the KP2010G2 features a fresh, striking form factor that matches the rest of the KP G2 Series. With this uniform look, you can mix and match models from across the portfolio to create a premium KTV system. Plus, the KP2010G2 includes a rotatable, illuminated JBL Entertainment logo, which allows you to showcase the presence of the renowned JBL brand in your venue. Altogether, with pristine audio and striking aesthetics, the KP2010G2 enhances KTV venues and provides a memorable karaoke experience.



特点

  • 无源二分频倒相式全频卡拉OK扬声器
  • 10 英寸高效率低音单元,功率承载能力强,失真低,功率压缩小
  • 1 英寸环形聚合物振膜压缩驱动单元
  • JBL 标志性卡拉OK扬声器调音,带来出色的人声和低音表现
  • 精密设计的分频器进一步提升人声清晰度
  • 设计简洁现代,适用于各类KTV应用和安装场景
  • PSL(Passive Sound Lighting,被动声光)技术可点亮可旋转的 JBL Entertainment 标志
  • 配备多个 M10 悬挂点,适用于多种应用场合


下载

Spec Sheets
  语言 大小 上传日期
file type icon KP2010G2 Spec Sheet
en 更新: 10月 2020
en  672.6 KB 10月 2020
file type icon KP2010G2 Spec Sheet
zh 更新: 10月 2020
zh  757.2 KB 10月 2020

如果上述任何链接在您的浏览器中显示为奇怪的字符,请右键点击文件以将其保存到您的计算机。

零件与服务

性能

系统类型 10”, 2-way, Bass-Reflex
频率范围 (-10dB) 50 Hz – 20 kHz
频率响应(±3 dB) 85 Hz – 17 kHz

灵敏度

95 dB
标称阻抗 8 Ohms
Maximum SPL (1m) 120 dB (126 dB peak)
额定功率 Continuous: 300W Program: 600W Peak: 1200W
覆盖范围 70° x 100° (H x V)
尺寸(高 x 宽 x 厚) 537 mm x 320 mm x 340 mm (21.1 in x 12.6 in x 13.4 in)
净重量 16.3 Kg (35.9 lbs.)
低频驱动单元 1 x 10” woofer
HF 驱动程序 1 x JBL 2414H-C
输入接口 1 x Neutrik® Speakon® NL4MP
Enclosure Construction Trapezoid, 15 mm, MDF
