KP2010

10 Inch 2-Way Full Range Loudspeaker System

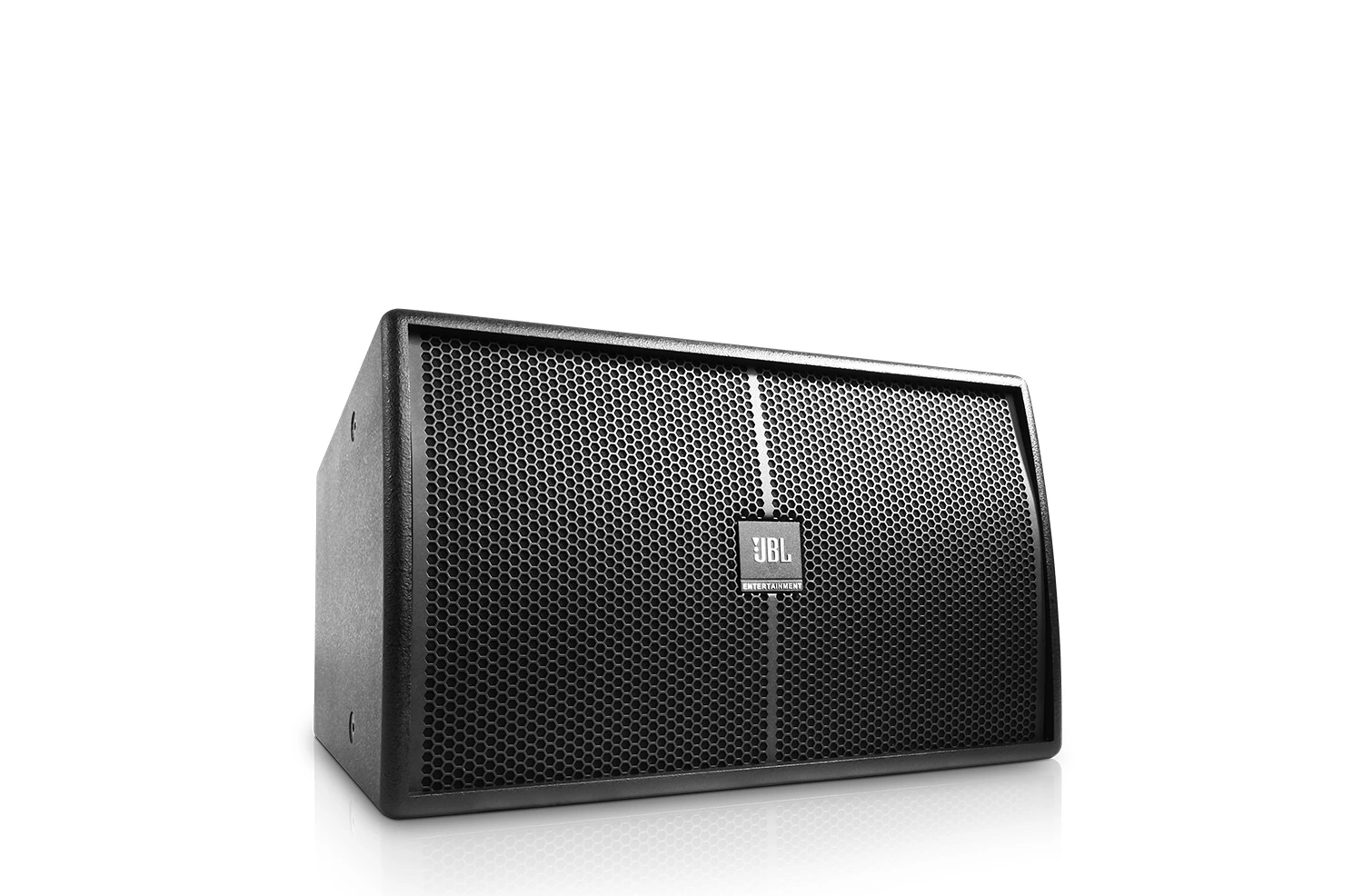

较大的图像

10 Inch 2-Way Full Range Loudspeaker System

The KP2010 is a premium high-output compact full-range loudspeaker.

The KP2010 uses a 254 mm (10 in) humidity protection woofer with optimal demodulating/ cooling aluminium ring inside, which is high power, low distortion and low power compression, and a 2414H-C 25 mm (1 in) annular polymer diaphragm compression driver for 300 watts power capacity. 70° x 100° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The highorder passive network minimizes band overlap.

特点

  • 10″ high efficiency woofer design
  • 1″ annular polymer diaphragm compression driver
  • Enclosure constructed of 15 mm medium density fiberboard with rugged durable finish
  • 70° x 100° coverage pattern for even and smooth response on and off axis
  • Attractive cloth backed robust steel grille design
  • Precision engineered crossover for optimal driver integration
  • Rotatable JBL ENTERTAINMENT logo for both horizontal and vertical applications
  • Two enclosure color option: Black (KP2010) or White (KP2010-WH)
  • Karaoke sound reinforcement
  • Club live sound reinforcement
  • High-performance satellite speaker for use with subwoofers

下载

  Version Language Size Uploaded
Brochures (Pdf)s
Karaoke Catalogue Brochure
updated: 12月02日
    4.1 MB 12月02日
Spec Sheets (Pdf)s
KP2010 Spec Sheet - English
updated: 12月02日
    670.0 KB 12月02日
KP2010 Spec Sheet - Chinese
updated: 12月02日
    778.3 KB 12月02日
Hi Res Images

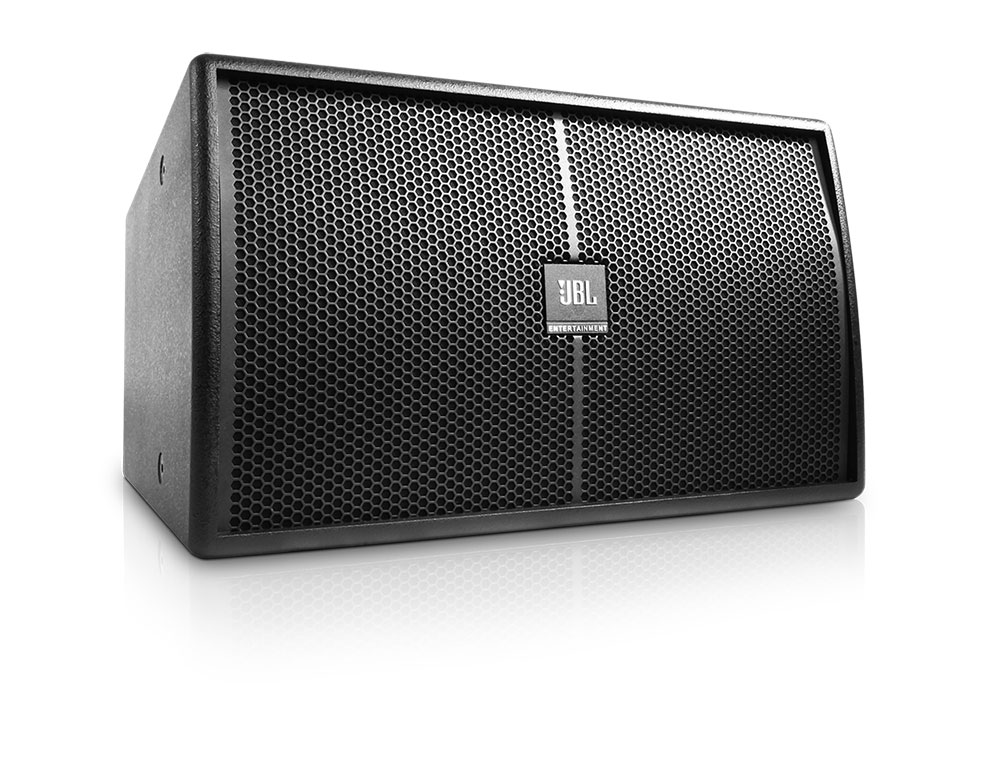

KP2010 - Front
updated: 12月02日
    150.3 KB 12月02日

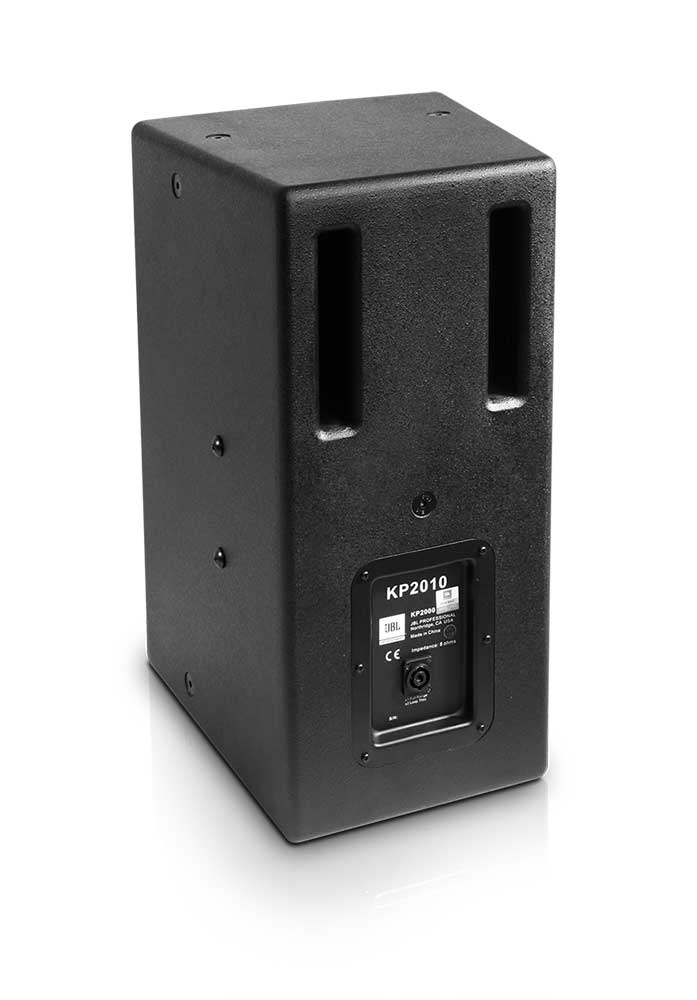

KP2010 - Back
updated: 12月02日
    33.6 KB 12月02日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 10″, 2-way, bass-reflex
Frequency Range (-10 dB) 50 Hz - 20 KHz
Frequency Response (±3 dB) 85 Hz - 17 KHz
System Sensitivity (1w @ 1m) 95 dB
标称阻抗 8 ohms
Maximum SPL (1m) 120 dB (126 dB peak)
Power Rating (Continuous/Program/Peak) 300 W / 600 W / 1200 W
覆盖范围 70° x 100° (H x V)
尺寸(高 x 宽 x 厚) 537 mm x 320 mm x 340 mm (21.1 in x 12.6 in x 13.4 in)
净重量 16.3 Kg (35.9 lbs)
低频驱动单元 1 x 10″ woofer
HF 驱动程序 1 x 2414H-C
输入连接器 1 x Neutrik® Speakon® NL4MP
ENCLOSURE CONSTRUCTION Trapezoid, 15 mm, MDF
Enclosure Color Black(KP2010)/White(KP2010-WH)
