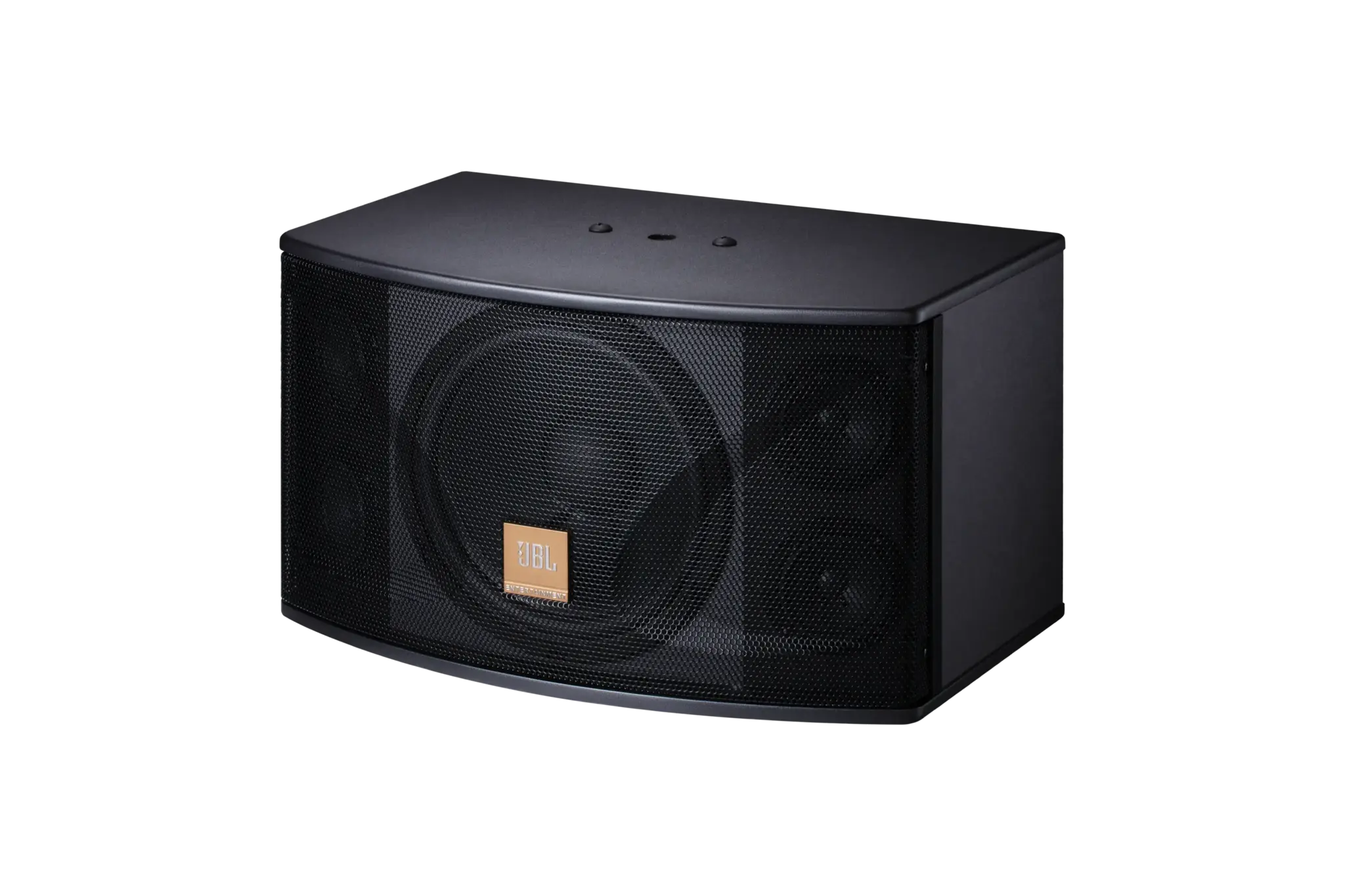

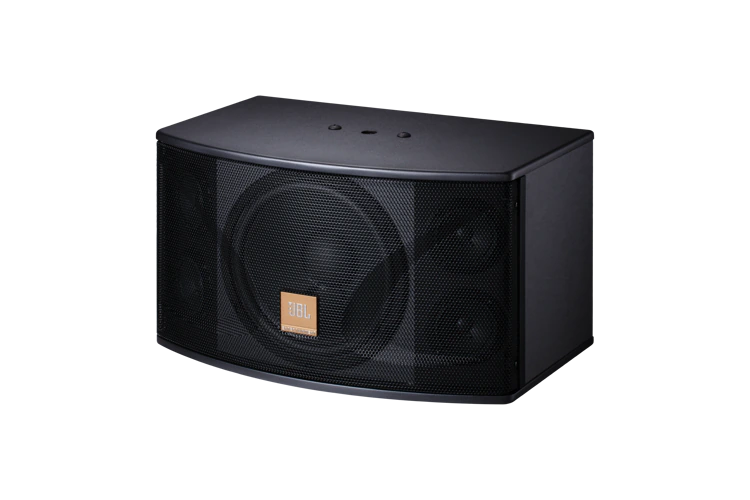

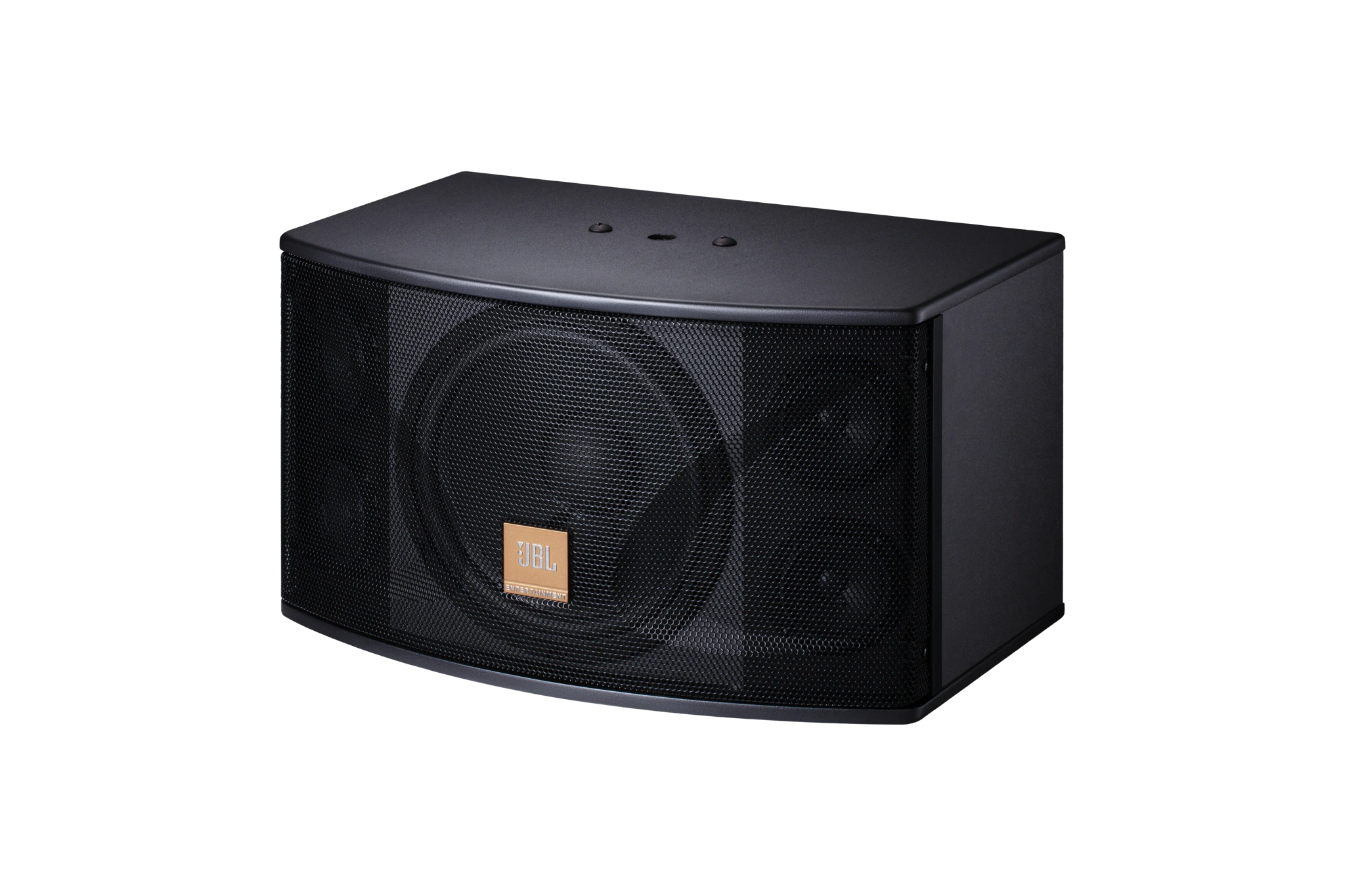

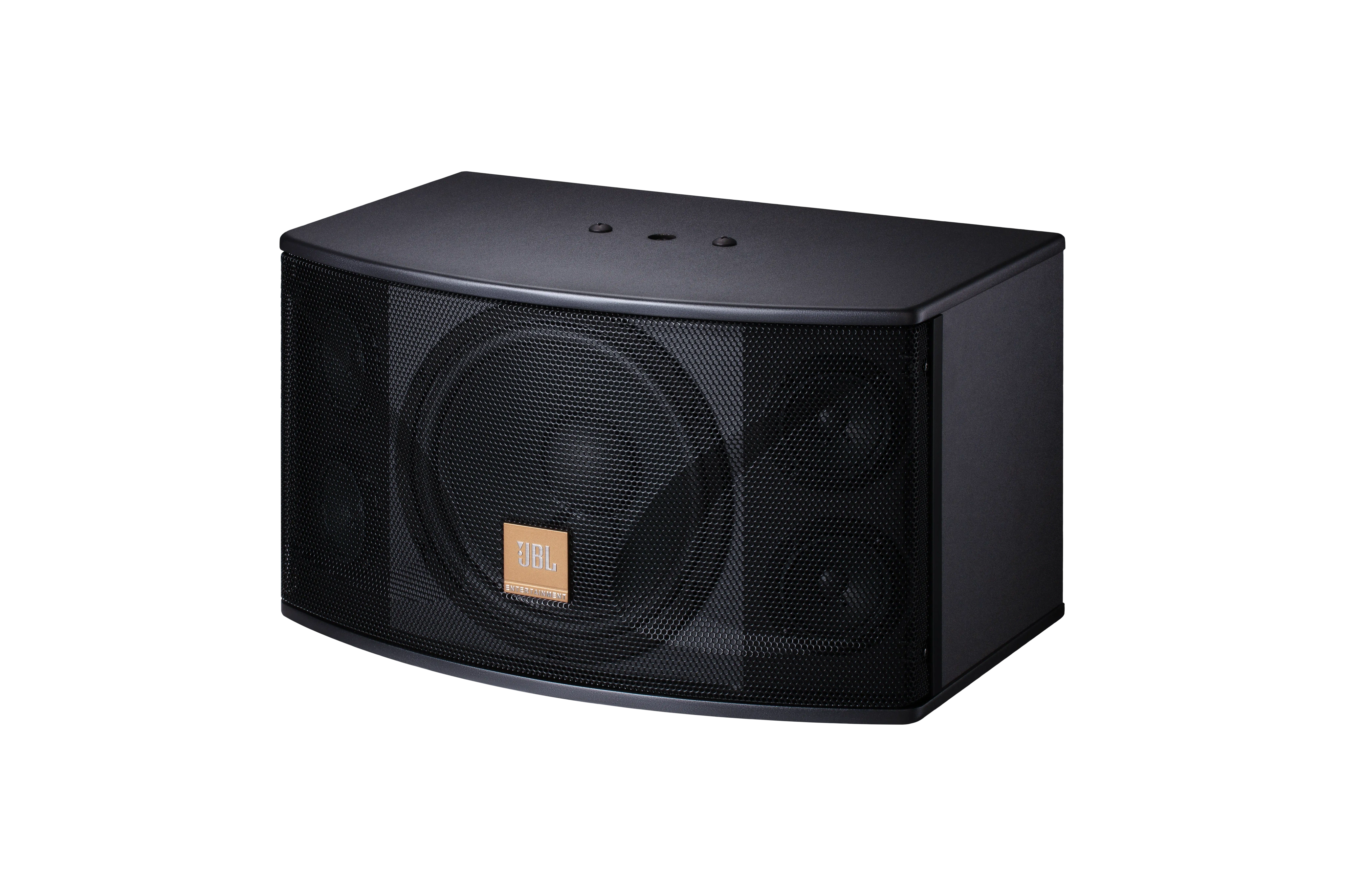

Ki110WH-PAK

10 Inch 3-Way Full Range Loudspeaker System- Now Available

Ki110WH-PAK
较大的图像

Applications:

The Ki110 is a 3-way full-range speaker designed specifically for KTV market needs. The Ki110 utilises a 10" woofer, two 3" cone mid range drivers, and two 3" cone tweeters.

The 10" woofer features a non-pressed long fiber pulp cone with a foam surround providing necessary stiffness for long-lasting reliability, and the capacity to withstand the tremendous accelerating force generated by the magnetic energy of the motor structute. Two 3" cone mid range drivers matched with two 3" cone tweeters enhances the performance in the mid-range and high-frequency range and provides perfect fidelity to meet KTV audio system needs.

The Ki110 is designed to handle 150 watts of continuous power. The enclosure is constructed of MDF with vinyl laminated finish and fitted with nickel plated binding post for reliable connectivity. Two high-strength MIO attachment points guarantee the stability of suspension.

The integrated grille, with elaborate design, adds a distinctive element to the overall elegant appearance of the loudspeaker in addition to protecting the components from damage.

特点

  • 10" woofer with 2" four-layer voice coil can provide higher power handling
  • Linear suspension and vented pole piece design for woofer can effectively reduce the distortion and power compression
  • Two 3" cone mid-range drivers, and two 3" cone tweeters for better vocal reproduction
  • Precision engineered crossover can divide accurately and optimize three band frequency response
  • The enclosure is constructed of MDF (Medium Density Fiberboard) with vinyl laminated finish
  • Built-in protection circuit engineered specifically to protect the tweeter without interrupting the overall performance
  • 10th anniversary exclusive edition with golden JBL Entertainment Logo

下载

Brochures
  大小 上传日期
file type icon Karaoke Catalogue Brochure
更新: 10月 2020
4.1 MB 10月 2020
Spec Sheets
  大小 上传日期
file type icon Ki110WH-PAK Spec Sheet
更新: 5月 2026
6.4 MB 5月 2026

如果上述任何链接在您的浏览器中显示为奇怪的字符,请右键点击文件以将其保存到您的计算机。

零件与服务

性能

系统类型 10″, 3-way, bass-reflex
频率范围 (-10dB) 48 Hz - 18 kHz
Frequency Response (±3 dB) 65 Hz - 16 KHz

灵敏度

89 dB
标称阻抗 8 Ohms
Maximum SPL (1m) 111 dB (117 dB peak) @ 1m
Power Rating (Continuous/Program/Peak) 150 W/300 W/600 W
Recommended Amplifier Power 180W - 250W @ 8 ohms
覆盖范围 150° x 120° (H x V)
尺寸(高 x 宽 x 厚) 290 mm x 506 mm x 320 mm11.4 in x 20 in x 12.6 in
Net Weight (each) 12.4 Kg (27.3 lbs)
低频驱动单元 1 x 10″ Woofer
MF Driver 2 x 3″ paper cone midrange drivers
HF 驱动程序 2 x 3″ paper cone tweeters

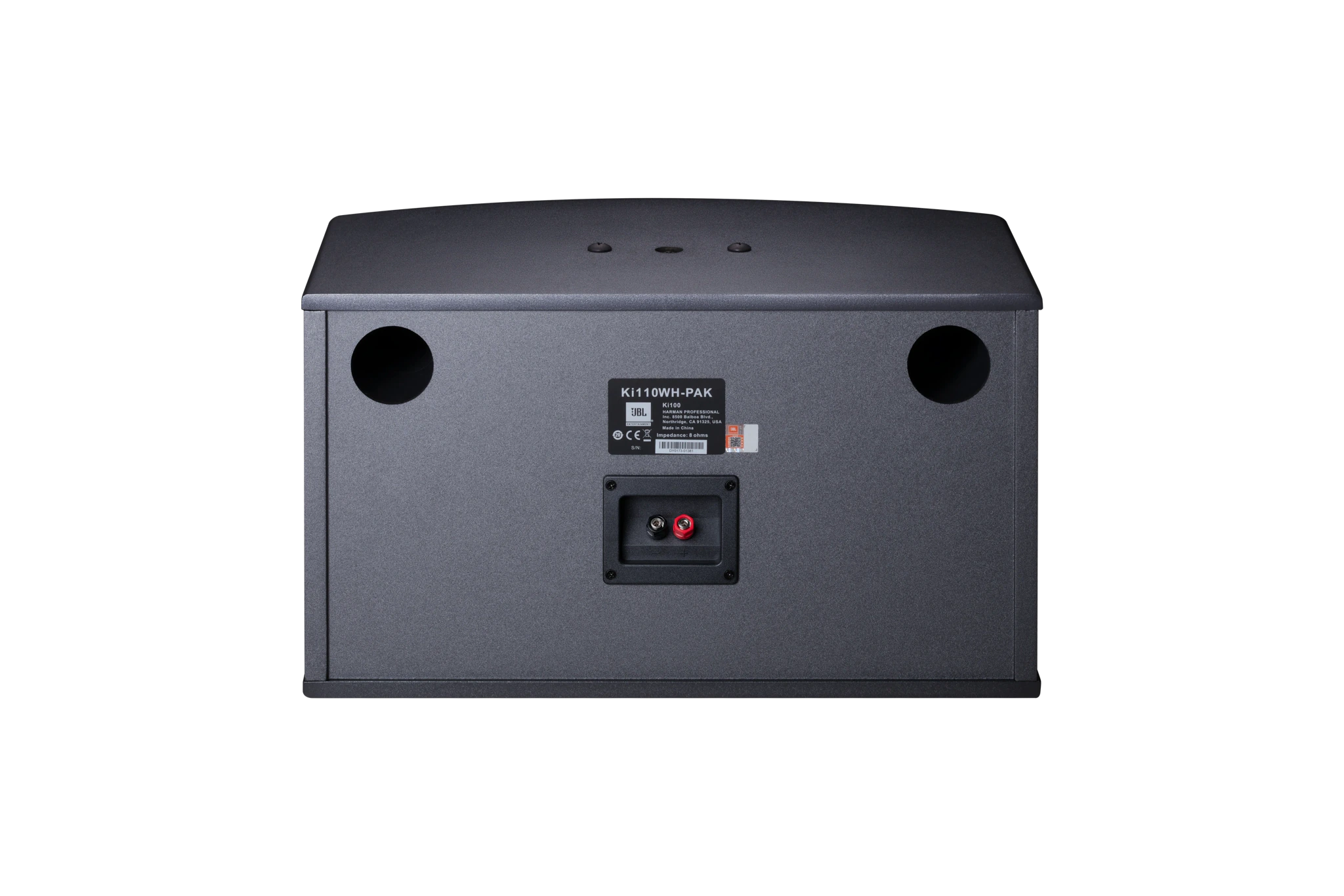

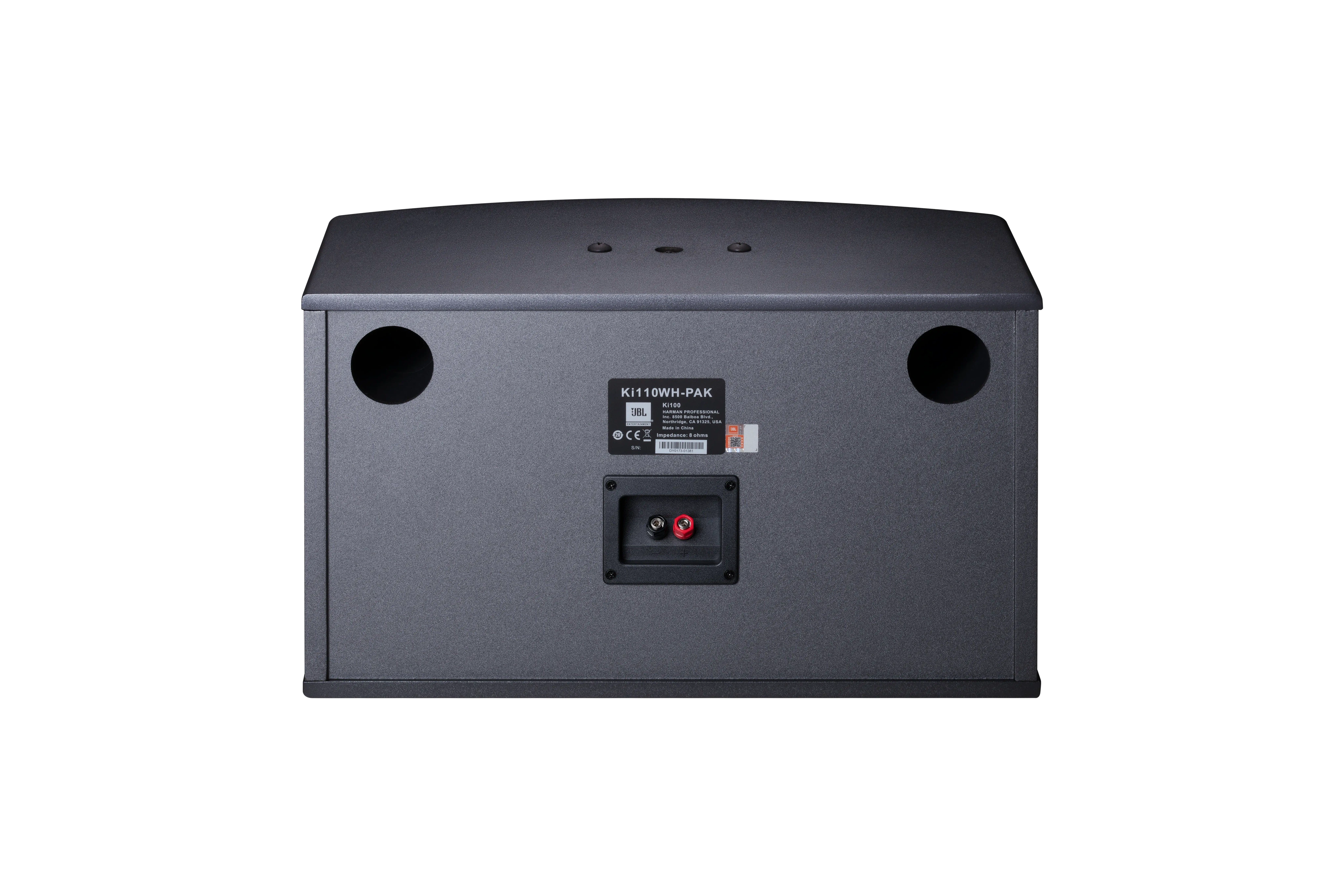

输入接口 Binding post
ENCLOSURE CONSTRUCTION Vinyl covered 12 mm MDF
Suspension Attachment 2 x M10 threaded hardware
