200 mm (8 in) Commercial Series Ceiling Speakers

CSS8018
较大的图像

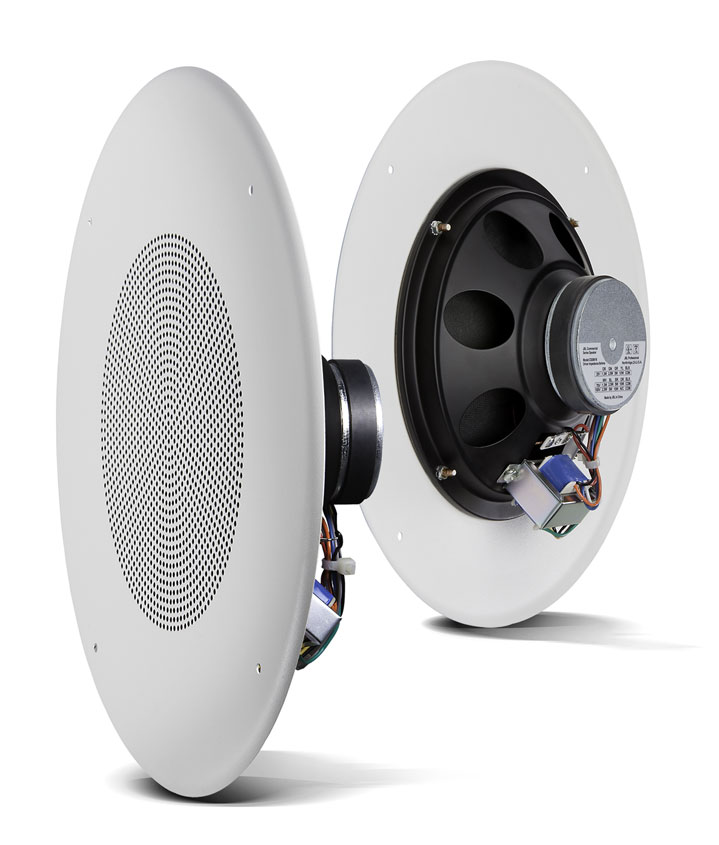

200 mm (8 in) Commercial Series Ceiling Speakers

JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

特点

  • Very high 97 dB sensitivity
  • 10 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • Fits CSS-BB8 backcan

下载

  Version Language Size Uploaded
Specifications
file type icon CSS8004/CSS8008/CSS8018 Spec Sheet
updated: 10月 2020
    1.2 MB 10月 2020
Manuals
file type icon Ceiling Speaker Accessory Guide
updated: 10月 2019
    126.9 KB 10月 2019
Brochures
file type icon Control Contractor Brochure (2023)
en version B, updated: 6月 2023
en  8.2 MB 6月 2023
file type icon Commercial Series Introductory Sheet
updated: 10月 2019
    249.8 KB 10月 2019
Compliances
file type icon CSS8000 Declaration of Conformity
updated: 10月 2019
    144.7 KB 10月 2019
Software
platform icon Distributed System Design (DSD) v3.6.2
version 3.6.2, updated: 9月 2021
3.6.2     804.8 KB 9月 2021
Install Guides
file type icon CSS8018 Install Instructions
updated: 10月 2020
    36.1 KB 10月 2020
Application Guides
file type icon Series Application Guide (English)
version 1.7, updated: 4月 2020
1.7    6.9 MB 4月 2020
file type icon Series Application Guide (Chinese)
version 1.7, updated: 4月 2020
1.7    11.5 MB 4月 2020
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: 5月 2023
  557.0 KB 5月 2023
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
    21.0 MB 3月 2022
file type icon CSS 8000 Ease Files
updated: 10月 2020
    35.8 KB 10月 2020
Images
file type icon CSS8018 Hi-Res Image
updated: 10月 2020
    65.5 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

Drivers 200 mm (8 in) Full-Range

灵敏度

97 dB (2k - 6k Hz)
Frequency Range (-10 dB) Driver/Grille Assembly 50 Hz – 17 kHz
Installed in CSS-BB backcan 90 Hz – 17 kHz
覆盖角度 110° conical
驱动单元连续功率承受能力 20 Watts
变压器抽头 10W, 5W, 2.5W
变压器抽头 10W, 5W, 2.5W, 1.3W
变压器抽头 10W, 5W, 2.5W, 1.3W
变压器插入损耗 1.5 dB Maximum
Transformer Connection Bare wire
Motor Mass 283 g (10 oz)
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Matching CSS Backcan CSS-BB8 (0.15 cu ft)
Other Compatible Backcans MTC-81BB8 (0.26 cu ft) MTC-200BB6 (0.5 cu ft) MTC-300BB8 (1.0 cu ft)
Bolt Mounting Circle to Backcan 4 points on 286 mm (11.25 in) diameter
Cutout DiameterOpen-back 216 mm (8.5 in)
In CSS-BB backcan 295 mm (11.7 in)
Depth (behind grille) 73 mm (2.9 in)
Grille Diameter 327 mm (12.9 in)
Net Weight (each) 1.58 kg (3.5 lb)
Shipping Weight (ea) 2.25 kg (5.0 lb)

随附配件

4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
额定功率 See transformer taps
变压器抽头 100V Taps - 10W, 5W, 2.5W
70V Taps - 10W, 5W, 2.5W, 1.3W
25V Taps - 10W, 5W, 2.5W, 1.3W
Maximum SPL (1m) 103 dB (top 25V/70V/100V tap)
输入接口 Bare wire
颜色 White
Backcan formed steel (accessory)
Baffle/Rim Metal
Ceiling Cutout Size 216 mm (8.5 in)
Plenum Usage Yes, with accessory backcan
