JBL-4822N

Two-Way Passive ScreenArray™ Cinema Loudspeaker System

JBL-4822N
较大的图像

Two-Way Passive ScreenArray™ Cinema Loudspeaker System

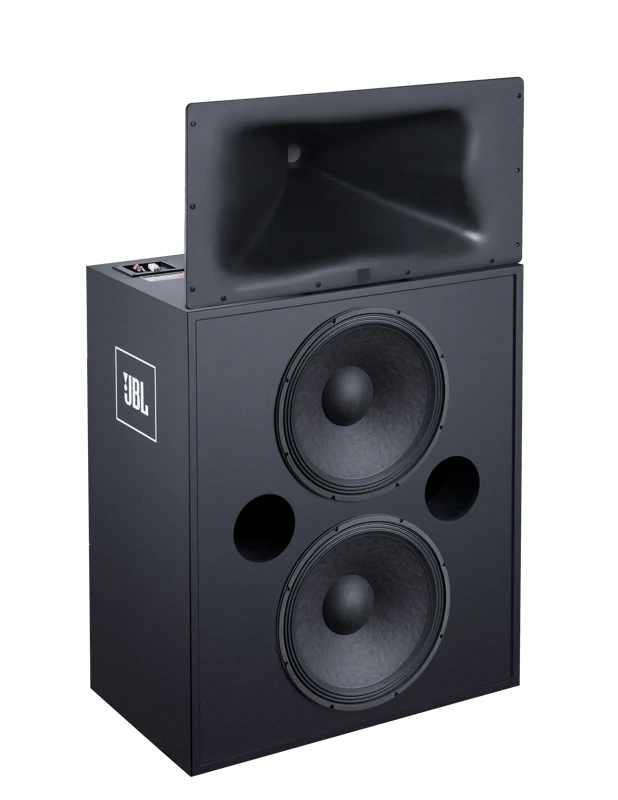

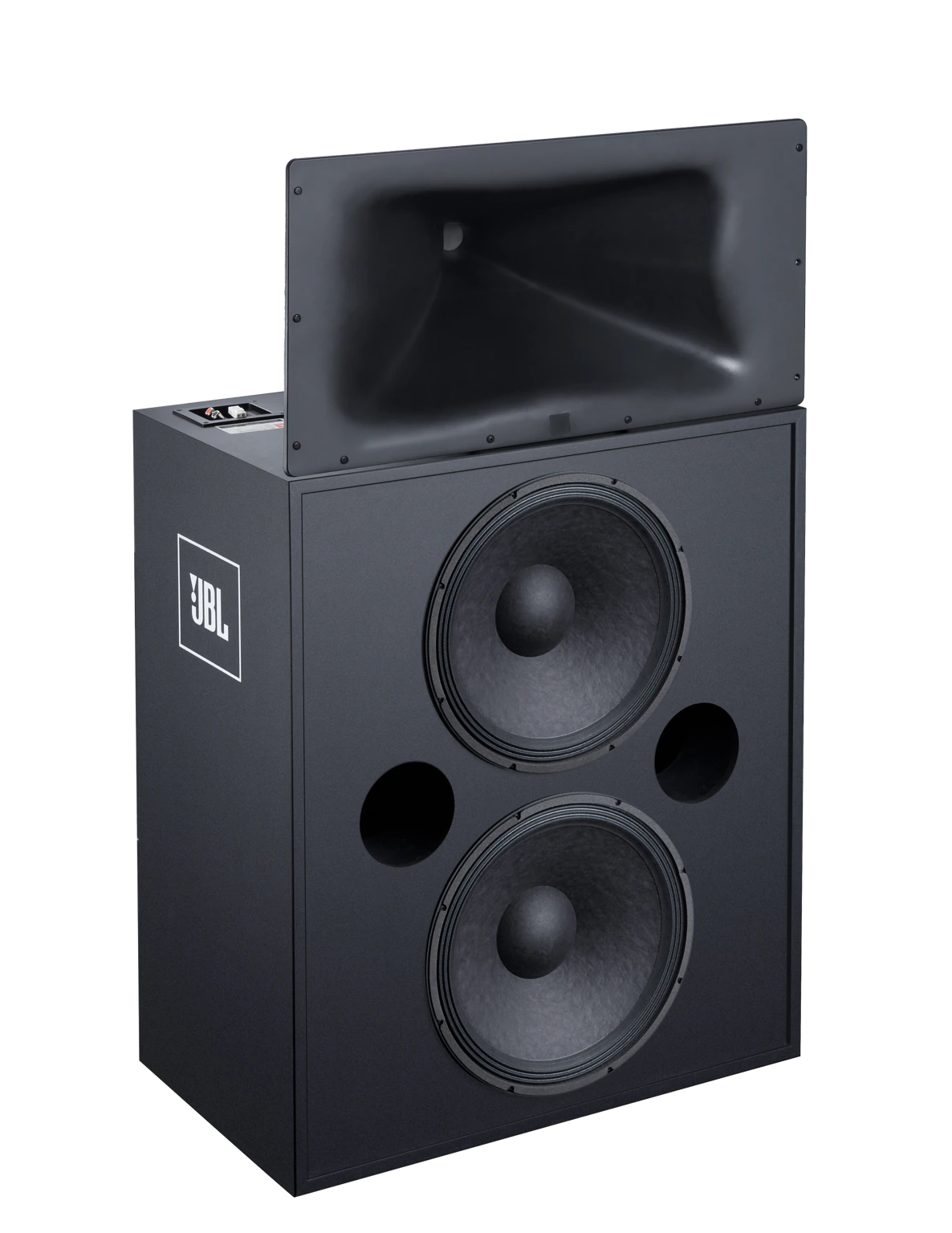

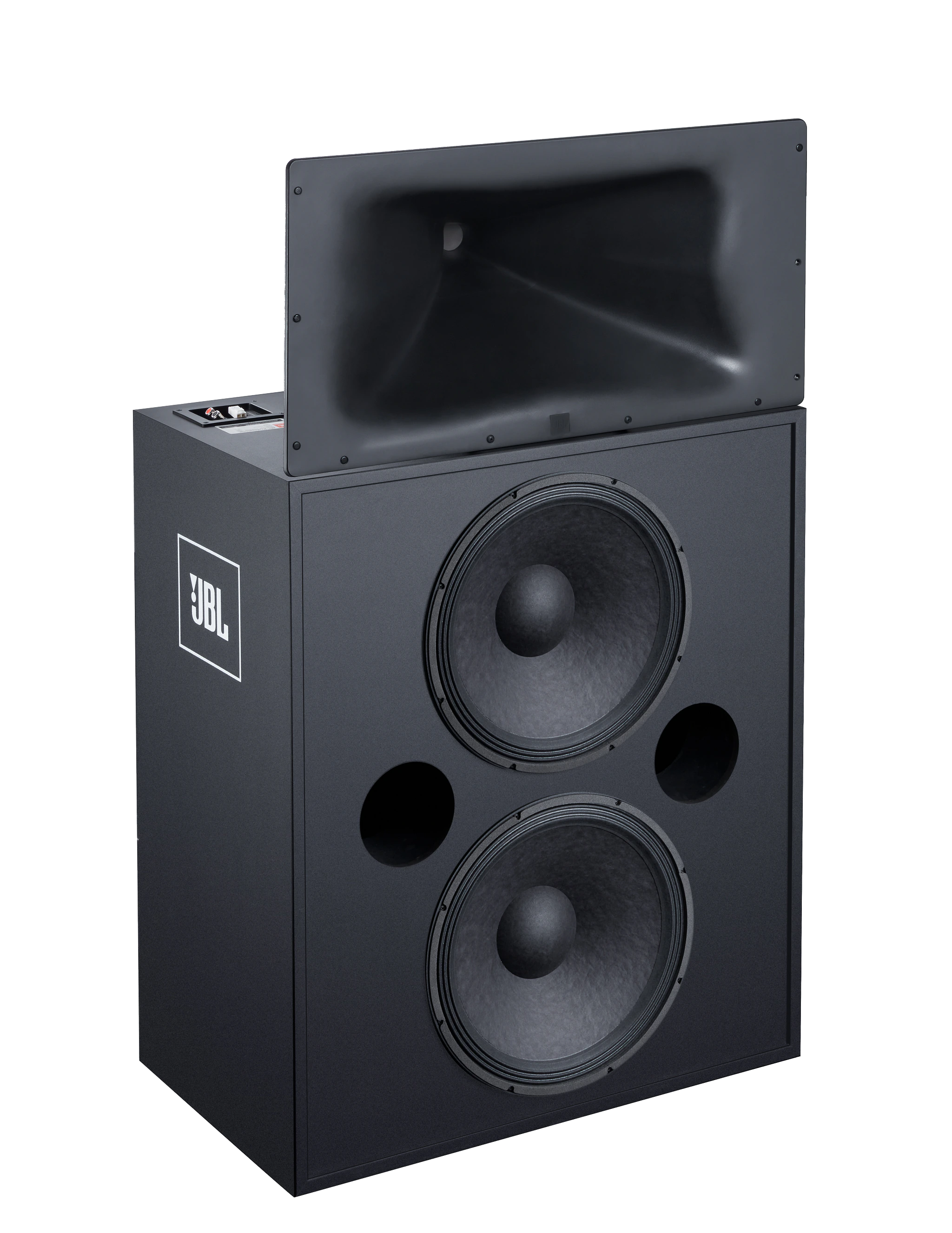

The JBL Professional 4822N Two-Way Passive ScreenArray™ Cinema Loudspeaker System is ideal for 150 – 250 seat cinemas. Today’s premiere cinemas require perfect coverage in every seat of the auditorium, wide dynamic range and extended bandwidth, as well as inaudible levels of distortion. Digital soundtracks, especially those associated with the latest digital cinema requirements, require sound systems that can accurately reproduce the sound exactly as recorded.

Designed for film sound reproduction, the 4822N ScreenArray provides smooth and accurate reproduction of cinema soundtracks in a compact system. The ScreenArray horn features a patented design that compensates for high frequency spreading caused by perforated screens for greatly improved audience coverage.

The 4822N next generation ScreenArray is enhanced by advanced engineering. JBL’s latest technical innovations are integrated into a system design that provides superior coverage, maximum power handling, and uniform acoustic power output, along with extremely low distortion. The ScreenArray design provides ideal power response and directivity control with seamless transitions between acoustic sections.

特点

  • Two-way ScreenArray® design for maximum output, optimal
    coverage and minimum distortion
  • Fully passive operation
  • Large format 3” neodymium, titanium diaphragm, high frequency
    compression driver
  • Patented Differential Drive® 15” low frequency woofers for
    improved power handling and reduced distortion
  • SSC™ Screen Spreading Compensation
  • Molded Optimized Aperture Waveguide technology for ultra-low
    distortion and extremely uniform frequency response
  • Flat front waveguide design for easy baffle wall installation
  • Shallow profile for minimum behind-screen depth requirements
  • Connection on top of the speakers for easy wiring behind screen
  • HF driver protection

下载

  Version Language Size Uploaded
Specifications
file type icon 4822 Spec Sheet
zh updated: 12月13日
  zh  536.4 KB 12月13日
file type icon 4822 Spec Sheet
en updated: 12月13日
  en  477.9 KB 12月13日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

System
Frequency Range 30 Hz – 20 kHz
Frequency Response (±3 dB) 40 Hz – 19 kHz
System Sensitivity 104 dB, 2.83 V @ 1 m (3.3 ft)
LF Sensitivity 104 dB, 2.83 V @ 1m
HF Sensitivity 105 dB, 2.83 V @ 1m
Nominal Impedance 4 ohms
Rated Maximum SPL 130 dB, @ 1 m (3.3 ft), 136 dB peak
Passive System Input Power Handling¹ 800 W
Nominal Coverage 90° horizontal, -30°, +20° vertical
Crossover Frequency 800 Hz
HF Bracket Tilt Range ±30° horizontal, ±10° vertical
Dimensions (H x W x D) 1265 mm x 762 mm x 450 mm (49.8 in x 30 in x 17.75 in)
Net Weight 55.8 kg (123 lb)
Shipping Weight 65.4 kg (144 lb)
Component Electronics – Model 4839
Low Frequency Transducers 2 x 265H-2, 380 mm (15 in) diameter, 76 mm high (3 in) edgewound ribbon voice coil transducers mounted in a 4509 LF enclosure
Dimension (H x W x D) 1289 mm x 762 mm x 450 mm (34.75 in x 30 in x 17.75 in)
Net Weight 48.6 kg (107 lb)
Shipping Weight 55.4 kg (122 lb)
Component Electronics – Model 4822N-HF
High Frequency Transducer (Ships Fully Assembled) 1 x 2432H compression driver, 1 x 2384 HF horn, 1 x adjustable bracket
Dimension (H x W x D) 382 mm x 762 mm x 381 mm (15 in x 30 in x 15 in)
Net Weight 7.3 kg (16 lb)
Shipping Weight 12.7 kg (28 lb)
¹ Rating based on test signal of filtered random noise conforming to the International standard IEC 268-1 (pink noise with 12 dB per octave roll-off below 40 Hz and above 5000 Hz with a peak-to-average ratio of 6 dB).
