JBL-3822N

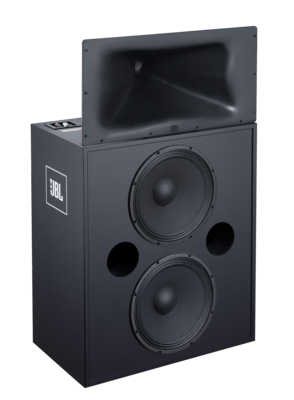

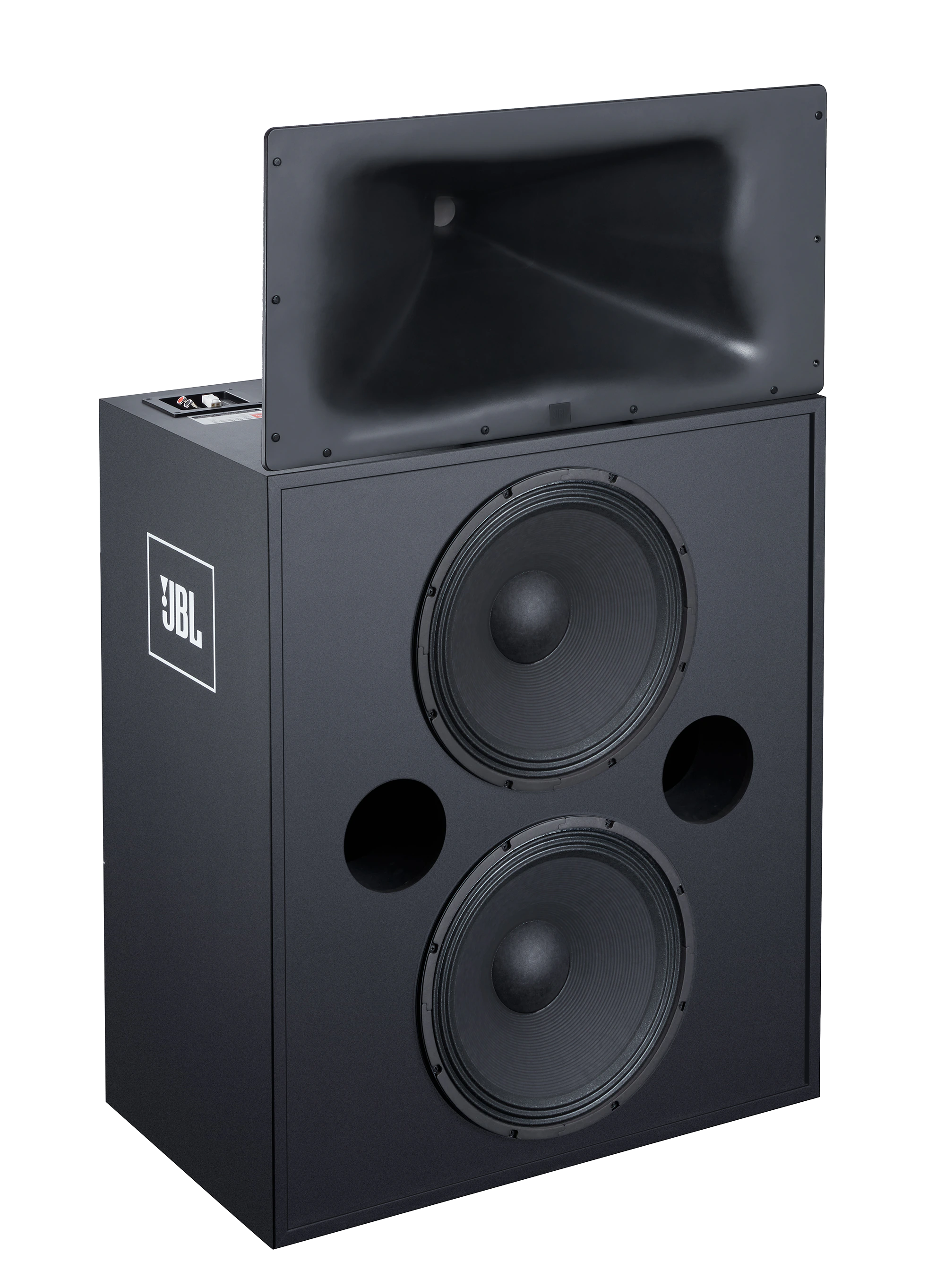

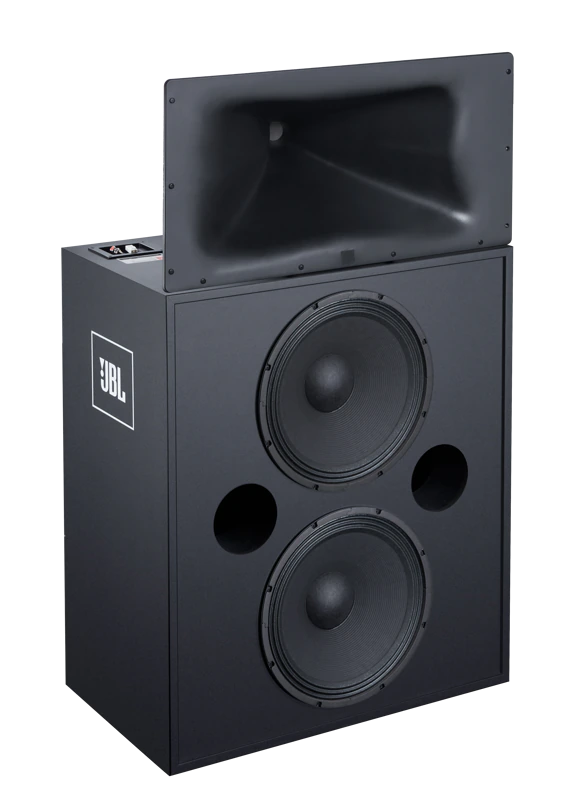

Two-Way Passive ScreenArray™ Cinema Loudspeaker System

JBL-3822N
较大的图像

Two-Way Passive ScreenArray™ Cinema Loudspeaker System

The JBL Professional 3822N Two-Way Passive ScreenArray™ Cinema Loudspeaker System is ideal for 100 – 150 seat cinemas. Today’s premier cinemas require perfect coverage in every seat of the auditorium, wide dynamic range and extended bandwidth, as well as inaudible levels of distortion. Digital soundtracks, especially those associated with the latest digital cinema requirements, require sound systems that can accurately reproduce the sound exactly as recorded.

Designed for film sound reproduction, the 3822N ScreenArray provides smooth and accurate reproduction of cinema soundtracks in a compact system. The ScreenArray horn features a patented design that compensates for high frequency spreading caused by perforated screens for greatly improved audience coverage.

The 3822N next-generation ScreenArray is enhanced by advanced engineering. JBL’s latest technical innovations are integrated into a system design that provides superior coverage, maximum power handling, and uniform acoustic power output, along with extremely low distortion. The ScreenArray design provides ideal power response and directivity control with seamless transitions between acoustic sections.

特点

  • Two-way ScreenArray® design for maximum output, optimal coverage and minimum distortion
  • Fully passive operation
  • SSC™ Screen Spreading Compensation
  • Molded Optimized Aperture Waveguide technology for ultra-low distortion and extremely uniform frequency response
  • Low frequency section features dual 15” transducers with ribbon wire voice coils for low distortion and high efficiency
  • Flat front waveguide design for easy baffle wall installation
  • Shallow profile for minimum behind-screen depth requirements
  • Connection on top of the speakers for easy wiring behind screen
  • HF driver protection

下载

  Version Language Size Uploaded
Specifications
file type icon 3822N Spec Sheet
zh updated: 12月 2021
  zh  569.1 KB 12月 2021
file type icon 3822N Spec Sheet
en updated: 12月 2021
  en  482.4 KB 12月 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

System
Frequency Range 30 Hz – 18 kHz
System Sensitivity 104 dB, 2.83V @ 1 m (3.3 ft)
Passive Nominal Impedance 4 ohms
LF Nominal Impedance 4 ohms
HF Nominal Impedance 8 ohms
LF Sensitivity 105 dB, 2.83 V @ 1m
HF Sensitivity 105 dB, 2.83 V @ 1m
Rated Maximum SPL 127 dB, @ 1 m (3.3 ft), 133 dB peak
Passive System Input Power Handling¹ 400 W
Nominal Coverage 90° horizontal, -30°, +20° vertical
Crossover Frequency 1300 Hz
HF Bracket Tilt Range ±30° horizontal, ±10° vertical
Dimensions (H x W x D) 1265 mm x 762 mm x 450 mm (49.8 in x 30 in x 17.75 in)
Net Weight 62.2 kg (137 lb)
Shipping Weight 76.3 kg (168 lb)
LF Component Electronics – Model 3839
Low Frequency Transducers 2 x M115-8A 380 mm (15 in) dia., 61 mm high (2.5 in) edgewound ribbon voice coil transducers mounted in a 4509 LF enclosure
Dimension (H x W x D) 883 mm x 762 mm x 450 mm (34.75 in x 30 in x 17.75 in)
Net Weight 54.9 kg (121 lb)
Shipping Weight 63.6 kg (140 lb)
HF Component Electronics – Model 3822N-HF
High Frequency Transducer (Ships Fully Assembled) 1 x 2418H-1 compression driver, 1 x 2374 HF horn, 1 x adjustable bracket
Dimension (H x W x D) 381 mm x 762 mm x 381 mm (15 in x 30 in x 15 in)
Net Weight 7.3 kg (16 lb)
Shipping Weight 12.7 kg (28 lb)
¹Rating based on test signal of filtered random noise conforming to the International standard IEC 268-1 (pink noise with 12 dB per octave roll-off below 40 Hz and above 5000 Hz with a peak-to-average ratio of 6 dB).
