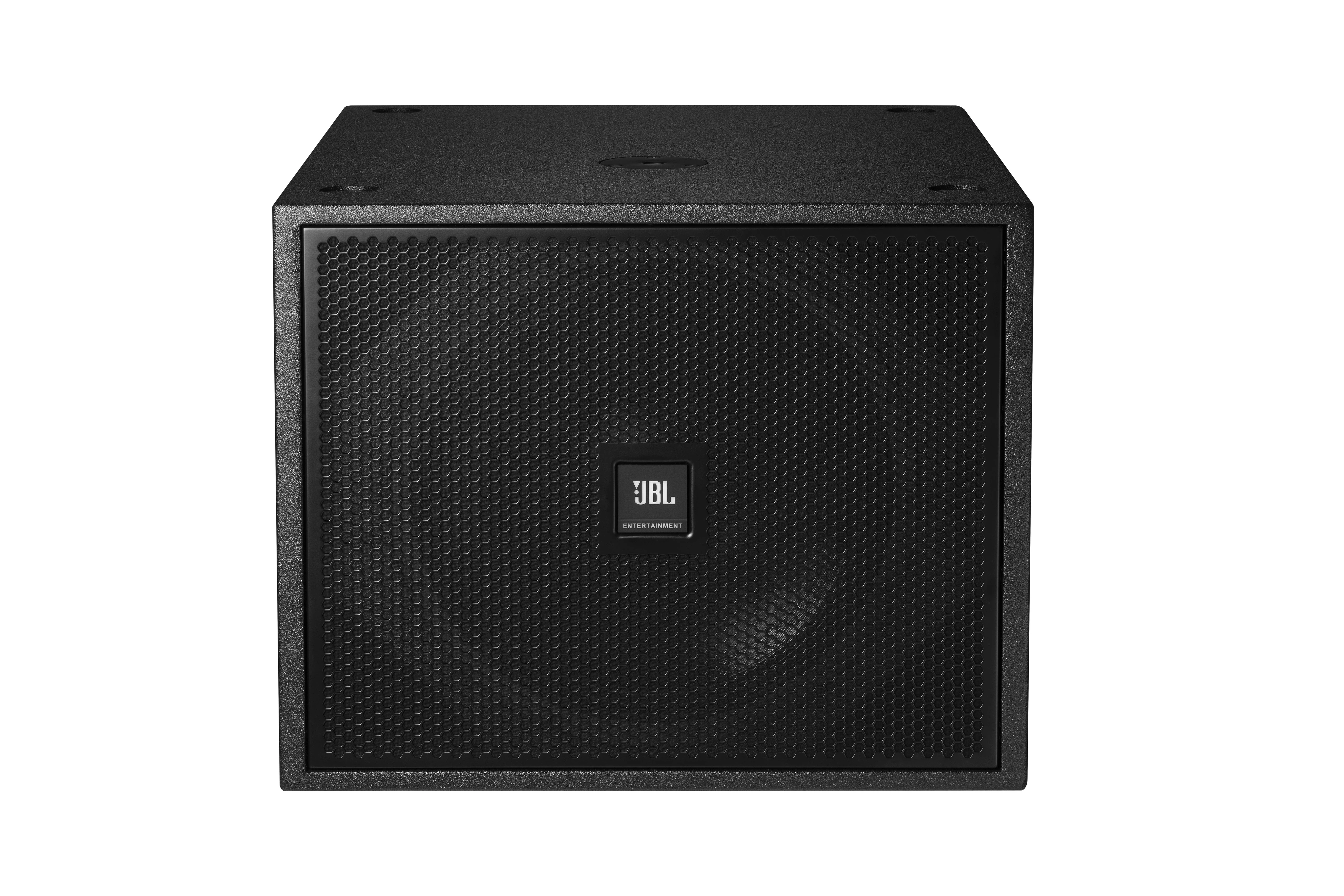

JBL Professional GH8S

较大的图像

The JBL Entertainment GH8S is a high-quality, single 18-inch passive subwoofer, which is specially designed to meet high power output demand and provides performance matching for JBL speakers of the same series.

It features the advanced JBL 460 mm ferrite compression driver to deliver distinctive JBL signature sound, with an output power of 1,000 W. It is equipped with advanced HARMAN transducer technology to deliver industry-leading acoustic sound for JBL entertainment speakers.

PSL Lighting Technology enables the JBL Entertainment logo to illuminate when vibrant music is playing, enhancing its modern and stylish appeal. NL4 Neutrik Speakon® Connectors facilitate seamless loop-thru connections of multiple speakers and achieve system extension with minimal effort.

Balanced XLR input and throughput are provided. Signals can be sent to another device through the balanced connector. The Speakon® audio connection and output binding post design facilitate quick and easy KTV applications.

Presently available in China only.

特点

Provides 1,000 W output power
Intuitive, front panel, at-a-glance, simplistic and functional design
JBL 460 mm ferrite compression driver delivers distinctive JBL signature sound
NL4 Neutrik Speakon® Connectors facilitate seamless loop-thru connection of multiple speakers
Shrink-in Back Panel Design allows the subwoofer to be installed against a wall, thereby producing extra SPL
Equipped with HARMAN advanced transducer technology, delivering the best acoustic sound for JBL entertainment speakers
Rotatable JBL ENTERTAINMENT Logo supports both horizontal and vertical installations
Front-loaded ventilation enhances full-power delivery without being affected by the back wall
The cabinet is built with high-quality birch plywood, ensuring premium sound reproduction
Designed for party-goers who expect the system to be easy-to-sing as well as dance with club sound quality reproduction
The brand new ID and sound performance are in harmony with modern Party-K room decor
This high-performance subwoofer meets the sound requirements of singing, and DJing for the Party-K market

下载

Spec Sheets

	语言	大小	上传日期
GH8S Spec Sheet 更新: 4月 2024		656.1 KB	4月 2024
GH8S Spec Sheet 更新: 4月 2024		570.8 KB	4月 2024

如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。

零件与服务

性能

Model Name	JBL-GH8S Single 18-Inch Passive Subwoofer
Frequency Response (±3 dB)	44 Hz - 180 Hz Peak, unweighted SPL, measured under full-space conditions.
Frequency Range (-10 dB)	38 Hz - 300 Hz Measurement conducted under half-space (2π) conditions.
System Sensitivity (1w @ 1m)	101 dB ^{Measurement conducted under half-space (2π) conditions.}
标称阻抗	8 ohms
Maximum SPL (1m)	131 dB continuous average (143 dB peak) ^{Peak, unweighted SPL, measured under full-space conditions at 1 meter using broadband pink noise with a 12dB crest factor.}
Power Rating:(continuous / program / peak )	1000 W / 2000 W / 4000 W ^{Testing conducted for 2 hours under pink noise with a crest factor of 6 dB, in accordance with IEC standards.}
低频驱动单元	460 mm (18 in) diameter, 100 mm (4 in) voice coil driver
Enclosure	18 mm birch plywood, fitted with a handle at each side
外观颜色	Duraflex finish
网罩	High-gloss grille surface
Input Connector	NL4 Neutrik Speakon® in parallel for loop-thru
Switch	Logo Lighting control Off / On
尺寸（高 x 宽 x 厚）	546 mm × 662 mm × 786 mm
Ventilation	Front-loaded ventilation
净重量	53.5 kg
