12" Bi-Amplified 2-Way System

较大的图像

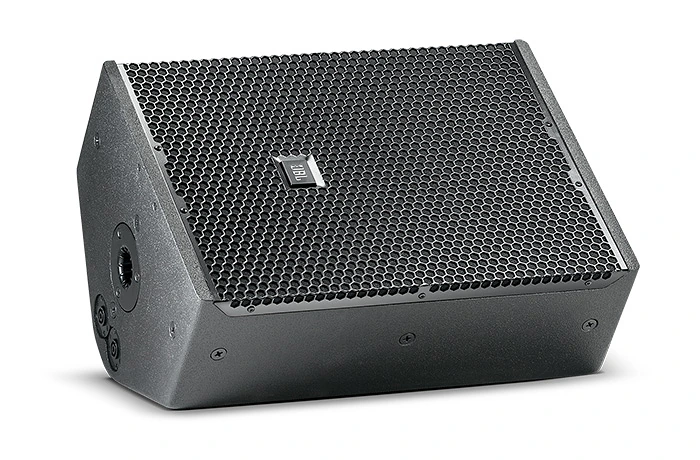

12" Bi-Amplified 2-Way System

The VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.



特点

  • D2430K D2 Dual Diaphragm Dual Driver
  • Progressive Transition Waveguide (90° x 50°)
  • Bi-Amplified 2-Way System
  • BSS Audio OmniDriveHD V5 Processing
  • For use with Crown ITechHD and Crown VRack
  • JBL HiQnet Performance Manager Control™


更多详情

D2 DUAL DIAPHRAGM DUAL VOICE COIL COMPRESSION DRIVER

The revolutionary D2 Dual Driver dramatically improves the sound and performance of high frequencies, providing an extreme output advantage over conventional systems with significantly higher array power, reduced distortion, double the number of voice coils and more than double the power handling. This results in a dramatic increase in pure high frequency sound pressure levels in the same physical footprint with a 30% reduction in weight.

LEARN MORE

DIFFERENTIAL DRIVE® TECHNNOLOGY
Enhanced Performance and Dramatically Reduced Driver Weight

JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.

LEARN MORE

SYSTEM INTEGRATION

System Integration and Management

With the VTX Series you are not just using a product, you are gaining access to an expert system. Tools for system design and all the components to analyze, configure, set up and control a VTX system are all part of the JBL commitment to total system integration and support. The goal is maximum efficiency and the highest possible level of performance in any venue, anywhere in the world.

LEARN MORE

下载

  Version Language Size Uploaded
Specifications
VTX F12 Spec Sheet
updated: 7月03日
    1.1 MB 7月03日
Brochures
VTX F Series Brochure
updated: 7月03日
    486.7 KB 7月03日
CAD Drawings
VTX F12 Customer Drawings
updated: 7月03日
    66.1 KB 7月03日
Compliances
VTX Series & Suspension Hardware Declaration of Conformity
updated: 6月20日
    157.9 KB 6月20日
VTX Series Suspension Hardware BGV-C1 Declaration of Conformity
updated: 10月18日
    159.6 KB 10月18日
Software
PerformanceManager
version 2.6.5.14, updated: 4月06日
2.6.5.14     102.6 MB 4月06日
Preset Libraries
F Series Preset Library
updated: 7月03日
    624.0 KB 7月03日
Speaker Tunings
V5 DSP Crown IT4x3500HD VTX F Series
updated: 11月01日
    876.0 KB 11月01日
V5 DSP Crown I-Tech HD F Series
updated: 11月01日
    740.3 KB 11月01日
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: 7月08日
    20.5 MB 7月08日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 2-Way Premium Multi-Purpose Loudspeaker with 12” Differential Drive® Woofer and D2 Dual Driver
Components 1 x 2262H 12" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
覆盖范围 90 x 50 degrees
频率范围 (-10dB) 51 Hz - 21.5 kHz (short throw mode, free field) 44 Hz - 21.5 kHz (monitor mode, half-space)
Frequency Response (±3 dB) 69 Hz – 20 kHz (short throw mode, free field) 58 Hz - 20 kHz (monitor mode, half-space)
Sensitivity (1W, 1m) 96 dB LF, 108 dB HF
Nominal Section Impedances 8 ohms LF, 20 ohms HF
Transducer Power Rating (AES 2 hour) 1000W LF, 200W HF cont 4000W LF, 800W HF peak
Dimensions (W x H x D) Vertical cabinet orientation 548.6 x 396.2 x 304.8 mm (21.6 x 15.6 x 12 in)
重量 19.1 kg (42 lbs)

Accessories

VTX-F12-UB | UNIVERSAL BRACKET
VTX-F12-UB Main photo
较大的图像
The VTX-F12-UB is a universal mounting bracket that attaches to the M10 mount points on the sides of the VTX F12 cabinet. The VTX-F12-UB allows for ground stacking, pole mounting, truss mounting or fixed installation of a single F12 enclosure. The mount bracket provides continuous tilt angle adjustment and two thumbscrews and friction washers are included to secure the F12 enclosure at the desired down or up tilt angle.
Features:
  • Detachable pole mount adapter included
  • Ground-stacking stabilizer legs included
  • Truss mounting support with optional Martin Professional Lighting Half-Coupler Clamp
  • Continuous tilt angle adjustment
  • 8 mount points for permanent installation
  • Central M12 hole for drop-down extension rod mounting
Included:
  • 1 x Universal Bracket for VTX F12
  • 2 x M10 Thumbscrews and Friction Washers
  • 1 x Pole Mount Adapter and Mount Hardware
  • 2 x Ground Support Legs with Mount Hardware

Documentation
