EON600不仅仅是另一款出色的JBL音响系统，更是专门为了在任何应用中都能传输最佳音质而开发的真正技术进步。JBL工程师从零开始精心设计和制造了EON600，彻底改革了一个价格适中的自包含便携式PA系统的优秀程度，该系统具有JBL先进的波导技术、JBL设计和制造的换能器，以及通过蓝牙便利地远程控制其板载DSP均衡器参数的功能。EON平台的这次全面重新设计充分利用了机柜材料、声学科学、换能器设计和用户友好性方面的最新技术，为当今的职业音乐人和声音提供商提供了具有高端录音室监听音箱的卓越品质，同时具有完全专业、高度灵活、易于使用的便携式系统。
| 大小 | |
|
|
88.1 KB |
|
|
101.5 KB |
|
|
6.1 MB |
|
|
2.0 MB |
| 大小 | |
|
|
6.1 MB |
| 大小 | |
|
|
2.5 MB |
| 大小 | |
|
|
1.5 MB |
|
|
1.5 MB |
|
|
1.5 MB |
|
|
182.6 KB |
| 大小 | |
|
|
154.4 KB |
| 698.8 KB |
| 大小 | |
|
|
|
|
|
| 大小 | |
|
|
21.0 MB |
| 大小 | |
|
|
262.6 KB |
|
|
125.2 KB |
|
|
300.1 KB |
|
|
468.3 KB |
|
|
181.6 KB |
|
|
135.7 KB |
|
|
213.1 KB |
|
|
308.0 KB |
|
|
237.9 KB |
|
|
253.7 KB |
|
|
6.2 MB |
|
|
4.4 MB |
|
|
6.7 MB |
|
|
8.7 MB |
|
|
4.3 MB |
|
|
10.1 MB |
|
|
11.3 MB |
| 大小 | |
|
|
3.9 MB |
|
|
828.9 KB |
|
|
3.5 MB |
|
|
3.5 MB |
|
|
3.5 MB |
如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。
| 系统类型 | Self powered 15", two-way, bass-reflex |
| Max SPL Output | 127 dB |
| 频率范围 (-10dB) | 39 Hz - 20 kHz |
| Frequency Response (±3 dB) | 50 Hz - 20 kHz |
| 覆盖范围 | 90° x 60° |
| Amplifier Design | Class D |
| 额定功率 | 1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF) |
| 尺寸（高 x 宽 x 厚） | 707mm x 439mm x 365mm (27.8in x 17.3in x 14.4in) |
| 净重量 | 17.69 kg (39 lbs) |
| 麦克风输入 | 2 |
| 幻象电源 | No |
| EQ | 3 Parametric EQs + Hi & Lo Shelf |
效果器 |
DSP Presets |
| 输入通道 | 2 x Balanced XLR-1/4” combination inputs |
| 输出 | 1 x male XLR loop thru out |
| Enclosure | Polypropylene |
Deluxe Carry Bag w/ 10mm Padding & Dual Access Zippers. Includes Two Heavy-Duty Carry Handles, EON615 Handle Access Cover, and Accessory Pocket. Fits EON615.

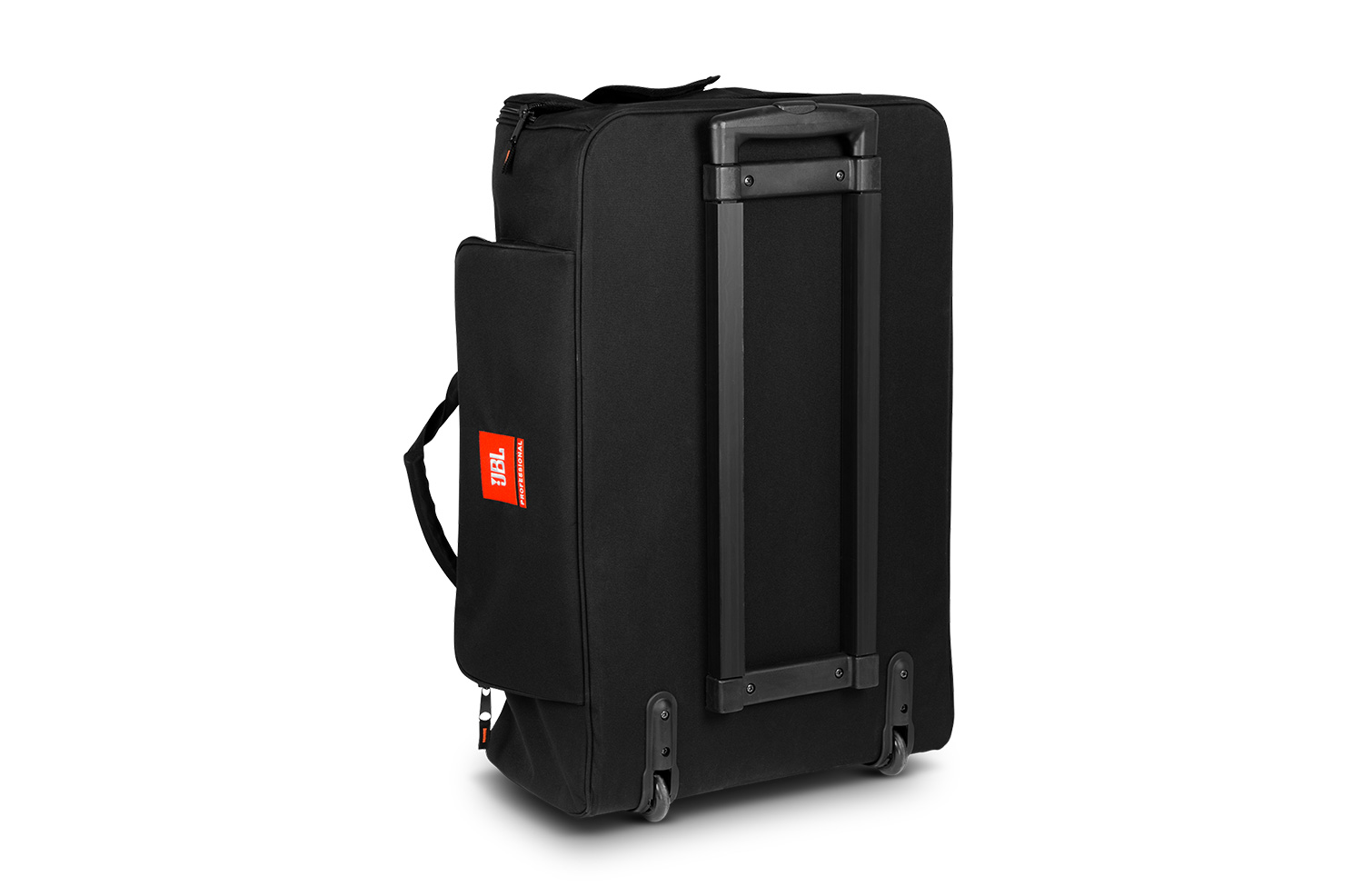

Deluxe Roller Bag w/ Wheels & Tow Handle. Heavy Duty Carry Handles. Fits EON 615
Deluxe padded cover for EON615. Water Resistant Black Nylon Exterior, 10mm Padding, Handle Access Openings.
Stretchy Black Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 15" Speakers.
Stretchy White Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 15" Speakers.

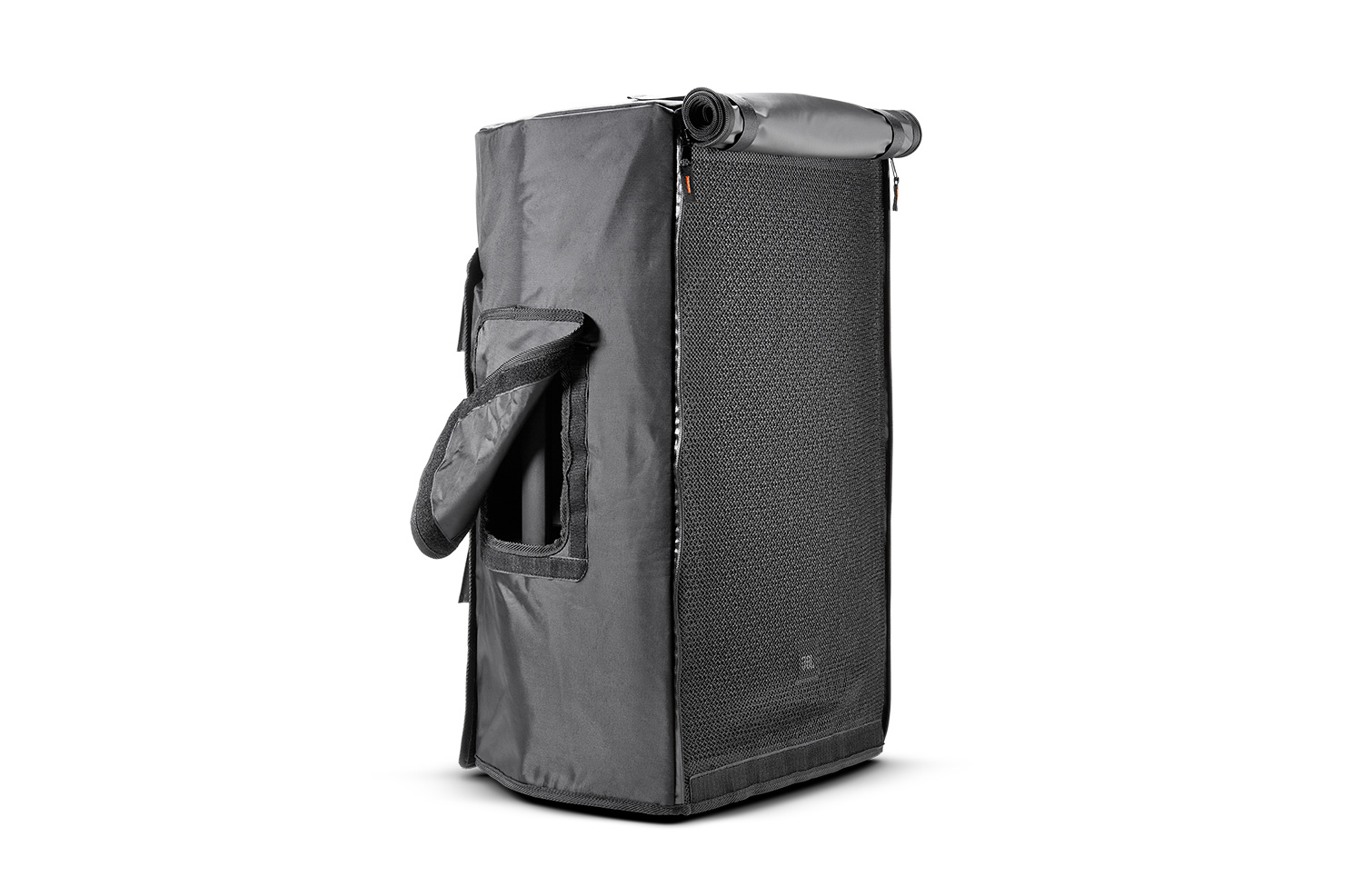

Convertible Cover for EON615. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.
JBLTRIPOD-GA Data Sheet
[231.0 KB]
JBL Tripod Gas Assist Closed
[36.2 KB]
JBL Tripod Gas Assist Closed Extended
[30.5 KB]
JBL Tripod Gas Assist Open
[41.7 KB]
JBL Tripod Manual Adjust Open
[39.5 KB]
铝制三脚架扬声器支架，配备安全锁定销和150磅承重能力。为了帮助您抬起扬声器，我们在伸缩管上添加了耐用的提升环，为您的上手臂提供推力支点，轻松将扬声器升至所需高度。
JBLTRIPOD-MA Data Sheet
[228.2 KB]
带M20螺纹下端的气压辅助扬声器支杆，38mm杆身和35mm适配器。JBLPOLE-GA是最易使用的扬声器支架，其内置气动减震装置可为您自动升起扬声器。该支架的内置减震装置可轻松升起重量35磅或以下的扬声器，无需用户费力。
JBL pole Gas Assist
[41.6 KB]
JBL pole Gas Assist detail
[70.2 KB]
JBLPOLE-GA Data Sheet
[313.6 KB]
带M20螺纹下端的手动调节扬声器极杆，38mm极杆和35mm。JBLPOLE-MA采用出色的高度调节卡箍，配有符合人体工学的"Z"形旋钮，可实现舒适的调节。作为最坚固的配件设计，高度调节卡箍可防止全塑料设计中常见的过度拧紧和断裂问题。
JBLPOLE-MA Data Sheet
[257.6 KB]
JBL pole Manual Adjust
[40.7 KB]
JBL pole Manual Adjust Detail
[87.7 KB]
