EON615

15" Two-Way Multipurpose Self-Powered Sound Reinforcement

EON615
较大的图像

15" Two-Way Multipurpose Self-Powered Sound Reinforcement

More than just another great JBL sound system, the new EON600 is a true step forward in technology developed specifically to deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained, portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL’s advanced waveguide technology, JBL designed and manufactured transducers, and convenient, wireless remote control of its onboard DSP EQ parameters via Bluetooth. This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly flexible, easy to use, portable system for today’s working musicians and sound providers.



特点

  • Enclosure designs have been optimized for ideal acoustic resonance taking advantage of injection molding techniques and mechanical shaping of the enclosures.
  • JBL Waveguide Technology
  • Bluetooth integration


评论

“We can’t speak highly enough of the new EON 615. They sound phenomenal, they’re built like Soviet tanks, and they offer up a wide array of versatile options. Throw in a street price under $500 and we’re sold.” —Performer Magazine

“A significant upgrade to the EON range that not only adds onboard, remote-controllable EQ, but sounds (and looks) great, too.” —Sound on Sound

下载

  Version Language Size Uploaded
Data Sheets
file type icon EON615 Deluxe Cover
updated: 10月 2020
    88.1 KB 10月 2020
file type icon EON615 WR Deluxe Cover
updated: 10月 2020
    101.5 KB 10月 2020
file type icon EON 615 Spec Sheet
updated: 10月 2019
    6.1 MB 10月 2019
file type icon EON615 DataSheet
updated: 7月 2019
    2.0 MB 7月 2019
Specifications
file type icon EON615 Spec Sheet
updated: 7月 2019
    6.1 MB 7月 2019
Brochures
file type icon Portable Sound Full Line 2015 Catalog
updated: 10月 2020
    2.5 MB 10月 2020
CAD Drawings
file type icon EON615 2D DWG drawing
updated: 10月 2019
    1.5 MB 10月 2019
file type icon EON615 CAD Drawing
updated: 7月 2019
    1.5 MB 7月 2019
file type icon EON615 PDF Drawing
updated: 7月 2019
    182.6 KB 7月 2019
Compliances
file type icon EON G4 Series - Declaration of Conformity
updated: 10月 2020
    154.4 KB 10月 2020
file type icon EON G4 Series - EU-Declaration of Conformity (DoC)
updated: 1月 2020
    698.8 KB 1月 2020
Software
platform icon EON Connect
updated: 8月 2023
    8月 2023
platform icon EON Connect
updated: 8月 2023
    8月 2023
Images

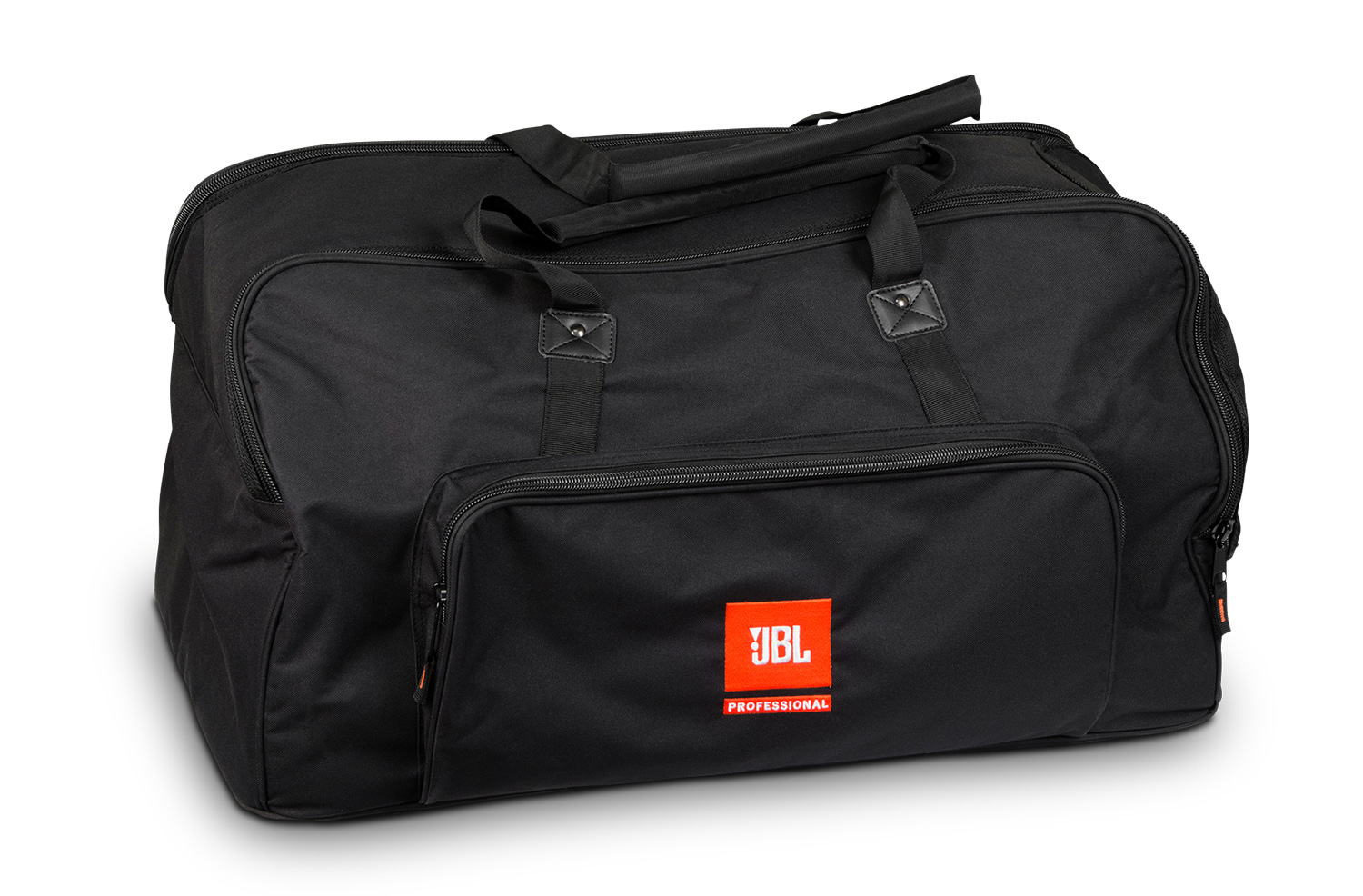

file type icon EON615 Carry Bag Front Hi Res Image
updated: 10月 2020
    308.0 KB 10月 2020

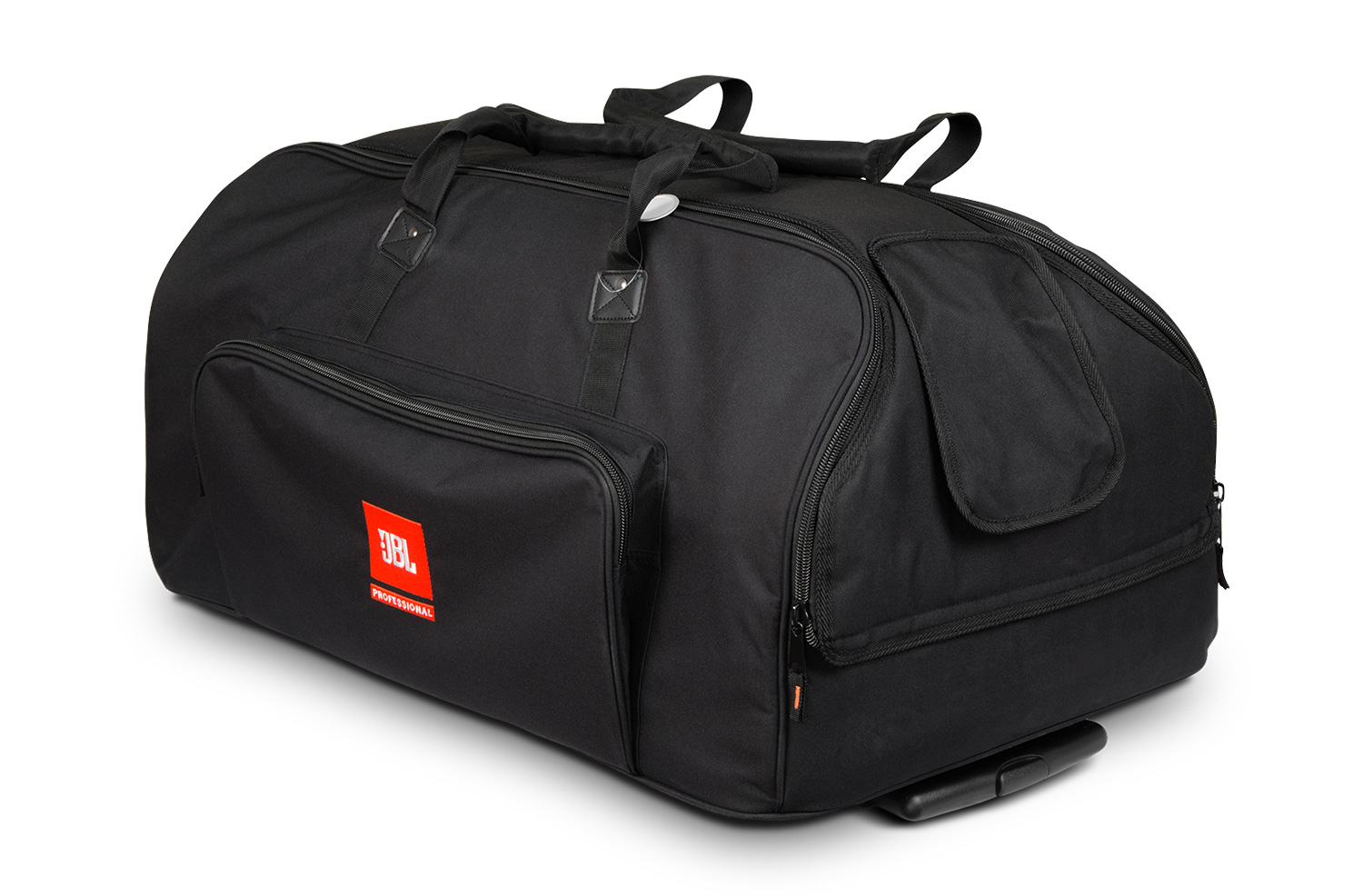

file type icon EON615 Carry Bag with Wheels Angle Hi Res Image
updated: 10月 2020
    262.6 KB 10月 2020
file type icon EON615 Carry Bag with Wheels Back Hi Res Image
updated: 10月 2020
    125.2 KB 10月 2020

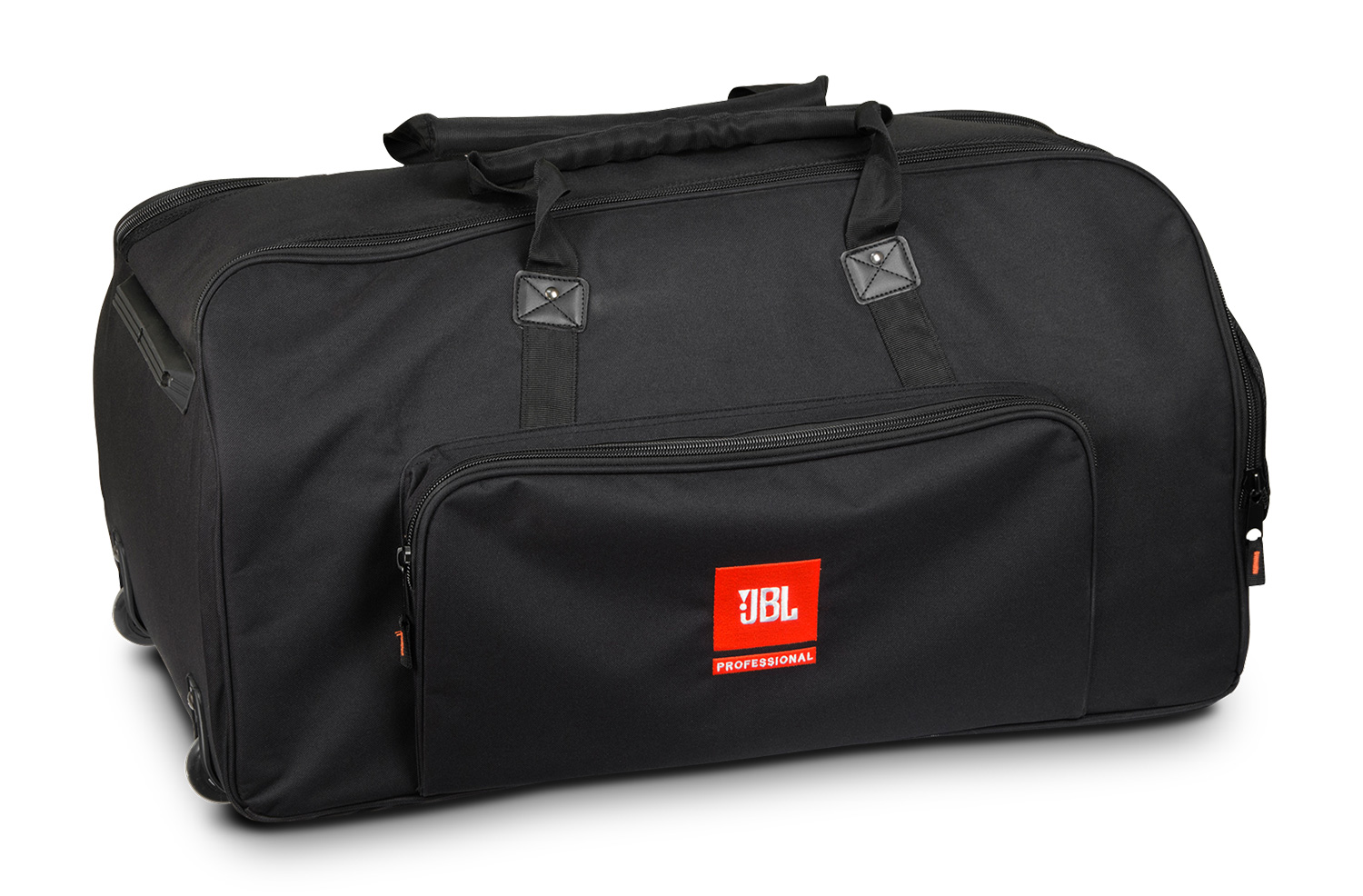

file type icon EON615 Carry Bag with Wheels Front Hi Res Image
updated: 10月 2020
    300.1 KB 10月 2020

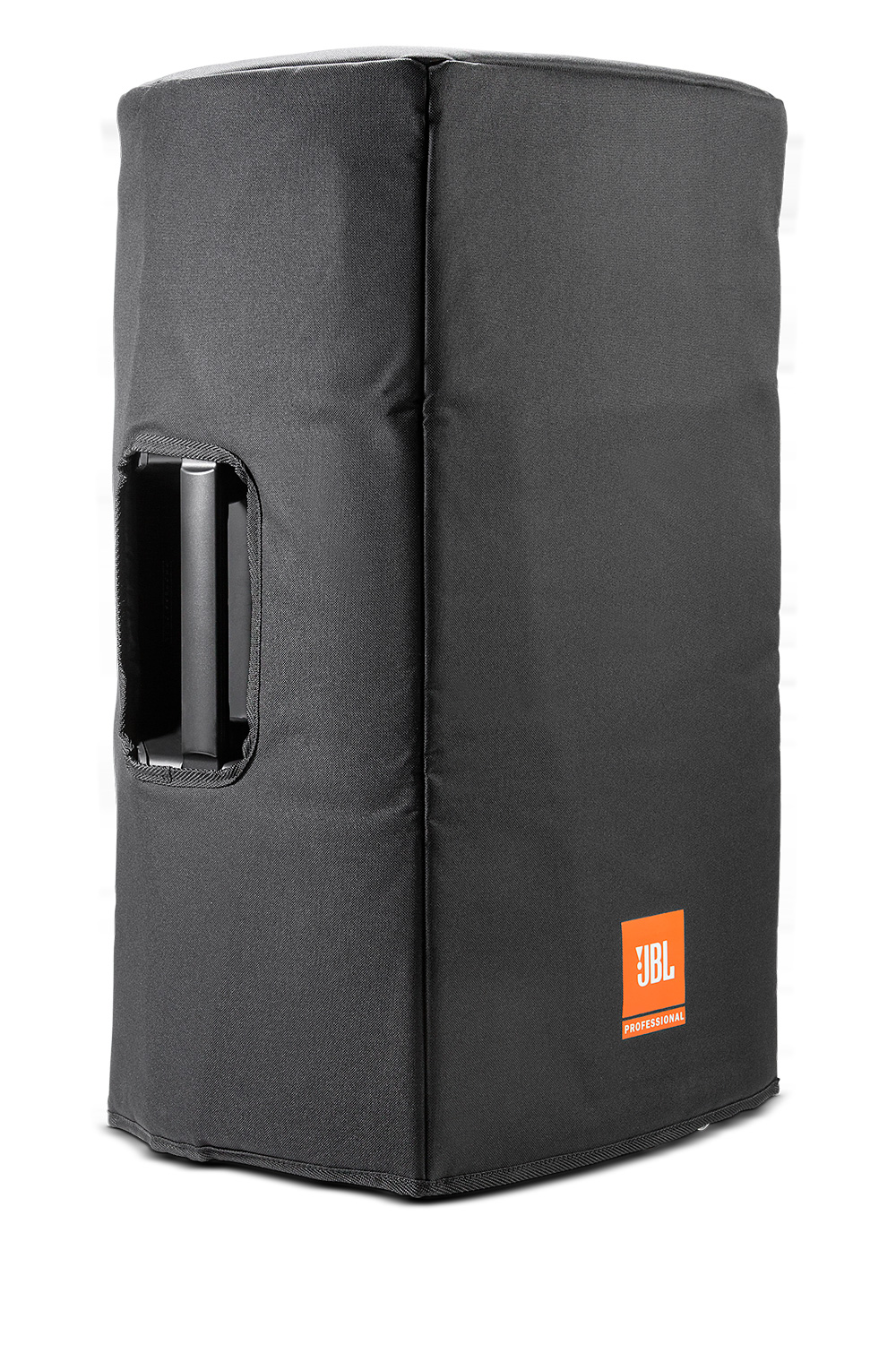

file type icon EON615 Deluxe Cover Front
updated: 10月 2020
    468.3 KB 10月 2020

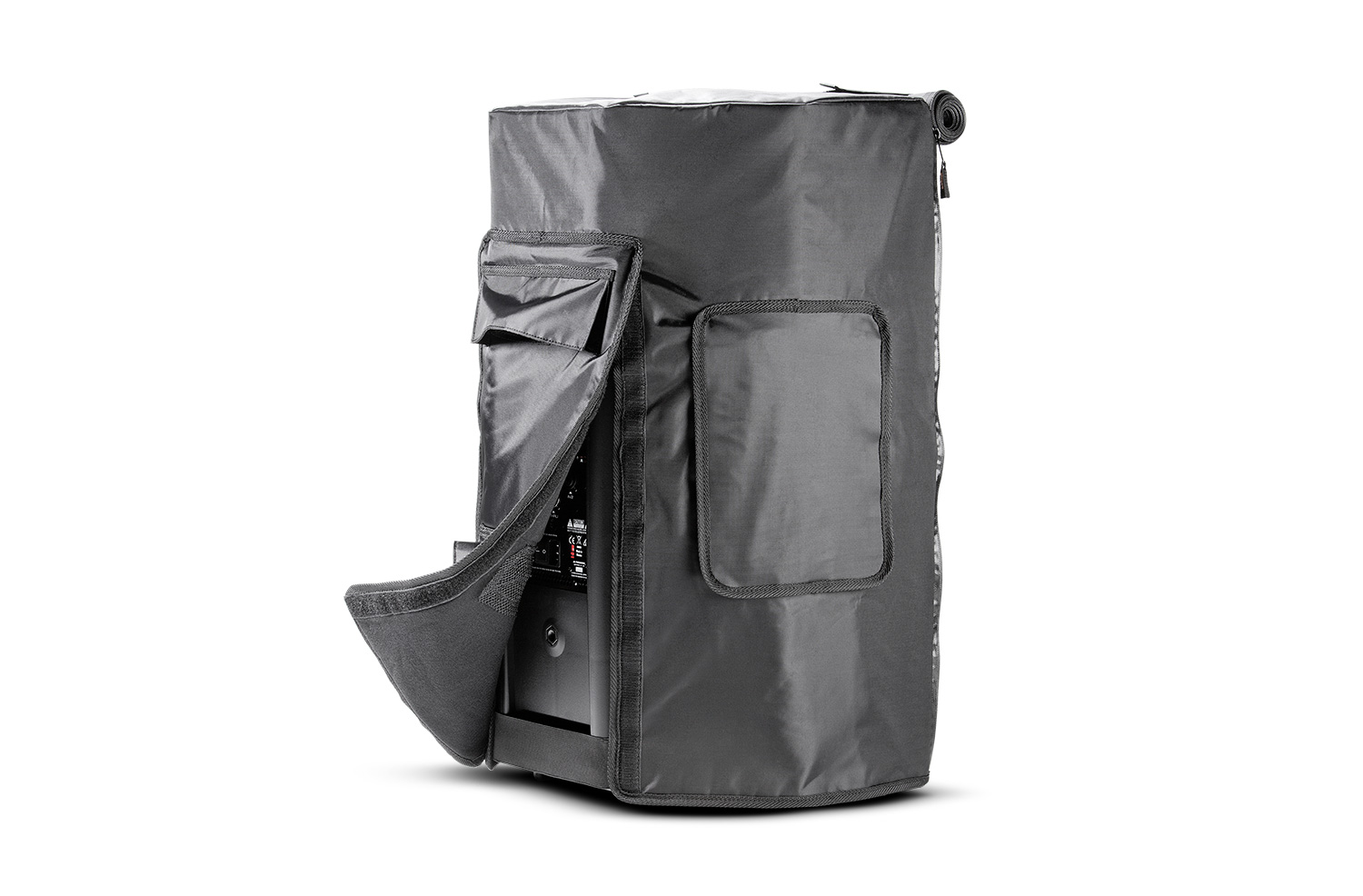

file type icon EON615 WR Deluxe Cover Back
updated: 10月 2020
    181.6 KB 10月 2020

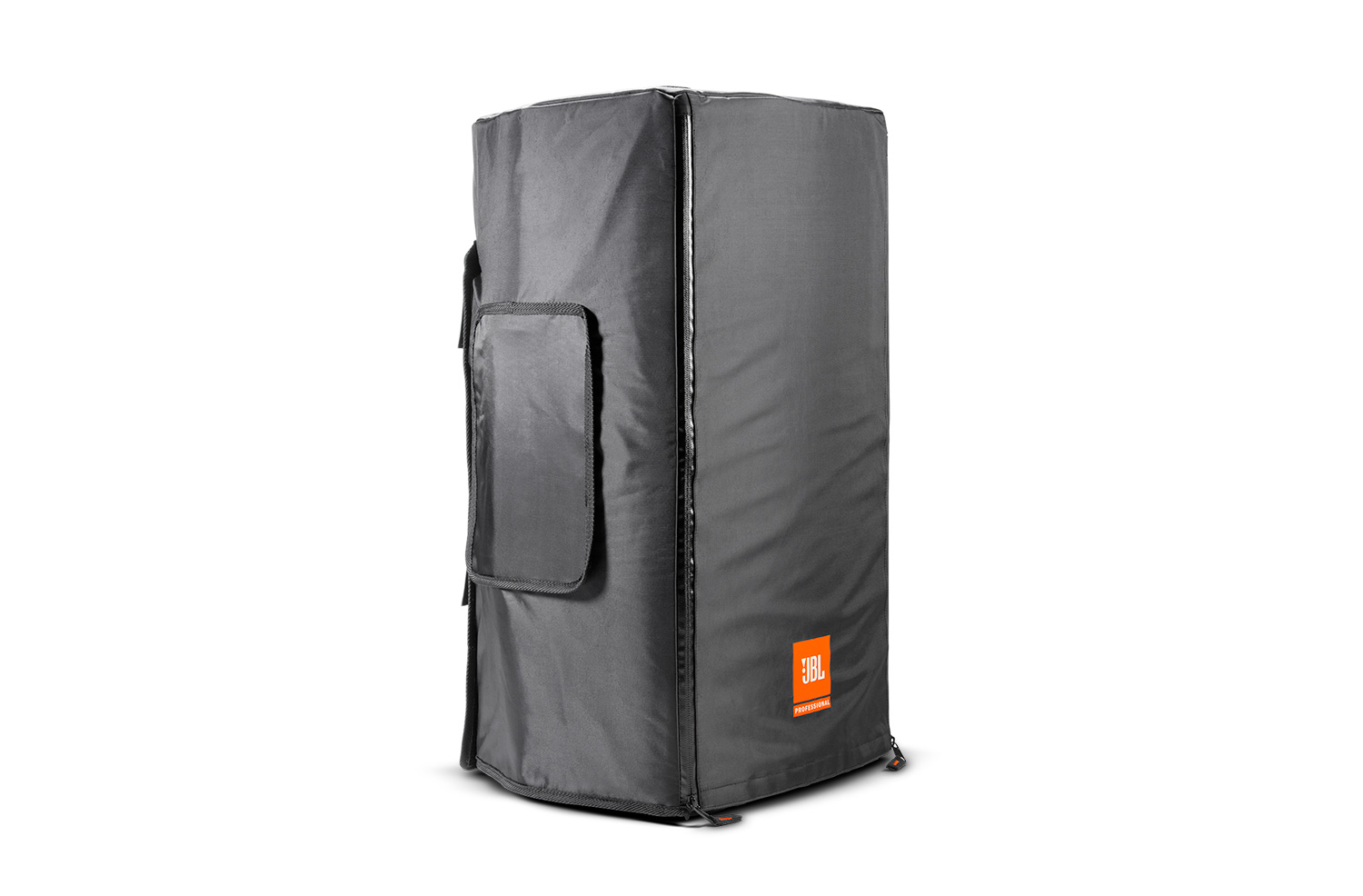

file type icon EON615 WR Deluxe Cover Front
updated: 10月 2020
    135.7 KB 10月 2020
file type icon EON615 WR Deluxe Cover Front Open
updated: 10月 2020
    213.1 KB 10月 2020

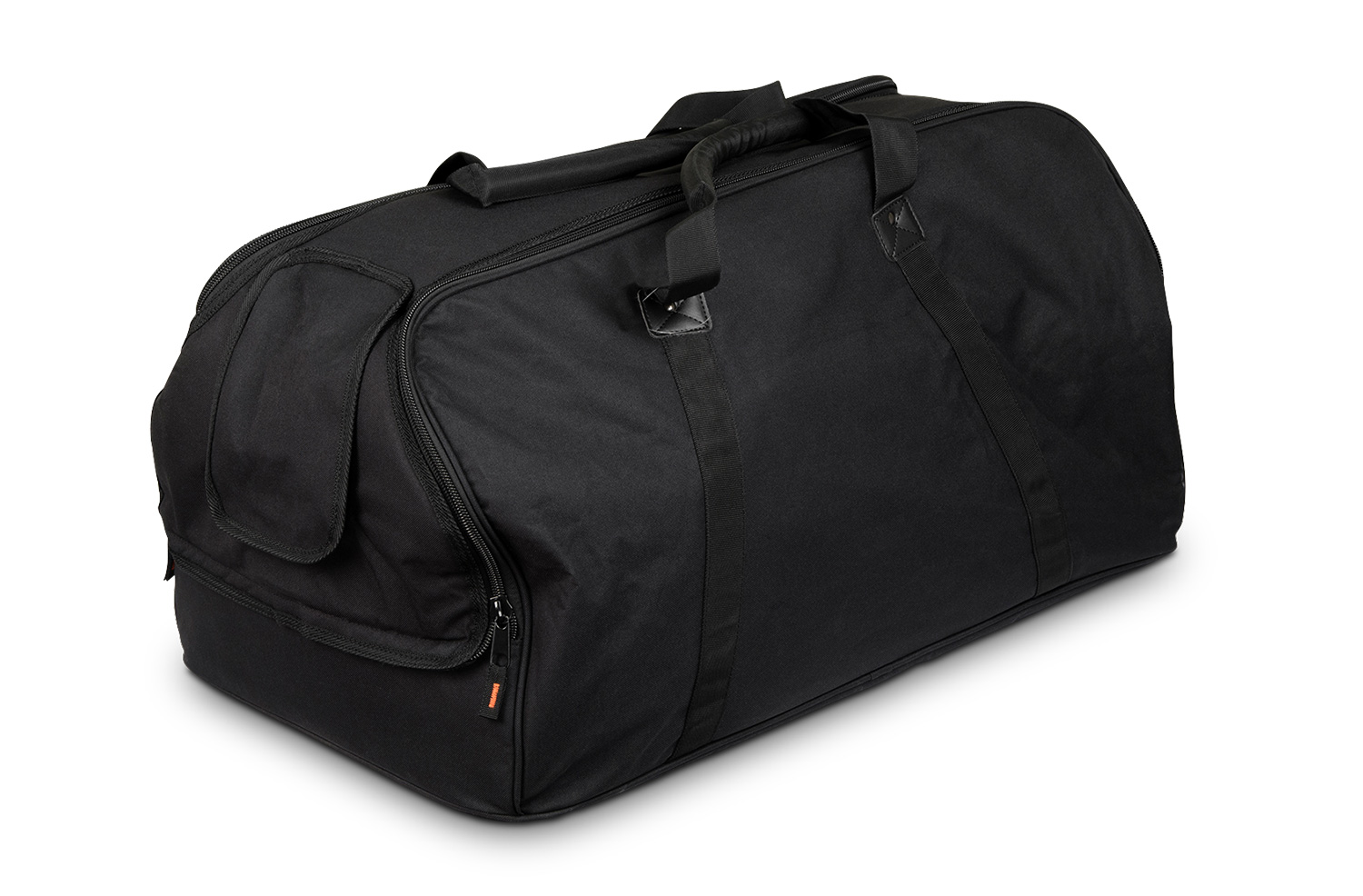

file type icon EON615 Carry Bag Back Hi Res Image
updated: 10月 2020
    237.9 KB 10月 2020

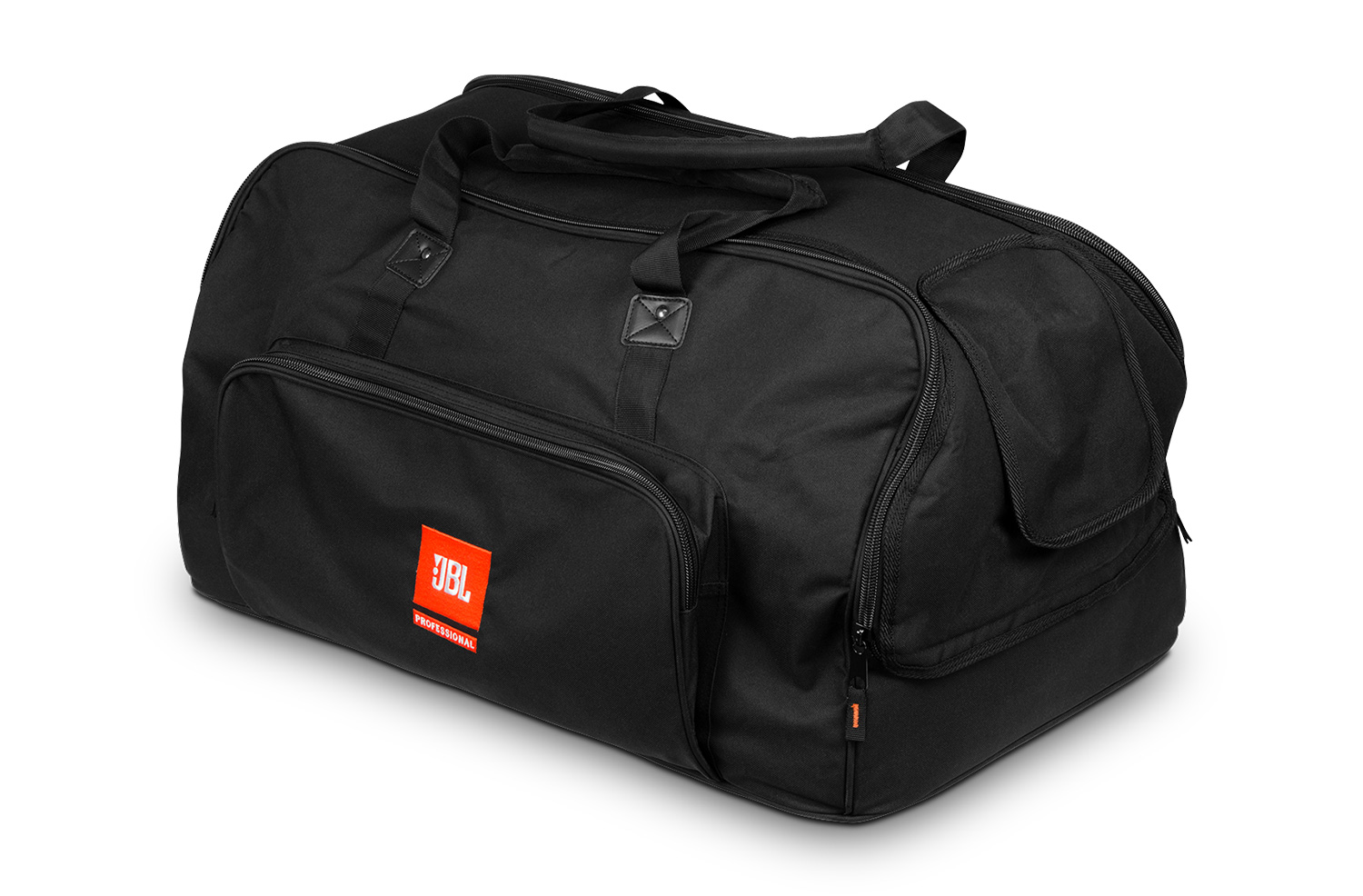

file type icon EON615 Carry Bag Angle Hi Res Image
updated: 10月 2020
    253.7 KB 10月 2020
file type icon EON615 Hero Front Back
updated: 7月 2019
    6.2 MB 7月 2019
file type icon EON615 Hero noGrill
updated: 7月 2019
    4.4 MB 7月 2019
file type icon EON615 Back Panel
updated: 7月 2019
    6.7 MB 7月 2019
file type icon EON615 Back Panel Closeup
updated: 7月 2019
    8.7 MB 7月 2019
file type icon EON615 Front Beauty
updated: 7月 2019
    4.3 MB 7月 2019
file type icon EON615 Handle
updated: 7月 2019
    10.1 MB 7月 2019
file type icon EON615 Hero Front Back
updated: 10月 2020
    11.3 MB 10月 2020
User Guides
file type icon EON600 Users Guide
version B, updated: 11月 2020
  3.9 MB 11月 2020
file type icon EON600 Connect User Guide
updated: 10月 2020
    828.9 KB 10月 2020
file type icon EON600 Connect User Guide - Spanish
es updated: 10月 2020
  es  3.5 MB 10月 2020
file type icon EON600 Connect User Guide - German
de updated: 10月 2020
  de  3.5 MB 10月 2020
file type icon EON600 Connect User Guide - French
fr updated: 10月 2020
  fr  3.5 MB 10月 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
    21.0 MB 3月 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统类型 Self powered 15", two-way, bass-reflex
Max SPL Output 127 dB
频率范围 (-10dB) 39 Hz - 20 kHz
Frequency Response (±3 dB) 50 Hz - 20 kHz
覆盖范围 90° x 60°
Amplifier Design Class D
额定功率 1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF)
尺寸(高 x 宽 x 厚) 707mm x 439mm x 365mm (27.8in x 17.3in x 14.4in)
净重量 17.69 kg (39 lbs)
麦克风输入 2
幻象电源 No
EQ 3 Parametric EQs + Hi & Lo Shelf

效果器

DSP Presets
输入通道 2 x Balanced XLR-1/4” combination inputs
输出 1 x male XLR loop thru out
Enclosure Polypropylene

accessories

EON615-BAG | Deluxe Padded Cover for the EON615
EON615-BAG Main photo
较大的图像

Deluxe Carry Bag w/ 10mm Padding & Dual Access Zippers. Includes Two Heavy-Duty Carry Handles, EON615 Handle Access Cover, and Accessory Pocket. Fits EON615.


EON615-BAG-W | EON615 Roller Bag
EON615-BAG-W Main photo
较大的图像

Deluxe Roller Bag w/ Wheels & Tow Handle. Heavy Duty Carry Handles. Fits EON 615


EON615-CVR | Deluxe Padded Protective Cover for EON615
EON615-CVR Main photo
较大的图像

Deluxe padded cover for EON615. Water Resistant Black Nylon Exterior, 10mm Padding, Handle Access Openings.


EON15-STRETCH-COVER-BK | Stretchy Black Cover fits all EON 15" Cabinets
EON15-STRETCH-COVER-BK Main photo
较大的图像

Stretchy Black Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 15" Speakers.


EON15-STRETCH-COVER-WH | Stretchy White Cover fits all EON 15" Cabinets
EON15-STRETCH-COVER-WH Main photo
较大的图像

Stretchy White Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 15" Speakers.


EON615-CVR-WX | Convertible Cover for EON615
EON615-CVR-WX Main photo
较大的图像

Convertible Cover for EON615. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.


JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
较大的图像
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
较大的图像

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
较大的图像

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
较大的图像

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
