EON610

10" Two-Way Multipurpose Self-Powered Sound Reinforcement

较大的图像

10" Two-Way Multipurpose Self-Powered Sound Reinforcement

More than just another great JBL sound system, the new EON600 is a true step forward in technology developed specifically to deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained, portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL’s advanced waveguide technology, JBL designed and manufactured transducers, and convenient, wireless remote control of its onboard DSP EQ parameters via Bluetooth. This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly flexible, easy to use, portable system for today’s working musicians and sound providers.



特点

  • Purposeful Product Design
  • JBL Waveguide Technology
  • Bluetooth Integration


评论

“The JBL EON 610 is an ultra-lightweight speaker perfect for mobile performers. On the volume front, it can crank up to 124 dB which is more than enough to cover a small to medium-sized venue. At 26 lbs (11.79 kg) it feels like a feather compared to some other speakers.” —homedjstudio.com

“A significant upgrade to the EON range that not only adds onboard, remote-controllable EQ, but sounds (and looks) great, too.” —Sound on Sound

下载

  Version Language Size Uploaded
Data Sheets
EON610 DataSheet
updated: 7月01日
    1.9 MB 7月01日
Specifications
EON610 Spec Sheet
updated: 7月01日
    5.3 MB 7月01日
Brochures
Portable Sound Full Line 2015 Catalog
updated: 8月20日
    2.5 MB 8月20日
Compliances
EON G4 Series - Declaration of Conformity
updated: 10月18日
    154.4 KB 10月18日
EON G4 Series - EU-Declaration of Conformity (DoC)
updated: 1月23日
    698.8 KB 1月23日
Software
EON Connect
updated: 11月04日
    11月04日
EON Connect
updated: 11月04日
    11月04日
Images

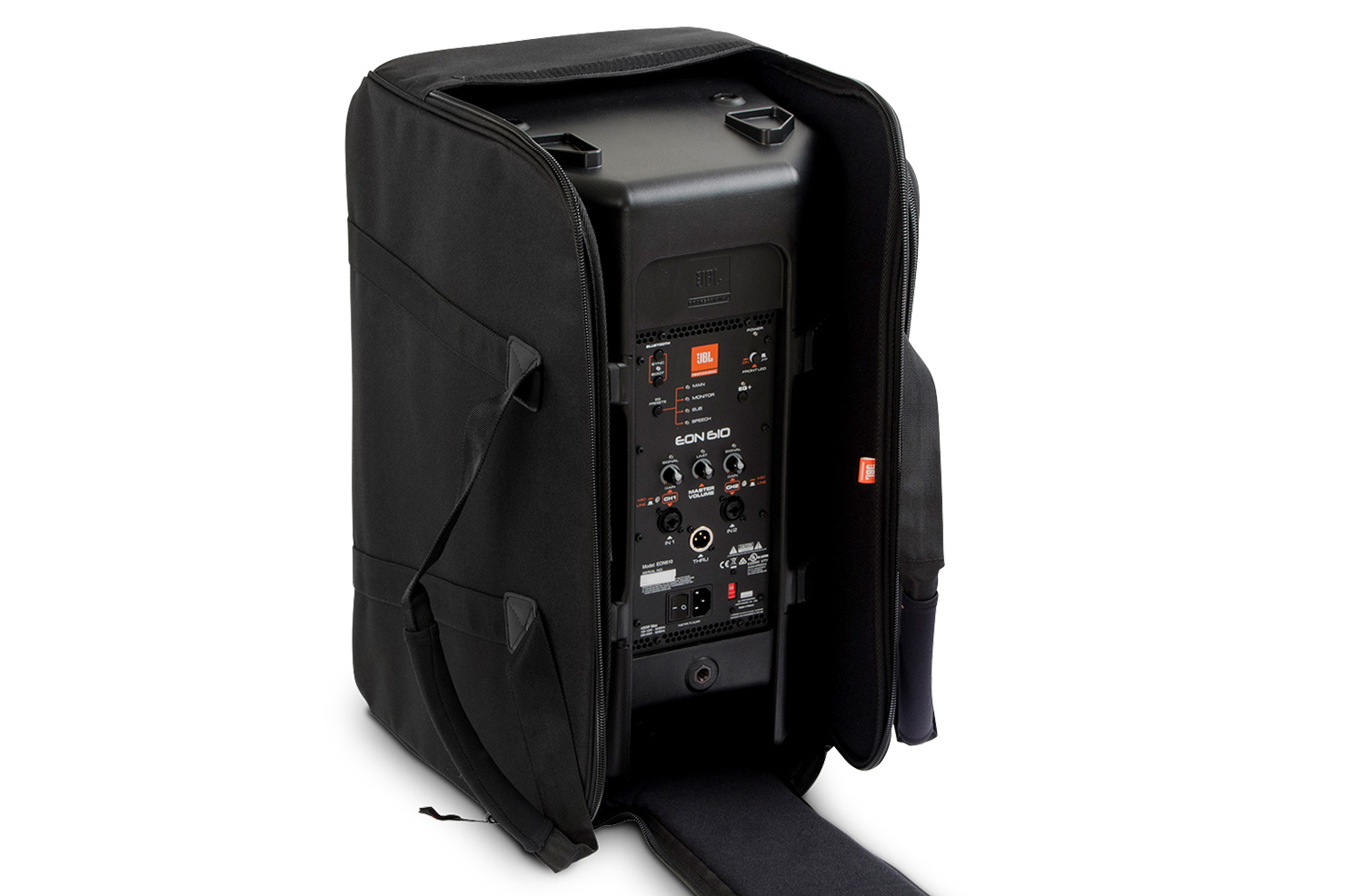

EON610 Carry Bag Back Open Hi Res Image
updated: 10月18日
    178.2 KB 10月18日

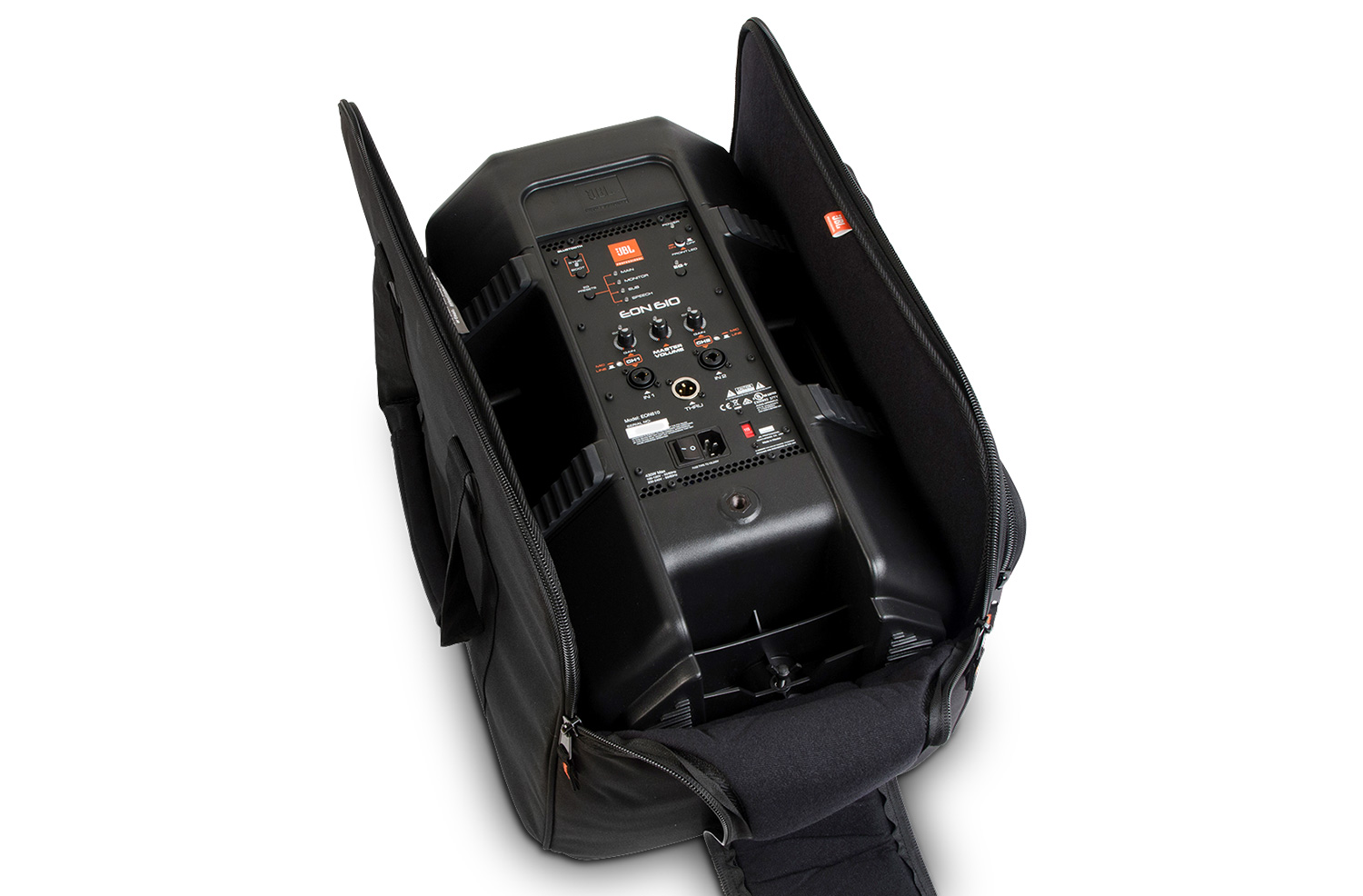

EON610 Carry Bag Open Hi Res Image
updated: 10月18日
    192.6 KB 10月18日

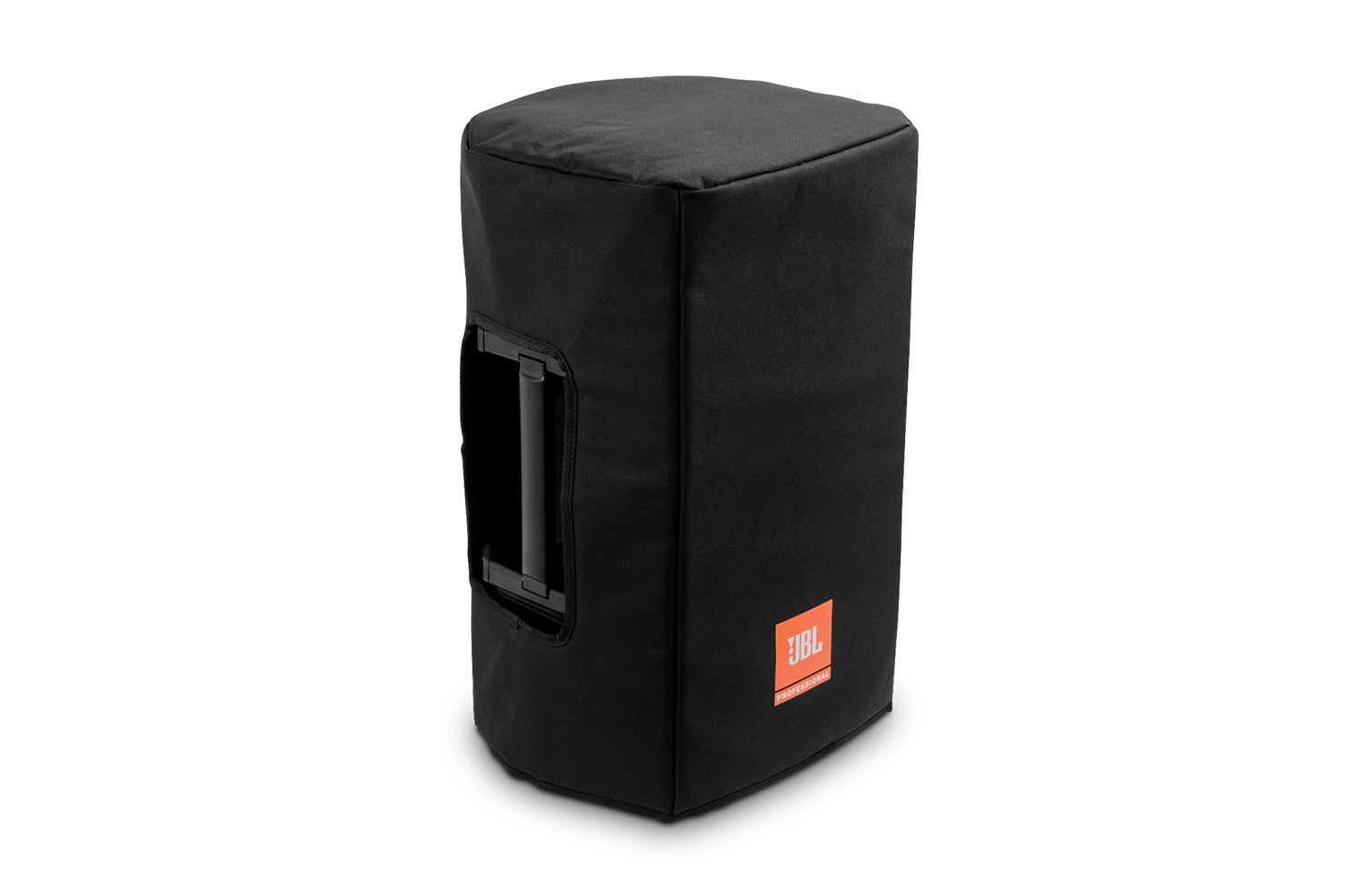

EON610 Cover Angle Hi Res Image
updated: 10月18日
    115.0 KB 10月18日

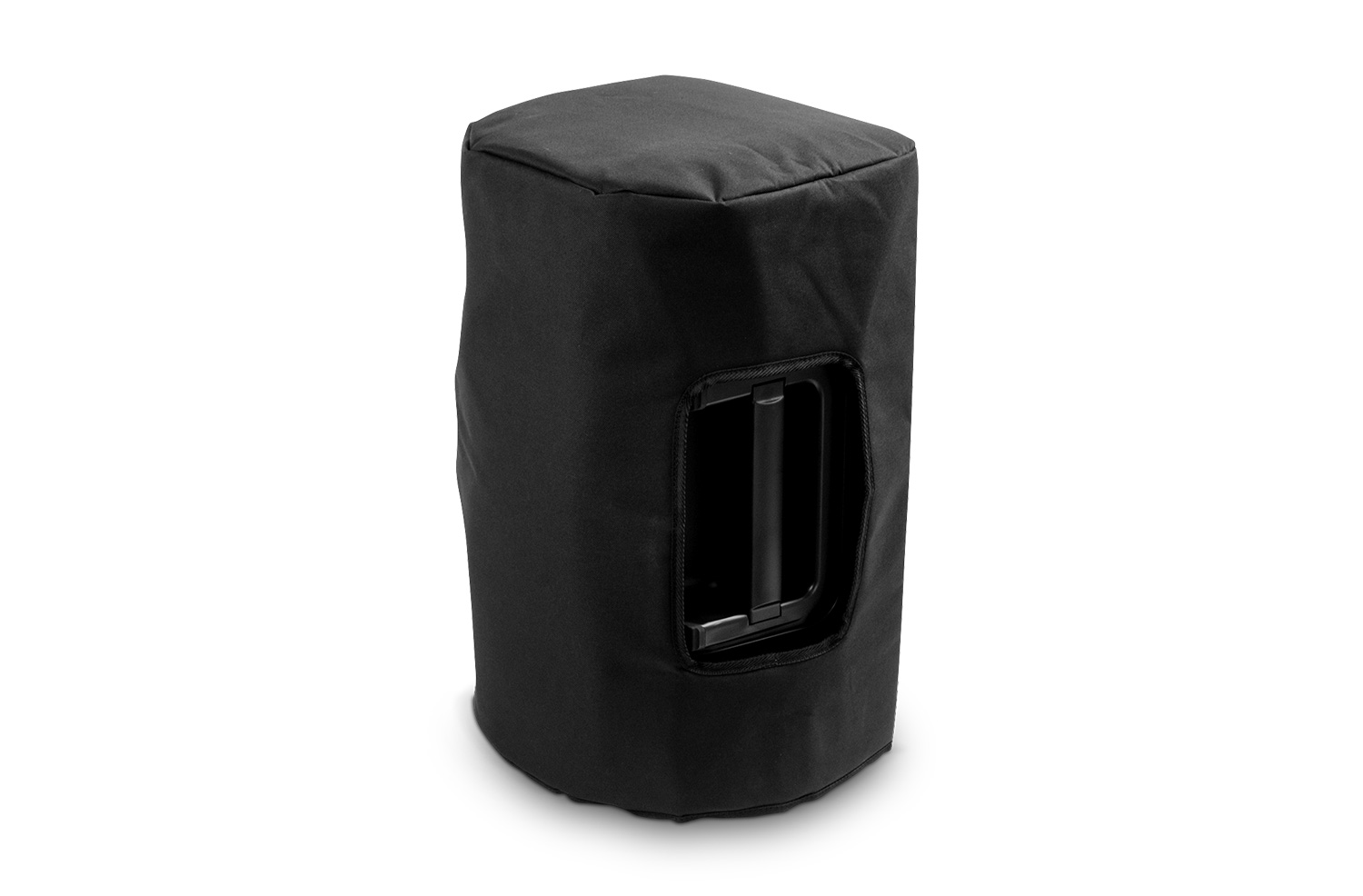

EON610 Cover Back Hi Res Image
updated: 10月18日
    118.3 KB 10月18日

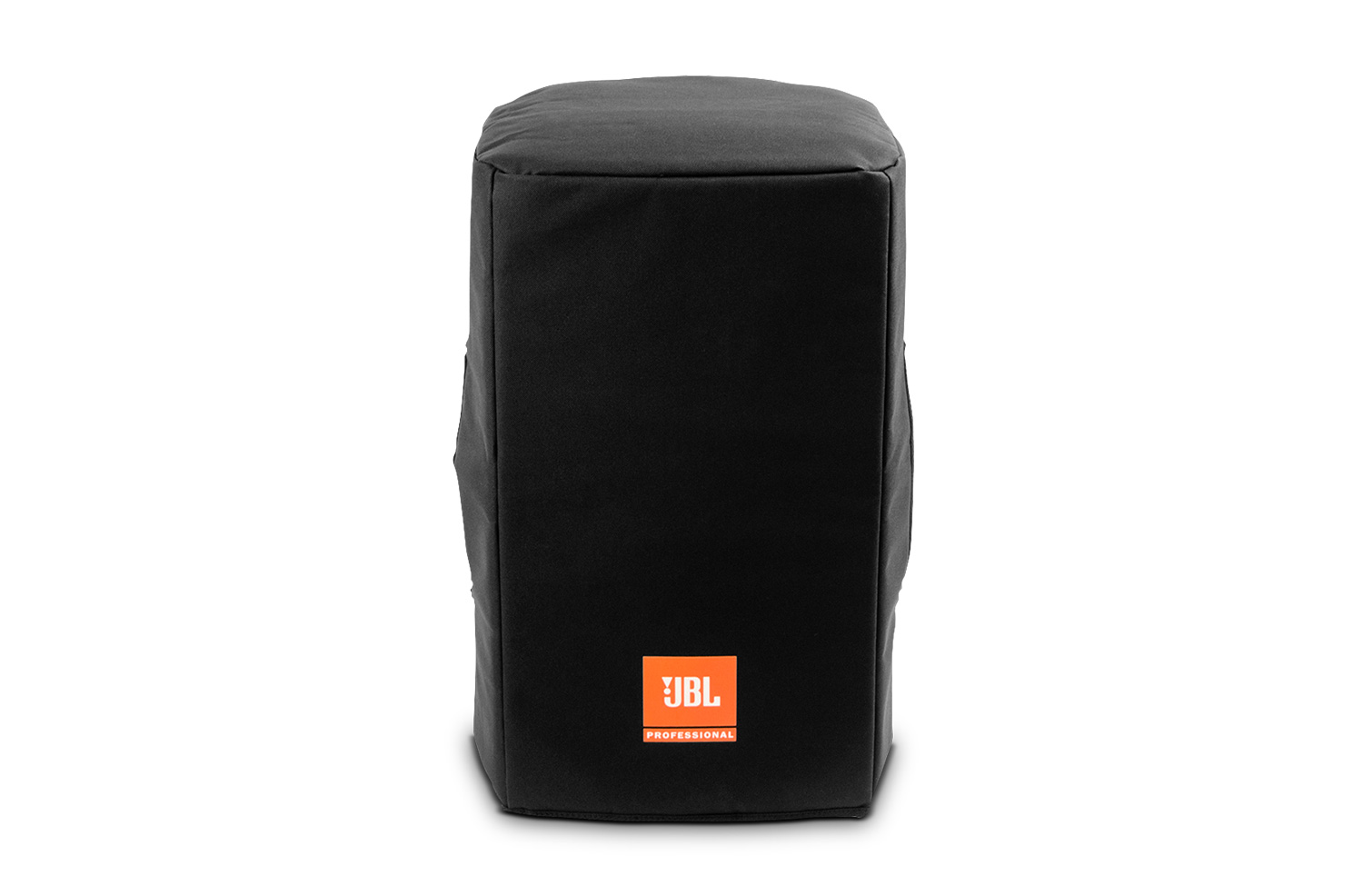

EON610 Cover Front Hi Res Image
updated: 10月18日
    118.7 KB 10月18日

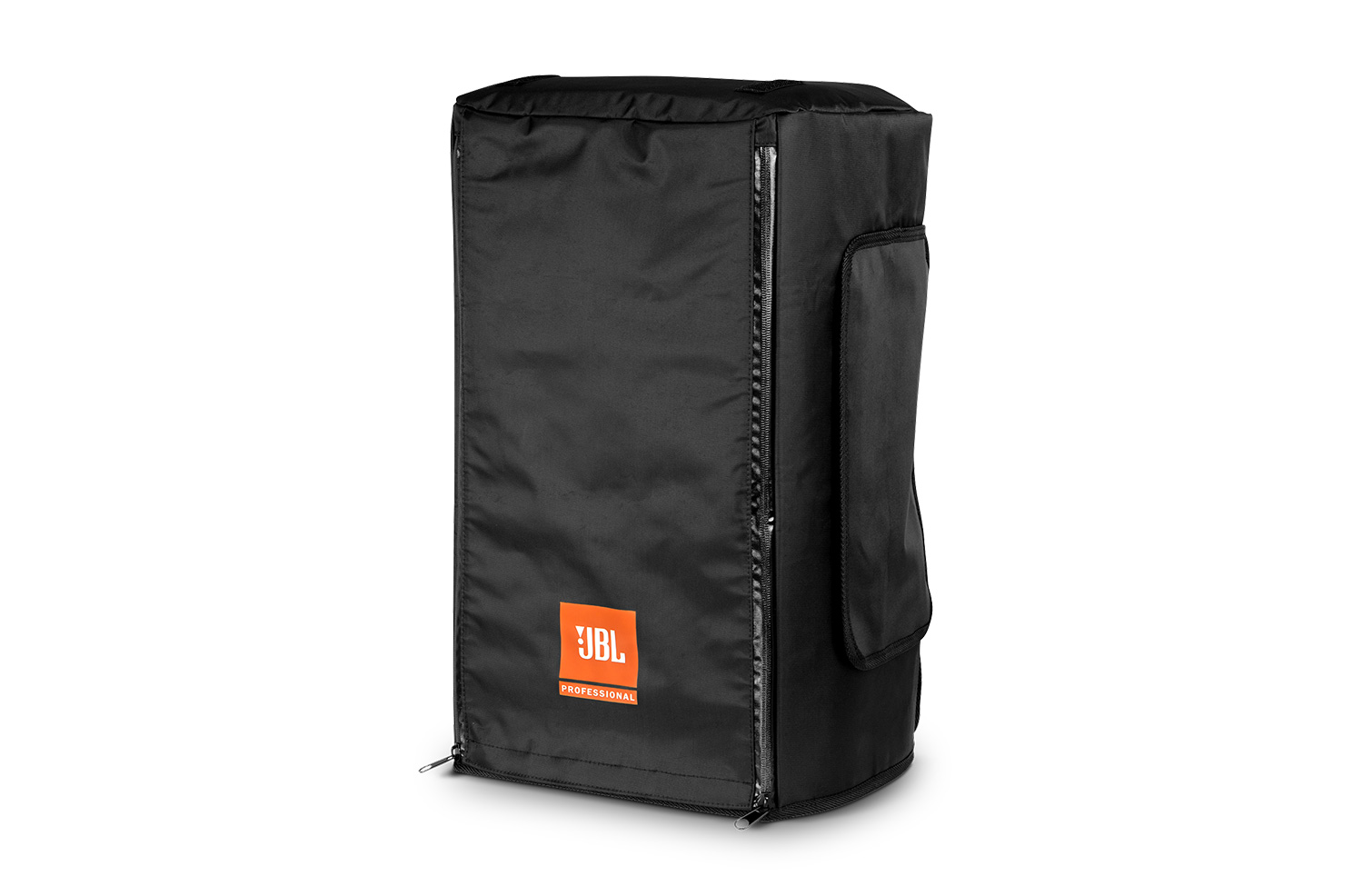

EON610 WR Cover Angle Hi Res Image
updated: 10月18日
    142.9 KB 10月18日

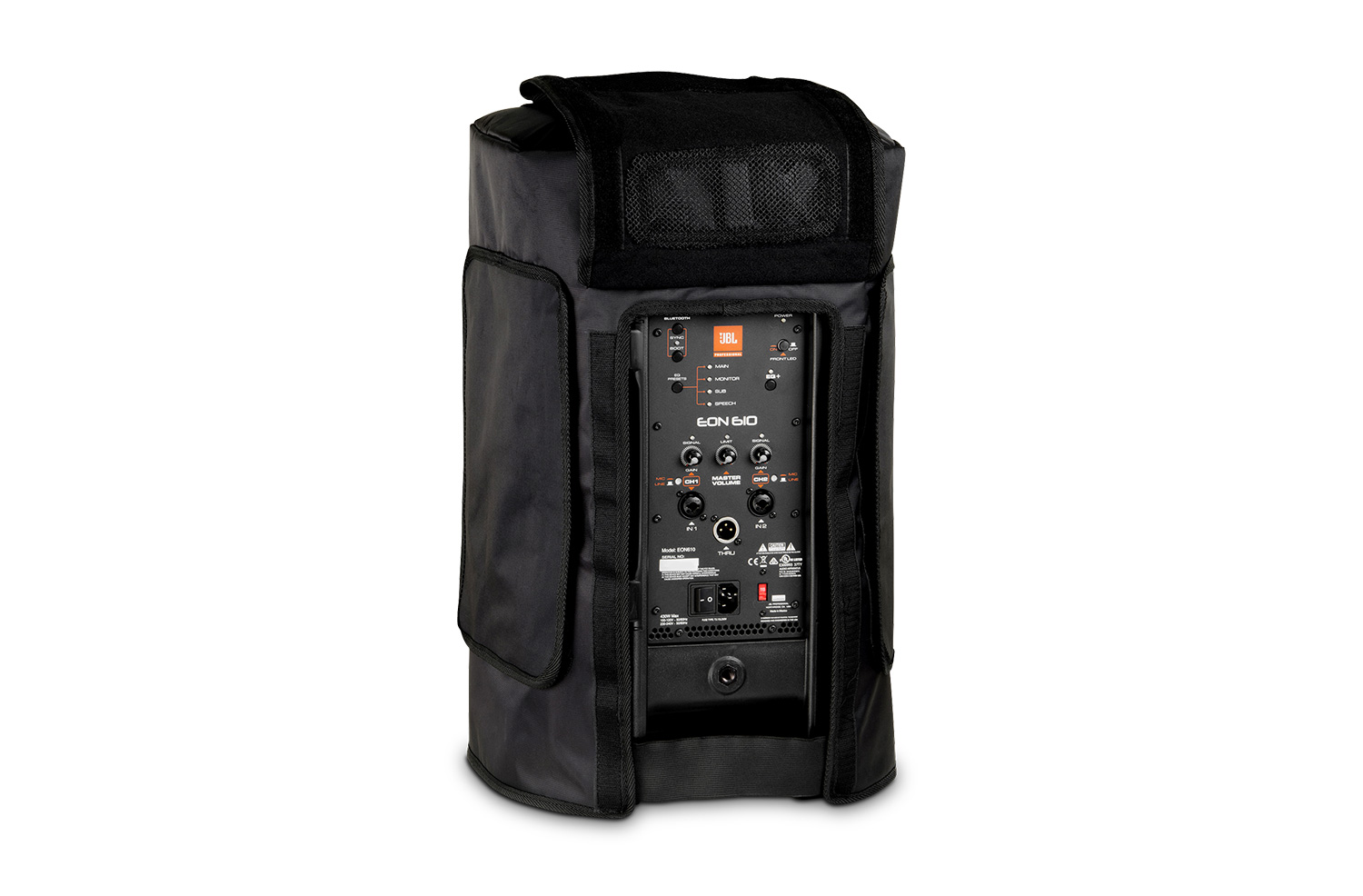

EON610 WR Cover Back Hi Res Image
updated: 10月18日
    170.6 KB 10月18日

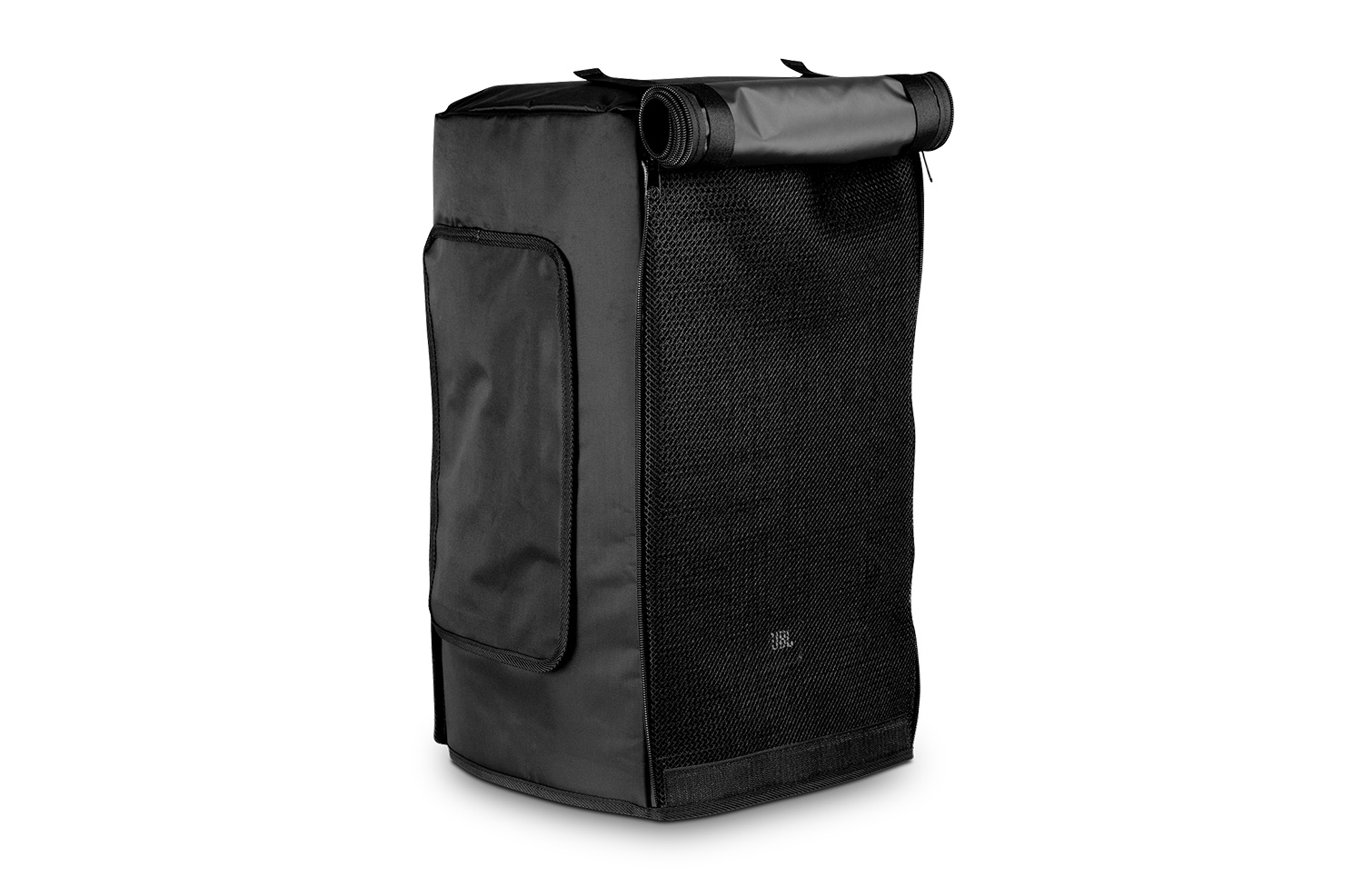

EON610 WR Cover Front open Hi Res Image
updated: 10月18日
    217.1 KB 10月18日

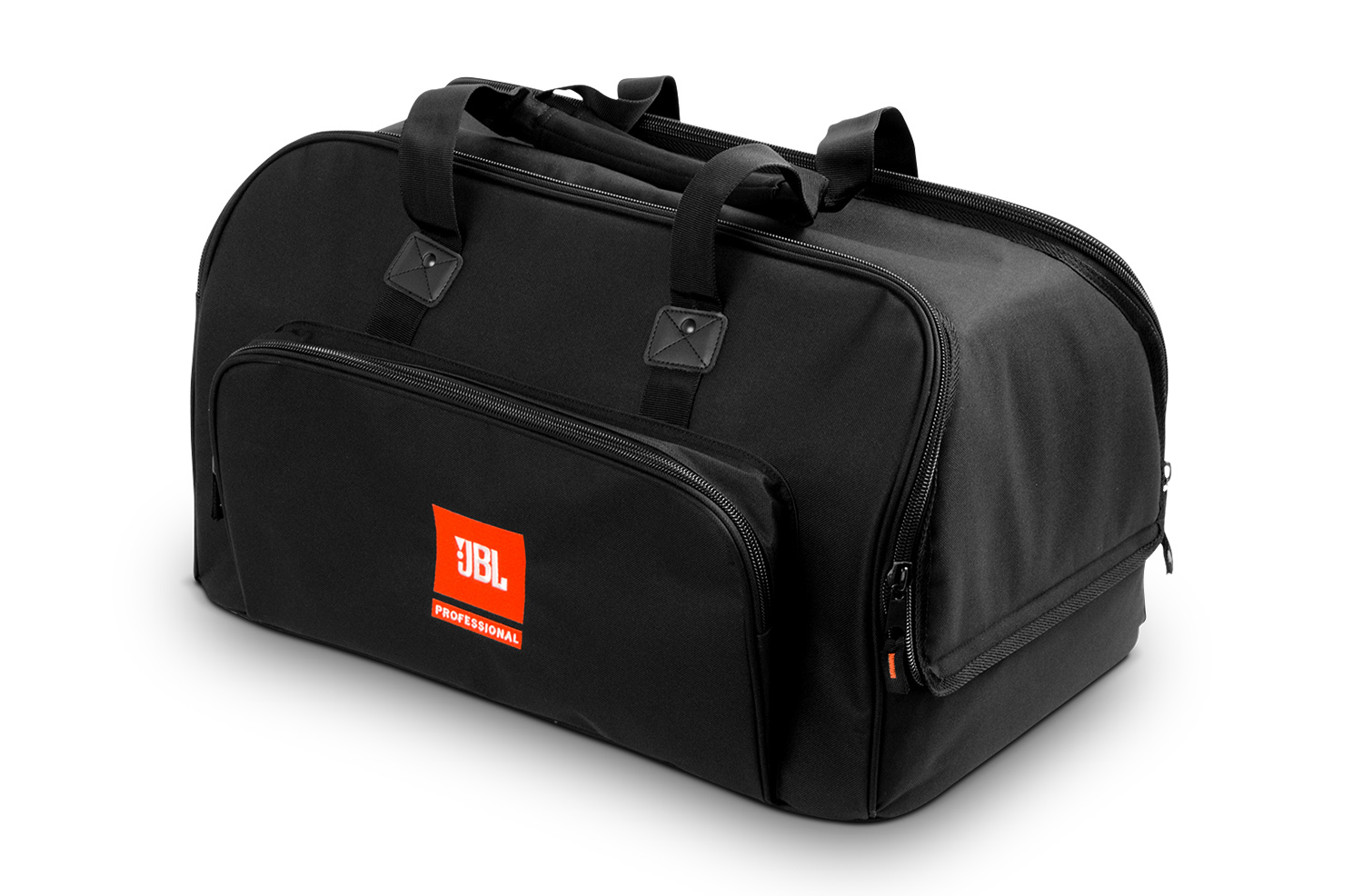

EON610 Carry Bag Angle Hi Res Image
updated: 10月18日
    257.6 KB 10月18日

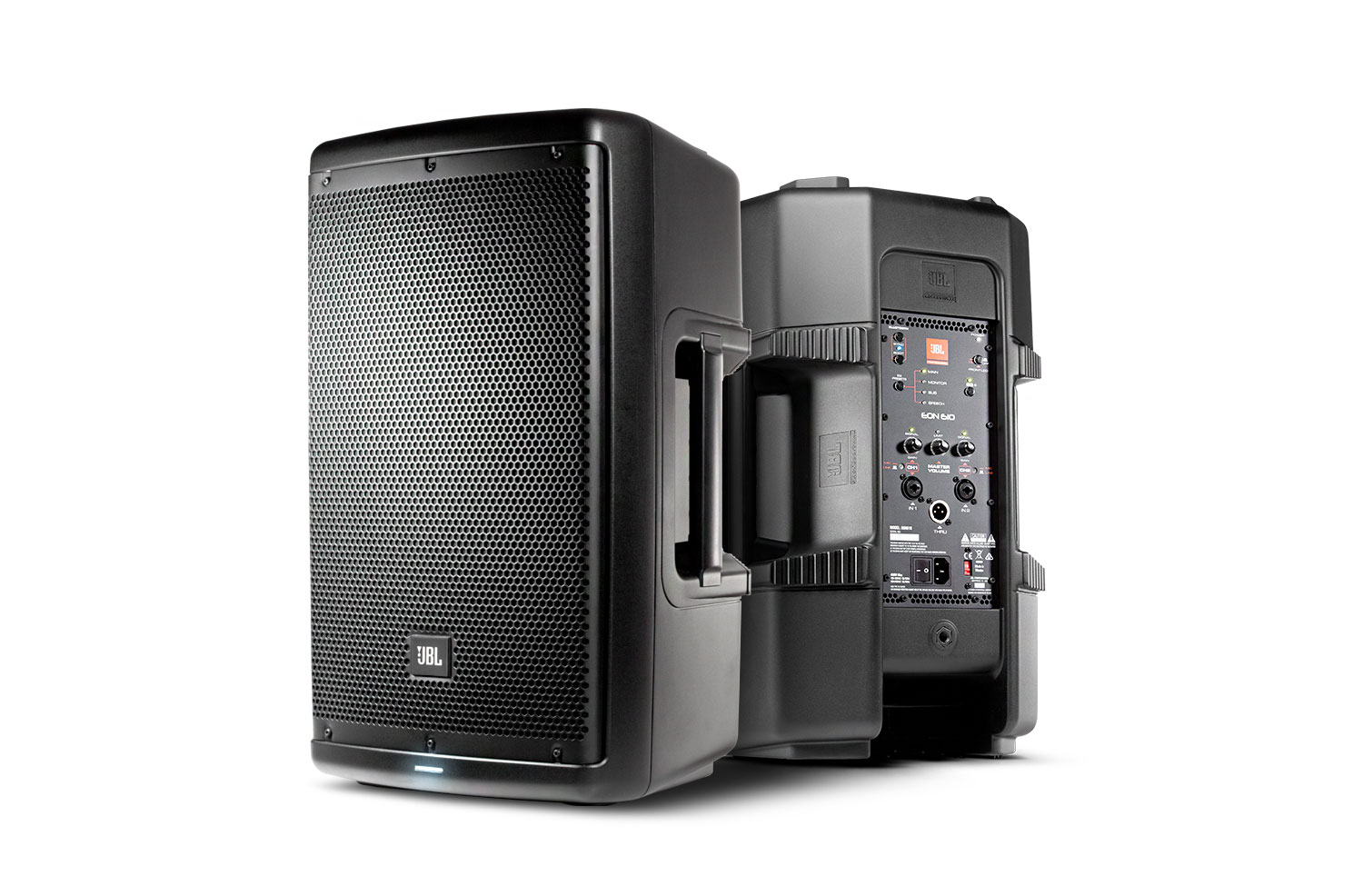

EON610 Hero Back Front
updated: 7月01日
    188.0 KB 7月01日

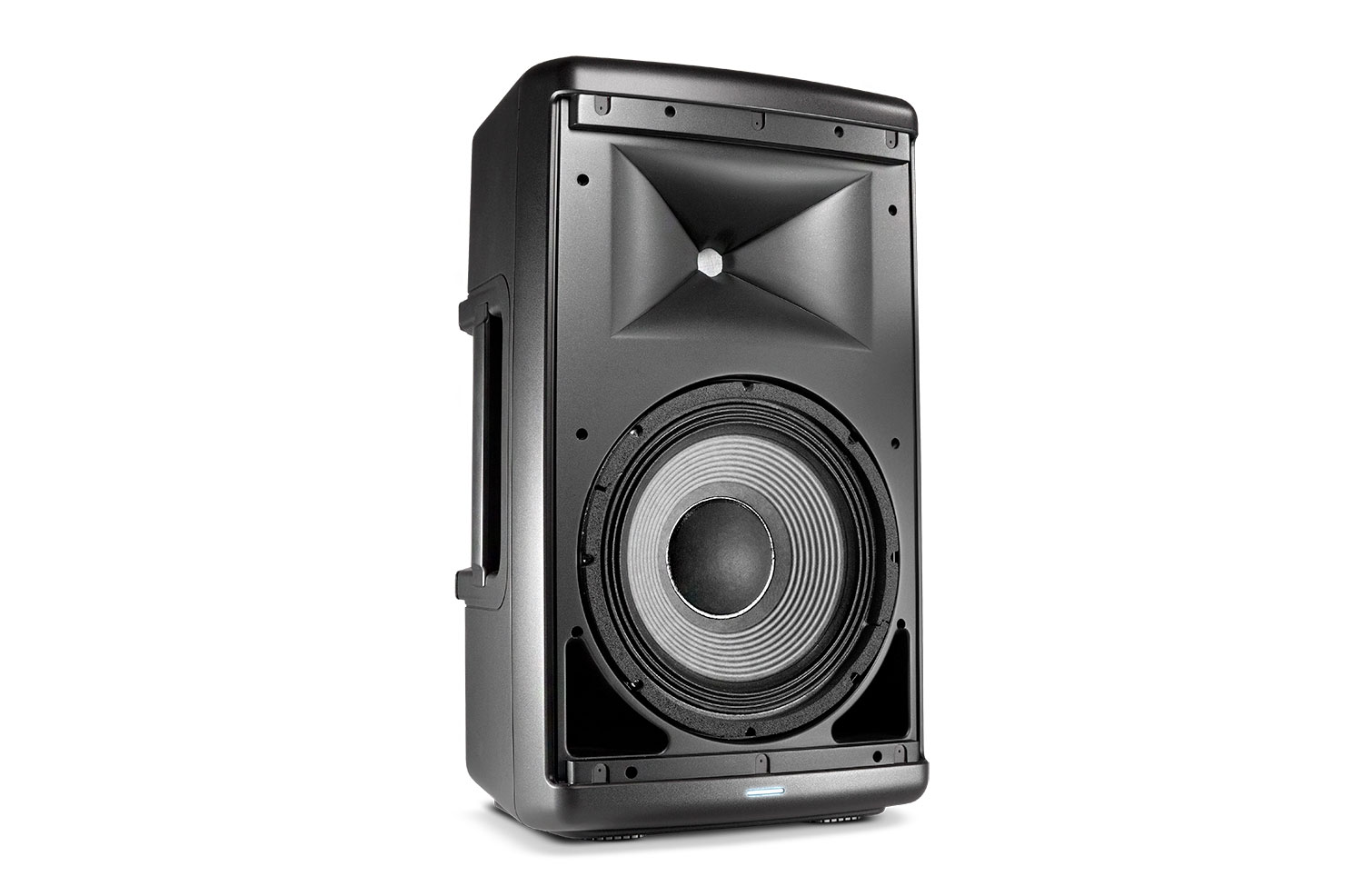

EON610 Hero No Grill
updated: 7月01日
    120.6 KB 7月01日

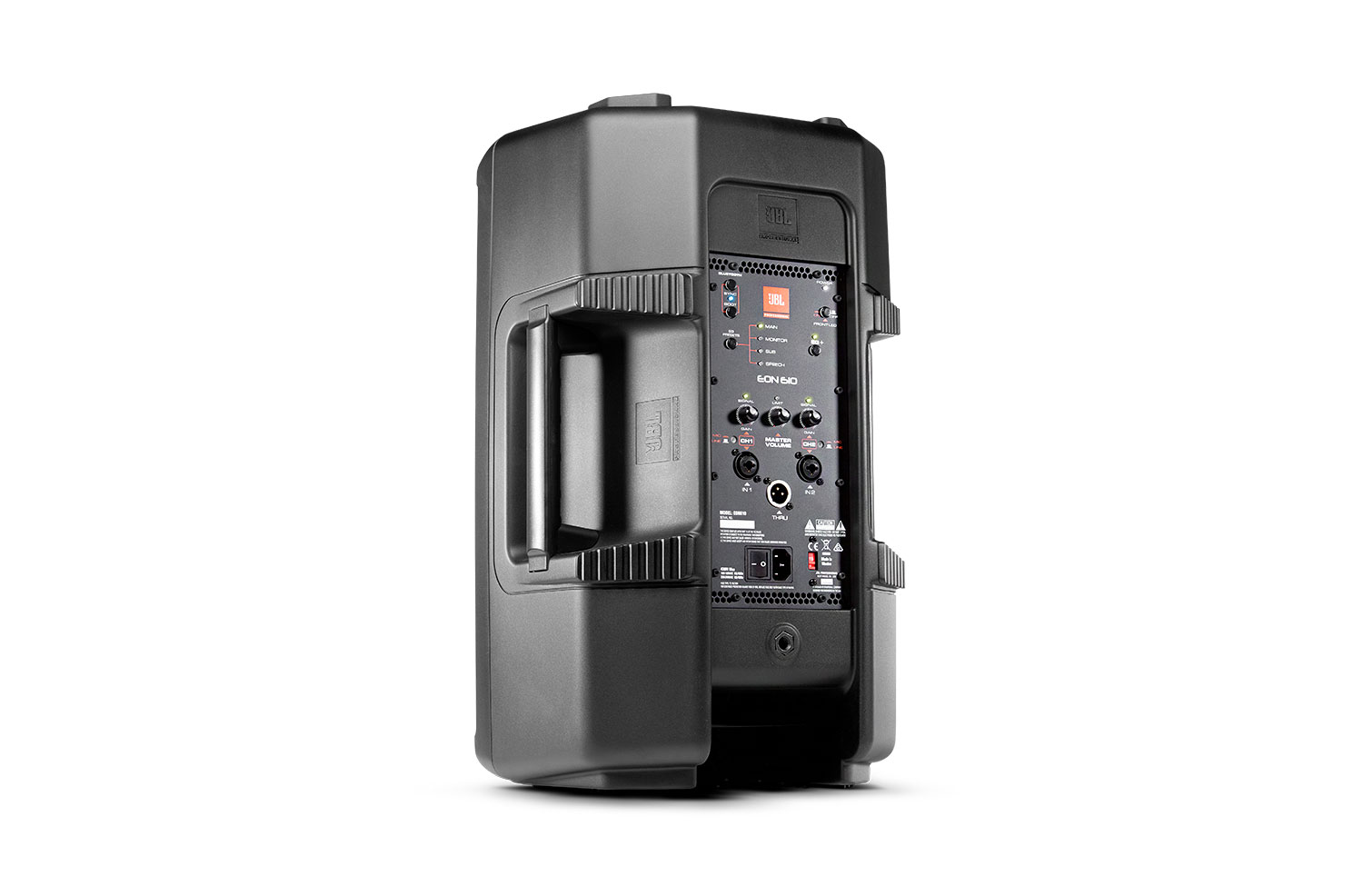

EON610 Back
updated: 7月01日
    91.8 KB 7月01日
EON610 Back Panel
updated: 7月01日
    310.2 KB 7月01日

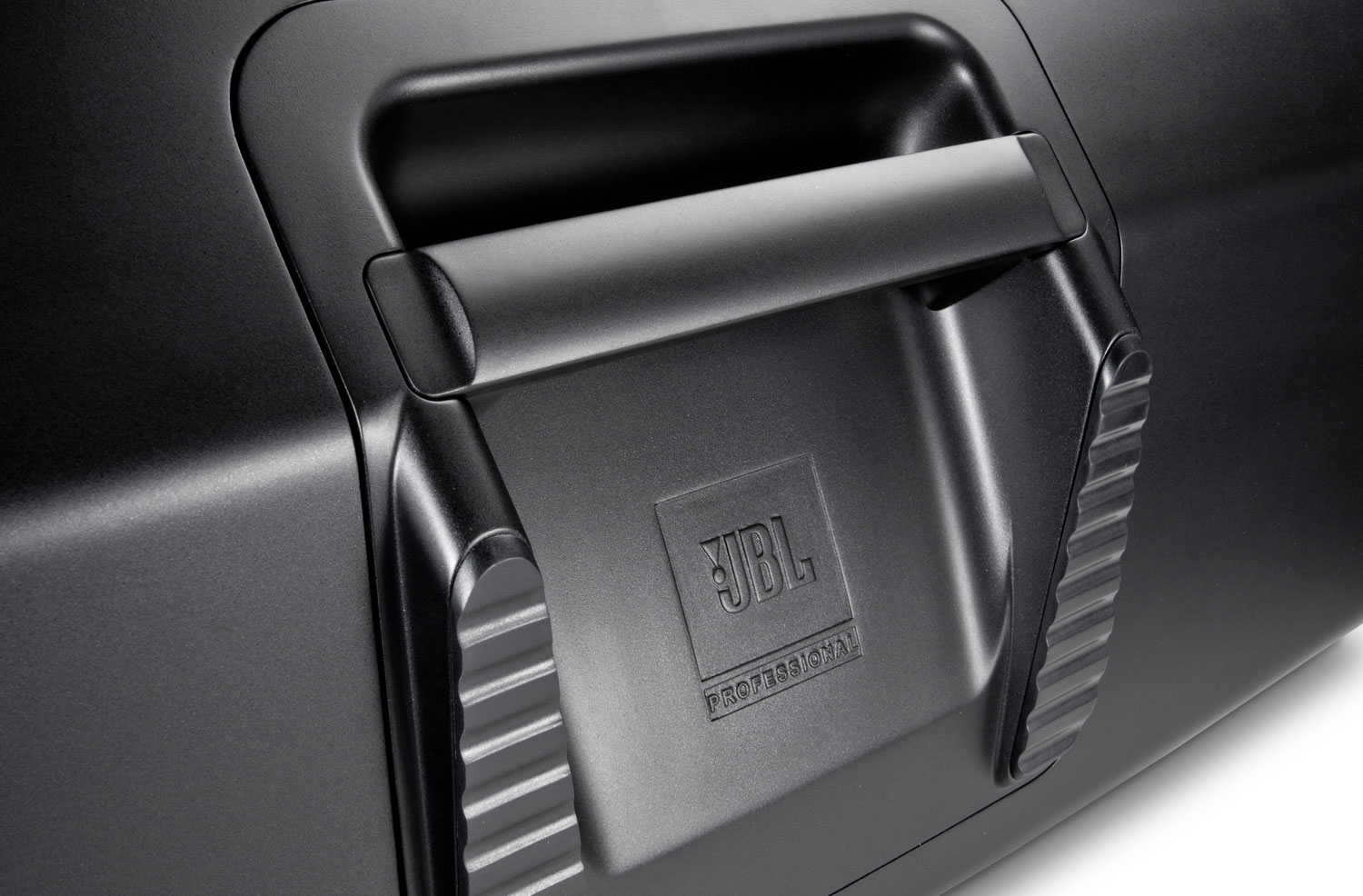

EON610 Handle
updated: 7月01日
    213.8 KB 7月01日
User Guides
EON600 UsersGuide
updated: 10月31日
    3.9 MB 10月31日
EON600 Connect User Guide
updated: 10月03日
    828.9 KB 10月03日
EON600 Connect User Guide - Spanish
es updated: 10月03日
  es  3.5 MB 10月03日
EON600 Connect User Guide - German
de updated: 10月03日
  de  3.5 MB 10月03日
EON600 Connect User Guide - French
fr updated: 10月03日
  fr  3.5 MB 10月03日
EON600 Users Guide
updated: 7月01日
    3.9 MB 7月01日
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: 7月08日
    20.5 MB 7月08日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type Self powered 10”, two-way, bass-reflex
Max SPL Output 124 dB
Frequency Response (-10dB) 52 Hz - 20 kHz
Frequency Response (±3 dB) 60 Hz - 20 kHz
覆盖范围 110° x 60°
Amplifier Design Class D
额定功率 1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF)
尺寸(高 x 宽 x 厚) 558mm x 322mm x 295mm (21.968in x 12.677in x 11.614in)
净重量 11.79 kg (26 lbs)
麦克风输入 2
幻象电源 No
EQ 3 Parametric EQs + Hi & Lo Shelf

效果器

DSP Presets
输入通道 2 x Balanced XLR-1/4” combination inputs
输出 1 x male XLR loop thru out
Enclosure Polypropylene

Accessories

EON610-BAG | Deluxe Padded Cover for the EON610
EON610-BAG Main photo
较大的图像

Deluxe Carry Bag w/ 10mm Padding & Dual Access Zippers. Includes Two Heavy-Duty Carry Handles, EON610 Handle Access Cover, and Accessory Pocket. Fits EON610.


EON610-CVR-WX | Convertible EON610 Cover
EON610-CVR-WX Main photo
较大的图像
Convertible Cover for EON610 loudspeakers. Convertible Design Allows Full Functionality Of Speaker While Inside Protective Cover. Full Access to Grille, Rear Inputs, & Carry Handles.
  • Convertible cover for EON610 - specially designed to protect your loudspeakers
  • A new, patent pending convertible design allows full functionality of speaker while inside protective cover.
  • Roll away access panels cover front grille, rear inputs, and carry handles - Allowing full functionality while inside cover.
  • Durable #10 nylon coil zippers
  • Printed JBL logo on front panel to compliment your EONs
  • Black exterior
  • The official protective cover for JBL EON loudspeakers




EON610-CVR | Padded Cover with Handle Access Cut-Outs to Fit EON610
EON610-CVR Main photo
较大的图像
Deluxe padded cover for EON610 loudspeaker. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.
  • The ultimate protection for your EON610 loudspeaker
  • Durable 600-D Nylon outer fabric keeps out dust & dirt, while extra padding helps prevent dents & dings
  • Interior padded with protective foam layer
  • 5mm thick foam padding throughout
  • Handle access points allow repositioning speaker cabinet without removing the cover
  • Printed JBL® Logo
  • Black exterior
  • The official protective cover for JBL® EON loudspeakers
  • Embroidered JBL logo on side panel to compliment your EONs
  • The official protective cover for JBL EON loudspeakers




EON10-STRETCH-COVER-BK | Stretchy Black Cover fits all EON 10" Cabinets
EON10-STRETCH-COVER-BK Main photo
较大的图像

Stretchy Black Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 10" Speakers.


EON10-STRETCH-COVER-WH | Stretchy White Cover fits all EON 10" Cabinets
EON10-STRETCH-COVER-WH Main photo
较大的图像

Stretchy White Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 10" Speakers.


JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
较大的图像
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
较大的图像

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900, PRX800

Documentation
JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
较大的图像

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
较大的图像

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)

Documentation
