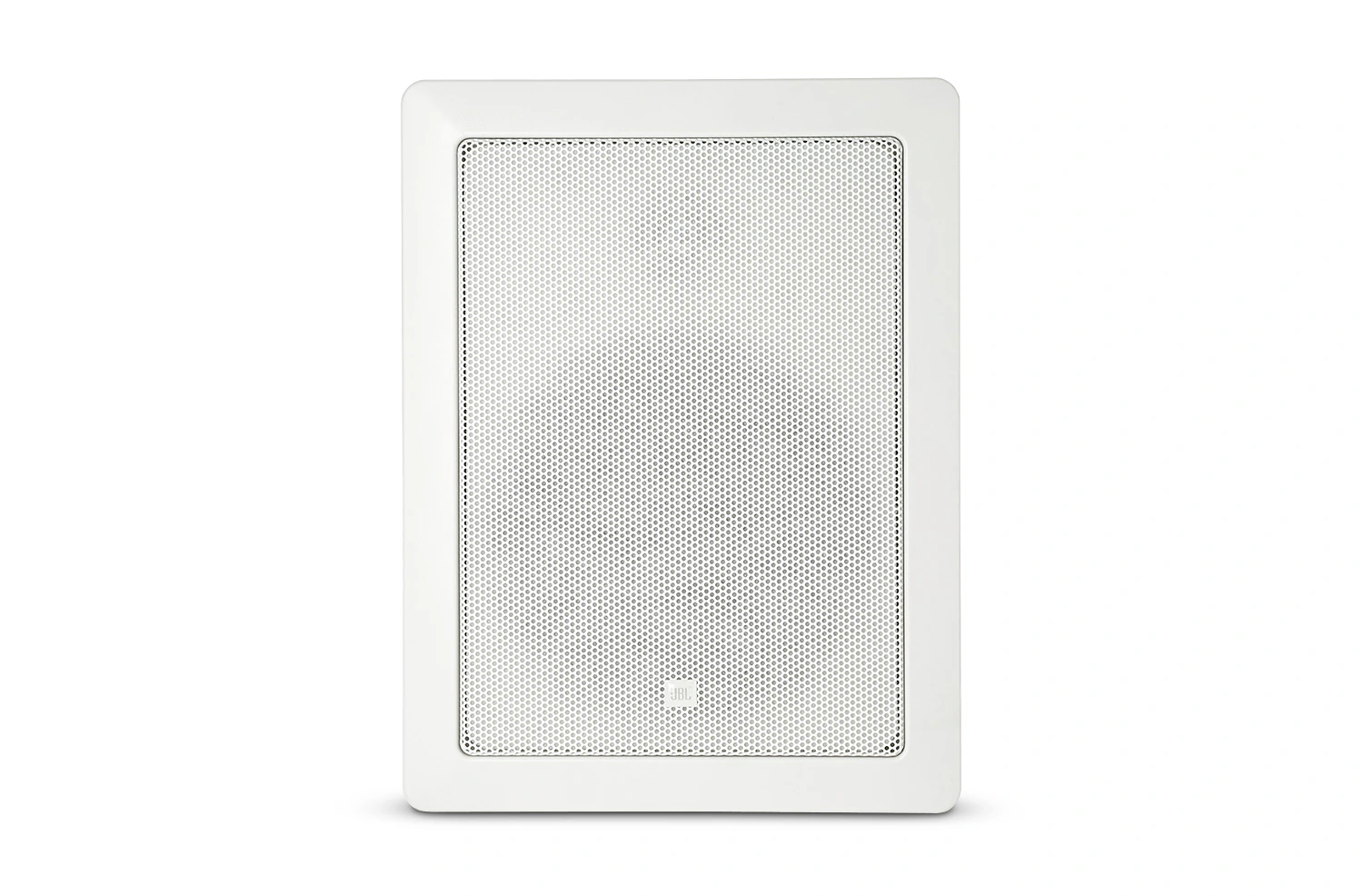

Control 126 WT

Premium In-Wall Loudspeaker

较大的图像

Premium In-Wall Loudspeaker

The Control 126WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

特点

  • Components:
    165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround.
    25 mm (1 in) pure-titanium dome low diffraction swivel aimable titanium tweeter.
  • High-slope crossover for natural midrange sound.
  • Extended bandwidth performance of 38 Hz – 20 kHz.
  • 50W continuous (100W program, 200W peak) power handling (126W).

下载

  Version Language Size Uploaded
Specifications
Control 126 W/WT Spec Sheet
version C, updated: 3月23日
  811.7 KB 3月23日
Manuals
C100 Series T Addendum
updated: 10月31日
    99.9 KB 10月31日
Brochures
Control Contractor Brochure
updated: 4月29日
    1.7 MB 4月29日
Full Line 2015 Catalog
updated: 1月11日
    11.7 MB 1月11日
Commercial Sound Full Line 2015 Catalog
updated: 10月21日
    2.0 MB 10月21日
CAD Drawings
Control 126W/WT DXF File
updated: 4月29日
    620.5 KB 4月29日
Bim Objects
BIM (Revit) Files
updated: 10月03日
    12.4 MB 10月03日
Compliances
JBL Control Series Passive Speakers DoC
updated: 12月17日
    179.3 KB 12月17日
Clf Files
CLF Files
version 03-16-20, updated: 3月16日
03-16-20    22.5 MB 3月16日
Speaker Tunings
Commercial, CBT, and AWC Tunings 181030
updated: 2月24日
    557.0 KB 2月24日
Install Guides
Guide to Business Music
updated: 9月30日
    52.4 KB 9月30日
Accessories
WB6 & WB8 Rough-In Frames
updated: 4月29日
    65.2 KB 4月29日
Owner's Manuals
Control 100 Series Manual
updated: 4月29日
    116.5 KB 4月29日
Control 100 manual addendum
updated: 4月29日
    105.5 KB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率范围 38 Hz - 20 kHz (-10 dB)
功率容量 200 W Peak 100 W Continuous Program Power50 W Continuous Pink Noise
变压器抽头 70 V: 30 W, 15 W, 7.5 W & 3.7 W taps
标称阻抗 8 ohms
Low Frequency 165 mm (6.5 in) polymer-coated aluminum cone.
High-Frequency 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
Terminations Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
Crossover Network 3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter.
Optimum Air Cavity Behind Speaker 20 to 40 liters (0.7 to 1.4 cu ft)
Outside Dimensions (H x W x D) 280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker.
Maximum Wall Thickness 2 mm (1.25 in)
Cutout Size (H x W) 246 x 181 mm (9.7 x 7.2 in),
Net Weight (ea) 2.7 kg (5.9 lb)
Shipping Weight (ea) 6.2 kg (13.5 lb)

随附配件

Cutout template & paint shield
Optional Accessories WB6 Rough-In Frame for new construction installation to wallstuds
