Control 126 WT

អាគារសូរស័ព្ទក្នុងលង្ខិតលំដាប់

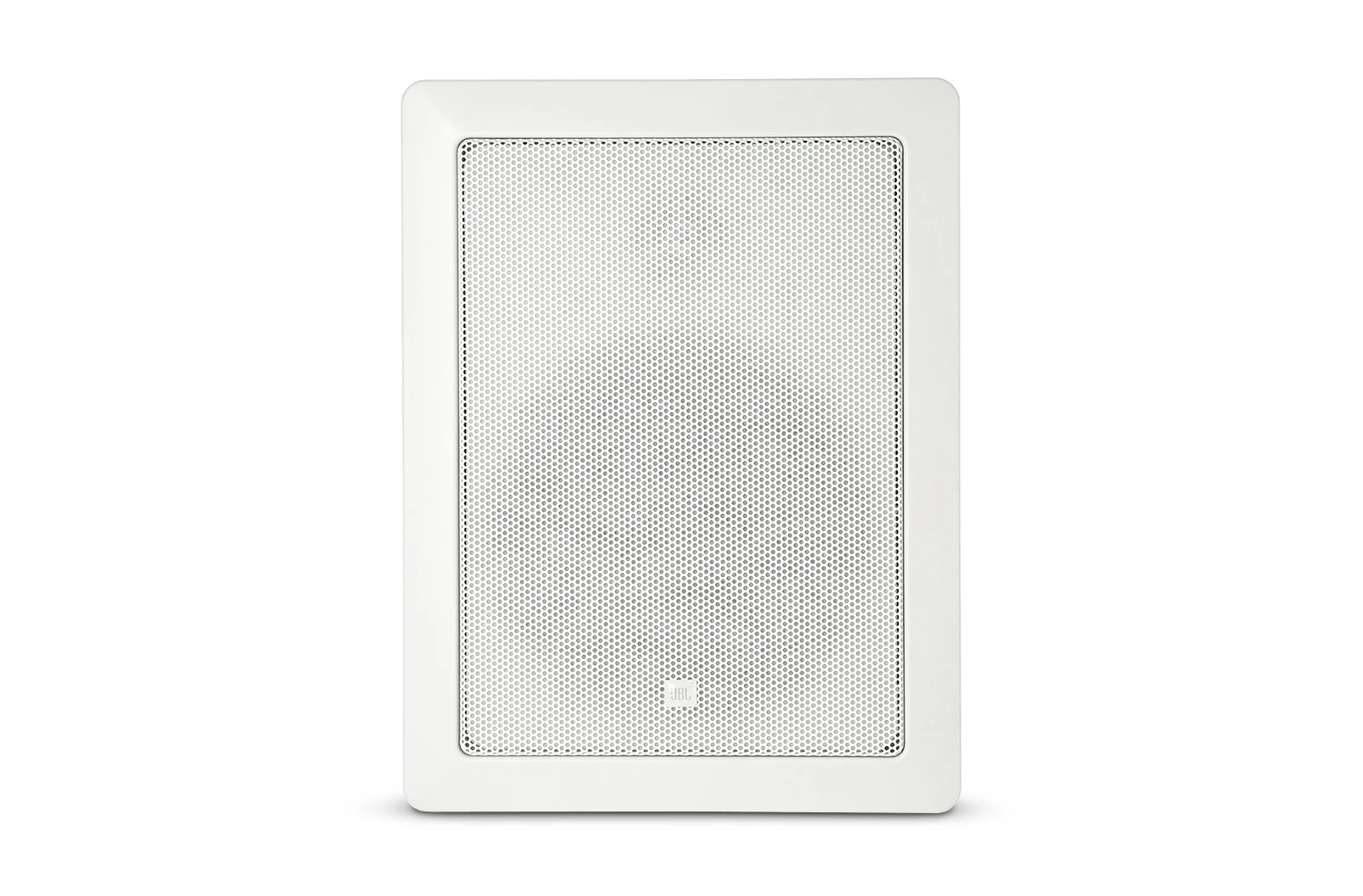

Control 126 WT
រូបភាពធំជាង

ឧបករណ៍បង្ហាញសំឡេងក្នុងជញ្ជាំងប្រିមିយម

Control 126WT គឺជាឧបករណ៍បង្ហាញសំឡេងក្នុងជញ្ជាំងប្រីមីយ៉ូមក្នុងបន្ទាត់ JBL Professional Control® Contractor ដែលរចនាឡើងសម្រាប់ការប្រើប្រាស់ដូចជាតន្ត្រីផ្ដើមខាងមុខ បន្ទប់ប្រឹក្សាភិបាល តំបន់ការស្វាគមន៍ аэропорты មជ្ឈមណ្ឌលសន្និសីទ កប៉ាល់ក្រუម អាកាសចរណ៍ ហាងលក់រលាយ ភោជនីយដ្ឋាន សារមន្ទីរ ទីតាំងព័ទ្ធជុំវិញ ឬការប្រើប្រាស់ស្តាប់ដ៏សំខាន់ដែលទាមទារលទ្ធផលកម្រិតខ្ពស់ពីឧបករណ៍បង្ហាញសំឡេងដែលមានផលប៉ះពាល់ដែលមើលឃើញតិចតួច។

លក្ខណៈពិសេស

  • ឧបករណ៍សមាសភាគ:
    165 មម (6.5 អ៊ីញ) ឌ្រាយវូហ័រលង្វិលសង្កត់នៅលើក្រោយដោយ រូបធាតុប៉ូលីមេរលំនឹងលោហៈ ដែលមានក្រុមរឹង ធ្វើឡើងពីកៅស៊ូ butyl ដ៏ស្អាត។
    25 មម (1 អ៊ីញ) ដ្រាយលម្អ ដូមលោហៈ titanium ដ៏ស្អាតដែលមានលក្ខណៈរលាយលេចចេញដ៏តូច រង្វិលបាន។
  • ឆ្លងកាត់កម្រិតលំហូរខ្ពស់ដើម្បីឱ្យសម្លេងកណ្តាលម្ចាស់រឺងខាងលើ។
  • ដែនកំណត់ប្រេកង់បន្ថែមលើ 38 Hz – 20 kHz។
  • ការទទួលកម្លាំងថាមពល 50W ជាបន្តបន្ទាប់ (100W កម្មវិធី, 200W កំពូល) (126W)។

ការទាញយក

Specifications
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon Control 126 W/WT Spec Sheet
កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: មិថុនា 2021
572 KB មិថុនា 2021
Manuals
  ទំហំ បានផ្ទុកឡើង
file type icon C100 Series T Addendum
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019
99.9 KB តុលា 2019
Brochures
  កំណែ ភាសា ទំហំ បានផ្ទុកឡើង
file type icon Control Contractor Brochure (2026)
en បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
  en  21 MB មិនា 2026
file type icon Control Contractor Brochure (2025)
en កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: មិនា 2026
en  23 MB មិនា 2026
file type icon Control Contractor Brochure (2024)
en កំណែ D, បានធ្វើបច្ចុប្បន្នភាព: កុម្ភៈ 2024
en  14 MB កុម្ភៈ 2024
CAD Drawings
  ទំហំ បានផ្ទុកឡើង
file type icon Control 126W/WT DXF File
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
621 KB តុលា 2020
Compliances
  ទំហំ បានផ្ទុកឡើង
file type icon JBL Control Series Passive Speakers DoC
បានធ្វើបច្ចុប្បន្នភាព: ធ្នូ 2019
179 KB ធ្នូ 2019
Simulation Data
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon JBL Pro ALL CLF Files
កំណែ 12-10-21, បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2023
12-10-21  24 MB ឧសភា 2023
Owner's Manuals
  ទំហំ បានផ្ទុកឡើង
file type icon Control 100 manual addendum
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
106 KB តុលា 2020
file type icon Control 100 Series Manual
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
117 KB តុលា 2020
Accessories
  ទំហំ បានផ្ទុកឡើង
file type icon WB6 - Customer Drawing
បានធ្វើបច្ចុប្បន្នភាព: មេសា 2026
64.8 KB មេសា 2026
file type icon WB6 & WB8 Rough-In Frames
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
65.2 KB តុលា 2020
file type icon WB6/WB8 Wing - Customer Drawing
បានធ្វើបច្ចុប្បន្នភាព: មេសា 2026
61.6 KB មេសា 2026
Speaker Tunings
  កំណែ ទំហំ បានផ្ទុកឡើង
file type icon Commercial, CBT, and AWC Tunings 220616
កំណែ A, បានធ្វើបច្ចុប្បន្នភាព: ឧសភា 2023
557 KB ឧសភា 2023
Install Guides
  ទំហំ បានផ្ទុកឡើង
file type icon Guide to Business Music
បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020
52.4 KB តុលា 2020

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

ផ្នែក និងសេវាកម្ម

លក្ខណៈពិសេស

Frequency Range 38 Hz - 20 kHz (-10 dB)
Power Rating 200 W Peak 100 W Continuous Program Power50 W Continuous Pink Noise
Transformer Taps 70 V: 30 W, 15 W, 7.5 W & 3.7 W taps
Sensitivity 88 dB SPL
Coverage Angle 180°H x 160°V
Impedance 8 ohms
Drivers LF: 165 mm (6.5 in) polymer-coated aluminum cone.
HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
Input Connectors Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
Crossover Network 3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter.
Optimum Air Cavity Behind Speaker 20 to 40 liters (0.7 to 1.4 cu ft)
Outside Dimensions (H x W x D) 280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker.
Maximum Wall Thickness 2 mm (1.25 in)
Cutout Size (H x W) 246 x 181 mm (9.7 x 7.2 in),
Net Weight (each) 2.7 kg (5.9 lb)
Shipping Weight (ea) 6.2 kg (13.5 lb)
Included Accessories Cutout template & paint shield
Optional Accessories WB6 Rough-In Frame for newconstruction installation to wallstuds
