ASB6128

High Power Subwoofer 2 x 18" 2242H SVG™ Driver

ASB6128
较大的图像

High Power Subwoofer 2 x 18" 2242H SVG™ Driver

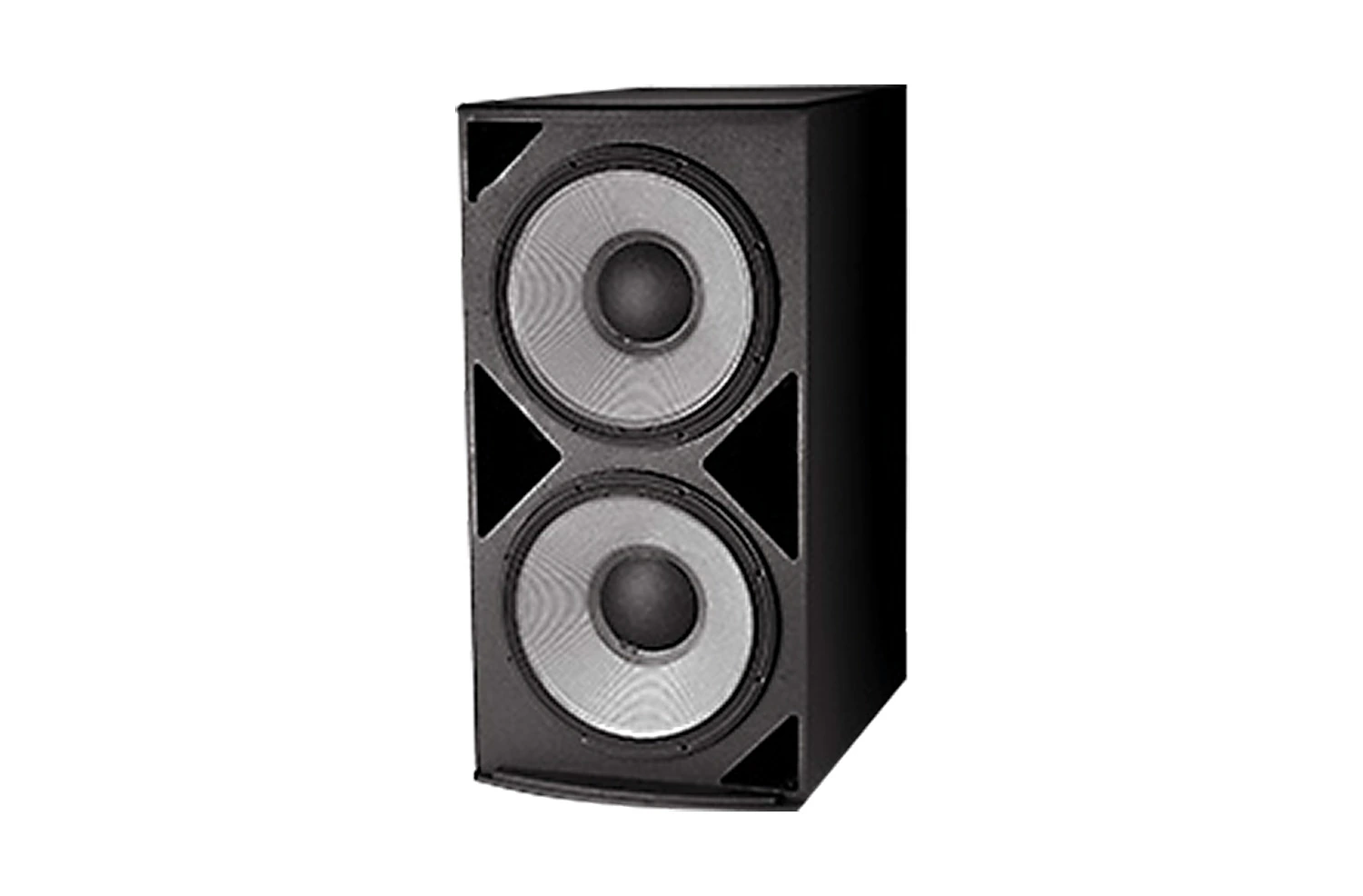

ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration.

特点

  • Large vent area for high output.
  • Parallel/Discrete Switchable.
  • FIR Tuning Set Matches Phase Profile to Full-Range Models
  • For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

To improve reliability in weather conditions and reduce water ingress, cabinet dimensions of WRC & WRX models may be different than standard model dimensions. Contact CustomAudio@harman.com for drawings and/or dimension information of WRC & WRX models.

下载

  Version Language Size Uploaded
Specifications
file type icon ASB6128 Spec Sheet
updated: 12月 2020
    367.4 KB 12月 2020
Manuals
file type icon Weather Resistant Configurations
en version A, updated: 5月 2023
en  86.1 KB 5月 2023
file type icon AE/PD Connector Pinout Guide
updated: 10月 2019
    8.2 KB 10月 2019
file type icon JBL Installed Sound Configuration Guide
updated: 10月 2020
    160.0 KB 10月 2020
file type icon AE Application Data Sheets
updated: 10月 2020
    13.7 MB 10月 2020
Brochures
file type icon AE Series Brochure
updated: 10月 2020
    4.0 MB 10月 2020
CAD Drawings
file type icon AE Series 3D DXF file
updated: 10月 2019
    380.5 KB 10月 2019
file type icon AE Series WRC WRX Drawings
updated: 10月 2020
    2.2 MB 10月 2020
file type icon AE Series 3D DXF
updated: 10月 2020
    380.5 KB 10月 2020
file type icon AE Series 2D PDF
updated: 4月 2019
    1015.1 KB 4月 2019
file type icon AE Series 2D DXF
updated: 4月 2019
    1.2 MB 4月 2019
Software
file type icon CSC Ceiling Speaker Configurator Operating Instruction
updated: 10月 2019
    133.6 KB 10月 2019
Speaker Tunings
file type icon AE DSP Tunings For All Models
updated: 10月 2020
    18.9 MB 10月 2020
Application Guides
file type icon Directional Bass Using 3-Element Arrays
en updated: 8月 2021
  en  570.3 KB 8月 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 28 Hz – 1 kHz
Frequency Response (±3 dB) 35 Hz – 1 kHz
Input Modes Drivers Parallel / Drivers Discrete
Transducer Power Rating (AES) 2400 W (9600 W peak), 2 hrs
系统额定功率 1600 W (6400 W peak), 100 hrs
Maximum SPL (1m) 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak)100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)
System Sensitivity (1w @ 1m) 30 Hz – 100 Hz: 102 dB 100 Hz – 500 Hz: 102 dB
标称阻抗 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
低频驱动单元 2 x JBL 2242H 460 mm (18 in) SVG™ drivers with 100 mm (4 in) voice coil
Nominal LF Driver Impedance 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware
环境 Mil-Std 810; IP-x3 per IEC529.
Net Weight (each) 161 lbs. (73 kgs)
