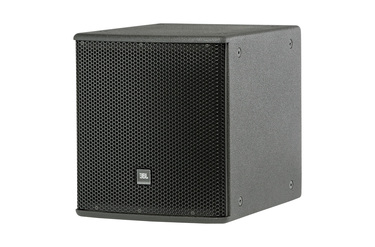

ASB6112

Compact High Power Single 12" Subwoofer

ASB6112
较大的图像

Compact High Power Single 12" Subwoofer

The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.



特点

  • 2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
  • 1000 watts continuous pink noise,
    4000 watts peak power handling capacity
  • Large vent area for high output with low distortion
  • FIR Tuning Set Matches Phase Profile to Full-Range Models
  • For ground-stacked or suspended applications in stand-alone arrays or in combination with other
    AE Series products


下载

  Version Language Size Uploaded
Specifications
file type icon ASB6112 Spec Sheet
updated: 12月01日
    494.5 KB 12月01日
Manuals
file type icon AE/PD Connector Pinout Guide
updated: 10月31日
    8.2 KB 10月31日
file type icon AE Application Data Sheets
updated: 10月22日
    13.7 MB 10月22日
Brochures
file type icon AE Series Brochure
updated: 10月23日
    4.0 MB 10月23日
file type icon AM Brochure
updated: 10月22日
    1.5 MB 10月22日
file type icon AE Combined Brochure
updated: 10月22日
    4.1 MB 10月22日
CAD Drawings
file type icon AE Series 3D DXF file
updated: 10月30日
    380.5 KB 10月30日
file type icon ASB DWG Drawings
updated: 10月23日
    430.6 KB 10月23日
file type icon AE Series WRC WRX Drawings
updated: 10月22日
    2.2 MB 10月22日
file type icon AE Series 3D DXF
updated: 10月23日
    380.5 KB 10月23日
file type icon AE Series 2D PDF
updated: 4月29日
    1015.1 KB 4月29日
file type icon AE Series 2D DXF
updated: 4月29日
    1.2 MB 4月29日
Compliances
file type icon AE Series - ASB & Low Frequency Declaration of Conformity
updated: 10月22日
    93.5 KB 10月22日
Speaker Tunings
file type icon AE Series FIR Tunings for DCi Amplifiers
updated: 4月07日
    463.3 KB 4月07日
file type icon Instructions for AE Series FIR Tunings
updated: 4月07日
    338.5 KB 4月07日
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 7月08日
    20.5 MB 7月08日
Images
file type icon ASB6112 Hi Res Photo
updated: 4月29日
    154.1 KB 4月29日
Application Guides
file type icon Directional Bass Using 3-Element Arrays
en updated: 8月30日
  en  570.3 KB 8月30日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率范围 (-10dB) 35 Hz – 1 kHz
Frequency Response (±3 dB) 43 Hz – 1 kHz
Transducer Power Rating (AES) 1000 W (4000 W peak), 2 hrs.
系统额定功率 700 W (2800 W peak), 100 hrs.
Maximum SPL (1m) 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak)
系统灵敏度 40 Hz - 300 Hz: 96 dB-SPL,1W (2.83V) @ 1m
标称阻抗 8 ohms
低频驱动单元 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
外观颜色 Black DuraFlex™ finish.White available upon request.
网罩 Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
环境 Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation) 406 x 369 x 483 mm(16.0 x 14.5 x 19.0 in)
Net Weight (each) 16.3 kg (36.0 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.
Nominal LF Driver Impedance 8 ohms
