JBL Professional ASB6112

Imagens Grandes

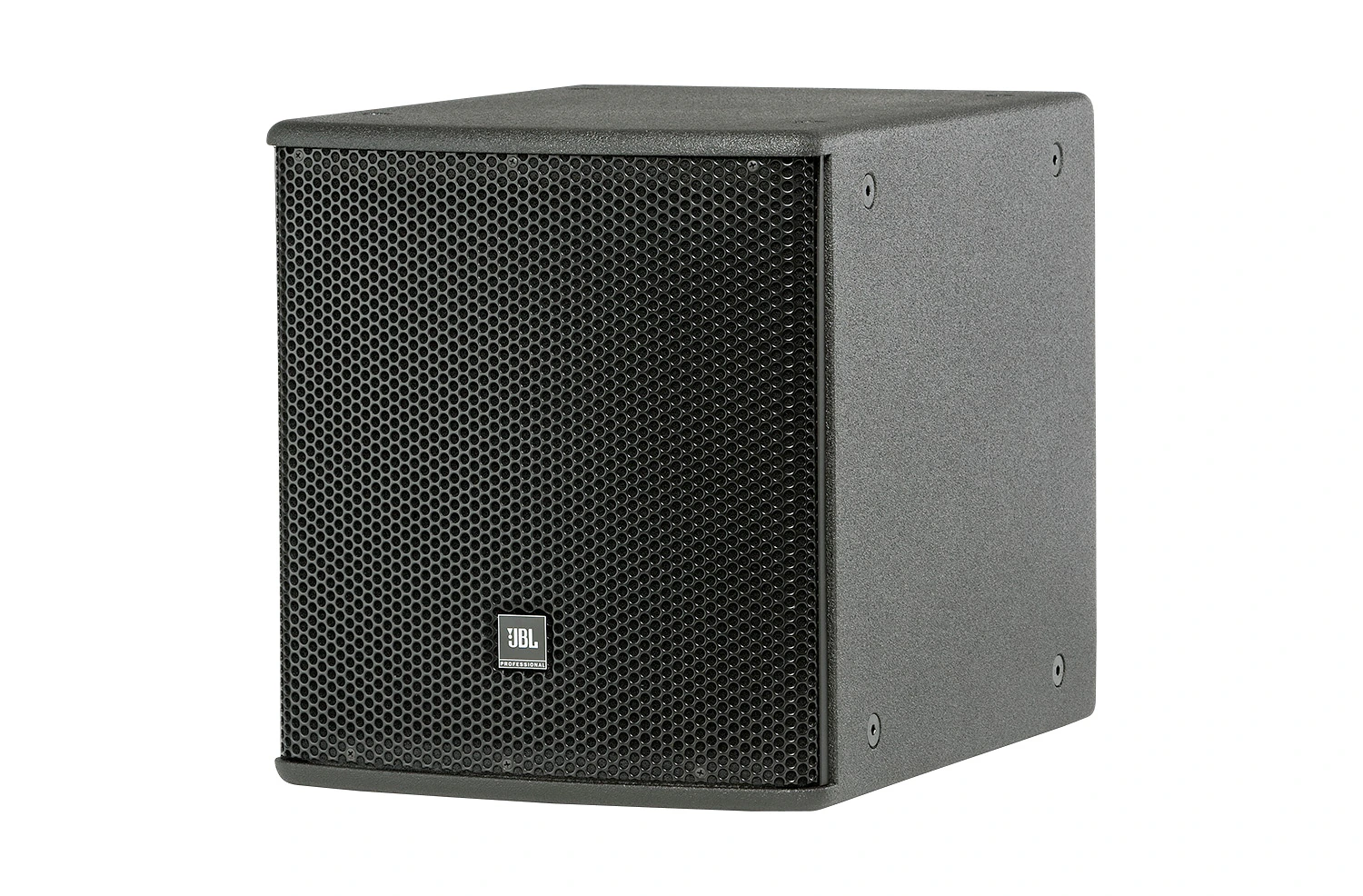

Compact High Power 12-inch Subwoofer

The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

Recursos

Transdutor 2263H 12" Differential Drive® com bobina dupla e gap duplo, imã de neodímio
1000 watts de ruído rosa contínuo,
4000 watts de capacidade de manuseio de potência de pico
Grande área de ventilação para alta saída com baixa distorção
Conjunto de ajuste FIR que faz o perfil de fase corresponder ao dos modelos full-range
Para aplicações empilhadas no chão ou suspensas em arrays independentes ou em combinação com outros
produtos da Série AE

Para melhorar a confiabilidade em condições climáticas e reduzir a entrada de água, as dimensões dos gabinetes dos modelos WRC & WRX podem ser diferentes das dimensões dos modelos padrão. Entre em contato com CustomAudio@harman.com para desenhos e/ou informações de dimensões dos modelos WRC & WRX.)

Downloads

Specifications

	Tamanho	Enviado
ASB6112 Spec Sheet atualizado: dez 2020	495 KB	dez 2020

Manuals

	Versão	Idioma	Tamanho	Enviado
Weather Resistant Configurations versão A, atualizado: mai 2023	A		86,1 KB	mai 2023
AE/PD Connector Pinout Guide atualizado: out 2019			8,25 KB	out 2019

Brochures

	Tamanho	Enviado
AE Series Brochure atualizado: out 2020	4,05 MB	out 2020
AM Brochure atualizado: out 2020	1,54 MB	out 2020

CAD Drawings

	Versão	Tamanho	Enviado
AE Series - Revit/BIM Files versão 11.0, atualizado: jul 2024	11.0	730 KB	jul 2024
AE Series - Customer Drawings versão 2.0, atualizado: mai 2024	2.0	2,69 MB	mai 2024
AE Series - WR Models Customer Drawings versão 3.0, atualizado: abr 2026	3.0	3,8 MB	abr 2026

Compliances

	Tamanho	Enviado
AE Series ASB - Declaration of Conformity atualizado: jul 2024	93,5 KB	jul 2024

Simulation Data

	Tamanho	Enviado
Ease SPK/DLL Files - Full JBL Pro Line atualizado: mai 2024	21 MB	mai 2024

Preset Libraries

	Tamanho	Enviado
AE Series DCi Series Preset Library atualizado: mai 2024	471 KB	mai 2024

Application Guides

	Idioma	Tamanho	Enviado
Directional Bass Using 3-Element Arrays atualizado: ago 2021		570 KB	ago 2021

Se algum dos links acima resultar em caracteres estranhos em seu navegador, clique com o botão direito no arquivo para salvá-lo em seu computador.

Peças e Serviços

Especificações

Frequency Range (-10dB)	35 Hz – 1 kHz
RESPOSTA EM FREQUÊNCIA (±3 dB)	43 Hz – 1 kHz
Transducer Power Rating (AES)	1000 W (4000 W peak), 2 hrs.
System Power Rating	700 W (2800 W peak), 100 hrs.
Maximum SPL (1m)	40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity	40 Hz - 300 Hz: 96 dB-SPL,1W (2.83V) @ 1m
Impedância nominal	8 ohms
LF Driver	1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Acabamento	Black DuraFlex™ finish.White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental	Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical orientation)	406 x 369 x 483 mm(16.0 x 14.5 x 19.0 in)
Net Weight (each)	16.3 kg (36.0 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers.
Nominal LF Driver Impedance	8 ohms
