Ultra Long Excursion Very High Power Dual 18" Cinema Subwoofer


Ultra Long Excursion Very High Power Dual 18"
Cinema Subwoofer

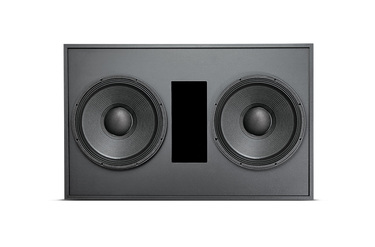

The 5628 is a high power, lightweight front-loaded vented subwoofer enclosure housing two of JBL’s exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofers. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peakto- peak maximum excursion of 89 mm (3.5").


  • 2 x 2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducers
  • 4000 watts continuous pink noise, 16000 watts peak power handling capacity
  • Ultra Long Excursion
  • Large vent area for high output with low distortion


  Version Language Size Uploaded
5628 Spec Sheet
updated: 10月22日
    167.4 KB 10月22日
Cinema Sound 5628 Declaration of Conformity
updated: 10月18日
    141.0 KB 10月18日
Speaker Tunings
5628 Presets DSi4000 DSi Device
updated: 10月22日
    5.5 KB 10月22日
5628 Presets DCi4N DCi Series Device
updated: 10月22日
    41.0 KB 10月22日
5628 Presets I-Tech HD Series Device
updated: 10月22日
    20.4 KB 10月22日
5628 Presets DCi2N DCi Series Device
updated: 10月22日
    37.6 KB 10月22日
5628 Presets DSi6000 DSi Device
updated: 10月22日
    5.6 KB 10月22日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


Frequency Range (±3 dB) 24 Hz - 155 Hz (2π) / 27 Hz - 1.5 kHz (4π)
Frequency Response (-10dB) 18 Hz - 1.63 kHz (2π) / 19 Hz - 1.75 kHz (4π)
Input Modes Drivers Discrete
Transducer Power Rating 4000 W (16000 W peak), 2 hrs.
Long-Term System Power Rating 2400 W (9600 W peak), 100 hrs
Maximum SPL (1m) 134.5 dB (peak 140.5 dB) Half-space 128.5 dB (peak 134.5 dB) Full-space


95 dB
标称阻抗 4Ω in parallel-drive mode 2 x 8Ω in discrete-drive mode
低频驱动单元 2 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive®, VGC™ drivers
Enclosure 19 mm (3/4 in) particle board with 25 mm (1 in) baffle and back panel. Extensive bracing on all panels.
Input Connector (2x) +/-Push Terminals for up to 12 AWG wire
Dimensions (H x W x D in vertical orientation) 762 x 1219 x 610 mm (30.0 x 48.0 x 24.0 in)
Net Weight (each) 199 lbs (90.5 kg)
Shipping Weight w/Packaging (ea.) 219 lb (99.5 kg)
Power Handling (2Hr AES Rating) 4000 W
