3730

Three-Way Tri/Bi-Amplified/Passive

较大的图像

Three-Way Bi-Amplified/Passive ScreenArray® Cinema
Loudspeaker System

The 3730 ScreenArray provides smooth and accurate reproduction of cinema soundtracks in a compact and very cost effective system.

特点

  • Three-Way ScreenArray design for maximum output, optimal coverage, and minimum distortion
  • Bi-amplified or fully passive switchable operation
  • SSC™ Screen Spreading Compensation
  • New molded Optimized Aperture Waveguide technology for ultra low distortion and extremely uniform frequency response
  • Low Frequency section features dual 15" transducers with ribbon wire voice coils for low distortion and high efficiency

下载

  Version Language Size Uploaded
Specifications
Cinema 3730 Spec Sheet
updated: 4月29日
    360.8 KB 4月29日
Brochures
Full Line 2015 Catalog
updated: 1月11日
    11.7 MB 1月11日
Compliances
Cinema Sound - ScreenArray Systems (3 Way) Declaration of Conformity
updated: 10月18日
    153.2 KB 10月18日
Cinema Sound China
updated: 10月18日
    141.1 KB 10月18日
Images

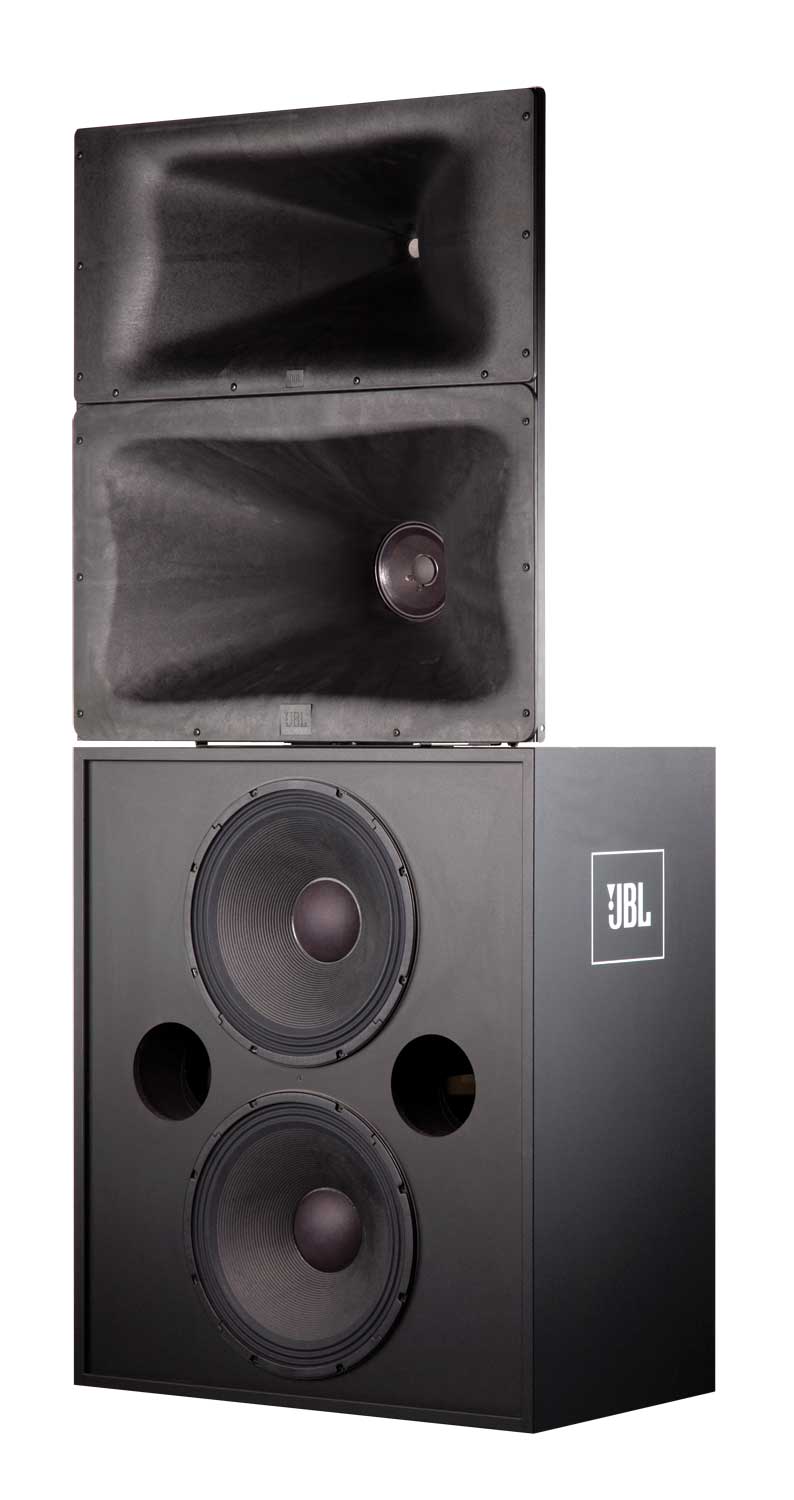

Cinema 3730 Front Angle
updated: 4月29日
    51.0 KB 4月29日
Speaker Tunings
3730 Passive DSP DSi Preset
updated: 2月20日
    692 Bytes 2月20日
3730 BA DSP DSi Preset
updated: 2月20日
    576 Bytes 2月20日
Ease Data
3730_3739LF Ease Data
updated: 4月29日
    106.1 KB 4月29日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Frequency Response (±3 dB) 30 Hz - 18 kHz
Sensitivity (1W, 1m) 105 dB, 2.83V @ 1 m (3.3 ft)
Nominal Impedeance 4 ohms
Passive System Input Power Rating 600 W
Bi-Amp System Input Power Rating LF: 500 WM/HF: 125 W
Nominal Coverage 90º horizontal, -30º/+20º vertical
分频频率 450 Hz , 2 kHz
Dimensions (HxWxD) 173.4 mm x 762 mm x 450 mm (68.25 in x 30 in x 17.75 in)
Net Weight (each) 67.1 kg (147 lb)
3739 Low Frequency Two M115-8A 380 mm (15 in) dia., 61 mm (2.5 in) edgewound ribbon voice coil transducers mounted in a 4509 LF enclosure
Dimension (HxWxD) 883 mm x 762 mm x 450 mm (34.75 in x 30 in x 17.75 in)
标称阻抗 4 ohms [MF: 8 ohms, HF: 8 ohms]
Input Power Rating 125 watts AES; 300 watts recommended amplifier

灵敏度

105 dB SPL, 2.83V @ 1 m (3.3 ft)[MF: 110 dB SPL, 2.83V @ 1 m (3.3 ft)][HF: 112 dB SPL, 2.83V @ 1 m (3.3 ft)]
输入连接器 Screw terminal barrier strip
Mid Frequency 1 x 195H; 165.1 mm (6.5 in) dia., 38 mm (1.5 in) voice coil
High Frequency 2414H, 25 mm (1 in) polymer diaphragm, neodymium compression driver
Power Handling (2Hr AES Rating) 500W
Power Handling (100Hr AES Rating) 600W
