JBL Professional 3730

រូបភាពធំជាង

The 3730 ScreenArray provides smooth and accurate reproduction of cinema soundtracks in a compact and very cost effective system.

Three-Way ScreenArray design for maximum output, optimal coverage, and minimum distortion
Bi-amplified or fully passive switchable operation
SSC™ Screen Spreading Compensation
New molded Optimized Aperture Waveguide technology for ultra low distortion and extremely uniform frequency response
Low Frequency section features dual 15" transducers with ribbon wire voice coils for low distortion and high efficiency

Specifications

	ទំហំ	បានផ្ទុកឡើង
Cinema 3730 Spec Sheet បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	361 KB	តុលា 2020

Compliances

	ទំហំ	បានផ្ទុកឡើង
Cinema Sound - ScreenArray Systems (3 Way) Declaration of Conformity បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	153 KB	តុលា 2019
Cinema Sound China បានធ្វើបច្ចុប្បន្នភាព: តុលា 2019	141 KB	តុលា 2019

Images

	ទំហំ	បានផ្ទុកឡើង

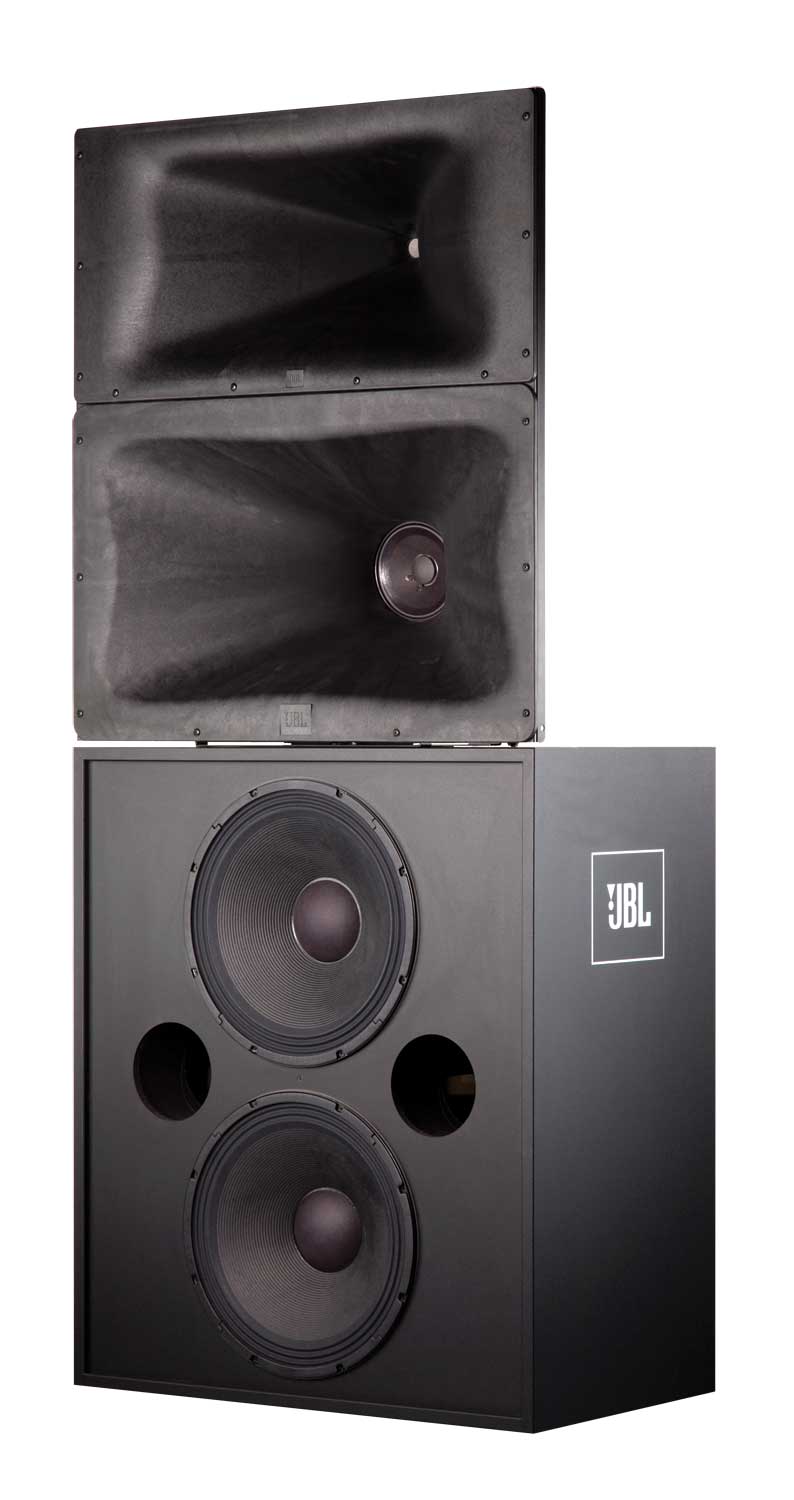

Cinema 3730 Front Angle បានធ្វើបច្ចុប្បន្នភាព: មេសា 2019	51 KB	មេសា 2019

Speaker Tunings

	ទំហំ	បានផ្ទុកឡើង
3730 Passive DSP DSi Preset បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	692 Bytes	តុលា 2020
3730 BA DSP DSi Preset បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	576 Bytes	តុលា 2020

Ease Data

	ទំហំ	បានផ្ទុកឡើង
3730_3739LF Ease Data បានធ្វើបច្ចុប្បន្នភាព: តុលា 2020	106 KB	តុលា 2020

ប្រសិនបើតំណភ្ជាប់ខាងលើបង្ហាញអក្សរចម្លែកក្នុងកម្មវិធីរុករករបស់អ្នក សូមចុចខាងស្តាំលើឯកសារដើម្បីរក្សាទុកទៅកុំព្យូទ័ររបស់អ្នក។

Frequency Range (±3 dB)	40 Hz – 18 kHz
Frequency Range (-10dB)	30 Hz – 18 kHz
Sensitivity	105dB @ 2.83V
Nominal Impedeance	4Ω
Passive System Input Power Rating	600 W
Bi-Amp System Input Power Rating	LF: 500 WM/HF: 125 W
Nominal Coverage	90º horizontal, -30º/+20º vertical
Crossover Frequency	450 Hz , 2 kHz
Dimensions (HxWxD)	173.4 mm x 762 mm x 450 mm (68.25 in x 30 in x 17.75 in)
Net Weight (each)	147 lbs (67.1 kg)
3739 Low Frequency	Two M115-8A 380 mm (15 in) dia., 61 mm (2.5 in) edgewound ribbon voice coil transducers mounted in a 4509 LF enclosure
Dimension (HxWxD)	883 mm x 762 mm x 450 mm (34.75 in x 30 in x 17.75 in)
Nominal Impedance	4 ohms [MF: 8 ohms, HF: 8 ohms]
Input Power Rating	125 watts AES; 300 watts recommended amplifier
Input Connectors	Screw terminal barrier strip
Mid Frequency	1 x 195H; 165.1 mm (6.5 in) dia., 38 mm (1.5 in) voice coil
High Frequency	2414H, 25 mm (1 in) polymer diaphragm, neodymium compression driver
Power Handling (2Hr AES Rating)	500W
Power Handling (100Hr AES Rating)	600W
