| Drivers |
Sixteen 50 mm (2 in) Full-Range |
| Frequency Range (-10dB) |
120 Hz – 20 kHz |
| Coverage Angle |
In Music Voicing, Broad Vertical Switch Settings: | Frequency (kHz) | Horizontal Coverage° | Vertical Coverage° | | 0.5 kHz | 360° | 59° | | 1 kHz | 247° | 41° | | 2 kHz | 194° | 32° | | 4 kHz | 135° | 72° |
In Speech Voicing, Broad Vertical Switch Settings: | Frequency (kHz) | Horizontal Coverage° | Vertical Coverage° | | 0.5 kHz | 360° | 66° | | 1 kHz | 246° | 41° | | 2 kHz | 185° | 32° | | 4 kHz | 140° | 37° |
In Music Voicing, Narrow Vertical Switch Settings: | Frequency (kHz) | Horizontal Coverage° | Vertical Coverage° | | 0.5 kHz | 360° | 59° | | 1 kHz | 248° | 37° | | 2 kHz | 185° | 24° | | 4 kHz | 132° | 17° |
In Speech Voicing, Narrow Vertical Switch Settings: | Frequency (kHz) | Horizontal Coverage° | Vertical Coverage° | | 0.5 kHz | 360° | 59° | | 1 kHz | 245° | 43° | | 2 kHz | 179° | 24° | | 4 kHz | 135° | 17° |
|
| Sensitivity (2.83V @ 1m) |
Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ) (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 93 dB (2 kHz - 14 kHz) (music mode) 90 dB (300 Hz - 18 kHz) |
| EN54 Sensitivity (@ 4m) |
76 dB (per EN54:24 spectrum and measurement conditions at 4 meters, set at broad/music mode.) |
| Nominal Impedance |
5Ω (in Thru mode)
15w@70v; 30w@100v Tap = 292Ω
30w@70v; 60w@100v Tap = 148Ω
60w@70v; 120w@100v Tap = 78Ω
120w@70v; N/C@100v Tap = 39Ω |
| Power Capacity |
325 W (1300W peak), 2 hrs
200 W (800W peak), 100 hrs |
| Maximum SPL (1m) |
Narrow: (speech mode) 121 dB cont ave (127 peak) (music mode) 118 dB cont ave (124 peak) Broad: (speech mode) 118 dB cont ave (124 peak) (music mode) 115 dB cont ave (121 peak) |
| EN54 Max SPL (@ 4m) |
92 dB (per EN54:24 spectrum and measurement conditions, at 4 meters) |
| Transformer Taps |
120W, 60W, 30W, (15W at 70V only), and 8 thru, via switch |
| Reference Axis |
Specification and measurement referenced on-axis vertically and horizontally to the center point of the speaker baffle. |
| Enclosure |
Fiberglass reinforced ABS cabinet with UL94-5VB flammability rating, painted aluminum grille |
| Outdoor Capability |
IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant. |
| Color |
Black or White (-WH) |
| Insert Points |
18 M6 insert points on back panel. |
| Mounting |
Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension. |
| Dimensions (H x W x D) |
1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in) |
| Net Weight |
7.2 kg (15.8 lb) |
| Safety Agency |
EN54-24:2008 certified, when installed with MTC-PC2 terminal panel cover. Cabinet UL94-5VB flammability rated. In accordance with the requirements of IEC60849/EN60849. Transformer UL registered per UL1876. |
| Included Accessories |
Swivel (pan) / tilt wall bracket MTC-PC2 terminal panel cover |
| Optional Accessories |
MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand |

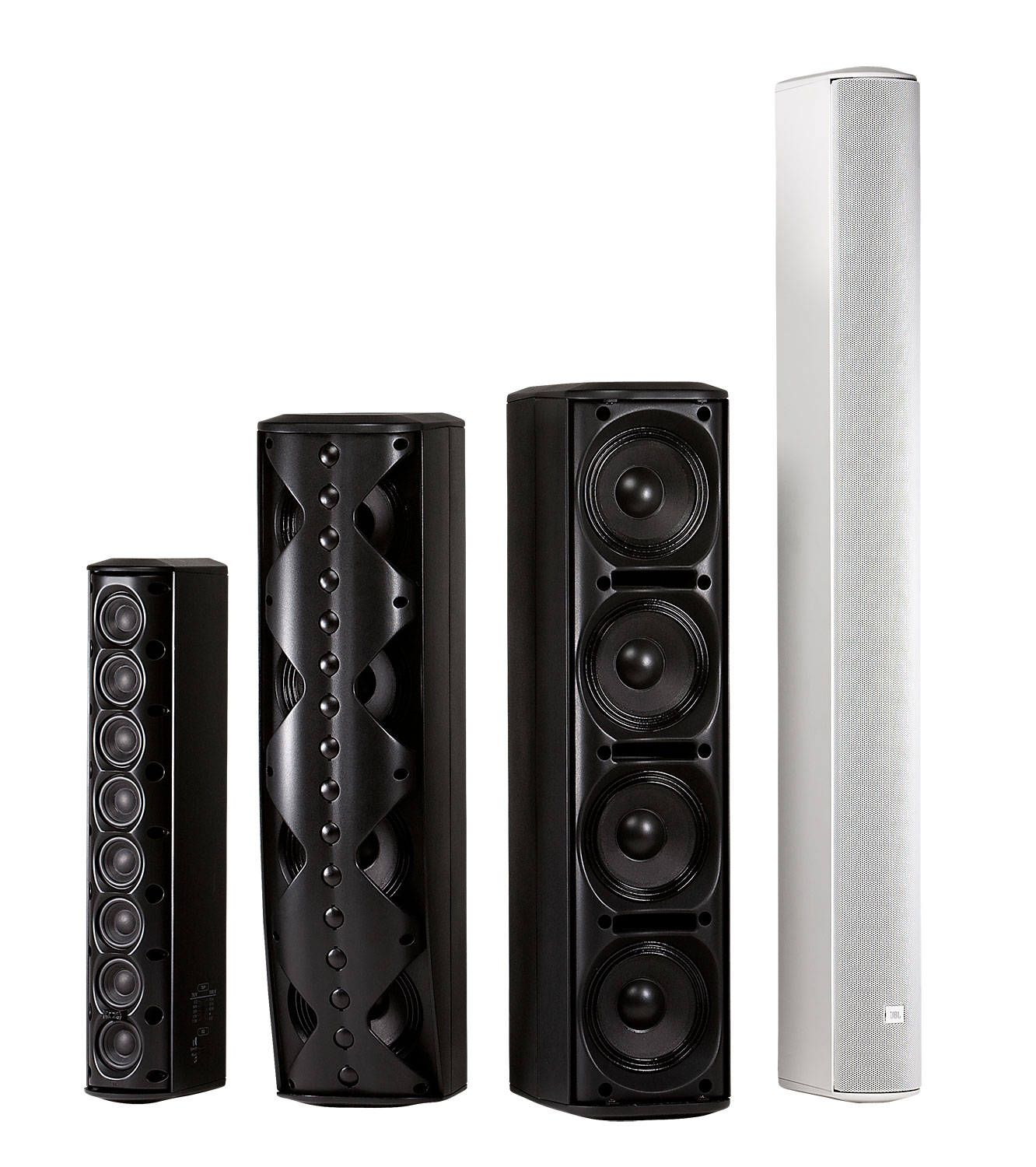

Constant Beamwidth Technology – CBT Series Passive Controlled-Coverage Columns
