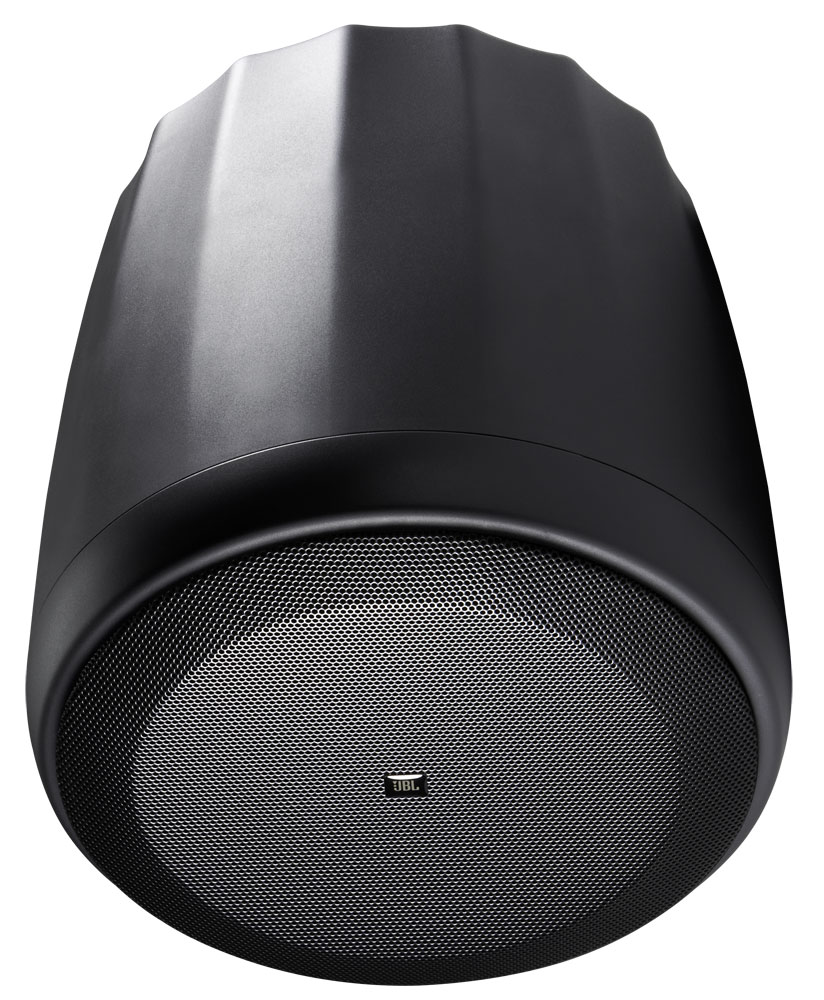

Loa Control 67HC với tầm phủ sóng hẹp được kiểm soát tốt, lý tưởng để cải thiện độ rõ ràng của giọng nói và chất lượng âm nhạc trong các địa điểm có trần cao hoặc các phòng có âm học khó khăn, chẳng hạn như trung tâm hội nghị, trung tâm vận chuyển, địa điểm triển lãm và khu vực sảnh khách sạn.
| Kích thước | |
|
|
1000 KB |
| Kích thước | |
|
|
20 MB |
|
|
20 MB |
|
|
10 MB |
|
|
300 KB |
| Kích thước | |
|
|
4 MB |
| Kích thước | |
|
|
| Kích thước | |
|
|
1000 KB |
| Kích thước | |
|
|
600 KB |
| Kích thước | |
|
|
100 KB |
|
|
900 KB |
| Kích thước | |
|
|
80 KB |
|
|
200 KB |
| Kích thước | |
|
|
600 KB |
| Kích thước | |
|
|
700 KB |
| Kích thước | |
|
|
1000 KB |
| Kích thước | |
|
|
400 KB |
| Kích thước | |
|
|
300 KB |
Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.
| Frequency Range (-10dB) | 75 Hz – 17 kHz |
| Frequency Range (±3 dB) | 110 Hz – 16 kHz |
| Power Rating | 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power |
| Nominal Sensitivity | 93 dB |
| Coverage Angle | 75° conical |
| Directivity Factor (Q) | 10.4 |
| Directivity Index (DI) | 9.8 dB |
| Maximum SPL (1m) | 112 dB continuous pink noise, 118 dB peak |
| Impedance | 8 ohms |
| Transformer Taps | 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W |
| Transformer Insertion Loss | 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W |
| Drivers | LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former |
| Enclosure | High impact polystyrene |
| Grille | Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting) |
| Outdoor Capability | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating. |
| Input Connectors | Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. |
| Suspension | Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb). |
| Safety Agency | Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81. |
| Dimensions (H x W x D) | 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket. |
| Net Weight (each) | 5.9 kg (13 lbs) |
| Shipping Weight (pair) | 14.1 kg (31 lbs) |
| Included Accessories | Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors. |
| Optional Accessories | MTC-PC60HC top panel / terminal cover |
| Colors | Available in black or white (-WH). Paintable. |
