PRX412M

12" Two-Way Stage Monitor and Loudspeaker System

Mua ngay
PRX412M
Hình ảnh lớn hơn

12" Two-Way Stage Monitor and Loudspeaker System

PRX412M is a portable, twelve-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.



Tính năng

  • 90° x 50° coverage for even and smooth response on and off axis
  • Dual-angle pole socket for applications requiring tripod mounting
  • Heavy Duty 16 gauge protective screen backed steel grille
  • Tough DuraFlex™ enclosure finish
  • Utilizes twelve M10 suspension points for safe deployment in light duty installations.
  • SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.

Applications

  • Speech reinforcement
  • Live performance stage monitoring
  • Reinforcement of vocal and acoustic music
  • High-performance satellite speaker for use with subwoofers


Tải xuống

Specifications
  Kích thước Đã tải lên
file type icon PRX412M Spec Sheet
cập nhật: Thg 4 2019
1000 KB Thg 4 2019
Brochures
  Phiên bản Ngôn ngữ Kích thước Đã tải lên
file type icon PRX400 Brochure
cập nhật: Thg 1 2021
    1000 KB Thg 1 2021
file type icon Portable Sound Full Line 2015 Catalog
cập nhật: Thg 10 2020
    3 MB Thg 10 2020
file type icon JBL 2025 PPA Brochure
en phiên bản B, cập nhật: Thg 8 2025
B  en  8 MB Thg 8 2025
Compliances
  Kích thước Đã tải lên
file type icon PRX400 Series Declaration of Conformity
cập nhật: Thg 10 2020
100 KB Thg 10 2020
Images
  Kích thước Đã tải lên

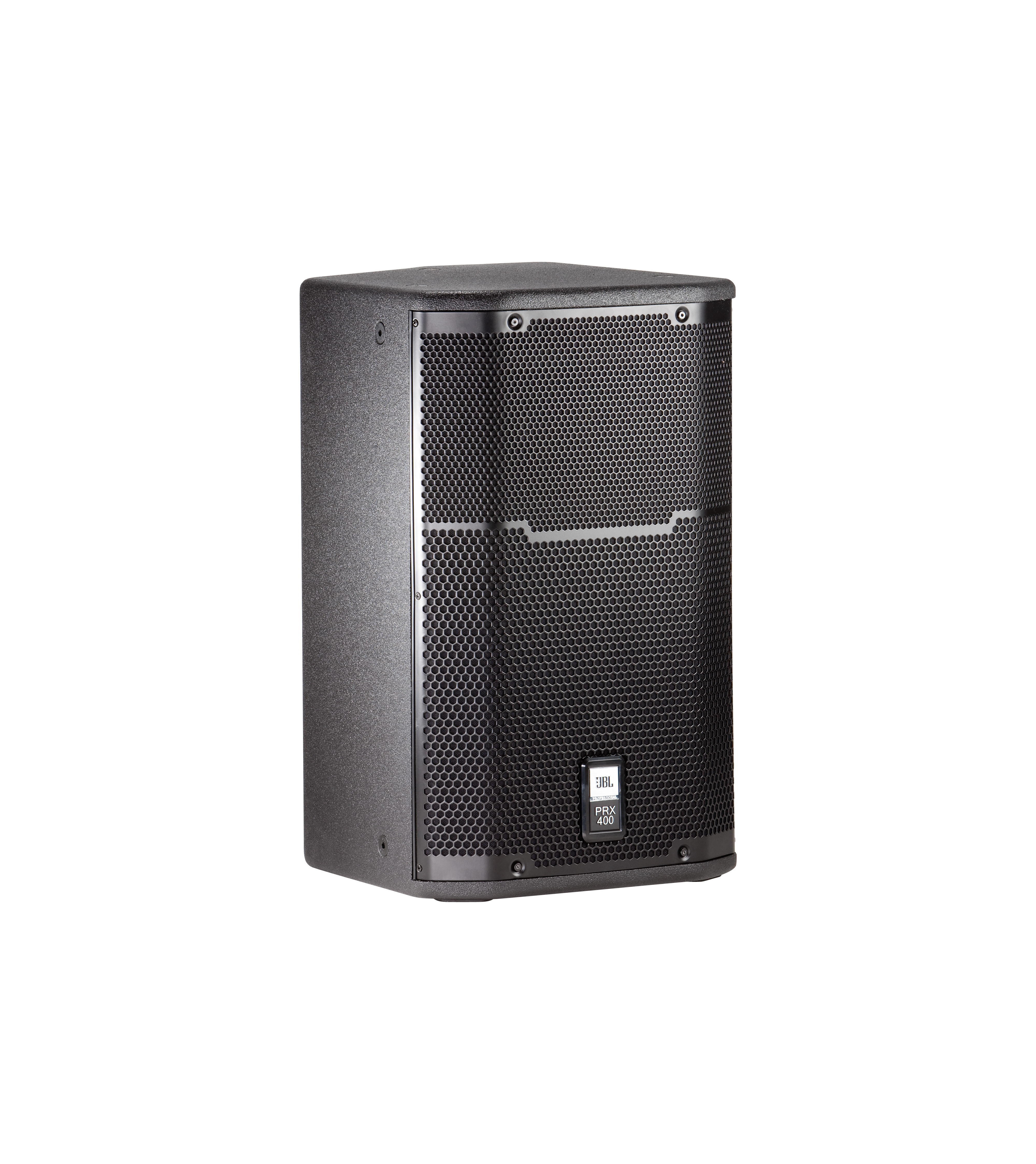

file type icon PRX412M Front Angle
cập nhật: Thg 4 2019
2 MB Thg 4 2019

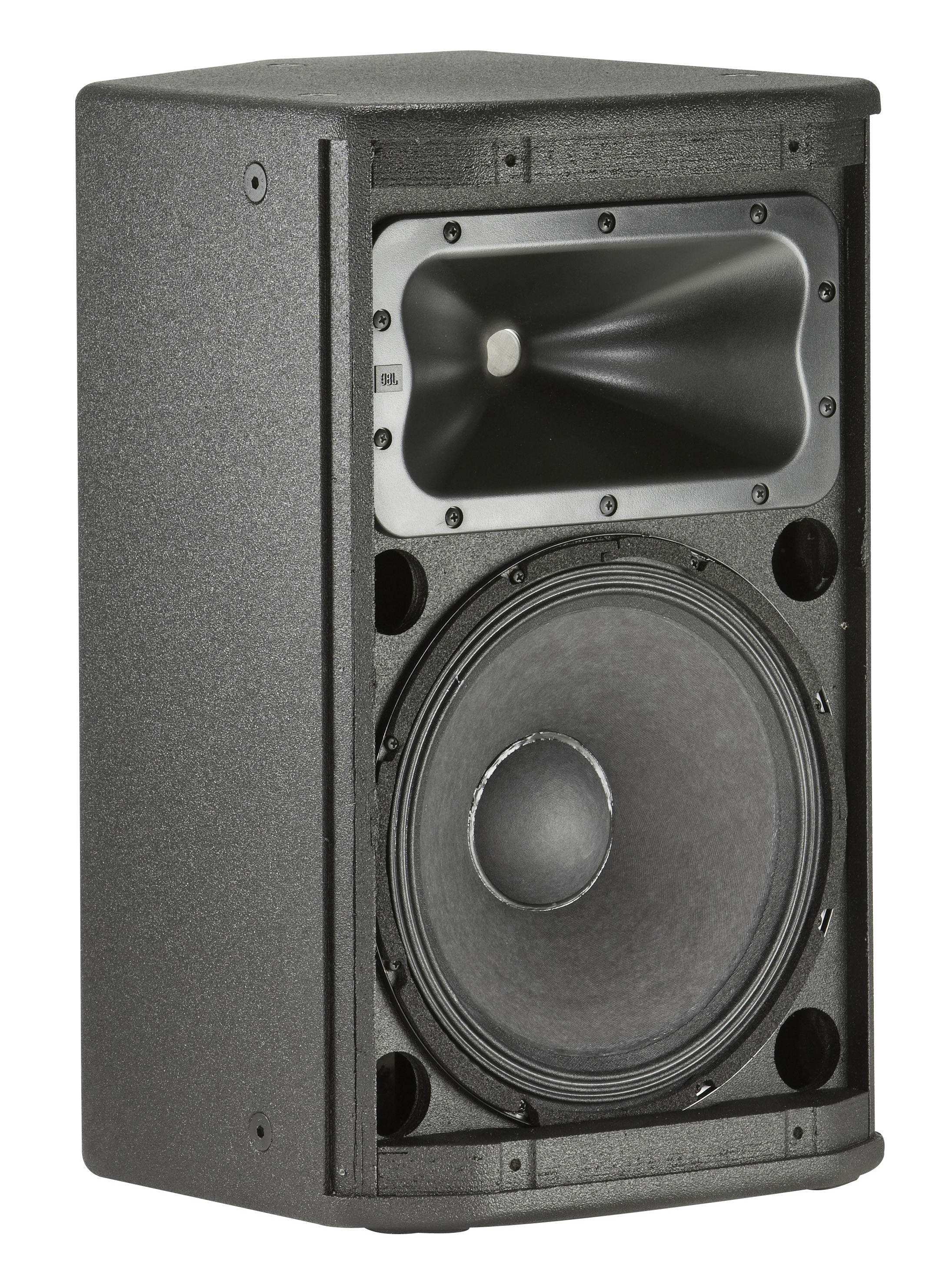

file type icon PRX412M Fr Angle No Grill
cập nhật: Thg 4 2019
2 MB Thg 4 2019
Speaker Tunings
  Kích thước Đã tải lên
file type icon PRX400 Series Tunings
cập nhật: Thg 10 2020
40 KB Thg 10 2020

Nếu bất kỳ liên kết nào ở trên hiển thị ký tự lạ trong trình duyệt của bạn, vui lòng nhấp chuột phải vào tệp để lưu vào máy tính của bạn.

Phụ tùng & Dịch vụ

Thông số kỹ thuật

Frequency Range (-10dB) 50 Hz – 20 kHz
Frequency Response (±3 dB) 62 Hz – 19 kHz
Coverage Pattern 90° x 50° nominal
System Sensitivity 95 dB SPL (1w@1m)
Power Rating, Pink Noise 300 W / 600 W / 1200 W(Continuous/Program/Peak)
Maximum SPL (1m) 126 dB SPL peak
Nominal Impedance 8 ohms
Dimensions (H x W x D) 574 mm x 353 mm x 399 mm (22.6 in x 13.9 in x 15.7 in)
Net Weight 16 kg (35 lbs.)
Inputs Parallel Neutrik® Speakon® NL-2 / ¼" phone combo jacks
Enclosure Duraflex coated plywood

Phụ kiện

PRX412M-CVR | Padded Cover for PRX412M
PRX412M-CVR Main photo
Hình ảnh lớn hơn
PRX412M-CVR detail thumbnail #1 PRX412M-CVR detail thumbnail #2 PRX412M-CVR detail thumbnail #3 PRX412M-CVR detail thumbnail #4

Padded Cover for PRX412M. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.

JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Hình ảnh lớn hơn
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Cột loa hỗ trợ khí với đầu dưới có ren M20, cột 38mm & bộ chuyển đổi 35mm. JBLPOLE-GA là giá đỡ loa dễ sử dụng nhất nhờ vào cơ chế giảm xóc khí nén bên trong có thể nâng loa cho bạn. Cơ chế giảm xóc bên trong của giá đỡ dễ dàng nâng các loa nặng từ 35 lbs trở xuống mà không cần gì từ người dùng.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Tài liệu
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Hình ảnh lớn hơn
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Tài liệu
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
JBLTRIPOD-MA Main photo
Hình ảnh lớn hơn
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Tài liệu
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Hình ảnh lớn hơn
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Tài liệu
