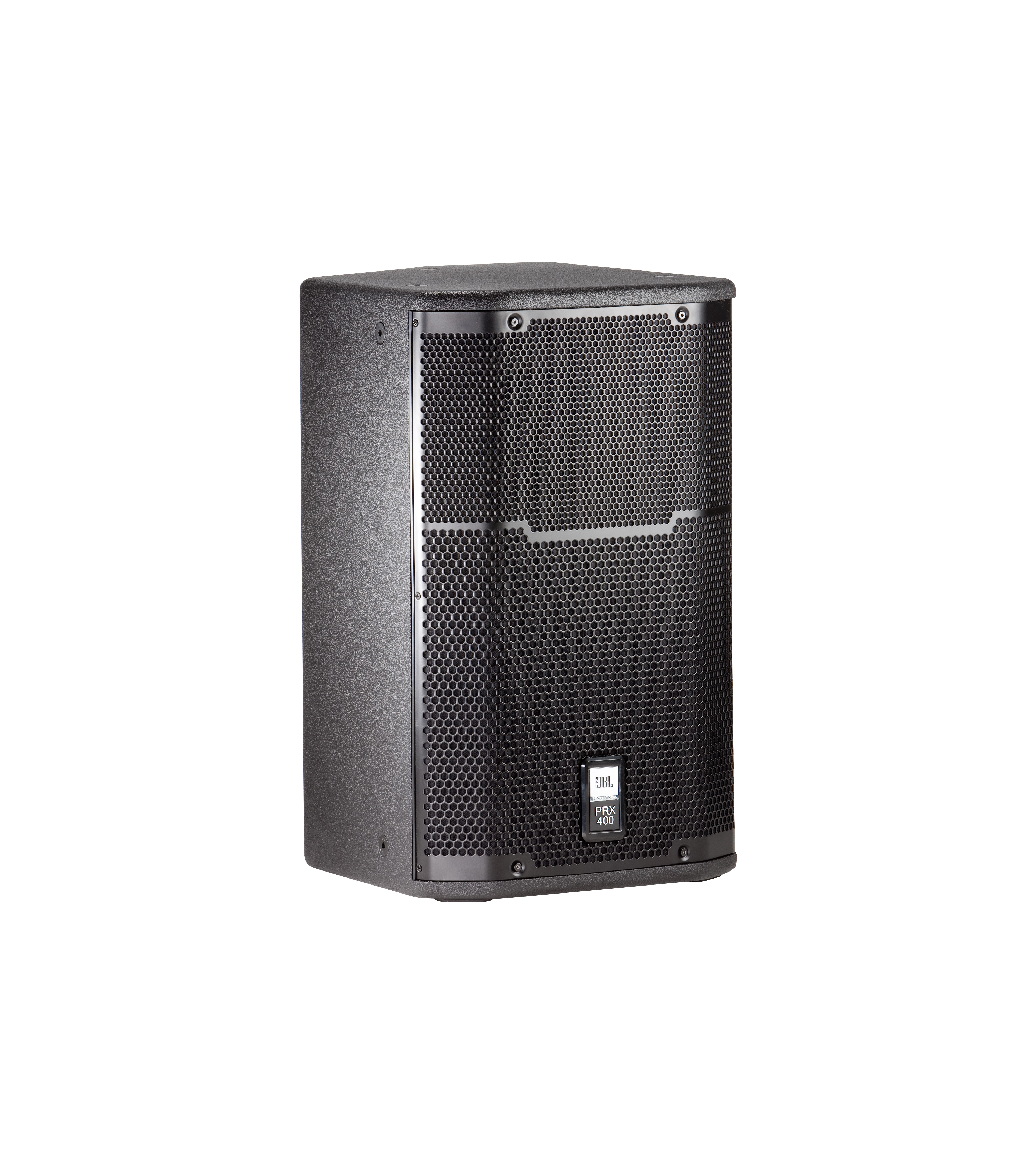

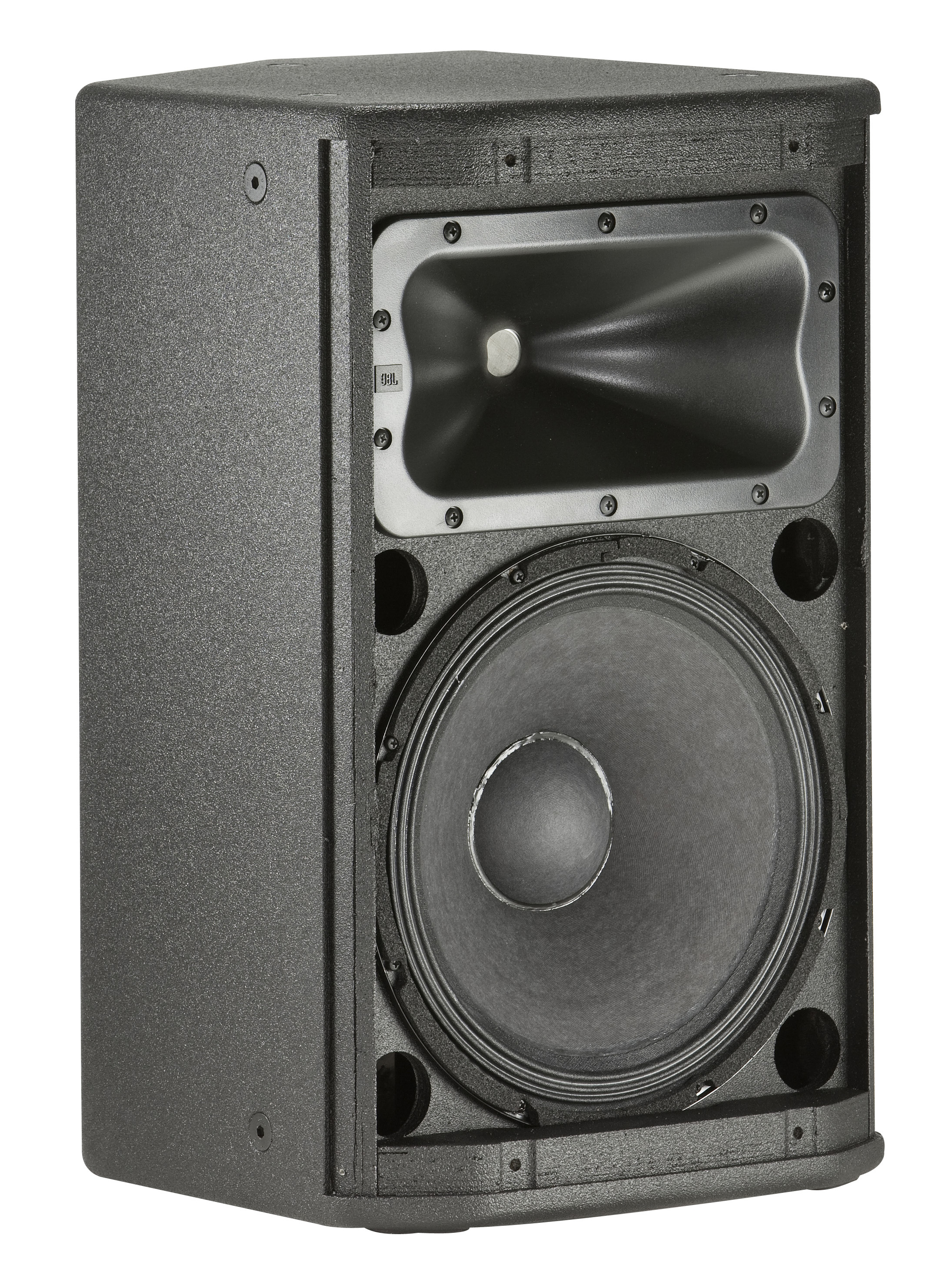

12" Two-Way Stage Monitor and Loudspeaker System
PRX412M is a portable, twelve-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.
Grandes images
Caractéristiques
- 90° x 50° coverage for even and smooth response on and off axis
- Dual-angle pole socket for applications requiring tripod mounting
- Heavy Duty 16 gauge protective screen backed steel grille
- Tough DuraFlex™ enclosure finish
- Utilizes twelve M10 suspension points for safe deployment in light duty installations.
- SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
Applications
- Speech reinforcement
- Live performance stage monitoring
- Reinforcement of vocal and acoustic music
- High-performance satellite speaker for use with subwoofers
Téléchargements
Specifications
| Taille | |
|
|
991 ko |
Brochures
| Taille | |
|
|
991 ko |
|
|
2,54 Mo |
|
|
8,45 Mo |
version B,
mis à jour : août 2025
Compliances
| Taille | |
|
|
144 ko |
Images
| Taille | |
|
|
2,37 Mo |
|
|
2,14 Mo |
Speaker Tunings
| Taille | |
|
|
41,2 ko |
Si l'un des liens ci-dessus affiche des caractères étranges dans votre navigateur, faites un clic droit sur le fichier pour l'enregistrer sur votre ordinateur.
Pièces détachées et réparations
Caractéristiques techniques
| Frequency Range (-10dB) | 50 Hz – 20 kHz |
| Frequency Response (±3 dB) | 62 Hz – 19 kHz |
| Coverage Pattern | 90° x 50° nominal |
| System Sensitivity | 95 dB SPL (1w@1m) |
| Power Rating, Pink Noise | 300 W / 600 W / 1200 W(Continuous/Program/Peak) |
| Maximum SPL (1m) | 126 dB SPL peak |
| Nominal Impedance | 8 ohms |
| Dimensions (H x W x D) | 574 mm x 353 mm x 399 mm (22.6 in x 13.9 in x 15.7 in) |
| Net Weight | 16 kg (35 lbs.) |
| Inputs | Parallel Neutrik® Speakon® NL-2 / ¼" phone combo jacks |
| Enclosure | Duraflex coated plywood |
Accessoires
PRX412M-CVR | Padded Cover for PRX412M
Grandes images
Padded Cover for PRX412M. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.
JBLPOLE-GA | JBL Gas Assist Speaker Pole
Grandes images
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Documentation
-
JBL pole Gas Assist
[41,6 ko]
-
JBL pole Gas Assist detail
[70,2 ko]
-
JBLPOLE-GA Data Sheet
[314 ko]
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
Grandes images
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Documentation
-
JBLTRIPOD-GA Data Sheet
[231 ko]
-
JBL Tripod Gas Assist Closed
[36,2 ko]
-
JBL Tripod Gas Assist Closed Extended
[30,5 ko]
-
JBL Tripod Gas Assist Open
[41,7 ko]
-
JBL Tripod Manual Adjust Open
[39,5 ko]
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
Grandes images
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Réglable de 4'2" (1270MM) à 6'5" (1956MM)
- Trépied de haut-parleur à réglage manuel
- Conçu pour une utilisation avec les modèles JBL suivants : JRX200, PRX400, STX800, EON, PRX700, VRX900
Documentation
-
JBLTRIPOD-MA Data Sheet
[228 ko]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
Grandes images
Pied d'enceinte à réglage manuel avec extrémité filetée M20, tube de 38 mm et 35 mm. Le JBLPOLE-MA est doté d'un remarquable collier de réglage de hauteur avec un bouton ergonomique en « Z » qui permet un réglage confortable. Offrant l'assemblage le plus robuste, le collier de réglage de hauteur prévient le serrage excessif et les problèmes de casse associés à tous les modèles en plastique.
- Léger
- Colliers en alliage moulé
- Douille filetée M20
- Compatible avec tous les caissons de basses dotés d'un filetage de tige M20 standard (JBL PRX, VRX, STX et SRX818) - Veuillez consulter les fiches produit individuelles pour confirmation
Documentation
-
JBLPOLE-MA Data Sheet
[258 ko]
-
JBL pole Manual Adjust
[40,7 ko]
-
JBL pole Manual Adjust Detail
[87,7 ko]
