PRX812
ยกเลิกการผลิต

ระบบเสียง 12 นิ้ว แบบ Two-Way Full-Range สำหรับเป็นลำโพงหลัก/ฟลอร์มอนิเตอร์พร้อม Wi-Fi

PRX812
รูปภาพขนาดใหญ่

ระบบเสียงหลัก/มอนิเตอร์พื้นแบบสองทางเต็มย่าน 12 นิ้ว พร้อม Wi-Fi

JBL PRX812 เป็นลำโพงเต็มย่านที่ออกแบบมาสำหรับการใช้งานระบบเสียงหลักและการติดตามพื้น ติดตั้งด้วยดีไซน์ bass-reflex แบบสองทาง 12 นิ้ว ขับเคลื่อนด้วยแอมพลิฟายเออร์ class-D ที่มีกำลัง 1500 วัตต์ PRX812 ส่งมอบระดับเสียงที่เหลือเชื่อในรูปแบบที่เบาและกะทัดรัด



คุณสมบัติ

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • Next-generation JBL neodymium compression drivers
  • Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
  • Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
  • Universal power supply for worldwide compatibility
  • dbx Type IV™ limiting ensures clear, accurate sound at high volumes
  • Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

Applications

  • PRX812 is a compact and versatile speaker in the PRX800 Series with remote Wi-Fi control of onboard DSP EQ parameters. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX812 is a perfect match with a PRX818XLF subwoofer, offering a high performance self-powered sub/sat system.
  • The PRX812 is comprised of a 12” Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
  • All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.


การดาวน์โหลด

Data Sheets
  ขนาด อัปโหลดแล้ว
file type icon PRX812 Sell Sheet
อัปเดต: ต.ค. 2020
739 กิโลไบต์ ต.ค. 2020
Specifications
  เวอร์ชัน ขนาด อัปโหลดแล้ว
file type icon PRX812 Spec Sheet
เวอร์ชัน 12_16_19, อัปเดต: ธ.ค. 2019
12_16_19  707 กิโลไบต์ ธ.ค. 2019
Manuals
  ขนาด อัปโหลดแล้ว
file type icon PRX800 Quick Start Guide
อัปเดต: ต.ค. 2020
1.3 เมกะไบต์ ต.ค. 2020
Compliances
  ขนาด อัปโหลดแล้ว
file type icon PRX800 Compliance
อัปเดต: ต.ค. 2020
143 กิโลไบต์ ต.ค. 2020
Software
  ขนาด อัปโหลดแล้ว
iOS download icon PRX Connect - iOS
เผยแพร่: ธ.ค. 2023
ธ.ค. 2023
Android download icon PRX Connect - Android
เผยแพร่: พ.ย. 2020
พ.ย. 2020
User Guides
  ขนาด อัปโหลดแล้ว
file type icon PRX800 User Guide
อัปเดต: ต.ค. 2020
1.79 เมกะไบต์ ต.ค. 2020
Information documents
  ขนาด อัปโหลดแล้ว
file type icon PRX800 V2 Firmware FAQ
อัปเดต: ต.ค. 2020
77.1 กิโลไบต์ ต.ค. 2020
HI-RES IMAGEs
  ขนาด อัปโหลดแล้ว

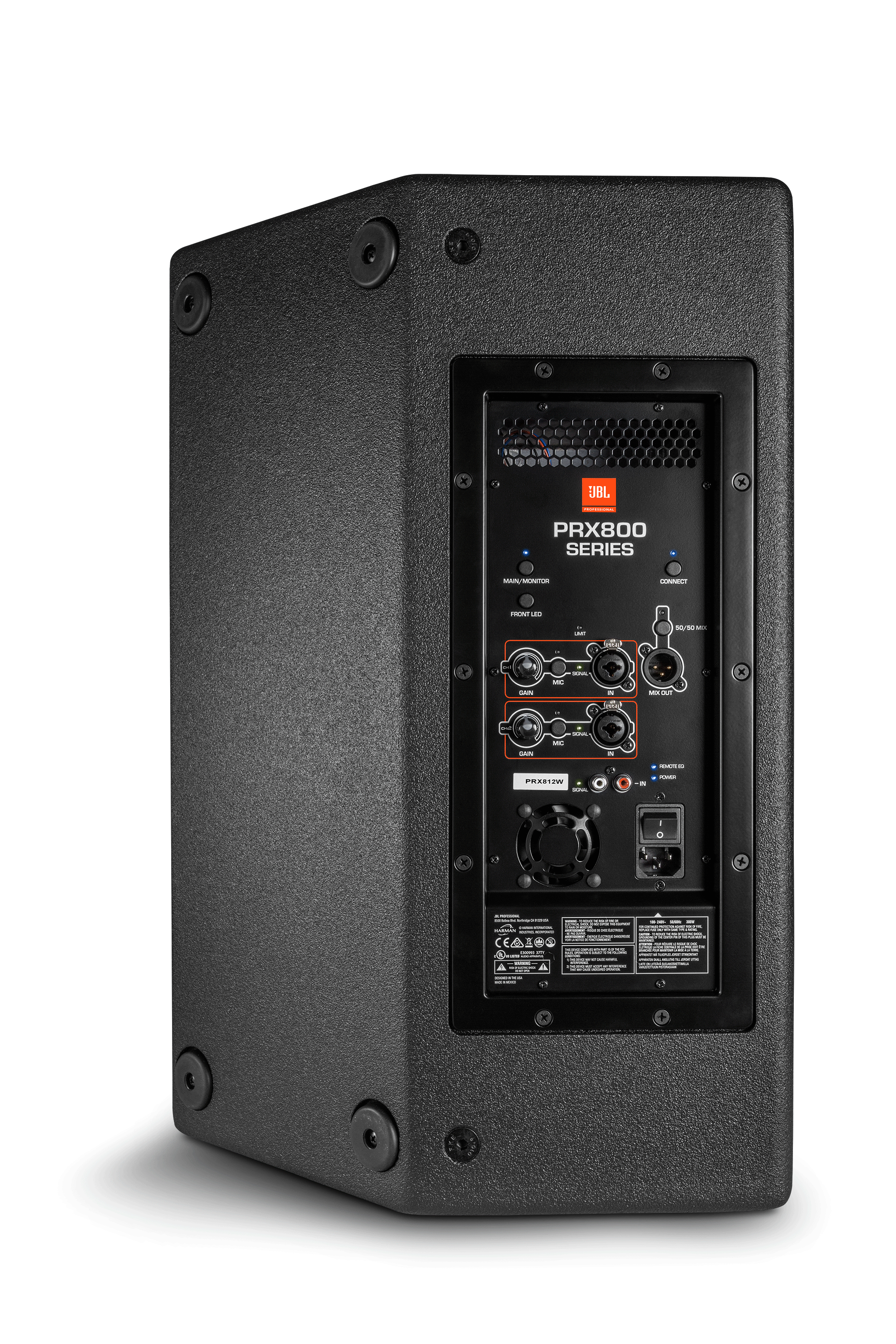

file type icon PRX812 Hi Res Image 3
อัปเดต: ต.ค. 2020
1.95 เมกะไบต์ ต.ค. 2020

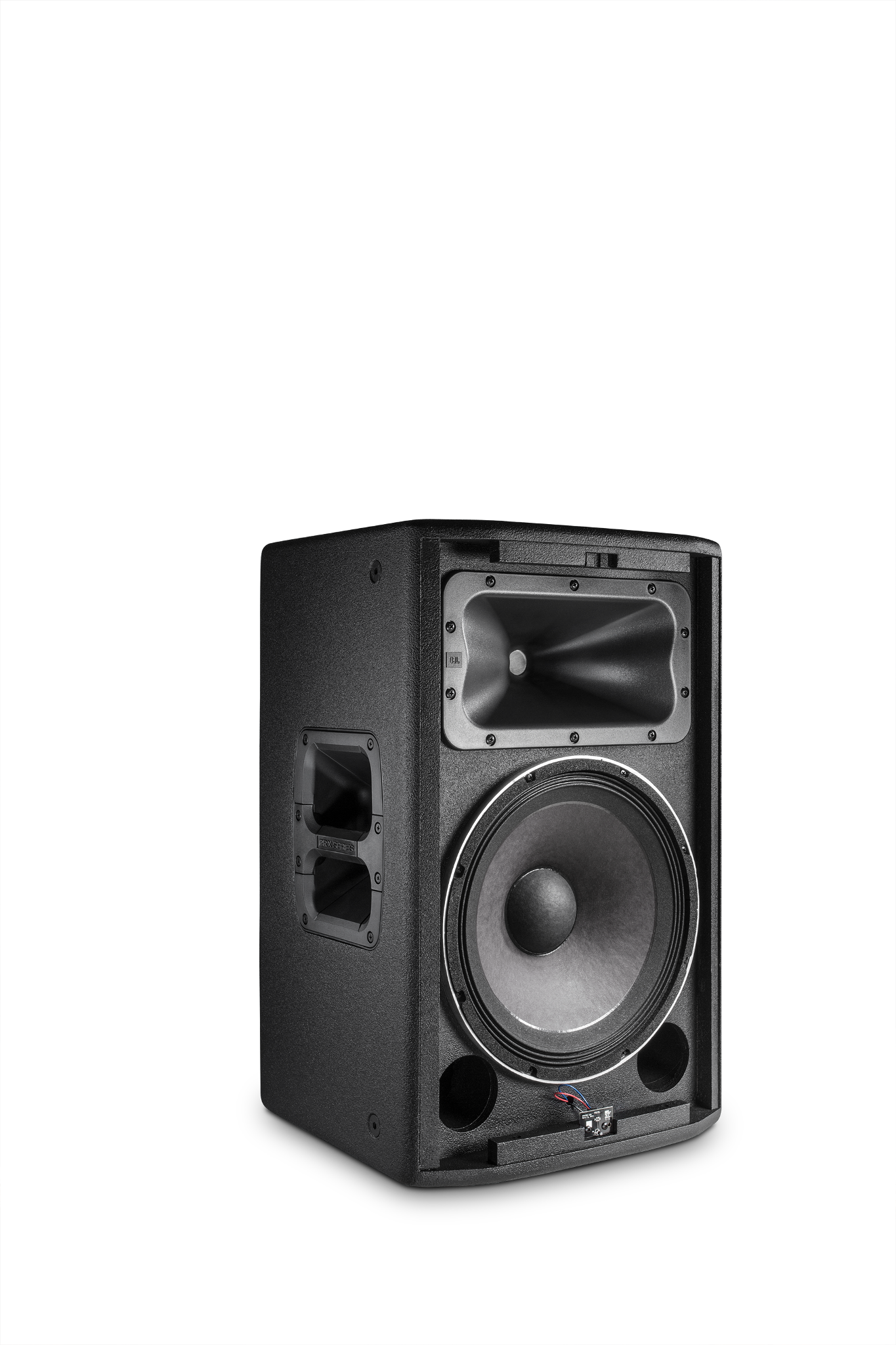

file type icon PRX812 Hi Res Image 2
อัปเดต: ต.ค. 2020
1.49 เมกะไบต์ ต.ค. 2020

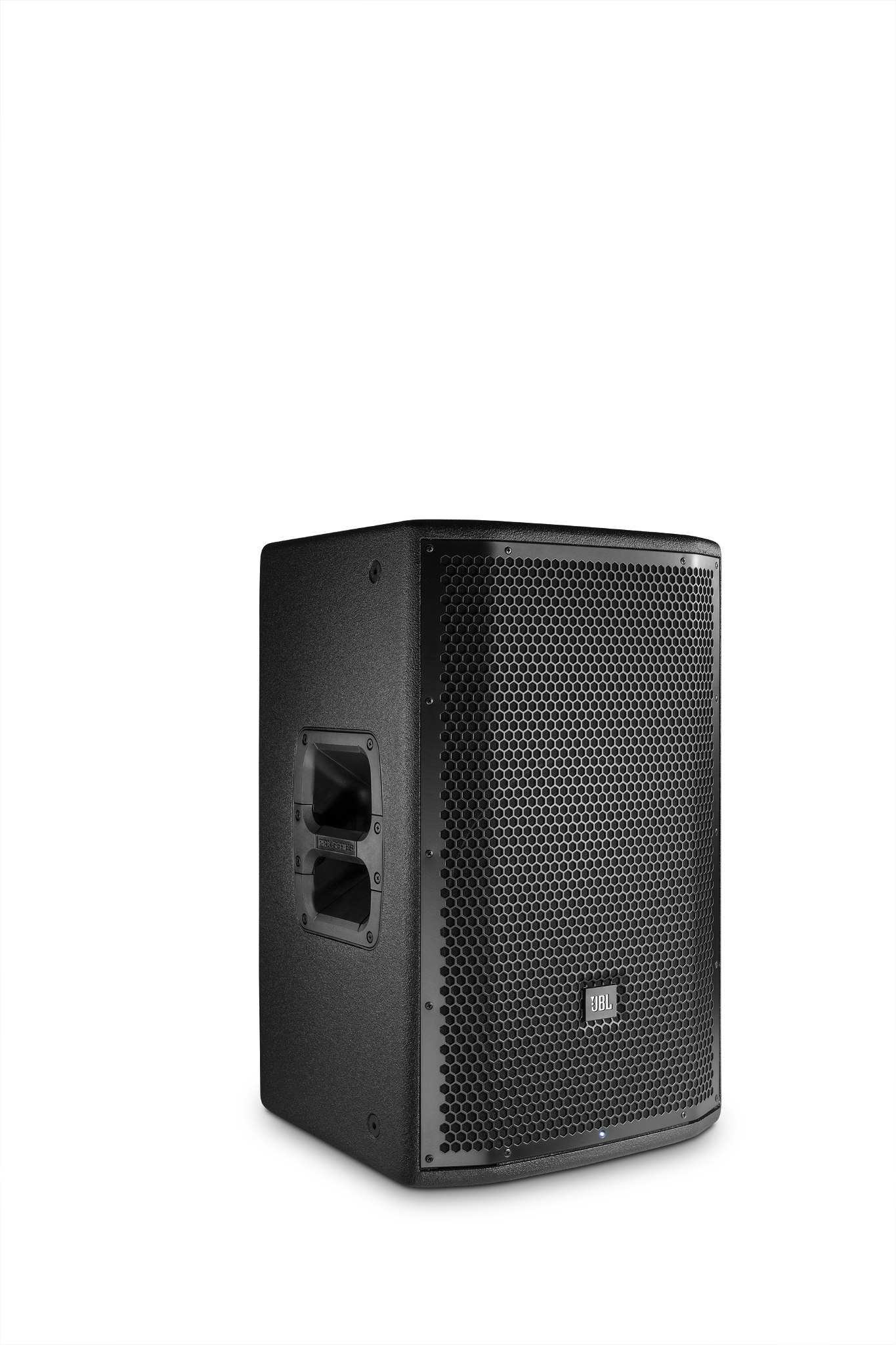

file type icon PRX812 Hi Res Image 1
อัปเดต: ต.ค. 2020
1.35 เมกะไบต์ ต.ค. 2020
Install Guides
  ขนาด อัปโหลดแล้ว
file type icon PRX800 WiFi Setup Guide
อัปเดต: ต.ค. 2020
445 กิโลไบต์ ต.ค. 2020

หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ

อะไหล่และบริการ

ข้อมูลจำเพาะ

System Type Self Powered 12”, two-way, bass-reflex
Maximum SPL Output 135 dB peak
Frequency Range (-10dB) Main: 44.8 Hz – 20 kHz Monitor: 44.8 Hz – 20 kHz
Frequency Response (±3 dB) Main: 55.7 Hz – 20 kHz Monitor: 56.5 Hz – 20 kHz
Inputs 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio
EQ User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
Dynamic Control (Input) dbx Type IV™ limiter circuit
Crossover Frequency 1.85 kHz
Design Highly efficient Class-D amplifier
Power Rating 1500W (750W x 2)
AC power input 100V - 240V ~ 50/60 Hz
LF Driver 1 x JBL 272G 305 mm (12 in) woofer
HF Driver 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Coverage Pattern 90° x 50° nominal
Directivity Index (DI) 10.2 dB
Directivity Factor (Q) 10.4
Enclosure Asymmetrical, 18 mm, Duraflex coated plywood
Suspension / Mounting Dual 36 mm pole socket, 12 x M10 Suspension Points
Transport 1 x injection molded handle with backing cup
Finish Obsidian DuraFlex™ finish
Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D) 599mm x 385mm x 341mm (23.6in x 15.1in x 13.4in)
Net Weight 40 lbs / 18.1 kg
Gross Weight 21.2 kg (48.0 lb)
Mic Inputs 2
Phantom Power No
Effects 25 parametric EQ's and speaker delay
Outputs 1 x XLR (mix out)

อุปกรณ์เสริม

PRX812W-CVR | Deluxe Padded Protective Cover for PRX812W or PRX712
PRX812W-CVR Main photo
รูปภาพขนาดใหญ่
PRX812W-CVR detail thumbnail #1 PRX812W-CVR detail thumbnail #2 PRX812W-CVR detail thumbnail #3

Deluxe padded cover for PRX812W or PRX712. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.


JBL-FLIGHT-PRX812W | Flight Case; Holds 2X PRX812W
JBL-FLIGHT-PRX812W Main photo
รูปภาพขนาดใหญ่
JBL-FLIGHT-PRX812W detail thumbnail #1

Flight Case for (2x) PRX812W. 1/2" Plywood Construction, 3.5" Casters. Truck Pack Exterior.

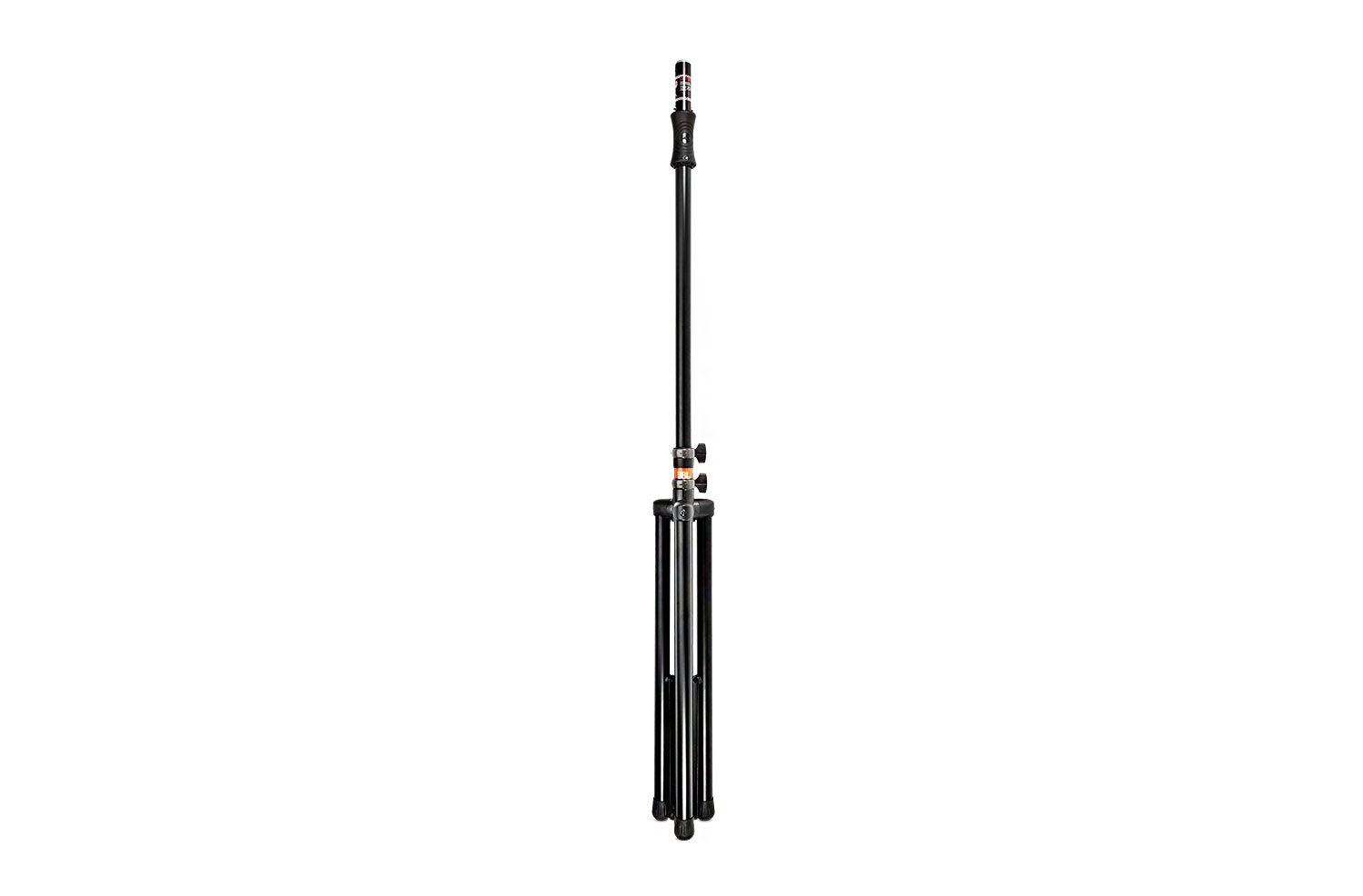

JBLTRIPOD-GA | ขาตั้งลำโพง JBL แบบช่วยด้วยแก๊ส
JBLTRIPOD-GA Main photo
รูปภาพขนาดใหญ่
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
ขาตั้งลำโพงแบบอลูมิเนียมแบบช่วยยกด้วยอุปกรณ์ปรับสายรวม JBLTRIPOD-GA เป็นขาตั้งลำโพงที่ใช้งานได้ง่ายมากเนื่องจากมีช็อคแบบนิউแมติกภายในที่ช่วยยกลำโพงให้คุณโดยอัตโนมัติ ช็อคภายในของขาตั้งนี้สามารถยกลำโพงที่มีน้ำหนักได้สูงสุด 35 ปอนด์ได้อย่างง่ายดายโดยไม่ต้องใช้แรงจากผู้ใช้
  • ปรับระบบแก๊สได้ตั้งแต่ 3'8" (1118MM) ถึง 6'7" (2007MM)
  • ขาตั้งแก๊สแอสซิสต์ที่ยกลำโพงให้คุณโดยใช้ช็อกเรือบอลแบบเรียบง่ายภายในที่ขับเคลื่อนด้วยอากาศ
  • ออกแบบมาสำหรับใช้งานกับรุ่น JBL ต่อไปนี้: JRX200, PRX400, STX800, EON, PRX700, VRX900

เอกสารประกอบ
JBLTRIPOD-MA | JBL ขาตั้งลำโพงปรับระดับด้วยตนเอง
JBLTRIPOD-MA Main photo
รูปภาพขนาดใหญ่
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

ขาตั้งลำโพงแบบขาตั้งอลูมิเนียมพร้อมหมุดล็อคแบบยึดมั่นและความสามารถในการรับน้ำหนัก 150 ปอนด์ เพื่อช่วยให้คุณยกลำโพง เราได้เพิ่มวงแหวนยกที่ทนทานบนท่อส่วนขยายเพื่อให้มือของคุณมีจุดผลักเมื่อยกลำโพงขึ้นไปยังความสูงที่ต้องการ

  • ปรับได้ตั้งแต่ 4'2" (1270MM) ถึง 6'5" (1956MM)
  • ขาตั้งลำโพงปรับด้วยมือ
  • ออกแบบสำหรับใช้งานกับรุ่น JBL ต่อไปนี้; JRX200, PRX400, STX800, EON, PRX700, VRX900

เอกสารประกอบ
JBLPOLE-GA | JBL เสาลำโพงแบบมีแก๊สช่วย
JBLPOLE-GA Main photo
รูปภาพขนาดใหญ่
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

เสาลำโพงแบบแอร์แอสซิสต์พร้อมปลายด้านล่างเกลียว M20 เสาขนาด 38 มม. และแอดแปเตอร์ 35 มม. JBLPOLE-GA เป็นขาตั้งลำโพงที่ใช้งานง่ายที่สุดต่างหากเพราะมีระบบชอคลมภายในที่ยกลำโพงให้คุณโดยอัตโนมัติ ระบบชอคลมภายในของขาตั้งนี้ยกลำโพงที่หนัก 35 ปอนด์ขึ้นไป ได้อย่างง่ายดายโดยไม่ต้องออกแรงใด ๆ จากผู้ใช้

  • ยกและลดลำโพงได้อย่างง่ายดาย!
  • ปุ่ม "Z" ที่แข็งแรงและใช้งานง่าย
  • เสาที่มีความแข็งแรงอย่างเหลือเชื่อ
  • ขั้วยึด M20 Threaded Pole
  • เข้ากันได้กับซับวูฟเฟอร์ส่วนใหญ่ที่มีการเกลียว M20 มาตรฐาน (JBL PRX, VRX, STX และ SRX818)- โปรดอ้างอิงผลิตภัณฑ์แต่ละรายการ

เอกสารประกอบ
JBLPOLE-MA | JBL ขั้วลำโพงปรับแต่งด้วยมือ
JBLPOLE-MA Main photo
รูปภาพขนาดใหญ่
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

เสาลำโพงปรับความสูงด้วยมือพร้อมปลายด้านล่างแบบเกลียว M20 เสา 38 มม. และ 35 มม. JBLPOLE-MA มีลวดลายปรับความสูงที่ยอดเยี่ยมพร้อมปุ่มแบบ "Z" ที่ออกแบบอย่างสะดวกสบายให้การปรับความสูงที่สบาย ขอบเขตที่แข็งแกร่งที่สุด ลวดลายปรับความสูงช่วยป้องกันปัญหาการรัดเกินและการแตกหักที่เกี่ยวข้องกับการออกแบบพลาสติกทั้งหมด

  • น้ำหนักเบา
  • ปลอกโลหะหล่อแบบแม่พิมพ์
  • ซ็อกเก็ตเกลียว M20
  • เข้ากันได้กับซับวูฟเฟอร์ทั้งหมดที่มีเกลียวโพลมาตรฐาน M20 (JBL PRX, VRX, STX และ SRX818) - โปรดตรวจสอบผลิตภัณฑ์แต่ละรายการเพื่อยืนยัน

เอกสารประกอบ
