ระบบเสริมเสียง Self-Powered แบบ 2 ทาง ขนาด 15 นิ้ว
ลำโพง PA พกพาแบบ 2 ทาง ขนาด 15" เป็นรูปแบบที่รู้จักมากที่สุดและมีความสมดุลที่สมบูรณ์แบบระหว่างขนาดและประสิทธิภาพ PRX615M นั้นมีความโดดเด่นอย่างแท้จริง มีขนาดเล็ก น้ำหนักเบา หลากหลายใช้งาน และทรงพลัง

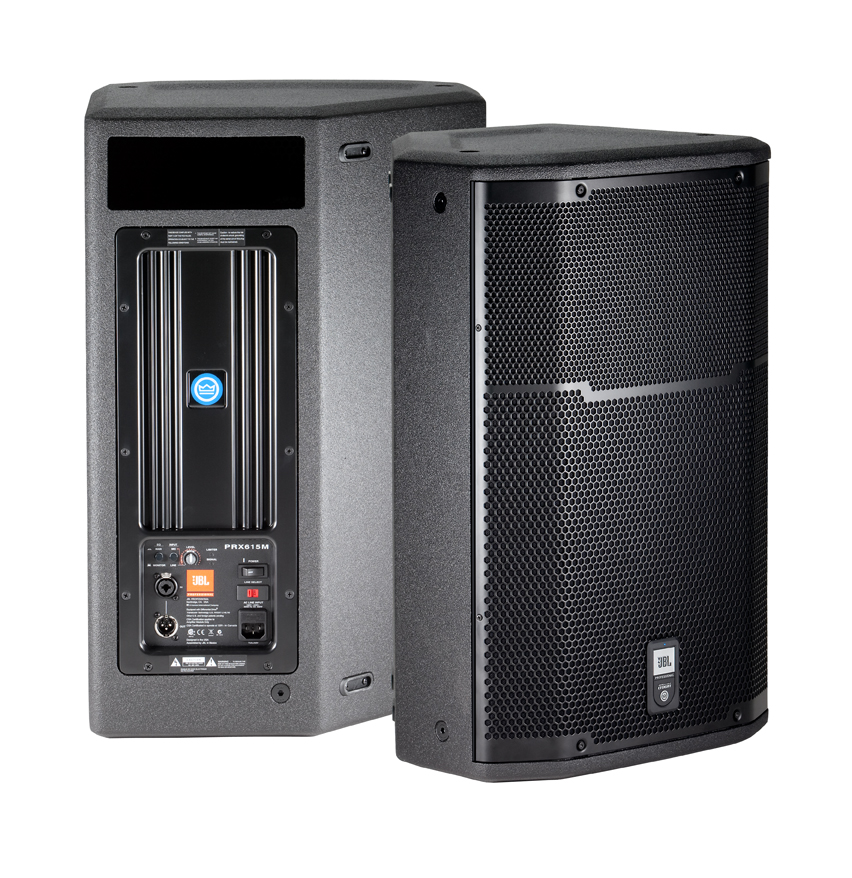

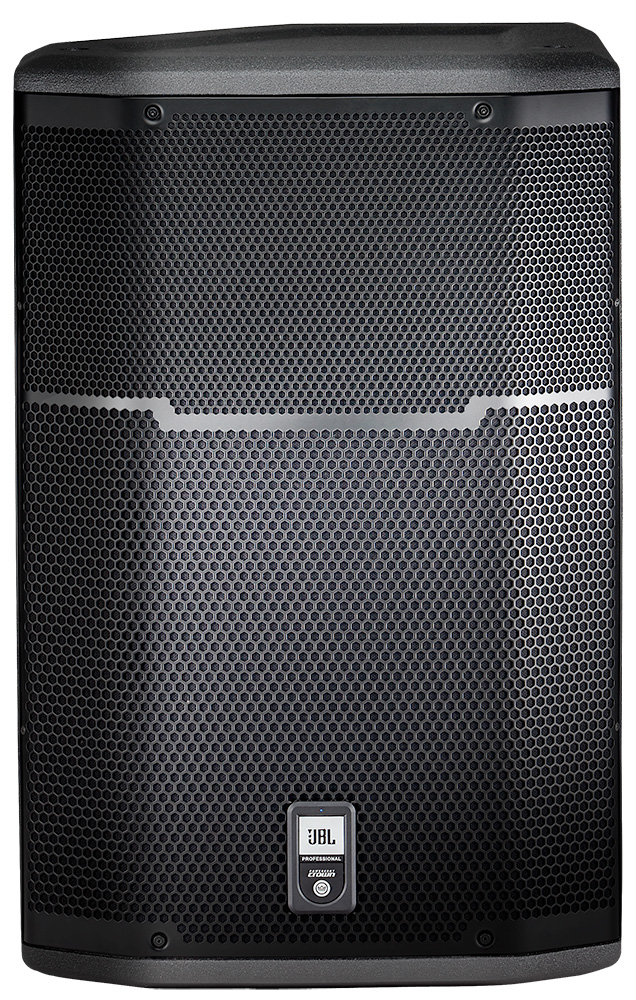

รูปภาพขนาดใหญ่
คุณสมบัติ
- Maximum SPL Output 135db peak
- 380 mm (15 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
- 37.5mm (1.5 in) annular polymer diaphragm, neodymium magnet compression driver
- 1000 Watt (dual 500 watt) Class-D, Crown® digital amplifier
- DSP input section with dbx® Type IV™ limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
- Professional XLR line and ¼" Mic/Instrument inputs, with loop through
- Integrated 36mm dual-angle pole mount socket
- Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
- 8 M10 Suspension points and 1 pullback point
Applications
- The 2-way 15" offers the perfect balance between size and performance. The PRX615M truly is an exception; it’s small, light weight, versatile and powerful. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJ’s when portability is key, or when hung by the suspension points, an exceptional light-duty installation speaker. All PRX600 Series speakers were designed to excel in sound reinforcement where challenging audio environments and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, the PRX615M delivers the optimum balance. For live music, recorded music playback and speech the user has the option of tailoring the EQ, ‘flat’ for speech intelligibility, and ‘boost’ for enhanced bass and crisp highs in recorded music playback. A microphone can be directly connected to the speaker input for quick PA applications. Coupled with a PRX600 sub-woofer the system becomes an efficient, full-range sound system.
- The PRX615M is comprised of a 380 mm (15 in) 265F Differential Drive® dual voice-coil and magnetic gap, neodymium woofer, a 2408H-1 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1000 watt (dual 500 watt) Crown® Class-D power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete
component optimization. - All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
1000 lbs. each. - The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.
การดาวน์โหลด
Specifications
| ขนาด | |
|
|
582 กิโลไบต์ |
Manuals
| ขนาด | |
|
|
3.68 เมกะไบต์ |
อัปเดต: ต.ค. 2020
Brochures
| ขนาด | |
|
|
1.49 เมกะไบต์ |
CAD Drawings
| ขนาด | |
|
|
4.8 เมกะไบต์ |
User Guides
| ขนาด | |
|
|
4.65 เมกะไบต์ |
Images
| ขนาด | |
|
|
440 กิโลไบต์ |
|
|
389 กิโลไบต์ |
Ease Data
| ขนาด | |
|
|
203 กิโลไบต์ |
หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ
อะไหล่และบริการ
ข้อมูลจำเพาะ
| System Type | Self-powered 15", two-way, bass-reflex |
| Maximum SPL Output | Full Range: 135 dB peakMonitor: 134 dB peak |
| Frequency Range (-10dB) | Full Range: 45 Hz – 19 kHzMonitor: 48 Hz – 20 kHz |
| Frequency Response (±3 dB) | Full Range: 54 Hz – 18 kHzMonitor: 60 Hz – 18 kHz |
| Coverage Pattern | 90º x 50º nominal |
| Amp Design | Crown® Class D |
| Power Rating | 1000 W ( 2 x 500 ) |
| Dimensions (H x W x D) | 660 mm x 429 mm x 414 mm ( 26.0 in x 16.9 in x 16.3 in ) |
| Net Weight | 19.7 kg ( 43.5 lb ) |
