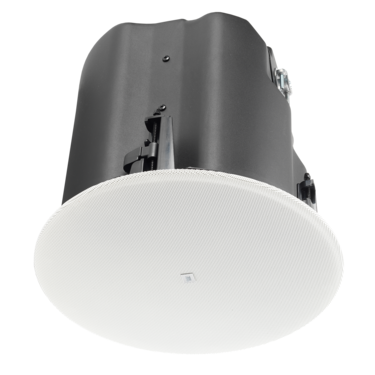

Control 418C/T

8" Two-Way Coaxial Ceiling Loudspeaker

Control 418C/T
รูปภาพขนาดใหญ่

The JBL Control 418C/T, part of the Control 400 Standard Coverage Series, is a two-way coaxial ceiling loudspeaker, featuring an 8” woofer and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

The Control 418C/T includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 418C/T supports both 70V/100V and low impedance applications.

  • EFFICIENT, FLEXIBLE INSTALLATION

    Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

  • REFINED, MODERN AESTHETICS

    Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

featured content

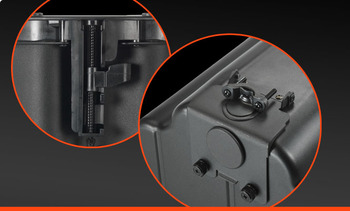

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

featured content

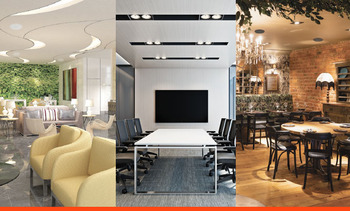

REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

คุณสมบัติ

  • 200 mm (8 in) woofer and 25mm (1 in) soft-dome tweeter
  • Integrated enclosure that is ideal for installation in most ceiling plenum spaces
  • Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
  • Full-face, easily paintable magnetic grilles
  • Top and side cable entry options
  • Robust and adaptable dogears for wide range of ceiling thicknesses
  • IP33 rated

การดาวน์โหลด

Specifications
  ภาษา ขนาด อัปโหลดแล้ว
file type icon Control 418C/T Spec Sheet
en อัปเดต: ส.ค. 2025
en  762 กิโลไบต์ ส.ค. 2025
Manuals
  เวอร์ชัน ขนาด อัปโหลดแล้ว
file type icon Control 400 Standard Coverage Series - Owner's Manual
เวอร์ชัน A, อัปเดต: ส.ค. 2025
6.81 เมกะไบต์ ส.ค. 2025
Brochures
  ขนาด อัปโหลดแล้ว
file type icon 2025 Control 400 Family Brochure
อัปเดต: ส.ค. 2025
3.9 เมกะไบต์ ส.ค. 2025
CAD Drawings
  ขนาด อัปโหลดแล้ว
file type icon Control 418C/T - Customer Drawings
อัปเดต: ส.ค. 2025
10.4 เมกะไบต์ ส.ค. 2025
Compliances
  ขนาด อัปโหลดแล้ว
537 กิโลไบต์ ม.ค. 2026
466 กิโลไบต์ ม.ค. 2026
Software
  เวอร์ชัน ขนาด อัปโหลดแล้ว
Windows download icon Distributed System Design (DSD)
เวอร์ชัน 3.9, อัปเดต: พ.ย. 2025
3.9   612 กิโลไบต์ พ.ย. 2025
Technical Papers
  ขนาด อัปโหลดแล้ว
768 กิโลไบต์ พ.ย. 2025
Ease Data
  ขนาด อัปโหลดแล้ว
file type icon Control 418C/T – CLF File
อัปเดต: ต.ค. 2025
326 กิโลไบต์ ต.ค. 2025
file type icon Control 418C/T - EASE GLL
อัปเดต: ส.ค. 2025
709 กิโลไบต์ ส.ค. 2025
Speaker Tunings
  ขนาด อัปโหลดแล้ว
441 กิโลไบต์ ส.ค. 2025

หากลิงก์ใดด้านบนแสดงตัวอักษรแปลกๆ ในเบราว์เซอร์ของคุณ โปรดคลิกขวาที่ไฟล์เพื่อบันทึกไว้ในคอมพิวเตอร์ของคุณ

อะไหล่และบริการ

ข้อมูลจำเพาะ

Frequency Range (-10 dB) 57Hz - 20kHz
Power Capacity 135W (540W Peak) Cont. Pink Noise (2 hrs)
90W (360W Peak) Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W) 92dB
Coverage Angle 100° conical
Maximum SPL (1m) 113 dB continuous pink noise (119 dB peak)
Nominal Impedance
Transformer Taps 70 V: 60 W, 30 W, 15 W & 7.5 W
100 V: 60 W, 30 W, 15 W
Drivers LF: 200 mm (8 in) with paper cone, SBR surround
HF: 25 mm (1 in) soft dome
Ceiling Cutout Size 282 mm (11.1 in)
Dimensions 283 mm (11.3 in) H x 315 mm (12.6 in) dia.
271 mm (10.8 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental IP rating: IP33 per EN/IEC 60529.
Operating temperature: 0° C to 45 °C.
Optional Accessories JBL-MTC-418BG black (RAL9004) round grille
JBL-MTC-418SG white (RAL9003) square grille
JBL-MTC-447NC new construction bracket
JBL-MTC-447MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color Stock grille is White (RAL9003), paintable
Net Weight (ea) 5.8 kg (12.79 lbs)
Shipping Weight (pair) 17.72 kg (39.07 lbs)
SKU Numbers JBL-C418C/T

อุปกรณ์เสริม

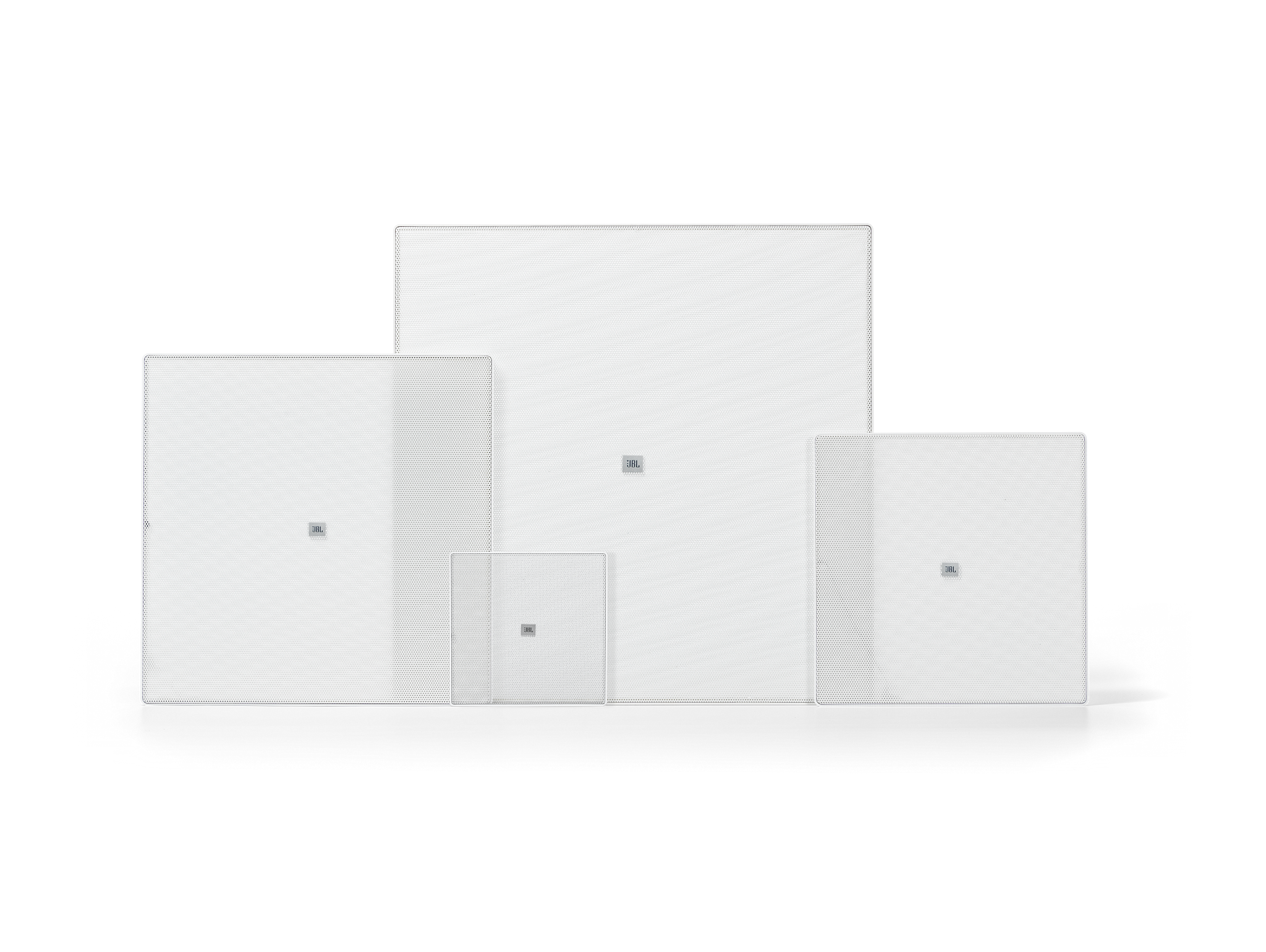

MTC-418SG | Square Grille for Control 418
MTC-418SG  Main photo
รูปภาพขนาดใหญ่
MTC-418SG  detail thumbnail #1
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require

MTC-418BG | Round Black Grille for Control 418
MTC-418BG  Main photo
รูปภาพขนาดใหญ่
MTC-418BG  detail thumbnail #1
  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require
