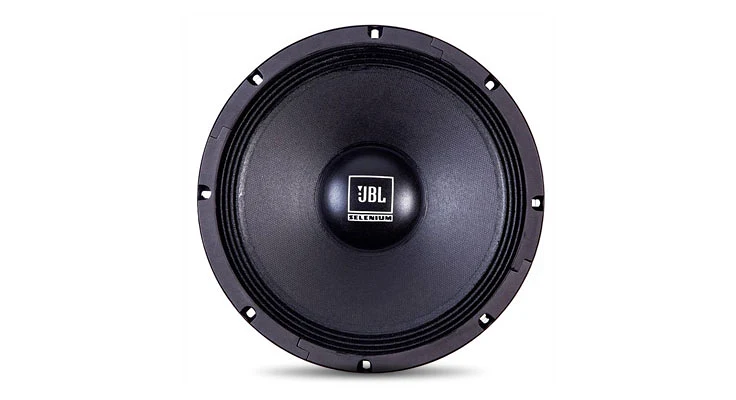

12PW7 (discontinued)

Larger Images

Recommended for use in small and medium-size venues where high performance reproduction of the critical midrange frequencies are desired.

	Version	Language	Size	Uploaded
Data Sheets
12PW7 Spec Sheet updated: ต.ค. 2019			684 กิโลไบต์	ต.ค. 2019
Brochures
Components Full Line 2015 Catalog updated: ส.ค. 2020			1.32 เมกะไบต์	ส.ค. 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Diameter	12”
Impedance (ohms)	8
RMS (W)	250
Musical Program (W)	500
SPL 1W @ 1m (dB)	95
Frequency Range (-10dB)	40 to 4,500
Resonance (Hz)	42
Voice Coil Diameter in.(mm)	2.4 (60)
Magnet weight oz. (g)	46 (1300)
Frame Material	Stamped steel with epoxy finish
