JBL Professional VTX V25-II-CS

Större bilder

Full Size 3-Way High-Directivity Line Array With Compression ASM Suspension System

Funktioner

New 4th Generation HF Waveguide technology
Revolutionary D2 Dual Diaphragm, Dual Voice Coil Compression Driver
JBL’s patented RBI (Radiation Boundary Integrator®)
Cardioid-Arrayable Subwoofer Enclosure Models
Aluminum front baffles for reduced cabinet height, weight and improved heat transfer
Brand new V25 compression suspension system
Accessories optimized for vertical transportation and deployment
V5 Processing with Crown I-Tech HD or VRACK
JBL HiQnet Performance Manager™ System Configuration and Control
Available with either fixed angle tension suspension (V25-II) or compression suspension (V25-II-CS) hardware

Fler detaljer

D2 DUAL DIAPHRAGM DUAL VOICE COIL COMPRESSION DRIVER

The revolutionary D2 Dual Driver dramatically improves the sound and performance of high frequencies, providing an extreme output advantage over conventional systems with significantly higher array power, reduced distortion, double the number of voice coils and more than double the power handling. This results in a dramatic increase in pure high frequency sound pressure levels in the same physical footprint with a 30% reduction in weight.

LEARN MORE

VTX V25-II WAVEGUIDE

Improved Wavefront Control

The V25‐II waveguide provides better acoustic loading conditions for the D2 driver, resulting in 10 dB higher sensitivity above 10 kHz.

LEARN MORE

DIFFERENTIAL DRIVE® TECHNOLOGY

Enhanced Performance and Dramatically Reduced Driver Weight

JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.

LEARN MORE

System Integration

System Integration and Management

With the VTX Series you are not just using a product, you are gaining access to an expert system. Tools for system design and all the components to analyze, configure, set up and control a VTX system are all part of the JBL commitment to total system integration and support. The goal is maximum efficiency and the highest possible level of performance in any venue, anywhere in the world.

LEARN MORE

Nedladdningar

Specifications

	Storlek	Uppladdat
VTX V25-II-CS Spec Sheet uppdaterad: okt 2020	837 KB	okt 2020

Brochures

	Storlek	Uppladdat
VTX V25 System Brochure uppdaterad: dec 2020	6,48 MB	dec 2020

CAD Drawings

	Storlek	Uppladdat
V25-II-CS 2D Drawings PDF uppdaterad: jul 2019	122 KB	jul 2019
V25 3D Drawings DXF uppdaterad: jul 2019	208 KB	jul 2019

Compliances

	Storlek	Uppladdat
VTX V-Series Declaration of Conformity uppdaterad: dec 2020	158 KB	dec 2020

Software

	Storlek	Uppladdat
Venue Synthesis släppt: jan 2025		jan 2025
Performance Manager 3 släppt: jul 2024		jul 2024

Ease Data

	Version	Storlek	Uppladdat
VTX V25-II/S28 EASE GLL version 1.2, uppdaterad: dec 2020	1.2	29,8 MB	dec 2020

Preset Libraries

	Version	Storlek	Uppladdat
V25-II Preset Library version 2.1, uppdaterad: dec 2020	2.1	595 KB	dec 2020

Service Notes

	Version	Språk	Storlek	Uppladdat
VTX V25-II-CS Spare Parts version A, uppdaterad: apr 2026	A		73,4 KB	apr 2026

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

System Type	Full Size 3-Way High Directivity Line Array Element with D2 Dual Drivers
Frequency Range (-10dB)	35 Hz - 18 kHz (Preset: VTX V25-II)
Horizontal Coverage (-6 dB)	90 degrees nominal (200 Hz - 16 kHz)
Maximum Peak Output	LF: 141 dB MF: 140.5 dB HF: 149.5 dB
System Amplification	Crown Audio I-Tech HD
Nominal Impedance	LF: 2x 8 ohms MF: 8 ohms HF: 8 ohms
LF Driver	(2) JBL 2267H 15-inch woofer
MF Driver	(4) JBL 2168H 8-inch mid-frequency driver
HF Driver	(3) JBL 2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
Enclosure	Cast aluminum front baffle, Finnish birch plywood, black DuraFlex™ finish; four integral recessed handles
Inter-enclosure Angle	0, 0.5, 0.75, 1, 2, 3, 4, 5, 6, 9
Dimensions (H x W x D)	414 mm x 1223 mm x 61 4mm 16.3 in x 48.2 in x 24.2 in
Net Weight (each)	82.6 kg (182 lb)

Tillbehör

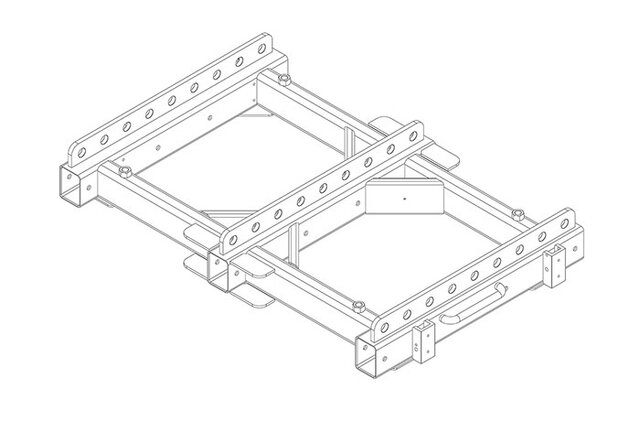

VTX V25 AF | Array Frame

Större bilder

Array Frame för upphängning eller markstappling av VTX V25-seriens högtalarenheter. VTX-V25-AF är också kompatibel med VTX S28 dual 18" subwoofer-enheter. Innehåller höjdjusterbara nivåerande fötter för markstapplingsapplikationer. Valfri VTX-V25-AF-EB förlängningsstång tillgänglig.

Funktioner:

Kompatibel med VTX V25, VTX V25-CS, VTX V25-II, VTX V25-II-CS och VTX S28
9 upphängningspunkter tillgängliga för engångspension
Valfri förlängningsstång tillgänglig
Flexibla alternativ för upphängningspunkter från fram till bak eller sida vid sida
Stöder upp till 24 högtalarenheter (beroende på arraykonfiguration)
Kan användas för markstapplingsapplikationer
Upphängningspunktens skakkelstorlek: 5/8" eller 3/4"

Ingår:

1 x VTX-V25-AF
4 x höjdjusterbara nivåerande fötter för markstapplingsapplikationer
4 x Quick Release Pins (QRP) för fastspänning av toppenhet till ramen

Dokumentation

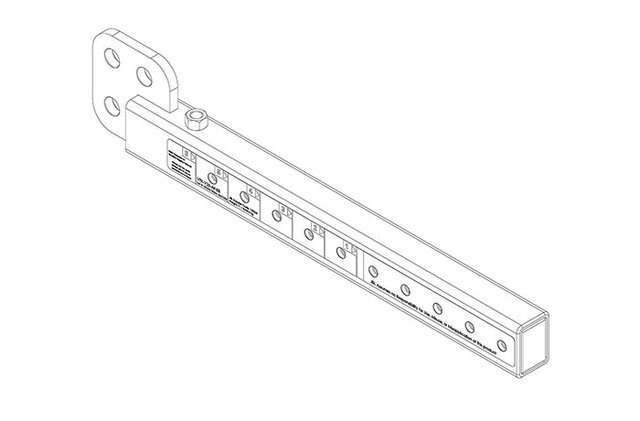

VTX V25 AF EB | Rammatris

Större bilder

Extension Bar accessory used in conjunction with the VTX-V25-AF array frame for deploying VTX V25 series systems in either compression or tension mode. Five extension bar attachment options provide variable pick point separation (2-point suspension) and added flexibility for single point suspension. The extension bar can be front- or rear-mounted for increased array up-tilt or down-tilt, respectively. When rear-mounted, provides an attachment point for compression suspension. A single extension bar can be installed in the array frame central tube, or alternatively, a pair of extension bars can be front or rear-mounted in left/right array frame tubes. Single or dual extension bars can also be front- or rear-mounted in ground stack applications for extra stability and a wider range of array tilt angle options. Dual extension bars can also be front-and rear-mounted for compression suspension when increased array up-tilt is required.

Features:

Compatible with VTX-V25-AF
2 x pick points available for single point suspension
1 x pick point available for VTX-V25-LH level hoist attachment
Supports up to 24 cabinets (array geometry dependent)
Pick point shackle size: 5/8” or 3/4”

Included:

1 x VTX-V25-AF-EB extension bar
1 x height-adjustable leveling foot for ground stack applications
2 x Quick Release Pins (QRP) for securing the extension bar to the array frame

Dokumentation

VTX V25 PB | Pull Back Accessory

Större bilder

Pull Back accessory for attachment to the bottom V25 enclosure to facilitate compression suspension of VTX V25-II-CS or VTX V25-CS arrays. Compression can be implemented using a separate chain motor and suspension point (Rear Motor Pullback) or by using an optional VTX-V25-LH lever hoist or chain motor attached to the VTX-V25-AF-EB extension bar (Extension Bar Pullback). The VTX-V25-PB is also compatible with non Compression Suspension V25 enclosures and can be used for rear motor pullback configurations.

Features:

Compatible with VTX V25-II, VTX V25-II-CS, VTX V25, VTX V25-CS
Can be used with VTX-V25-LH lever hoist or separate pull back suspension point
Supports up to 2000 lbs of pull back force
Shackle size: 5/8” (included)

Included:

1 x central pullback bar with 2x left/right adapter brackets for connection to bottom V25 cabinet
2 x 5/8” shackles for attaching spreader bar to chain bridle
1 x 24” dual leg chain bridle with locking safety hooks and upper master link for attachment to compression or pullback device

Dokumentation

VTX V25 PB Specsheet [539 KB]

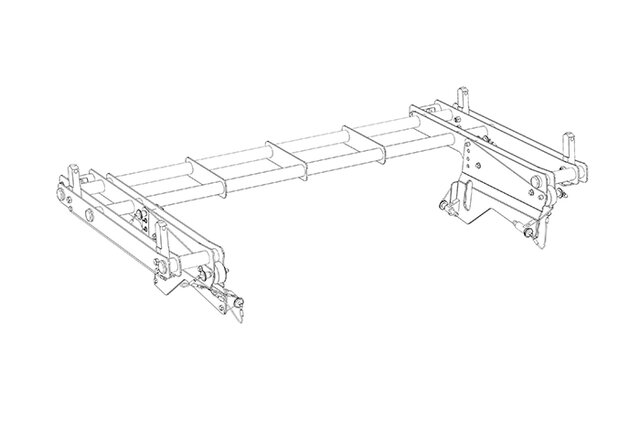

VTX V20 DF | DOWN FILL ADAPTER

Större bilder

Designed to facilitate fast attachment and precise alignment of VTX V20 and V25-II / V25-II-CS systems, the VTX V20-DF is a lightweight solution for providing wider coverage at the bottom of VTX V25-II / V25-II-CS arrays. Lightweight design with multiple options for angle between V25-II / V25-II-CS and V20 (3.5deg, 7.5deg, 11deg). Able to be used as a down-fill adapter frame for V25-II arrays, or as a downfill adapter frame + pullback frame for compression of VTX V25-II-CS arrays with V20 downfill. Supports up to 6x VTX V20 cabinets suspended underneath VTX V25-II / V25-II-CS.

Features:

Angle options: 3.5deg, 7.5deg, 11deg
Lightweight design
Precise HF exit alignment between V25-II and V20
Support for up to 6x VTX V20 cabinets

Dokumentation

VTX V20 DF Spec Sheet [568 KB]
VTX V20 DF Suspension Manual (rev2) [852 KB]
VTX V20 DF Customer Drawings [1,42 MB]

VTX V25 LH | Lever Hoist

Större bilder

Factory-approved manual lever hoist for compression of VTX V25-II-CS systems. The CM Series 653 for use with VTX V25- II-CS is a 1.5 ton model with 6 meters (20’) of chain length for compressing arrays of up to 24x VTX V25-II-CS or V25-CS cabinets (array geometry dependent) with no additional extension hardware needed.

Features:

CM Series 653
1.5 ton model
6 meters (20’) of chain length
Support for up to 24 x VTX-V25-II-CS Cabinets (array geometry dependent)

Included:

1 x Columbus McKinnon (CM) Lever Hoist (1.5 ton rating) with 6 meters (20’) of chain

Dokumentation

VTX V25 LH Specsheet [432 KB]
VTX V25 LH User Manual [858 KB]

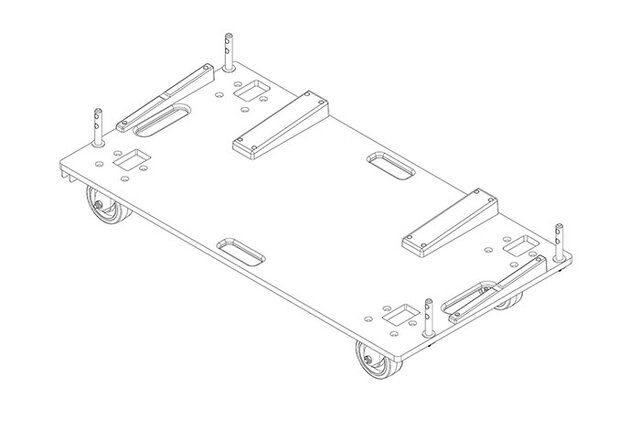

VTX V25 VTC | VERTICAL TRANSPORTER

Större bilder

The VTX-V25-VTC vertical transporter is a simple and cost-effective solution for vertically transporting VTX V25-II-CS and VTX-V25-CS enclosures in blocks of 3 or 4 cabinets high. Measuring 48.1” wide by 25” deep, the VTX-V25-VTC will travel 4 across (length-wise) in standard 100” trucks. Reinforced protective covers (VTX-V25-VT-CVR) supplied separately.

Features:
