PRX415M-WH

15" Two-Way White Utility/Stage Monitor Loudspeaker System

Köp nu
PRX415M-WH
Större bilder

15" Two-Way White Utility/Stage Monitor Loudspeaker System

PRX415M-WH is a portable, fifteen-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.



Funktioner

  • 15" high-power woofer
  • 1" polymer diaphragm compression driver
  • 90° x 50° coverage
  • Heavy Duty 16-gauge protective cloth-backed steel grille
  • Tough DuraFlex™ enclosure finish

Applications

  • Speech reinforcement
  • Live performance stage monitoring
  • Reinforcement of vocal and acoustic music


Nedladdningar

Specifications
  Storlek Uppladdat
file type icon PRX415M-WH Spec Sheet
uppdaterad: apr 2019
1,02 MB apr 2019
Brochures
  Version Språk Storlek Uppladdat
file type icon PRX400 Brochure
uppdaterad: jan 2021
    991 KB jan 2021
file type icon JBL 2025 PPA Brochure
en version B, uppdaterad: aug 2025
B  en  8,45 MB aug 2025
Compliances
  Storlek Uppladdat
file type icon PRX400 Series Declaration of Conformity
uppdaterad: okt 2020
144 KB okt 2020
Images
  Storlek Uppladdat

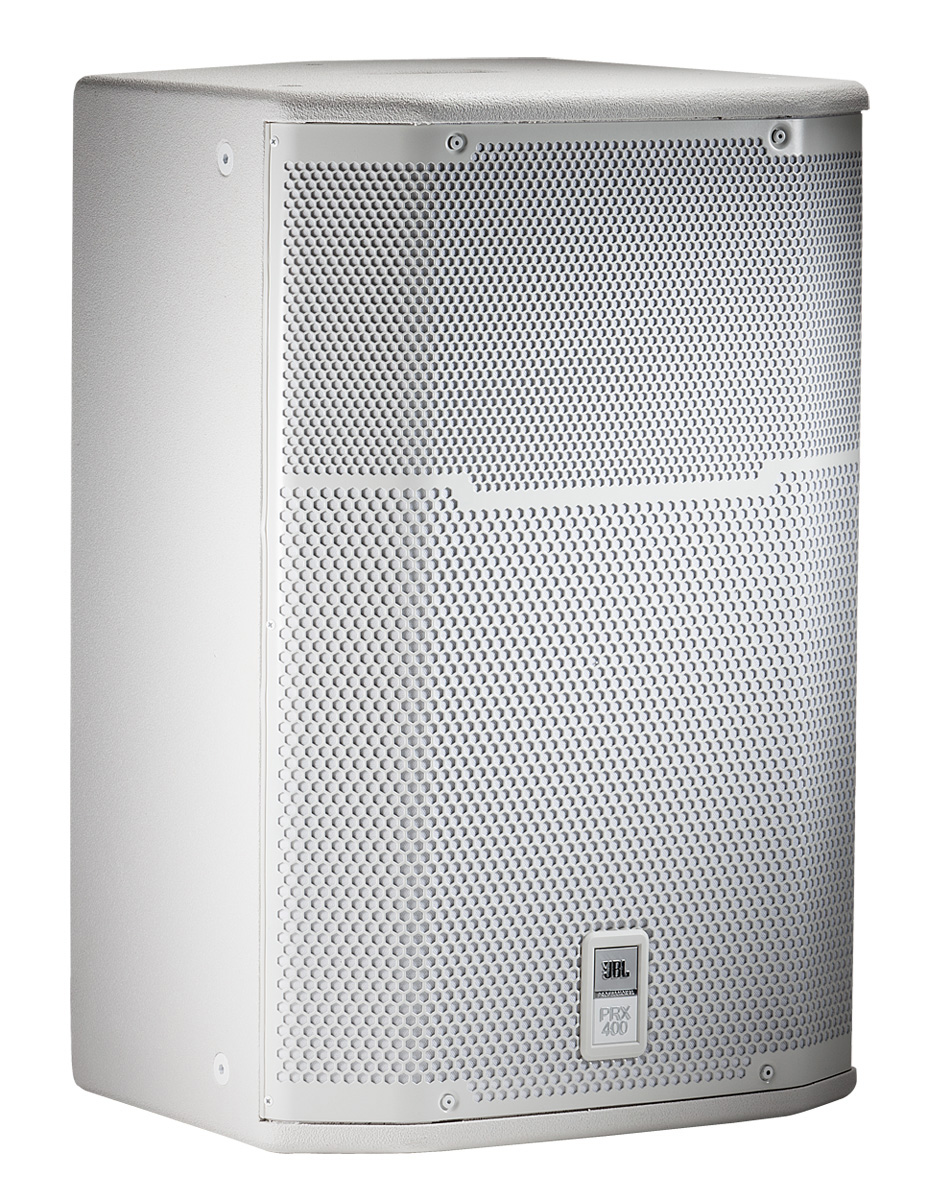

file type icon PRX415M Front Angle
uppdaterad: apr 2019
522 KB apr 2019
Speaker Tunings
  Storlek Uppladdat
file type icon PRX400 Series Tunings
uppdaterad: okt 2020
41,2 KB okt 2020

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

Frequency Range (-10dB) 55 Hz – 19 kHz
Frequency Response (±3 dB) 66 Hz – 16 kHz
Coverage Pattern 90° x 50° nominal
System Sensitivity 98 dB SPL (1w@1m)
Power Rating, Pink Noise 300 W / 600 W / 1200 W(Continuous/Program/Peak)
Maximum SPL (1m) 122 dB SPL cont. (129 dB SPL peak)
Nominal Impedance 8 ohms
Dimensions (H x W x D) 650 mm x 429 mm x 457 mm(25.6" x 16.9" x 18")
Net Weight 21 kg (46 lbs.)

Tillbehör

PRX415M-CVR | Padded Cover for PRX415M
PRX415M-CVR Main photo
Större bilder
PRX415M-CVR detail thumbnail #1 PRX415M-CVR detail thumbnail #2 PRX415M-CVR detail thumbnail #3 PRX415M-CVR detail thumbnail #4

Padded Cover for PRX415M. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.

JBLPOLE-GA | JBL Gas Assist Speaker Pole
JBLPOLE-GA Main photo
Större bilder
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.

  • Raise and Lower the Speaker with Ease!
  • Strong and Easy-to-Use “Z” knob
  • Incredibly Sturdy Pole
  • M20 Threaded Pole Mount
  • Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
Dokumentation
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
JBLTRIPOD-GA Main photo
Större bilder
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
  • Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
  • Gas assist tripod that lifts the speaker for you using an internal air-powered shock
  • Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
Dokumentation
JBLTRIPOD-MA | JBL manuellt justerbar högtalartripod
JBLTRIPOD-MA Main photo
Större bilder
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.

  • Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
  • Manual adjust speaker tripod
  • Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
Dokumentation
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
JBLPOLE-MA Main photo
Större bilder
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manuellt justerbart högtalarstativ med M20-gängad nedre ände, 38 mm stativ och 35 mm. JBLPOLE-MA har en imponerande höjdjusteringskrage med ett ergonomiskt "Z"-vred som ger bekväm justering. Det starkaste fäste som tillverkats – höjdjusteringskragen förhindrar för hård åtdragning och de brottsproblem som är förknippade med konstruktioner helt i plast.

  • Lightweight
  • Metal die-cast collars
  • M20 Threaded socket
  • Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
Dokumentation
