JBL Professional CSS-H30

Större bilder

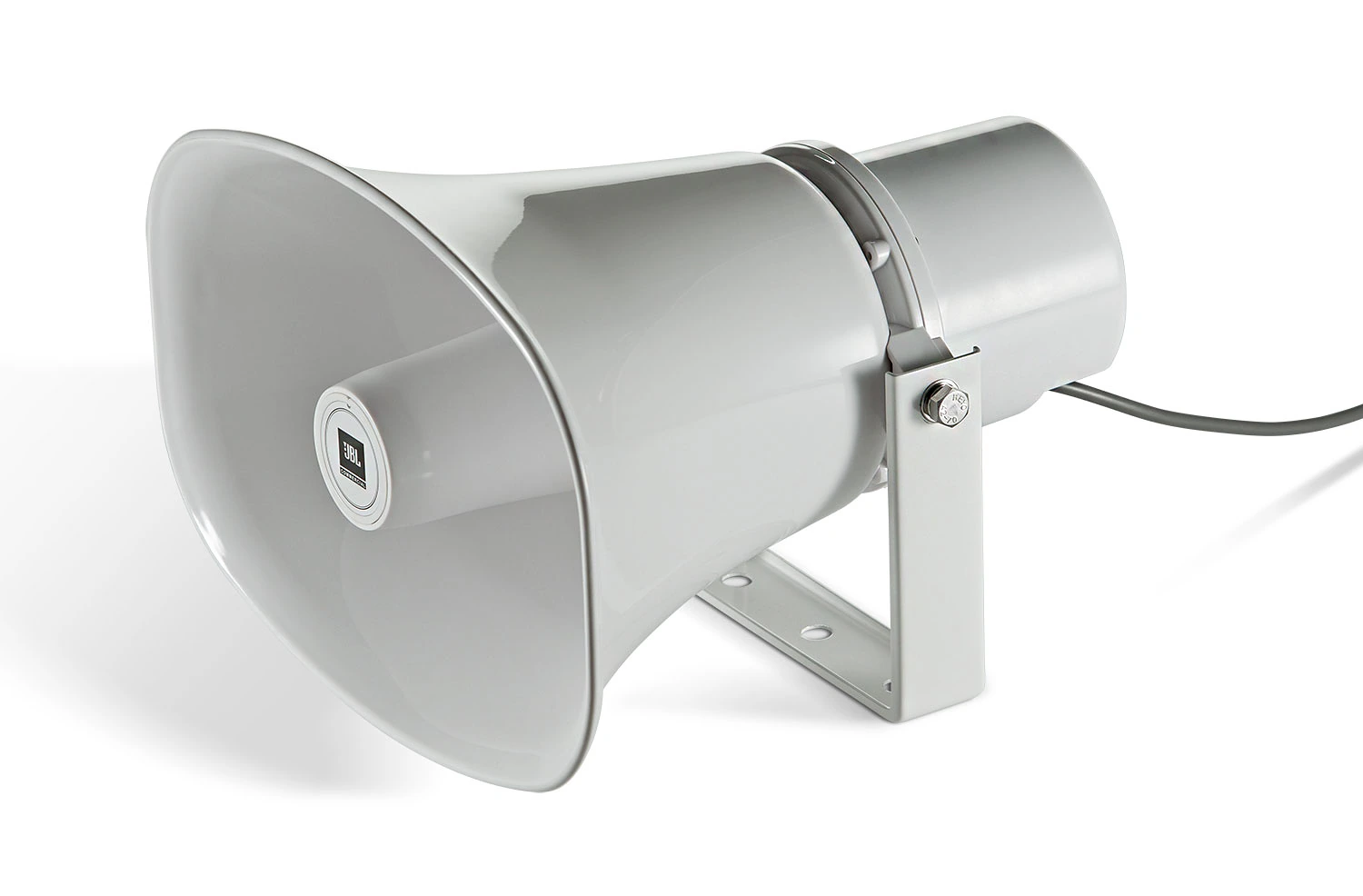

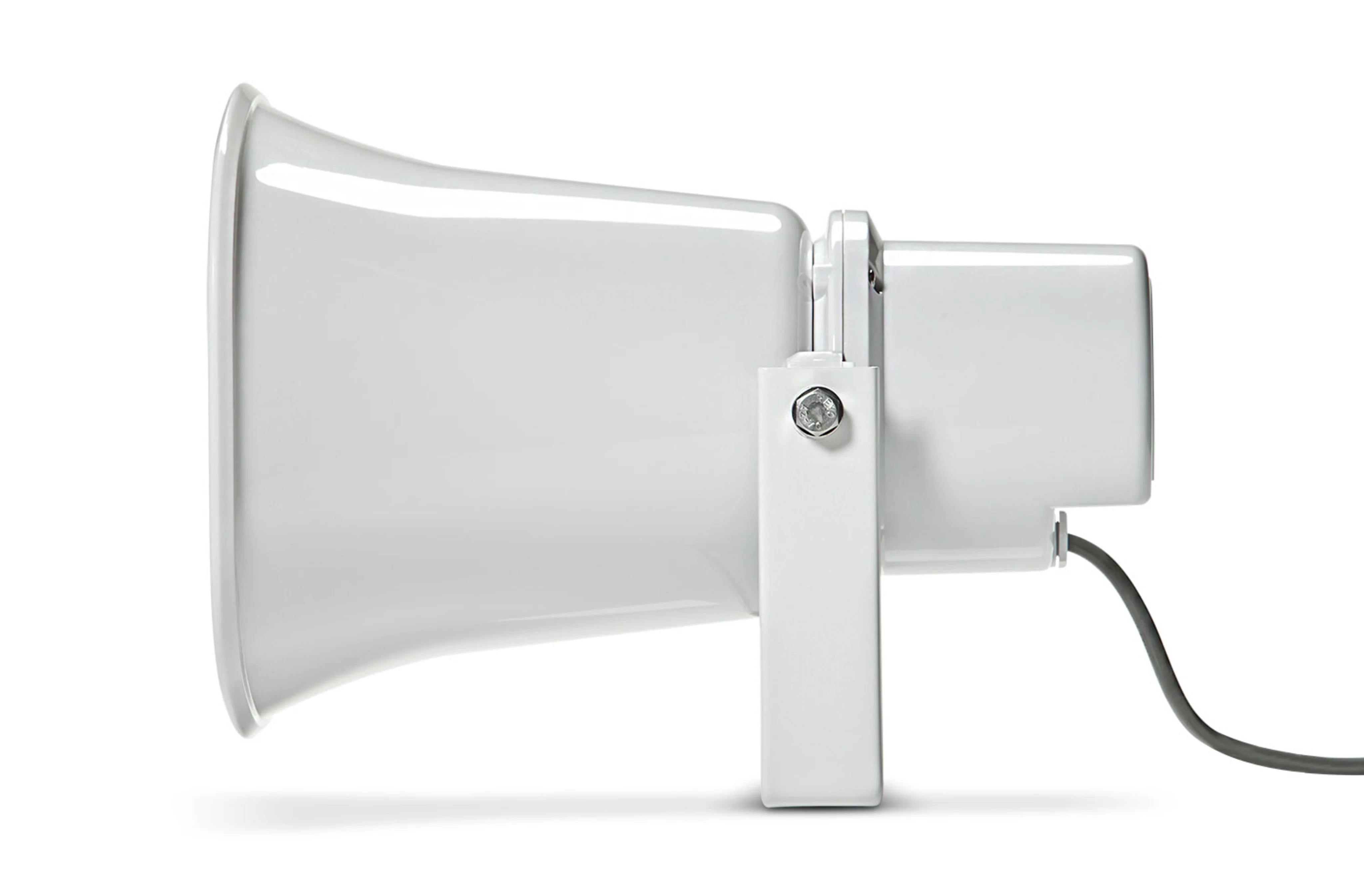

30 Watt Paging Horn

The Commercial Solutions Series CSS-H30 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H30 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The focused coverage pattern allows the horn to project the sound a farther distance than is the case with wider-coverage paging horns. Typical applications for this product are public access areas, warehouses, factories, schools, recreational facilities, commercial buildings, distribution centers, civic centers, and other commercial sound and protectivesignaling systems.

Funktioner

Excellent voice range clarity for announcement and paging.
High sensitivity delivers high sound levels with minimal power amplification.
Focused 50° horizontal by 70° vertical coverage for long throw capability.
Phenolic diaphragm driver for outdoor durability and high reliability.
UL-registered 30-watt multi-tap transformer, with 8 ohm direct bypass.
Built-in high-pass filter enhances reliability by protecting against low frequency damage.
Highly weather-resistant, with stainless steel bracket and hardware.

Applications

Public Access Areas
Warehouses
Factories
Schools
Recreational Facilities
Commercial Buildings
Distribution Centers
Civic Centers
Other Commercial Sound and Protective Signaling Systems

Nedladdningar

Specifications

	Version	Storlek	Uppladdat
CSS-H30 Spec Sheet version 6, uppdaterad: okt 2022	6	464 KB	okt 2022

Compliances

	Storlek	Uppladdat
CSS Series uppdaterad: okt 2019	141 KB	okt 2019

Simulation Data

	Version	Storlek	Uppladdat
Ease SPK/DLL Files - Full JBL Pro Line uppdaterad: maj 2024		21 MB	maj 2024
JBL Pro ALL CLF Files version 12-10-21, uppdaterad: maj 2023	12-10-21	24 MB	maj 2023

Ease Data

	Storlek	Uppladdat
CSS-H30 EASE Data uppdaterad: okt 2020	361 KB	okt 2020

CLF Files

	Storlek	Uppladdat
CSS-H CLF Files uppdaterad: okt 2020	61,5 KB	okt 2020

Speaker Tunings

	Version	Storlek	Uppladdat
Commercial, CBT, and AWC Tunings 220616 version A, uppdaterad: maj 2023	A	557 KB	maj 2023

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

Frequency Range (-10dB)	380 Hz – 6 kHz
Coverage Angle	50°H x 70°V
Included High-Pass Filter	Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range.
Directivity Factor (Q)	15.8 (2 kHz)
Directivity Index (DI)	12 (2 kHz)
Power Rating	30 W (120 W peak), 100 hrs.
Sensitivity (1W, 2.83V@ 1m)	108 dB, ave. 1 kHz – 6 kHz112 dB at 1.4 kHz
Maximum SPL (1m)	123 dB cont ave. (129 dB peak), 1 kHz – 6 kHz; 127 dB cont ave. (133 dB peak), 1.4 kHz, 30W input, 8 ohm Setting
Impedance	30W/70V, NC/100V tap: 167 ohms 15W/70V, 30W/100V tap: 333 ohms 7.5W/70V, 15W/100V tap: 667 ohms 3.8W/70V, 7.5W/100V tap: 1333 ohms 1.9W/70V, 3.8W/100V tap: 2666 ohms 8 ohms at 8 ohm direct setting
Transformer Taps	70V: 30W, 15W, 7.5W, 3.8W, 1.9W100V: 30 W, 15W, 7.5W, 3.8W
Drivers	38 mm (1.5 in) diameter with phenolic diaphragm
Horn Material	ABS
Mounting Hardware	Stainless steel powder-coated U-bracket (yolk) with 3 x 10.4 mm (0.41 in) dia mounting holes, stainless steel exterior hardware.
Color	RAL9016 (horn and bracket)
Input Connectors	300 mm (12 in) pigtail to bare wire; entrance via watertight fitting. Wire colors: red = positive (+); black = negative (-).
Outdoor Capability	IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware.
Safety Agency	Transformer UL Registered per UL1876 “Isolating Signal and Feedback Transformers for Use in Electronic Equipment”
Dimensions (H x W x D)	206 x 285 x 287 mm (8.2 x 11.2 x 11.3 in) horn 224 x 285 x 287 mm (8.9 x 11.2 x 11.3 in) including mounting bracket. Depth excludes cable exit.
Net Weight (each)	4.5 lb/2.0 kg
Shipping Weight (ea)	6.0 lb/2.7 kg
Included Accessories	Stainless steel mounting bracket
