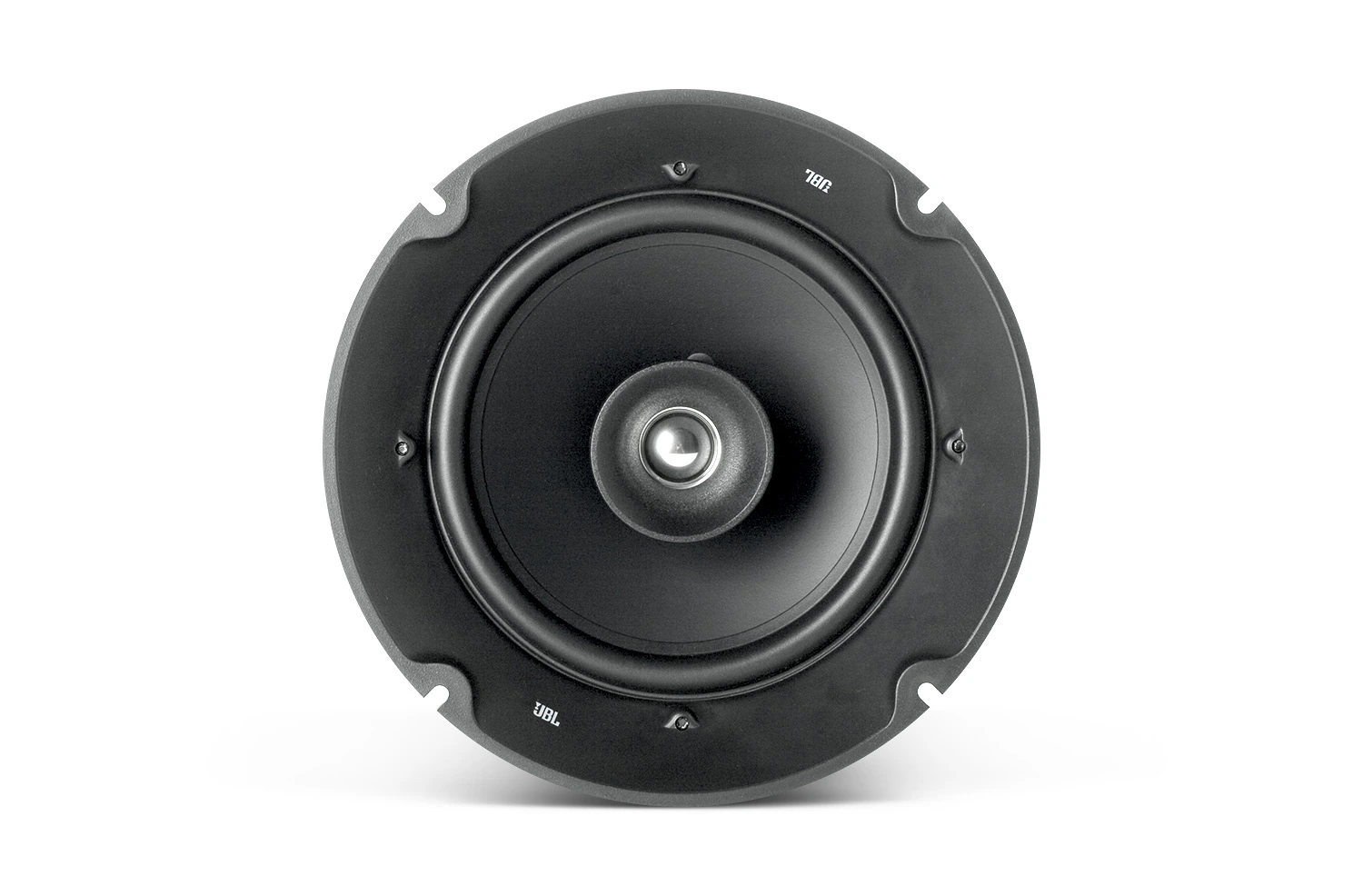

JBL Professional Control 26-DT

Större bilder

The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8") drivers.

Use instead of standard 8" driver. Fits standard backcans for 8" speakers.
Comes complete with transducer, network and transformer.
Advanced crossover network provides natural sound and even coverage throughout listening area.
60 W transformer for 70 V or 100 V distributed speaker lines.
Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter.

Data Sheets

	Version	Storlek	Uppladdat
Control 26-DT Spec Sheet version B, uppdaterad: mar 2020	B	450 KB	mar 2020

Manuals

	Version	Storlek	Uppladdat
MTC-TCD Thick-Ceiling Dogear uppdaterad: okt 2019		41,7 KB	okt 2019
Ceiling Speaker Accessory Guide version A, uppdaterad: maj 2026	A	127 KB	maj 2026
C26-DT Bypassing Instructions uppdaterad: okt 2019		164 KB	okt 2019

Brochures

	Version	Språk	Storlek	Uppladdat
Control Contractor Brochure (2025) version A, uppdaterad: mar 2026	A		23 MB	mar 2026
Control Contractor Brochure (2026) uppdaterad: mar 2026			21 MB	mar 2026

Compliances

	Storlek	Uppladdat
JBL Control Series Passive Speakers DoC uppdaterad: dec 2019	179 KB	dec 2019
Control Contractor Series Declaration of Conformity uppdaterad: okt 2019	131 KB	okt 2019

Software

	Version	Storlek	Uppladdat
Ceiling Speaker System Worksheet version 2, släppt: feb 2020	2	11,3 KB	feb 2020
Distributed System Design (DSD) version 3.9, uppdaterad: nov 2025	3.9	612 KB	nov 2025

Simulation Data

	Version	Storlek	Uppladdat
JBL Pro ALL CLF Files version 12-10-21, uppdaterad: maj 2023	12-10-21	24 MB	maj 2023

Related Products

	Storlek	Uppladdat
Compatible Backcans for Control 26-DT uppdaterad: okt 2020	22,9 KB	okt 2020

Speaker Tunings

	Version	Storlek	Uppladdat
Commercial, CBT, and AWC Tunings 220616 version A, uppdaterad: maj 2023	A	557 KB	maj 2023

Install Guides

	Storlek	Uppladdat
Guide to Business Music uppdaterad: okt 2020	52,4 KB	okt 2020
CC Ceiling Speakers: Myth versus Reality uppdaterad: okt 2020	23,9 KB	okt 2020

Images

	Storlek	Uppladdat
Control 26-DT High Res Photo uppdaterad: okt 2020	954 KB	okt 2020

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Frequency Range	80 Hz - 20 kHz
Power Rating	See transformer taps
Transformer Taps	60W, 30W, 15W (& 7.5W @ 70V)
Coverage Angle	90° conical
Directivity Index (DI)	4.6 averaged 500 Hz to 4 kHz
Maximum SPL (1m)	106 dB (top 70V/100V tap)
Drivers	LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in)
Input Connectors	Screw locking barrier strip for bare wire
Outside Dimensions (H x Dia)	210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (each)	4.2 kg (10 lb)
Shipping Weight (pair)	9.7 kg (21 lb)
Sensitivity	89 dB (100 Hz - 10 kHz)
Safety Agency	In accordance with IEC60849 / EN60849.
Plenum Usage	Requires third-party plenum rated backcan
