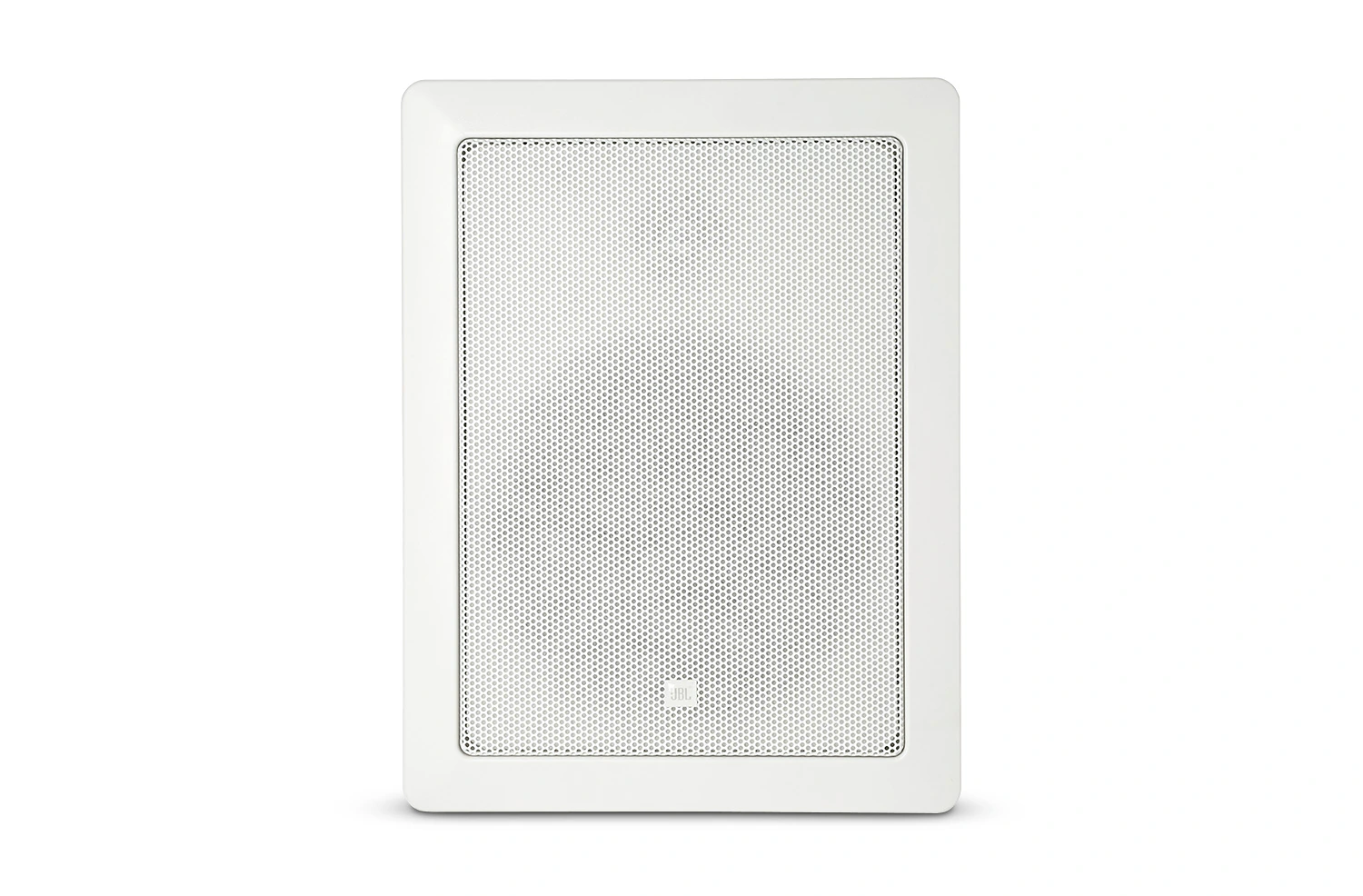

Control 126W är en premium inbyggd högtalare inom JBL Professional Control® Contractor-serien, designad för applikationer som förgrundmusik, styrelser, receptioner, flygplatser, kongresscentra, kryssningsfartyg, butiker, restauranger, museer, surroundplatser eller andra kritiska lyssningsapplikationer där högsta prestanda från en högtalare med minimal visuell påverkan krävs.
| Storlek | |
|
|
572 KB |
| Storlek | |
|
|
21 MB |
|
|
23 MB |
|
|
14 MB |
| Storlek | |
|
|
621 KB |
| Storlek | |
|
|
179 KB |
|
|
131 KB |
| Storlek | |
|
|
24 MB |
|
|
21 MB |
| Storlek | |
|
|
117 KB |
|
|
106 KB |
| Storlek | |
|
|
64,8 KB |
|
|
65,2 KB |
|
|
61,6 KB |
| Storlek | |
|
|
557 KB |
| Storlek | |
|
|
52,4 KB |
Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.
| Frequency Range | 38 Hz - 20 kHz (-10 dB) |
| Power Rating | 200 W Peak 100 W Continuous Program Power 50 W Continuous Pink Noise |
| Sensitivity | 88 dB SPL |
| Coverage Angle | 180°H x 160°V |
| Impedance | 8 ohms |
| Drivers | LF: 165 mm (6.5 in) polymer-coated aluminum cone HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability. |
| Input Connectors | Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2 |
| Crossover Network | 3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter. |
| Optimum Air Cavity Behind Speaker | 20 to 40 liters (0.7 to 1.4 cu ft) |
| Outside Dimensions (H x W x D) | 280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker. |
| Maximum Wall Thickness | 32 mm (1.25 in) |
| Cutout Size (H x W) | 246 x 181 mm (9.7 x 7.2 in) |
| Net Weight (each) | 2.1 kg (4.5 lb) |
| Shipping Weight (ea) | 126 W: 4.8 kg (10.5 lb) |
| Included Accessories | Cutout template & paint shield |
| Optional Accessories | WB6 Rough-In Frame for newconstruction installation to wallstuds |
Commercial audio designers and consultants have many choices when selecting the right manufacturer, product and solution to fulfill the unique requirements of each client’s particular installed audio application. The JBL Control Contactor Series was developed specifically to target these users with purpose-built ceiling, pendant, in-wall,
CONTINUE READING
