JBL Professional AM7212/64

Större bilder

High Power 12-inch 2-Way Loudspeaker with 60° x 40° Rotatable Horn

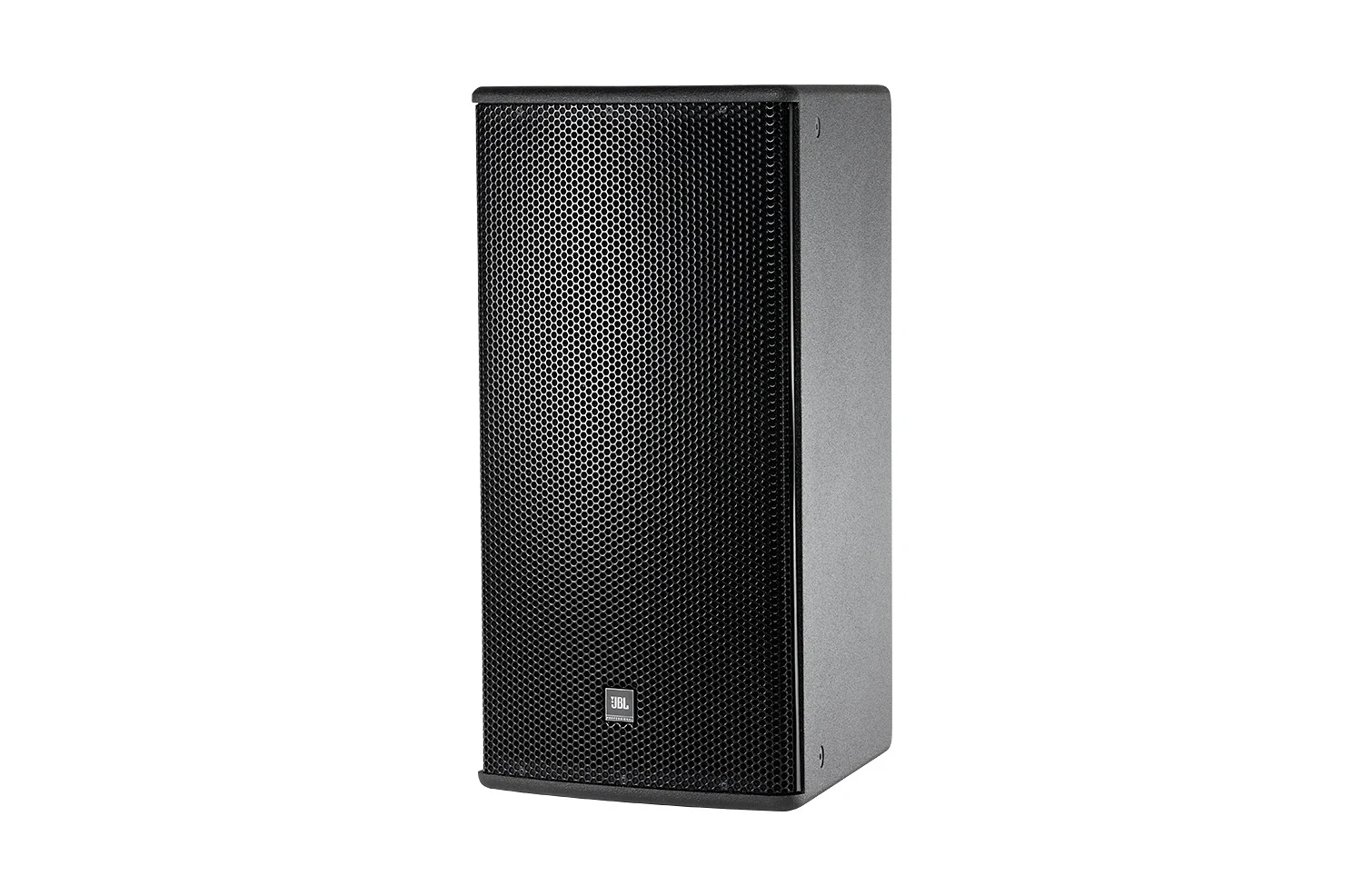

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Funktioner

60° x 40° täckning
2262H Differential Drive® lågfrekvensdriver
2432H högfrekvent kompressionsdriver
Stor PT™ Progressive Transition-vågledare för utmärkt mönsterkontroll och låg distorsion
Roterbar vågledare för vertikal eller horisontell orientering
Omkopplingsbar mellan bi-amp och passiv drift
FIR-inställningar för både bi-amp- och passivt läge ger optimerad frekvens- och fasrespons, jämn täckning och hög ljudkvalitet
Finns i svart, vit och WRC/WRX-finish

För att förbättra tillförlitligheten under olika väderförhållanden och minska vatteninträngning kan kabinettmåtten för WRC- och WRX-modeller skilja sig från standardmodellens mått. Kontakta CustomAudio@harman.com för ritningar och/eller måttinformation för WRC- och WRX-modeller.)

Nedladdningar

Specifications

	Storlek	Uppladdat
AM7212/64 Spec Sheet uppdaterad: okt 2020	530 KB	okt 2020

Manuals

	Version	Språk	Storlek	Uppladdat
AE Series Array Guide uppdaterad: jul 2024			1,12 MB	jul 2024
AE Series U-Bracket Handbook uppdaterad: jul 2024			597 KB	jul 2024
Weather Resistant Configurations version A, uppdaterad: maj 2023	A		86,1 KB	maj 2023
AE/PD Connector Pinout Guide uppdaterad: okt 2019			8,25 KB	okt 2019
Painting AE Loudspeaker Cabinets uppdaterad: mar 2025			115 KB	mar 2025

Brochures

	Språk	Storlek	Uppladdat
AE Series Brochure uppdaterad: okt 2020		4,05 MB	okt 2020
AM Brochure uppdaterad: okt 2020		1,54 MB	okt 2020
Loudspeakers for Sports Facilities uppdaterad: jul 2024		5,71 MB	jul 2024

CAD Drawings

	Version	Storlek	Uppladdat
AE Series - Customer Drawings version 2.0, uppdaterad: maj 2024	2.0	2,69 MB	maj 2024
AE Series - WR Models Customer Drawings version 3.0, uppdaterad: apr 2026	3.0	3,8 MB	apr 2026
AE Series - Revit/BIM Files version 11.0, uppdaterad: jul 2024	11.0	730 KB	jul 2024

Compliances

	Storlek	Uppladdat
AE Series - AM7000 Declaration of Conformity uppdaterad: okt 2020	146 KB	okt 2020

Simulation Data

	Version	Storlek	Uppladdat
Ease SPK/DLL Files - Full JBL Pro Line uppdaterad: maj 2024		21 MB	maj 2024
JBL Pro ALL CLF Files version 12-10-21, uppdaterad: maj 2023	12-10-21	24 MB	maj 2023

Preset Libraries

	Storlek	Uppladdat
AE Series DCi Series Preset Library uppdaterad: maj 2024	471 KB	maj 2024

Om någon av länkarna ovan resulterar i konstiga tecken i din webbläsare, högerklicka på filen för att spara den på din dator.

Reservdelar och service

Specifikationer

Frequency Range (-10dB)	36 Hz - 20 kHz
Frequency Response (±3 dB)	42 Hz - 18 kHz
Coverage	/64: 60° x 40°/66: 60° x 60°/95: 90° x 50°/00: 100° x 100°/26: 120° x 60°
LF Driver	1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
HF Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
System Type	12" Two - Way, High Power, Full - Range
Dimensions (H x W x D)	711 x 369 x 458 mm (28 x 14.5 x 18 in)
Net Weight (each)	23.1 kg (51 lb)
Crossover Modes	Bi-amp/Passive switchable
Passive Crossover Frequency	1.8 kHz
Transducer Power Rating (AES)	LF: 1000 W (4000 W peak), 2 hr700 W (2800 W peak), 100 hrsHF: 100 W (400 W peak), 2 hrs
System Power Rating	Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (1m)	Bi-amp mode:LF: 126 dB-SPL cont avg (132 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Passive mode:123 dB-SPL cont avg (129 dB peak)
System Sensitivity (1w @ 1m)	Passive mode: 95 dB SPL
Nominal Impedance	8 ohms
Nominal LF Driver Impedance	8 ohms
Nominal HF Driver Impedance	8 ohms
Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment	15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Environmental	Mil-Std 810; IP-x3 per IEC529.
