VTX V20 AF

ARRAY FRAME

VTX V20 AF
Imagens maiores

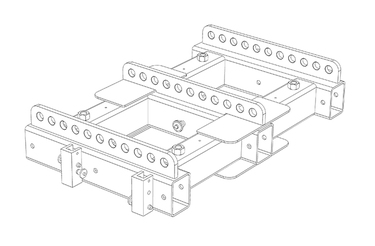

Array Frame used for suspending or ground stacking VTX V20 or VTX S25 enclosures. Includes height-adjustable leveling feet, optional extension bar available.
Features:
  • Compatible with VTX V20 and VTX S25
  • 11 pick points available for single point suspension
  • Flexible front-to-back or side-by-side pick point options
  • Supports up to 24 cabinets (array geometry dependent)
Included:
  • VTX-V20-AF Array Frame
  • 4 x adjustable feet for ground stacking applications

Descarregamentos

Data Sheets
  Tamanho Carregado
file type icon VTX V20 AF Spec Sheet
atualizado: out 2020
700 KB out 2020
CAD Drawings
  Versão Tamanho Carregado
file type icon VTX V20 AF EB 2D Drawing
atualizado: dez 2020
  500 KB dez 2020
file type icon VTX V20 AF 3D Drawing
atualizado: jan 2020
  3 MB jan 2020
file type icon VTX V20/S25 Revit Files
versão 1.0, atualizado: out 2022
1.0  20 MB out 2022
file type icon VTX V20/S25 Sketchup Files
versão 1.0, atualizado: out 2022
1.0  2 MB out 2022
