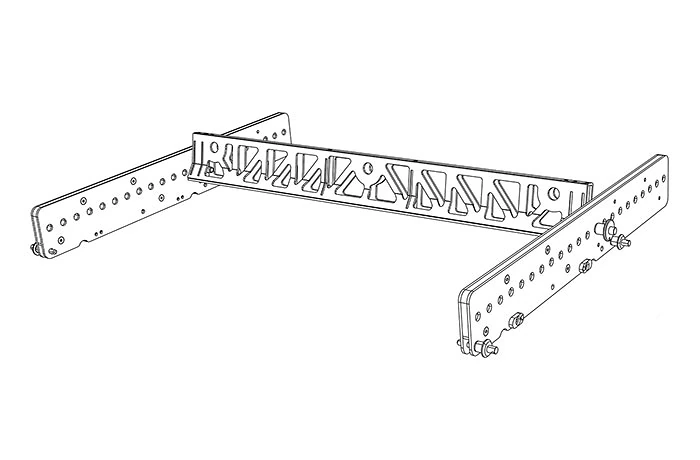

VTX A8 MF

Mini Frame

Imagens maiores

Highlights:

  • Compact and lightweight design
  • Compatible with VTX A8 and VTX B18 enclosures
  • Single-point and side-by-side pick-point options
  • 0.5-degree pick-point resolution
  • 3-part collapsible design
  • Compatible shackle size: 1/2 in

Included:

  • (1) VTX A8 MF Mini Frame
  • (2) 1/2 in Shackles

Descarregamentos

Data Sheets
  Tamanho Carregado
file type icon VTX A8 MF Spec Sheet
atualizado: jan 2021
1 MB jan 2021
CAD Drawings
  Versão Tamanho Carregado
file type icon VTX A8 MF Customer Drawings
atualizado: out 2020
  4 MB out 2020
file type icon VTX A8/B18 Revit/BIM Files
versão 2.0, atualizado: jul 2024
2.0  30 MB jul 2024
file type icon VTX A8/B18 Sketchup Files
versão 2.0, atualizado: out 2022
2.0  2 MB out 2022

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.
