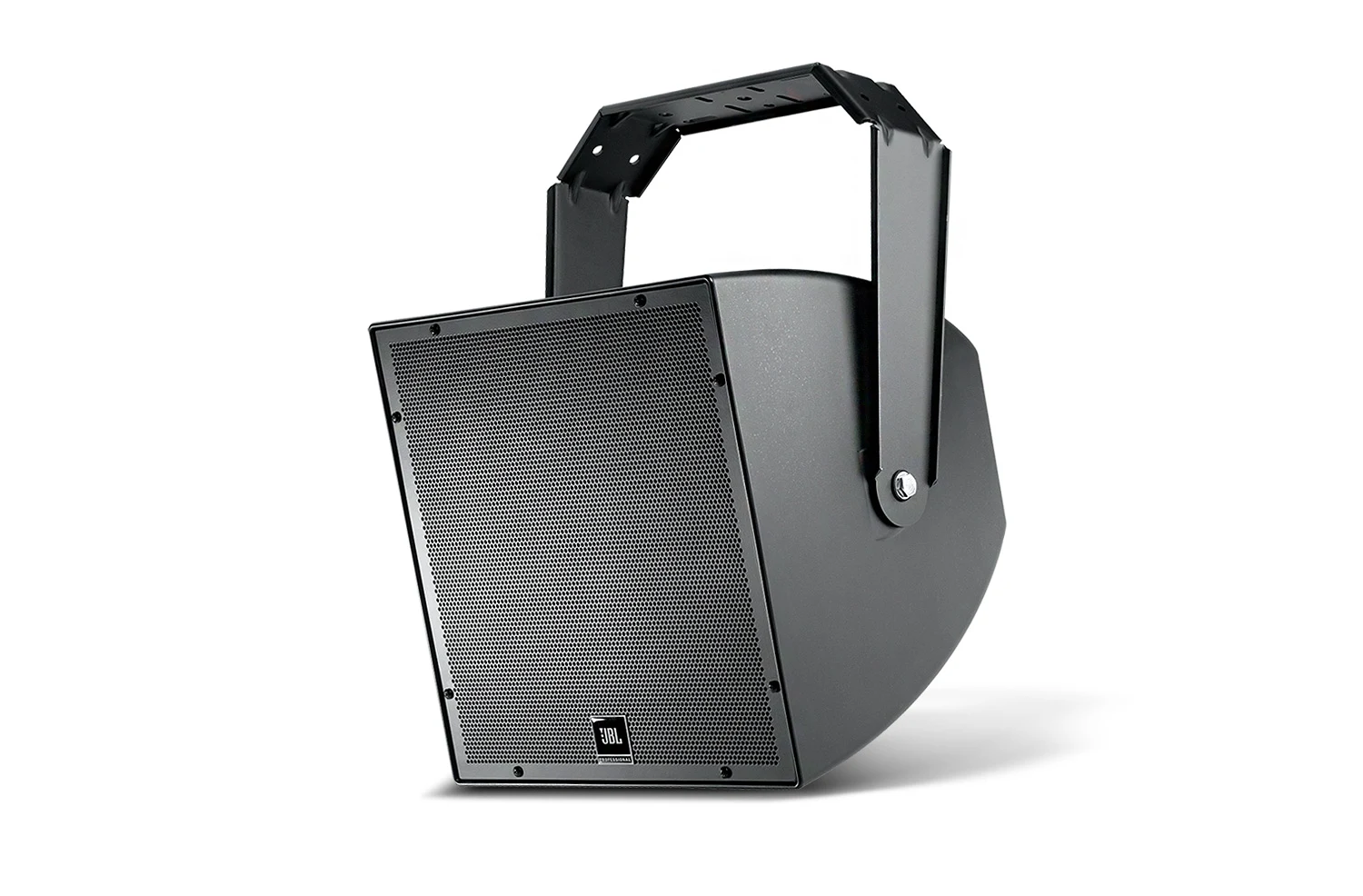

O SCS 12 é um altifalante surround de cinema de gama completa coaxial de 2 vias, ideal para formatos surround multicanal e foi concebido tanto para instalação no tecto como para instalações convencionais na parede.
| Tamanho | |
|
|
600 KB |
| Tamanho | |
|
|
100 KB |
Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.
| Frequency Range (±3 dB) | 70 Hz – 20 kHz |
| Frequency Range (-10dB) | 55 Hz – 20 kHz |
| Coverage Pattern | 100° x 100° |
| Directivity Factor (Q) | 10.1 (1 k – 16 kHz) |
| Directivity Index (DI) | 9.5 dB (1k – 16 kHz) |
| Power Rating | 400 W (1600 W peak), 2 hrs. 250 W (1000 W peak), 100 hrs |
| Sensitivity | 96 dB (Ave. 70 Hz – 20 kHz) |
| Maximum SPL (1m) | 122dB (peaks of 128 dB) |
| Crossover Network | 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF |
| Nominal Impedance | 8Ω |
| LF Driver | Kevlar-reinforced cone, 75 mm (3 in) voice coil. |
| HF Driver | 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluidcooling. |
| HF Driver Protection | Minimum audibility SonicGuard™ HF overload protection |
| Enclosure | ABS with Glass enclosure, heavily braced |
| Attachment | Two M10 points for included U-bracket. M6 secondary safety attachment point on back panel. |
| Grille | Corrosion-resistant zinc-rich steel grille. |
| Dimensions | 402 x 402 x 445 mm (15.8 x 15.8 x 17.5 in), cabinet 470 mm (18.5 in) depth with gland nut 502 mm (19.75 in) including bracket extending to back |
| Colors | Black |
| Net Weight (each) | 14.0 kg (31.0 lb), 16.8 kg (37.0 lb) with U-Bracket |
| Shipping Weight | 19.5 kg (43.0 lb) |
| Included Accessories | U-bracket, Steel |
| Horizontal Coverage Angle (-6dB) | 100° |
| Vertical Coverage Angle (-6dB) | 100° |
| Power Handling (2Hr AES Rating) | 400 W |
