JBL Professional PRX612M

Imagens maiores

Sistema de Reforço de Som Autoamplificado Multiusos de Duas Vias de 12 pol.

O PRX612M é o altifalante mais compacto e versátil da Série PRX600. Foi concebido para oferecer o desempenho máximo relativamente ao seu peso e tamanho, tanto como monitor de palco como sistema PA principal de front of house.

Características

Maximum SPL 134db peak
Dual purpose enclosure for both front-of house and floor monitor applications
Eight M10 fly points for horizontal or vertical suspension. One M10 pull-back point
Optimized EQ for monitor or front-of-house applications
305mm (12 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
37.5mm (1.5 in) annular polymer diaphragm, neodymium, compression driver
1000 Watt (Dual 500 watt) Class-D, Crown® amplifier
DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
Professional XLR line and ¼" Mic/Instrument inputs, with loop through
Dual-angle pole mount socket

Applications

PRX612M is the most compact and versatile speaker in the PRX600 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX612M is a perfect match with a PRX618S subwoofer, offering a high performance self-powered
sub/sat system.
The PRX612M is comprised of a 305 mm (12in) 262F-1 Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1000 watt (dual 500 watt) Crown® Class-D digital power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
1000 lbs. each.
The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob.

Descarregamentos

Specifications

	Tamanho	Carregado
PRX612M Spec Sheet atualizado: out 2020	400 KB	out 2020

Manuals

	Idioma	Tamanho	Carregado
PRX600 Users Guide - French atualizado: out 2020		4 MB	out 2020

Brochures

	Tamanho	Carregado
PRX600 Brochure atualizado: out 2020	1 MB	out 2020

CAD Drawings

	Tamanho	Carregado
PRX600 Drawings 2D & 3D atualizado: out 2020	5 MB	out 2020

User Guides

	Tamanho	Carregado
PRX600 Users Guide atualizado: out 2020	5 MB	out 2020

Images

	Tamanho	Carregado

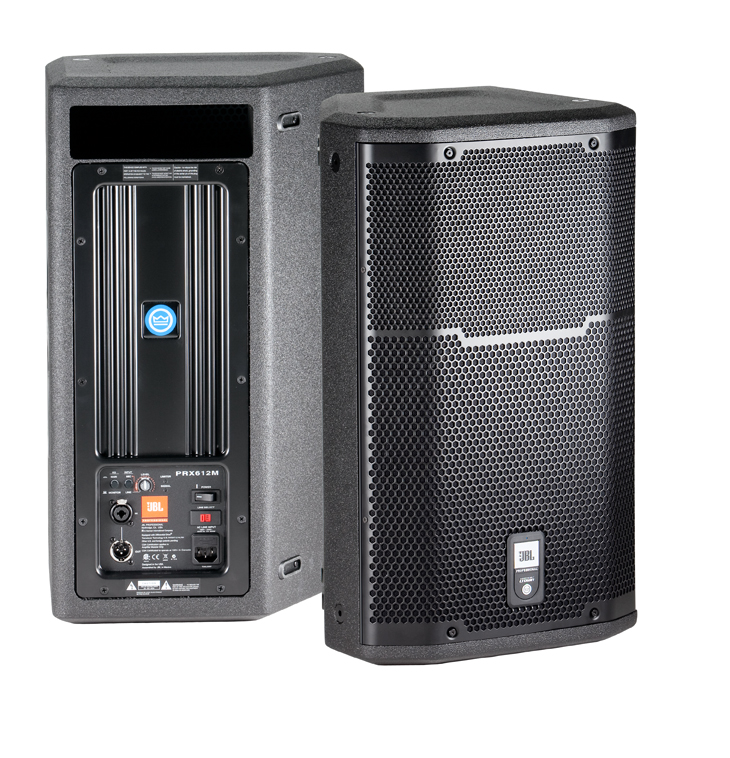

PRX612M Front-Back atualizado: out 2020	400 KB	out 2020

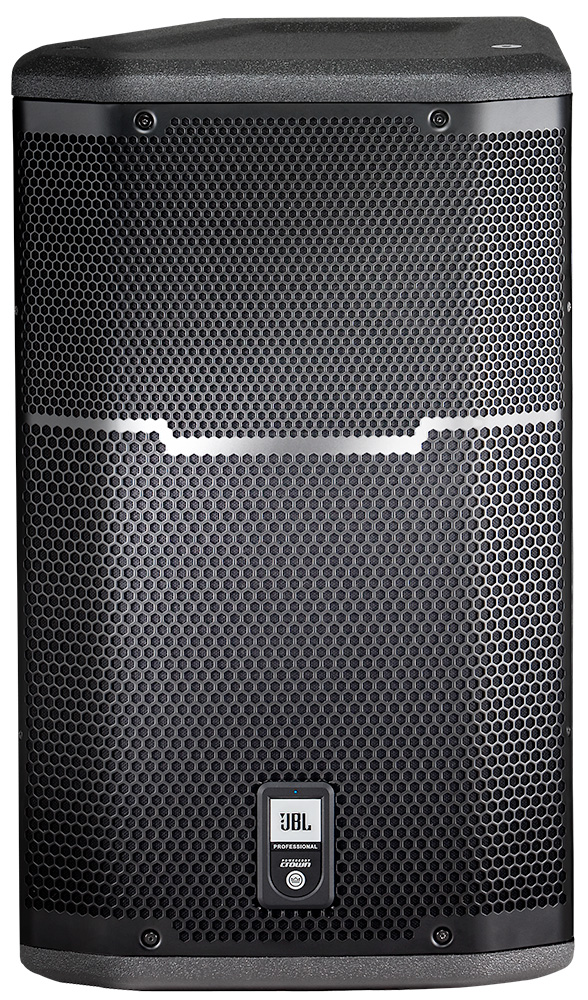

PRX612M Front atualizado: out 2020	400 KB	out 2020

Ease Data

	Tamanho	Carregado
PRX 600 Ease Data atualizado: out 2020	200 KB	out 2020

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

System Type	Self-powered 12", two-way, bass-reflex
Maximum SPL Output	Full Range: 134 dB peakMonitor: 133 dB peak
Gama de Frequências (-10 dB)	Full Range: 50 Hz – 19.5 kHzMonitor: 51 Hz – 19.5 kHz
Resposta em Frequência (±3 dB)	Full Range: 60 Hz – 17.5 kHzMonitor: 61 Hz – 18.5 kHz
Coverage Pattern	90º x 50º nominal
Amp Design	Crown® Class D
Power Rating	1000 W ( 2 x 500 )
Dimensions (H x W x D)	592 mm x 353 mm x 340 mm ( 23.3 in x 13.9 in x 13.4 in )
Peso Líquido	15.6 kg ( 34.5 lb )
