JBL Professional MD3

Imagens maiores

High Power Dual 15" Low Frequency Loudspeaker

JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market. MD3 is a dual 15" lowfrequency system utilizing dual 2265H Differential Drive transducers in a horn-loaded enclosure providing high-output frequency response from 300 Hz down to 80 Hz. The MD3 is intended to be used in conjunction with the MD1 super tweeter, MD2 mid-high system, and MD7 ultra high-output subwoofer system. When all elements are combined they complete a high energy five-way dance system with unprecedented fidelity, clarity, and breathtaking purity.

Características

Dual JBL 2265H 3” dual voice coil – dual magnetic gap Differential Drive® woofers
1600 watts continuous pink noise, 6400 watts peak power handling
Low Distortion
High Fidelity

Applications

Sophisticated dance clubs
Anywhere high energy dance music is required

Descarregamentos

Documentos

	Idioma	Tamanho	Carregado
Marquis Dance Brochure atualizado: abr 2026		500 KB	abr 2026
MD3 Spec Sheet atualizado: abr 2026		500 KB	abr 2026

Data Sheets

	Tamanho	Carregado
MD3 Spec Sheet atualizado: out 2019	500 KB	out 2019

Specifications

	Tamanho	Carregado
Marquis Dance Club Series Spec Sheets atualizado: jul 2019	4 MB	jul 2019

Brochures

	Tamanho	Carregado
Marquis Dance Club Series Brochure atualizado: jul 2019	500 KB	jul 2019

CAD Drawings

	Tamanho	Carregado
Marquis Dance Series Customer Drawings PDF atualizado: out 2019	200 KB	out 2019
Marquis Dance Series 3D DXF Drawings atualizado: out 2019	10 MB	out 2019
Marquis Dance Series 2D DXF Drawings atualizado: out 2019	600 KB	out 2019

Compliances

	Tamanho	Carregado
Marquis Dance Club Series Declaration of Conformity atualizado: out 2019	100 KB	out 2019

Speaker Tunings

	Tamanho	Carregado
Marquis Dance Club Series Tunings atualizado: out 2019	1 MB	out 2019

Images

	Tamanho	Carregado

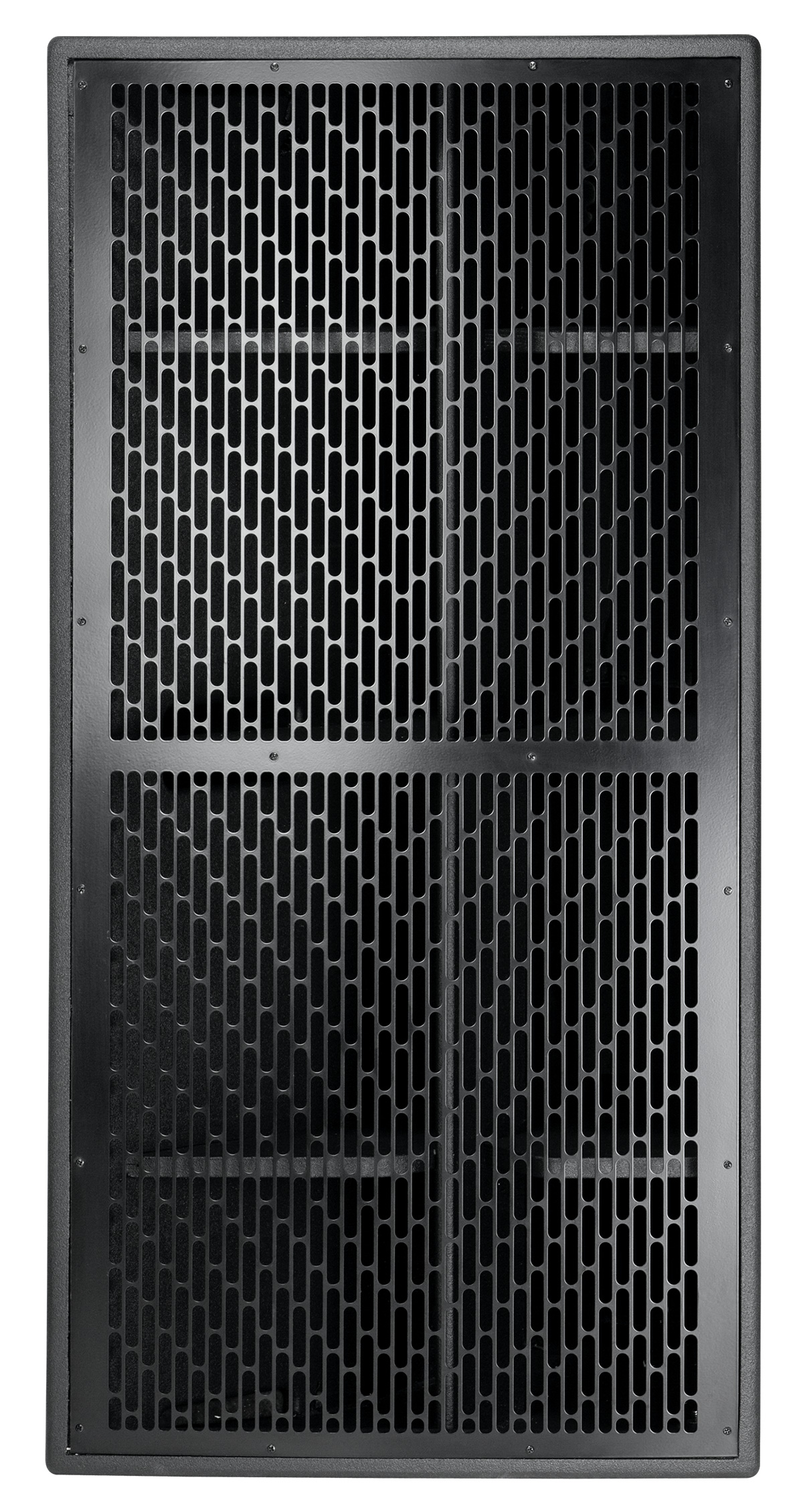

MD3 Hi-Res Image 2 atualizado: jul 2019	800 KB	jul 2019

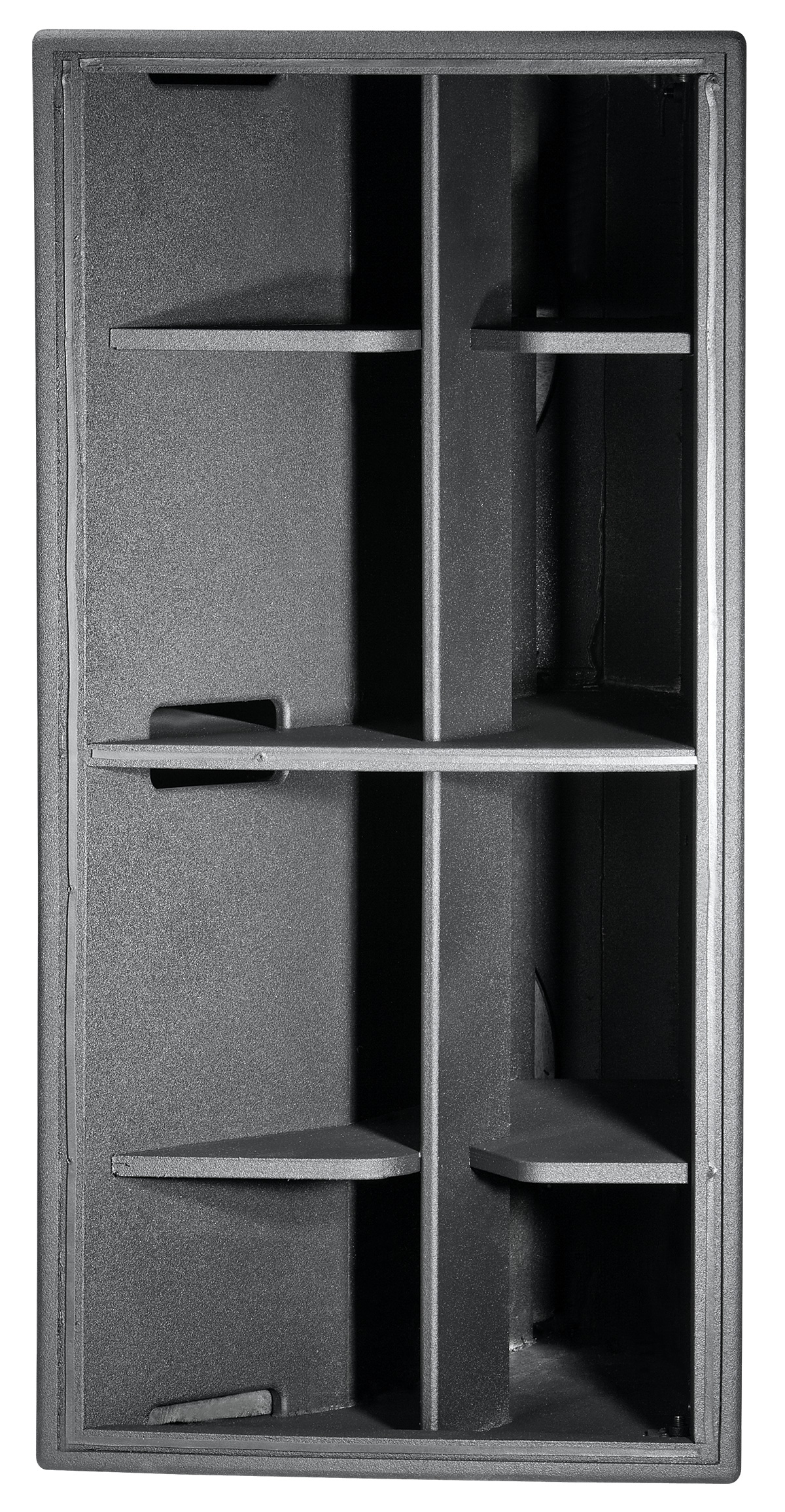

MD3 Hi-Res Image atualizado: jul 2019	1 MB	jul 2019

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

Frequency Range (-10dB)	70 - 415 Hz
Power Rating	1600 W (6400 W peak), 2 hrs
Frequency Response (±3 dB)	50 - 310 Hz
Maximum SPL (1m)	136 dB-SPL cont av (142 dB peak)
System Sensitivity	112 dB SPL, 2.83V (2W) @ 1m (3.3 ft)
Nominal Impedance	4 ohms in parallel-drive mode2 x 8 ohms in discrete-drive mode
LF Driver	2 x 2265H, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® drivers
Enclosure	Cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish	Black DuraFlex™ finish
Grille	Powder coated 14 gauge perforated steel
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Dimensions (H x W x D in vertical orientation)	1143 x 599.8 x 762.5 mm (45 x 22 x 30 in)
Net Weight	73 kg (161 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers
