GSF3

Coax 3" Full-Range Landscape Loudspeaker

GSF3
Imagens maiores

Coaxial 3" Full-Range Landscape Loudspeaker
The compact, weather-resistant JBL GSF3 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 3-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 15-watt multi-tap transformer for use on 70V/100V distributed systems, and is switchable for 8-ohm direct operation.

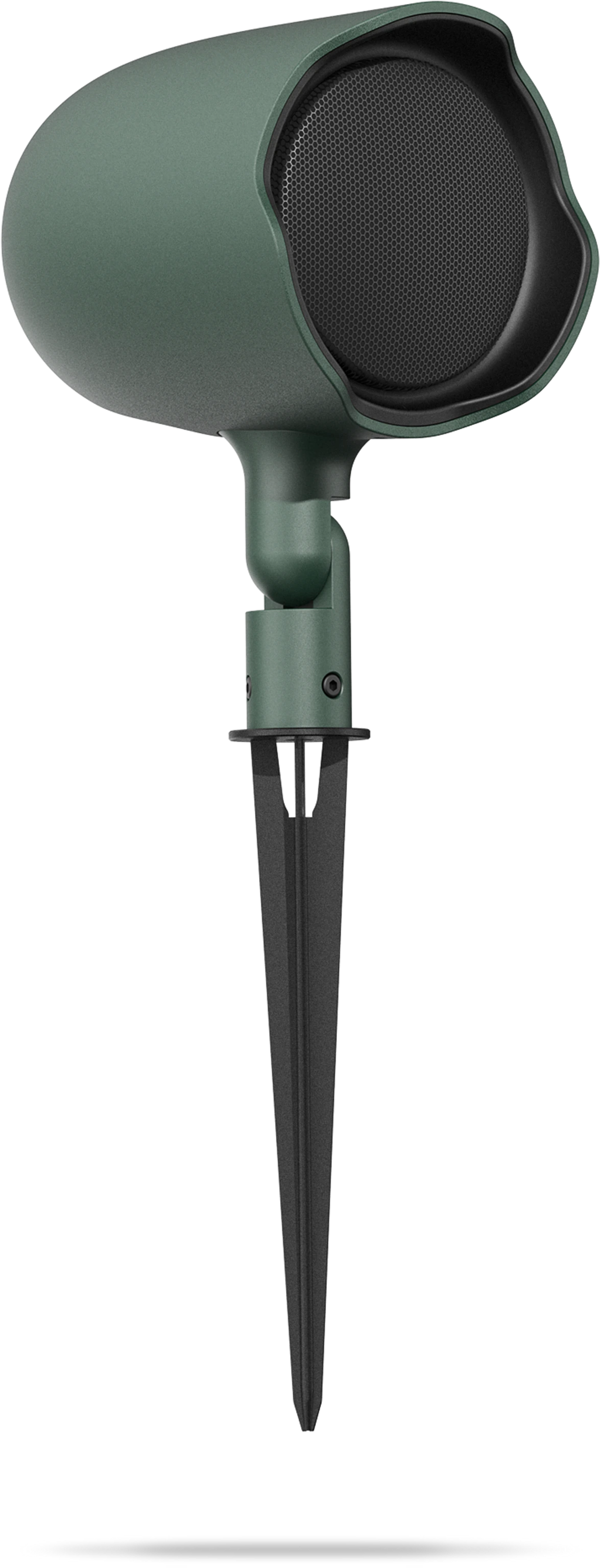

Versatile mounting options include an included ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces. A low-profile, unobtrusive speaker, the GSF3 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.

The elegant, discreet GSF3—winner of international design awards for industrial design excellence—is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.

Características

  • Transducers: 83 mm (3”) woofer with polypropylene cone and 25 mm (1”) voice coil on Kapton voice coil former; 20 mm (0.8 in) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former.
  • Frequency range: 74 Hz – 20 kHz
  • Power handling (at 8Ω setting): 30W continuous pink noise, 60W continuous program
  • IP66 rated against water and dust ingress
  • Multi-tap 15W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems
  • Bottom drip hole provides drainage for drivers
  • Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
  • Aimable via adjustable hinge
  • Includes ground stake and L-bracket for surface mounting
  • Includes tap selector located on bottom of speaker, away from water incursion
  • Available in hunter green or tan finish

Descarregamentos

Specifications
  Idioma Tamanho Carregado
file type icon GSF3 Spec Sheet
en atualizado: mar 2025
en  700 KB mar 2025
Brochures
  Versão Idioma Tamanho Carregado
file type icon Control Contractor Brochure (2024)
en versão D, atualizado: fev 2024
en  10 MB fev 2024
CAD Drawings
  Versão Idioma Tamanho Carregado
file type icon GSF3 2D and 3D Drawings
en versão B, atualizado: jul 2023
en  5 MB jul 2023
BIM Objects
  Tamanho Carregado
file type icon GSF3 BIM Object
atualizado: abr 2024
abr 2024
Declaration of Conformity
  Idioma Tamanho Carregado
en  100 KB jul 2023
Install Guides
  Tamanho Carregado
file type icon GSF3 - Install Guide
atualizado: jan 2023
500 KB jan 2023
Speaker Tunings
  Versão Tamanho Carregado
  100 KB out 2025
file type icon Commercial, CBT, and AWC Tunings 220616
versão A, atualizado: mai 2023
600 KB mai 2023
CLF Files
  Tamanho Carregado
file type icon GSF3 - CLF File
atualizado: mai 2023
300 KB mai 2023
EASE Files
  Tamanho Carregado
file type icon GSF3 - EASE File
atualizado: fev 2026
90 KB fev 2026

Se algum dos links acima resultar em caracteres estranhos no seu navegador, clique com o botão direito no ficheiro para o guardar no seu computador.

Peças e serviço

Especificações

Frequency Range (-10dB) 74 Hz – 20 kHz
Frequency Response (+/-3 dB) 120 Hz – 15 kHz
Power Rating 60 W Continuous Program (2 hrs)
30 W (120 W Peak), Continuous Pink Noise (2 hrs)
20 W (80 W Peak), Continuous Pink Noise (100 hrs)
Sensitivity 84 dB (43 Hz - 110 Hz)
Maximum SPL 103 dB peak (95 dB continuous, 2 hr) @ 1m
Coverage Pattern 90° conical
Nominal Impedance 8 Ω (at 8Ω tap)
Transformer Taps 70V: 15 W, 7.5 W, 3.75 W
100V: 15 W, 7.5 W
Drivers
  • 83 mm (3 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton™ voice coil former
  • 20 mm (0.8 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former
Terminals Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
Enclosure Material Polycarbonate + ABS, UL94V-0 flammability rated
Color Pine Green RAL 6028, or Beige Grey RAL 7006
Dimensions Cabinet 132 mm diameter x 167 mm deep (5.2 x 6.6 in). Assembly height 289 mm (11.4 in) with L-bracket base (at 90°) and 430 (17.0 in) with ground stake base
Net Weight 1.7 kg (3.8 lbs)
Included Accessories (1) Ground Stake Bracket; (1) L-Bracket
Directivity Factor (Q) 7.9
Directivity Index (dB) 9 dB
